NO9PMNTUAWireless Crane Control

Operating Instructions PM NTU Radio Transmitter BE-PM_NTU-US-L_V2-2.DOC [ Word 2000 ] FL Page 1 / 16 HBC-radiomatic, Inc. , Cincinnati , Ohio 45242 , USA Information and specifications subject to change without notice. 2001-07-27 Radio Control System HBC – Radio Control P P M M N N T T U U R R a a d d i i o o T T r r a a n n s s m m i i t t t t e e r r made for Operating Instructions PM NTU Radio Transmitter Page 2 / 16 BE-PM_NTU-US-L_V2-2.DOC [ Word 2000 ] FL HBC-radiomatic, Inc. , Cincinnati , Ohio 45242 , USA 2001-07-27 Information and specifications subject to change without notice. Radio Control System Manufactured by : HBC-radiomatic GmbH Haller Strasse 49 - 53 74564 Crailsheim • GERMANY Telephone : +49 ( 0 ) 79 51 – 3 93 - 0 Fax : +49 ( 0 ) 79 51 – 3 93 – 50 E-mail : [email protected] http://www.hbc-radiomatic.com Distributed by : HBC-radiomatic, Inc. 4480 Lake Forest Drive, Suite 306 Cincinnati, OH 45242, USA Telephone : ( 513 ) – 7 33 – 49 00 Fax : ( 513 ) – 7 33 – 49 03 HBC-radiomatic GmbH is not liable for any misprints or errors! – All rights reserved. ™ HBC-radiomatic is a registered American trademark. © 2001 – 07 , HBC-radiomatic GmbH , 74564 Crailsheim , Germany No part of any software or of the present document may be reproduced in any manner whatsoever without the expressed written permission of HBC-radiomatic GmbH. Operating Instructions PM NTU Radio Transmitter BE-PM_NTU-US-L_V2-2.DOC [ Word 2000 ] FL Page 3 / 16 HBC-radiomatic, Inc. , Cincinnati , Ohio 45242 , USA Information and specifications subject to change without notice. 2001-07-27 Radio Control System Table of Contents 1 Description......................................................................................4 2 Safety Instructions..........................................................................5 2.1 Pictographs..........................................................................................5 2.2 General Safety Instructions.................................................................6 2.3 Operator Safety Instructions..............................................................7 3 Operating Instructions...................................................................8 User Defined Teaching............................................................................................9 3.1 Battery and Battery Charger............................................................10 3.1.1 FuB 10 AA Transmitter Battery............................................................10 3.1.2 FLG 102 Battery Charger......................................................................10 3.2 Special Operating Modes ( Optional )................................................11 3.2.1 Scanner ( Frequency Selection ) Option..................................................11 3.2.2 Cable Control Option.............................................................................12 4 Trouble-Shooting..........................................................................13 5 Maintenance..................................................................................14 5.1 In The Event of a Fault.....................................................................14 6 Technical Data..............................................................................15 6.1 Dimensions of the PM NTU...............................................................16 Operating Instructions PM NTU Radio Transmitter Page 4 / 16 BE-PM_NTU-US-L_V2-2.DOC [ Word 2000 ] FL HBC-radiomatic, Inc. , Cincinnati , Ohio 45242 , USA 2001-07-27 Information and specifications subject to change without notice. Radio Control System 1 Description The PM NTU transmitter is designed to transmit command instructions for controlling construction, industrial and mobile cranes, hoists and machines. Depending on the type and version selected, up to 32 digital or 8 analog + 24 digital control commands plus the integrated safety commands are available to the operator. A non-interchangeable system address ensures the functional safety of the radio control system when operating cranes or machines. This feature is particularly important when several cranes or machines are in use, for example in halls and shops. The system address is exclusively allocated to each HBC radio transmitter and its respective receiver. It is not possible to activate crane or machine functions using a radio control system allocated to another crane or machine. The transmitter has general telecommunications approvals. It is not necessary to have or to apply for a license to operate the transmitter with the respective receiver. The transmitter broadcasts in either a 30 cm or 70 cm bandwidth. The transmitter is equipped with < 10 mW transmitting power. Operating the PM NTU transmitter using a different frequency range or transmitting power requires the approval of the competent regulative authorities for telecommunication. The radio control system consists of the PM NTU transmitter, two rechargeable NiCd batteries, a battery charger and a receiver with antenna. The transmitter housing with integrated antenna is made of glass-fiber reinforced plastic. State of the art radio technology complying with the latest guidelines of the FCC and the use of highly developed microprocessor technology guarantees optimal operating safety, availability and longevity. The following radio receivers may be used in conjunction with the PM NTU transmitter: − FSE 722 B − FSE 735 − FSE 770 Note : The improper use, operation or deployment of the device renders the manufacturer guarantee void of any legal substance ! Operating Instructions PM NTU Radio Transmitter BE-PM_NTU-US-L_V2-2.DOC [ Word 2000 ] FL Page 5 / 16 HBC-radiomatic, Inc. , Cincinnati , Ohio 45242 , USA Information and specifications subject to change without notice. 2001-07-27 Radio Control System 2 Safety Instructions 2.1 Pictographs The following pictographs will be used throughout the present operating instructions : Indicates…

Text truncated - open the document above for the full version.

HBC-radiomatic, GmbH - Haller Strasse 49-53 - D-74564 Crailsheim - Deutschland PH USA: (513) 733-4900 - FX USA: (513) 733-4903 - www.hbc-radiomatic.com - e-mail: [email protected] radiomatic ® radiobus ®® Standard for Excellence Attn: Reviewing Engineer Federal Communications Commision 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR HBC-RADIOMATIC’S APPLICATION FOR GRANT OF EQUIPMENT AUTHORIZATION FOR THE PMNTU-FH TRANSMITTER N09PMNTUA To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams required to be submitted with this application for the PMNTU-FH transmitter (FCC ID: N09PMNTUA) be withheld from public review. Due to the competitive nature of our industry, a public viewing of these schematics could allow our competitors an unfair advantage in illegally reproducing our technology. Please contact me if there is any information you may need. Sincerely, Jason F. Looman Vice President of Operations, N.A. HBC-radiomatic, GmbH Haller Strasse 49-53 D-74564 Crailsheim Deutschland

HBC-radiomatic, GmbH - Haller Strasse 49-53 - D-74564 Crailsheim- Deutschland PH USA: (513) 733-4900 - FX USA: (513) 733-4903 - www.hbc-radiomatic.com - e-mail: [email protected] radiomatic ® radiobus ®® Standard for Excellence Attn: Reviewing Engineer Federal Communications Commision 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. To act on our behalf in all matters relationg to aplication for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year form the current date. Sincerely, Jason F. Looman Marketing and Sales Manager, NA HBC-radiomatic, GmbH Haller Strasse 49-53 D-74564 Crailsheim Deutschland

File: PM-NTU-von-unten.CDR [ CorelDRW 8.0 ] 2001-05-18 FL HBC-radiomatic GmbH Tel.: +49(0)7951/393-0 Made in Germany HBC-Remote-Control made for PM Prod.Code: PMNTU-FH Transmitter Ser.No.: 735- IP55 / Nema 4 Voltage: 6V DC Frequency (MHz): 902,000918,000 Frequency Block: FCC ID: NO9PMNTUA CANADA: YYYY YYY YYYY – This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

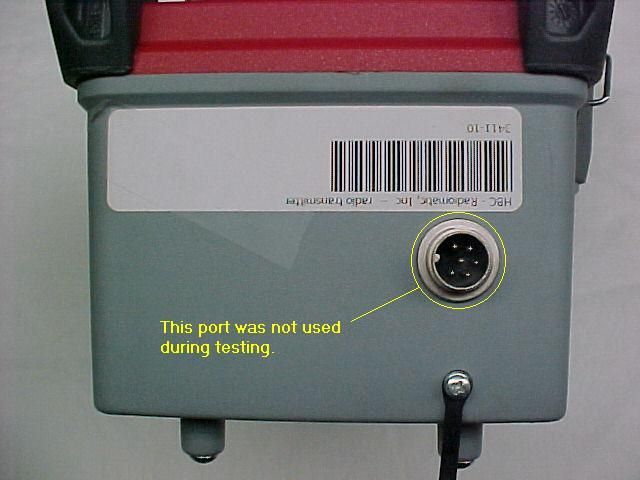

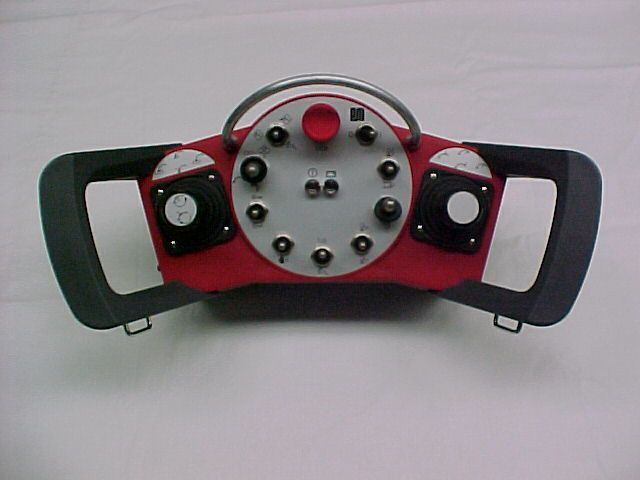

Operating Instructions PM NTU Radio Transmitter Page 4 / 16 BE-PM_NTU-US-L_V2-2.DOC [ Word 2000 ] FL HBC-radiomatic, Inc. , Cincinnati , Ohio 45242 , USA 2001-07-27 Information and specifications subject to change without notice. Radio Control System 1 Description The PM NTU transmitter is designed to transmit command instructions for controlling construction, industrial and mobile cranes, hoists and machines. Depending on the type and version selected, up to 32 digital or 8 analog + 24 digital control commands plus the integrated safety commands are available to the operator. A non-interchangeable system address ensures the functional safety of the radio control system when operating cranes or machines. This feature is particularly important when several cranes or machines are in use, for example in halls and shops. The system address is exclusively allocated to each HBC radio transmitter and its respective receiver. It is not possible to activate crane or machine functions using a radio control system allocated to another crane or machine. The transmitter has general telecommunications approvals. It is not necessary to have or to apply for a license to operate the transmitter with the respective receiver. The transmitter broadcasts in either a 30 cm or 70 cm bandwidth. The transmitter is equipped with < 10 mW transmitting power. Operating the PM NTU transmitter using a different frequency range or transmitting power requires the approval of the competent regulative authorities for telecommunication. The radio control system consists of the PM NTU transmitter, two rechargeable NiCd batteries, a battery charger and a receiver with antenna. The transmitter housing with integrated antenna is made of glass-fiber reinforced plastic. State of the art radio technology complying with the latest guidelines of the FCC and the use of highly developed microprocessor technology guarantees optimal operating safety, availability and longevity. The following radio receivers may be used in conjunction with the PM NTU transmitter: − FSE 722 B − FSE 735 − FSE 770 Note : The improper use, operation or deployment of the device renders the manufacturer guarantee void of any legal substance !

Report of Equipment Authorization for the HBC-Radiomatic, Inc. Certified under the FCC Rules contained in Title 47 of the CFR, Part 15, Subpart C Section 15.247 as an Frequency Hopping System MET REPORT EMC10971 November 20, 2001 PREPARED FOR: HBC-Radiomatic, Inc. 4480 Lake Forest Drive, Suite 306 Cincinnati, OH 45242 PREPARED BY: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, Maryland 21230-3432 November 20, 2001 HBC-Radiomatic, Inc. 4480 Lake Forest Drive Suite 306 Cincinnati, OH 45242 Attention:Mr. Jason Looman Regarding: Certification of the Ergonic under Part 15, Subpart C, Section 15.247 of the FCC Rules as a Frequency Hopping System MET Report: EMC10971 Dear Mr. Looman: Enclosed is your report of compliance presented on behalf of HBC-Radiomatic, Inc. for the certification of their Model: Ergonic. Based on these results, MET Laboratories, Inc. certifies that the Ergonic, tested as configured, meets the requirements and interference limitations contained in Section Part 15, Subpart C, Section 15.247, of Title 47 of the Code of Federal Regulations for an Frequency Hopping System. If you have any questions concerning this report or your responsibilities as a manufacturer of Certified equipment, please contact us at your convenience. Thank you for using MET's testing services. Sincerely, . Marianne T. Bosley EMC Administrator MET Laboratories, Inc Report of Equipment Authorization for the ERGONIC Certified under the FCC Rules contained in Title 47 of the CFR, Part 15, Subpart C, Section 15.247 FCC ID: NO9PMNTUA MET REPORT EMC10971 November 20, 2001 Prepared for: HBC-Radiomatic, Inc. 4480 Lake Forest Drive, Suite 306 Cincinnati, OH 45242 Prepared by: MET Laboratories 914 West Patapsco Avenue Baltimore, Maryland 21230 _________________________ Liming Xu Project Engineer _____________________________ Chris Harvey EMC Lab Director FCC ID: NO9PMNTUA November 20, 2001- 2 -EMC10971 TABLE OF CONTENTS COVER LETTER LEGAL STATEMENT....................................................................4 EXHIBIT 1.............................................................................5 MANUFACTURER & PRODUCT INFORMATION.......................................6 ENGINEERING STATEMENT......................................................6 SUMMARY OF TEST RESULTS.....................................................7 SUMMARY OF TEST DATA........................................................7 EXHIBIT 2.............................................................................8 INTRODUCTION.................................................................9 TEST SITE......................................................................9 MEASUREMENT PROCEDURES....................................................9 MODIFICATIONS STATEMENT...................................................10 INSTRUMENTATION............................................................10 EUT DESCRIPTION..............................................................10 TEST CONFIGURATION..........................................................11 PHOTOGRAPH OF TESTS CONFIGURATION.........................................12 EXHIBIT 3............................................................................13 RADIATED EMISSIONS..........................................................14 BANDWIDTH MEASUREMENTS...................................................15 PEAK OUTPUT POWER..........................................................16 BAND-EDGE COMPLIANCE OF RF CONDUCTED EMISSIONS..........................17 SPURIOUS RF CONDUCTED EMISSIONS............................................18 FCC ID: NO9PMNTUA November 20, 2001- 3 -EMC10971 LEGAL STATEMENT While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo in this report reflects the MET Accreditation under the NVLAP Program, these letters, logo, or Statements do not claim product endorsement by NVLAP or any Agency of the U.S. Government. Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. FCC ID: NO9PMNTUA November 20, 2001- 4 -EMC10971 EXHIBIT 1 MANUFACTURER & PRODUCT INFORMATION ENGINEERING STATEMENT SUMMARY OF TEST RESULTS FCC ID: NO9PMNTUA November 20, 2001- 5 -EMC10971 MANUFACTURER & PRODUCT INFORMATION TYPE OF AUTHORIZATION:Certification of Frequency Hopping System FCC IDENTIFIER:FCC ID: NO9PMNTUA APPLICABLE FCC RULES:2.907; 15.209 ; 15.247 CLIENT:HBC-Radiomatic, Inc. Haller Strasse 49-53 D-74564 Crailsheim Germany MANUFACTURER’S REPRESENTATIVE:Mr. Jason Looman EQUIPMENT:Ergonic Frequency Hopping System TESTING DATE(S):July 13, August 2, and August 30, 2001 ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. I FURTHER ATTEST: on the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15, Subpart C, Section 15.247 of the FCC Rules under normal use and maintenance. ______________________ Liming Xu Project Engineer FCC ID: NO9PMNTUA November 20, 2001- 6 -EMC10971 Summary of Test Results These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Section 15.247. All tests were conducted using measurement procedure ANSI C63.4-1992, and FHSS Test Procedure, Public Notice DA 00-705. Type of Submission/Rule Part: Original Filing /Part 15(C), Section 15.247 EUT:HBC-Radiomatic Inc. / Model-Ergonic Production Unit FCC ID:NO9PMNTUA Equipment Code:DSS Frequency Range (MHz): 908.4 - 920.0 Output Power:0.016W (RF Conducted Level) Frequency Stability: N/A Summary of Test Data Name of TestFCC Rule Part/SectionResults Radiated Emission…

Text truncated - open the document above for the full version.
