NO9TC64126

HBC-radiomatic GmbH

Transceiver Module

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jun 05, 2007
Application Purpose: Original Equipment
Date of Application: Jun 05, 2007
Equipment Note: Transceiver Module
Frequency Range: 465.00000000 - 470.00000000
Company: HBC-radiomatic GmbH
Country: Germany

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

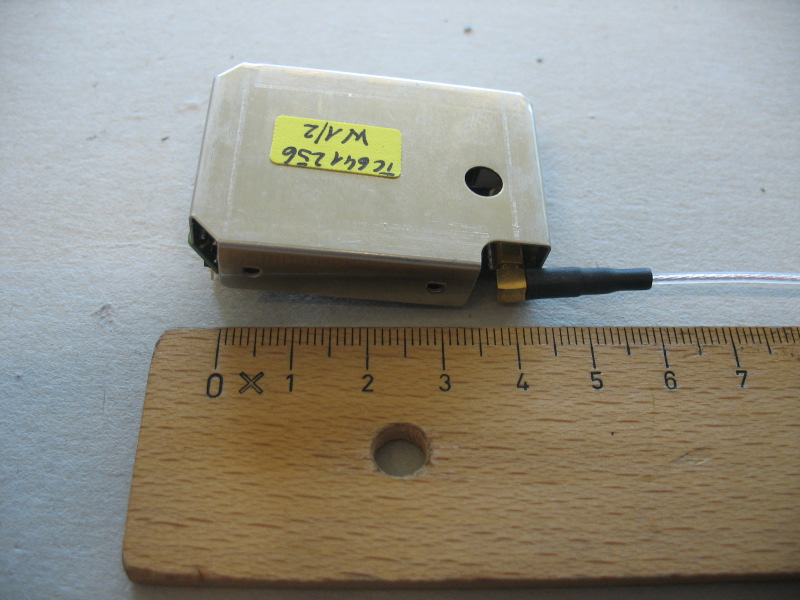

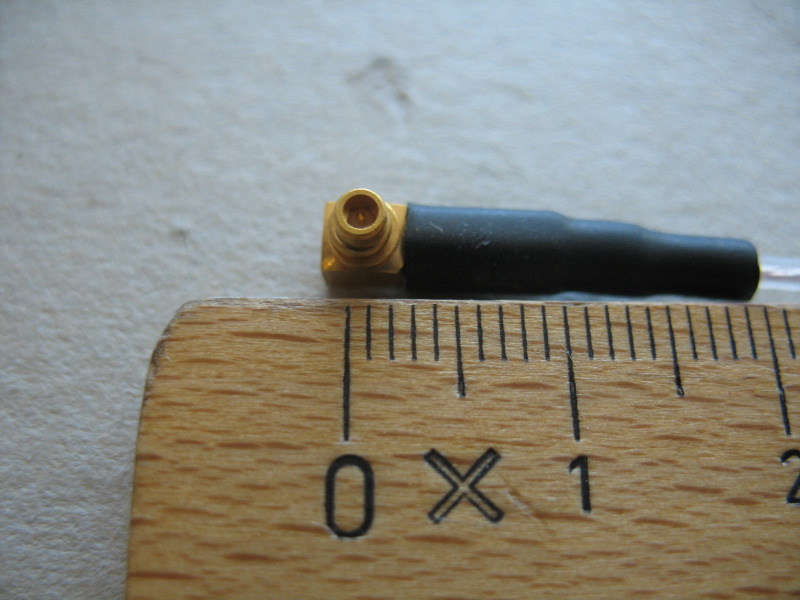

External Photos

ID Label/Location Info

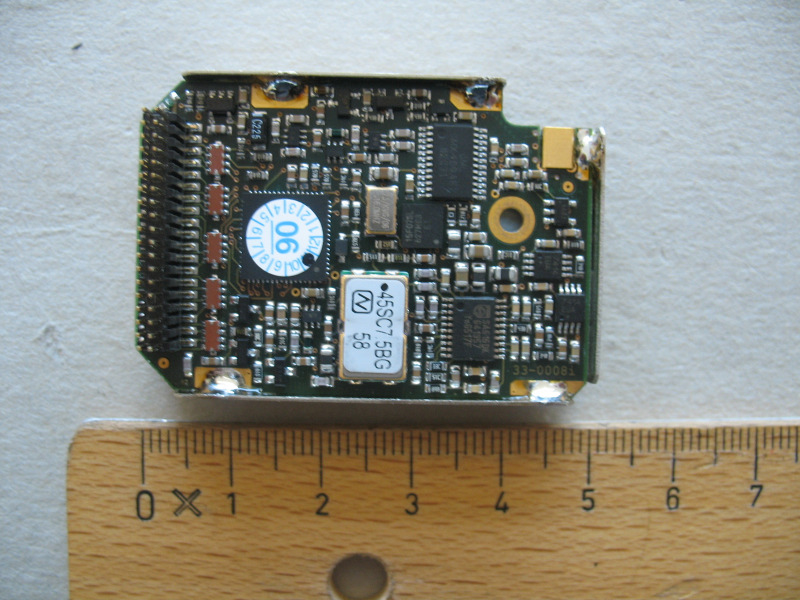

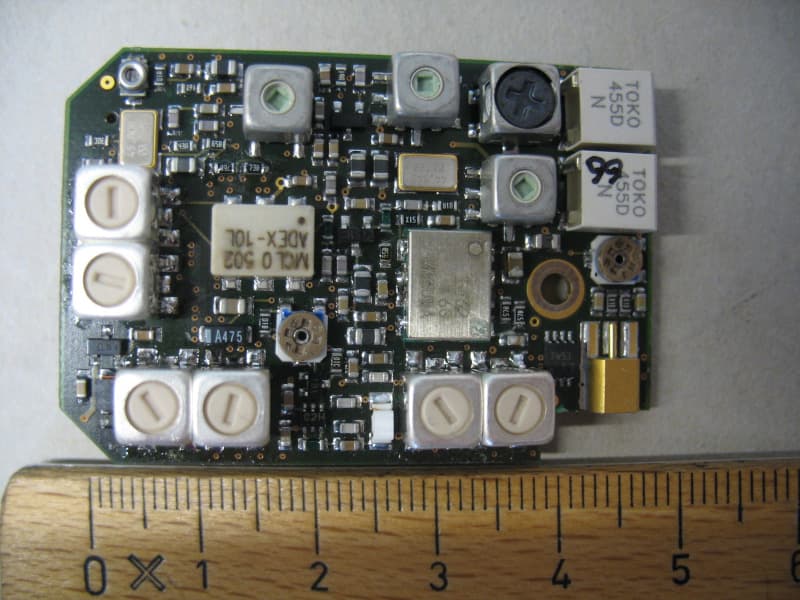

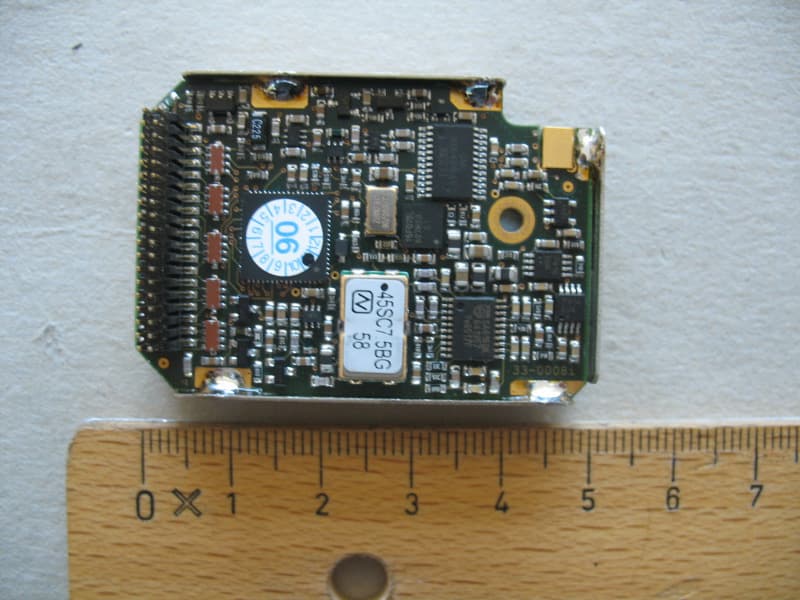

Internal Photos

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	90.210	465 MHz - 470 MHz	6.01 mW	9K04F1D	2.1200000000 ppm

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Modular Transmitter. Power Output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operation conditions for satisfying RF exposure compliance.
