NO9TC690Transceiver Module

User Manual Transceiver Module TC690 UM-TC690-V1-0.DOC [ Word 2000 ] seus/dous Page 1 / 6 HBC-radiomatic GmbH • 74564 Crailsheim • Germany Information and specifications subject to change without notice. 2004-04-19 www.hbc-radiomatic.com HBC – Transceiver Module T T C C 6 6 9 9 0 0 User Manual Transceiver Module TC690 Page 2 / 6 UM-TC690-V1-0.DOC [ Word 2000 ] seus/dous HBC-radiomatic GmbH • 74564 Crailsheim • Germany 2004-04-19 Information and specifications subject to change without notice. www.hbc-radiomatic.com Manufactured by: HBC-radiomatic GmbH Haller Strasse 47 – 53 74564 Crailsheim, Germany Telephone: +49 ( 0 ) 79 51 – 3 93 – 0 Fax: +49 ( 0 ) 79 51 – 3 93 – 50 E-mail: [email protected] http://www.hbc-radiomatic.com HBC-radiomatic GmbH is not liable for any misprints or errors! – All rights reserved. ™ HBC-radiomatic is a registered German trademark. © 2004 – 04 , HBC-radiomatic GmbH , 74564 Crailsheim , Germany No part of any software or of the present document may be reproduced in any manner whatsoever without the expressed written permission of HBC-radiomatic GmbH. User Manual Transceiver Module TC690 UM-TC690-V1-0.DOC [ Word 2000 ] seus/dous Page 3 / 6 HBC-radiomatic GmbH • 74564 Crailsheim • Germany Information and specifications subject to change without notice. 2004-04-19 www.hbc-radiomatic.com Table of Contents Warnings ......................................................................................... 4 Operation description TC690.......................................................... 5 Technical data................................................................................. 6 Appendix: Block diagram User Manual Transceiver Module TC690 Page 4 / 6 UM-TC690-V1-0.DOC [ Word 2000 ] seus/dous HBC-radiomatic GmbH • 74564 Crailsheim • Germany 2004-04-19 Information and specifications subject to change without notice. www.hbc-radiomatic.com Warnings This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications by the user could void the user’s authority to operate the equipment! NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate frequency energy and, if not installed in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. User Manual Transceiver Module TC690 UM-TC690-V1-0.DOC [ Word 2000 ] seus/dous Page 5 / 6 HBC-radiomatic GmbH • 74564 Crailsheim • Germany Information and specifications subject to change without notice. 2004-04-19 www.hbc-radiomatic.com Operation Description TC690 The TC690 consists of an integrated transceiver, voltage regulator, undervoltage reset circuit and microcontroller. The receiver part is a single conversion superhet. The local oscillator is a dds type with pll multiplier (see block diagram). The module is supplied via pins 1~4 (+3.3~4.7V) and pins 11, 12, 27 & 28 (ground). For correct operation, pin 15 has to be connected to pin 16. Also, pin 23 has to be connected to pin 24. The module will be switched on by driving pin 9 (DTR) to low level. The voltage of the SPI interface may not exceed 3.3V! The logic level shall be in the range 2.3~3.0V for a logical ’1’ and 0~0.7V for a logical ’0’. When user data is applied to the SPI interface (pins5~8), the data will be transmitted automatically. When correct data is received, it will be sent through SPI interface. Frequency programming will be done by applying configuration data to the SPI interface. In all cases, the microcontroller software checks for correct data format. It is not possible to transmit outside the programmed frequency range. Since the RF data rate is independent of the SPI data rate, it is not possible to overmodulate the transmitter. Also, the transmitting time is limited by software. User Manual Transceiver Module TC690 Page 6 / 6 UM-TC690-V1-0.DOC [ Word 2000 ] seus/dous HBC-radiomatic GmbH • 74564 Crailsheim • Germany 2004-04-19 Information and specifications subject to change without notice. www.hbc-radiomatic.com Technical Data Common parameters Supply voltage +3.3~+4.7VDC Temperature range -25~+70°C Frequency range 902.125~917.875MHz TC690L 912.125~927.875MHz TC690H Frequency accuracy ±10kHz RF data rate 15000bps Frequency deviation 40~50kHz Channel separation 250kHz Receive parameters Supply current 35~45mA Sensitivity <-95dBm @BER=10 -2 Spurious emissions <-60dBm below 1000MHz (conducted) <-45dBm above 1000MHz (conducted) Blocking desensitization >80dBc Co-channel rejection >-10dB Adjacent channel rejection >60dB Transmit parameters Supply current 90~110mA Output power +13dBm peak, -6dBm average (conducted) +3dBm peak, -16dBm average (radiated) Spurious emissions <-54dBm below 1000MHz (conducted) <-30dBm above 1000MHz (conducted) Adjacent channel power -36dBm (conducted)

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 April 21 th ,2004 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, HBC-radiomatic GmbH requests confidentiality for the following products: FCC ID Number Product Title/Model NO9TC690 TC69001_, TC69002_ For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain HBC-radiomatic GmbH trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Wolfgang Brendel Company: HBC-radiomatic GmbH Address: Haller Strasse 47-53, D-74564 Crailsheim Phone: +49-7951-393-0 Email: [email protected]

FCC modular transmitter approval TC690 The TC690 module consists of reference oscillator, PLL, FM receiver, transmitter, amplifier, digital modulator and microcontroller. 1. It has ist own RF shielding. Any additional shielding ist not necessary to comply with Part 15 limits. 2. It has a digital data input. Over-modulation is not possible. 3. It has its own power supply regulation. In addition, it has a undervoltage detection which ensures operation only with correct power source. 4. The module has been tested with two different antennas. It has a unique antenna coupler. 5. The module has been tested in a stand-alone configuration. 6. The module will be labelled with its own FCC ID number. 7. The module complies with the requirements of chapter 7. This is assured because we use the modules only in our own applications. 8. The module complies with any applicable RF exposure requirements. Uwe Schulze HBC-radiomatic GmbH Entwicklung Systemtechnik 5. März 2004

Cover Letter TC 690 Cover letter The TC690 module is available in two frequency range versions. The first version called TC69002_ operates in the range 902~918MHz. The second version called TC69001_ operates in the range 912~928MHz. Both versions consist of the same hardware. The only difference is the frequency programming and receiver conversion mode in the software. The last digit is reserved for the revision. Additional HBC - Labelling The TC690 module will be labelled as TC690Lxx.HEX for the range 902~918MHz and TC690Hxx.HEX for the range 912~928MHz where „xx“ means the software revision code (i.e. TC690H12.HEX for the actual version in the range 912~928MHz). Additional, a serial number in hexadecimal code (i.e. 00 2d5h) will be included. The label will be positioned on the backside of the printed circuit board in the lower half of the module. IC – Certification No. 2977A-TC690 Revision:0Seite 1 von 1 Erstellt Geprüft Freigegeben Dokument am: 21.04.2004 von: D.Hahn am: von: am: von: Cover Letter TC 690.doc HBC

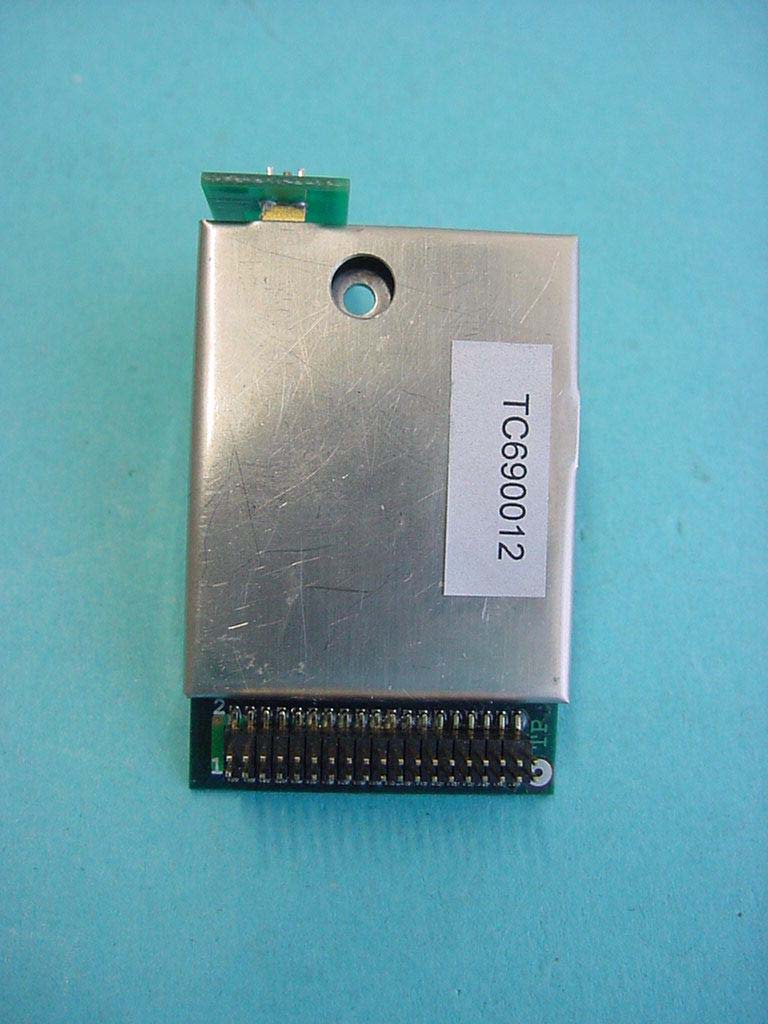

CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 61 (64) PHOTOGRAPHS OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 63 (64) PHOTOGRAPHS OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 64 (64) PHOTOGRAPHS OF THE EQUIPMENT Antenna 72.19.009 and 72.019013

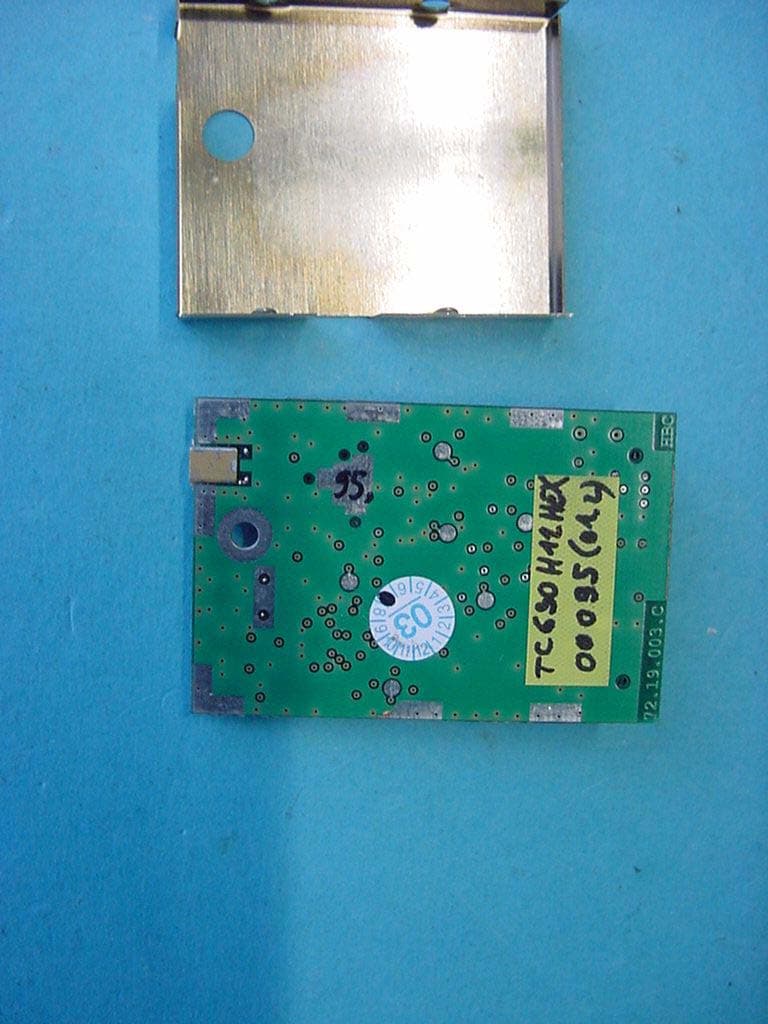

Datum: 21.04.2004 AA350A93.cdr D.Hahn AA.350.A.93 1/1 Date: Z.-Nr.: Doc.-No.: Gezeichnet / Drawn by: M.Metzger TC690 label positions Abschirmblech screening cover FCC label (PET foil) Skizze M1:1 scale 1:1 HBC label (PET foil) Befestigungsloch mounting hole Anschluss-Stecker connector Platine pcb Geprüft / Checked: Datei: Blatt: File: Sheet: HBC-radiomatic GmbH Postfach 1561 D-74555 Crailsheim FFC ID: NO9TC690 FFC ID: NO9TC690 Modulcode

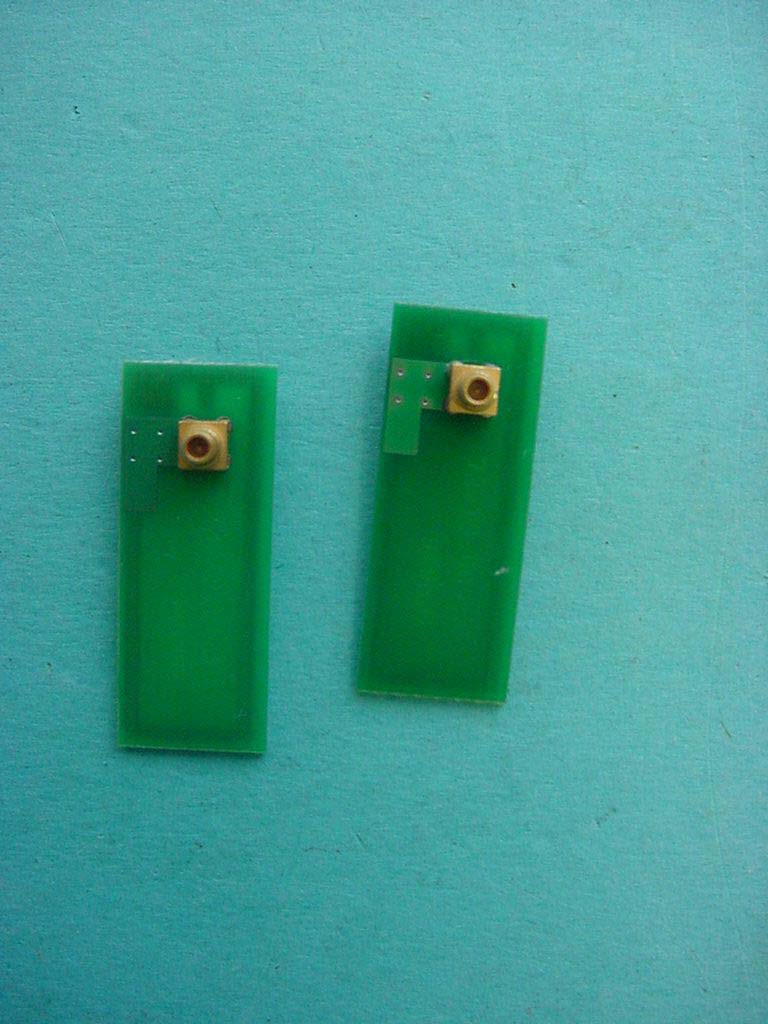

CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 58 (64) PHOTOGRAPHS OF THE EQUIPMENT Lambda/4 Print antenna CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 59 (64) PHOTOGRAPHS OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 60 (64) PHOTOGRAPHS OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 62 (64) PHOTOGRAPHS OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 63 (64) PHOTOGRAPHS OF THE EQUIPMENT CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 64 (64) PHOTOGRAPHS OF THE EQUIPMENT Antenna 72.19.009 and 72.019013

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telefon: +49 (0)681 598-9100 Telefax: -9075 RSC14 issue test report consist of 64 Pages Page 1 (64) Recognized by the Federal Communications Commission and Industry Canada Anechoic chamber registration No.: 90462 (FCC) Anechoic chamber registration No.: 3463 (IC) TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2-3441-01-01/03 FCC Part 15.249 / RSS 210 TC690 FCC-ID: NO9TC690 IC: 2977A-TC690 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 /598-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 2 (64) Table of contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test specifications 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 3 (64) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test laboratory manager: 2004-04-22 RSC - 8411 Berg M. Date Section Name Signature Technical responsibility for area of testing: 2004-04-22 RSC - 8412 Hausknecht D. Date Section Name Signature CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 4 (64) 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone : + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory Accredited by : Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by : Federal Communications Commission (FCC) Authority Identification/Registration No. RegTP TTI-P-G 081/94-D0 FCC 90462 1.3 Details of applicant Name : HBC-radiomatic GmbH Street : Haller Str. 49-53 City : D-74564 Crailsheim Country : Germany Telephone: +49 7951 393-0 Telex : +49 7951 393-50 E-mail : [email protected] Contact person: Name : Mr. D. Hahn Telephone : +49 7951 393-725 Telex : +49 7951 393-723 E-mail : [email protected] 1.4 Application details Date of receipt of application : 2003-11-25 Date of receipt of test item : 2003-11-26 Date of test : 2003-11-26 / 27 CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 5 (64) 1.5 Test item Type of equipment : Transceiver Module Type designation : TC690 (Low band 902.125-917.875 MHz : TC69002 and High band 912.125-927.875 MHz : TC69001) Manufacturer : see applicant Street : City : Country : Serial number : - / - Additional information : Frequency : 902.125 – 927.875 MHz ITU Designator : 115KF1D (= 2 x max deviation (50 kHz) + BIT-Rate (15 kHz ) Channel spacing : 250 kHz Number of channels : 103 Antenna : Print antenna (Lambda/4) or Antenna 72.19.009(Low Band) and 72.019013 (High Band) ERP : 15.94 mV/m in 3m Power supply : 3.6 V DC Temperature range : -30°C - +50°C Transmitter spurious : 208.9μV/m in 3m Receiver spurious . dBμ/m (Noise floor) in 3m DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: _______________________________________________ Date: ___2003-09-02Michael Berg ; Test management NAME AND TITLE (Please print or type): 1.6 Test specifications: FCC Part 15 §15.249 CANADA RSS-210 CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 6 (64) 2 Technical test 2.1 Summary of test results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 20 GHz in semi-anechoic chambers. The EUT is positioned on a non- conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1996 clause 15 and ANSI C63.4-2001 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test set-ups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analysers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-2001 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna . 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 10 Hz, wave guide horn All measurement settings are according to FCC 15.35, 15.209. The product fulfils also the requirements for CANADA…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 52 (64) Test setup CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 53 (64) Test setup CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 54 (64) Test setup CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 55 (64) Test setup CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 56 (64) Test setup Photographs of the equipment CETECOM ICT Services GmbH Test report no.:2-3441-01-01/03 Issue date: 2003-12-01 Page 57 (64) Test setup PHOTOGRAPHS OF THE EQUIPMENT
