NRLM90SXCRN1900 MHz Half Duplex Transceiver

The user manual will contain a page with the following statement pertaining to the potential interference and the requirement to use shielded cables to connect to the user device. INSTRUCTION TO THE USER This equipment has been tested and found to comply with the limits for a class C device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment had been certified to comply with the limits for a Class C intentional radiator device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non- approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment, without the approval of the manufacturer, could void the user’s authority to operate this equipment.

First Antenna Tested: Antenna Type: Coaxial ½ wave dipole with a swivel connector. Antenna Manufacture:See Below. Antenna Connector Reverse Polarity TNC (See attached photos). Antenna Manufacturer’s Information: CENTURION INT. INC.CUSHCRAFT/SIGNALS CORP. P.O. Box 82846 P.O. Box 4580 3425 North 44 th Street Manchester, NH 03108 Lincoln, Nebraska 68501 Phone: 603.627.7877 Phone: 800.228.4563 Second Antenna Tested: Antenna Type:1.625 inch vertical whip over 3 inch ground plane Antenna Connector: MMCX miniature coax connector Antenna Manufacturer:In-house (VTech Wireless, Inc.) Third Antenna Tested: Antenna Type:Monolithic Chip Multilayer Antenna Antenna Connector: MMCX miniature coax connector Antenna Manufacturer: Murata Part Number LDA46D0950A Manufactures Data Sheet:

VTech Group of Companies VTech Wireless, Inc. 1 Corporate Park Drive, Suite 100, Irvine, California 92606-5113, U.S.A. Tel: 949.752.0312 ♦=Fax: 949.752.5014 900 MHz Half Duplex Block Diagram 902-928 MHZ BANDPASS FILTER T/R LNA FM RECEIVER SUBSYSTEM 902-928 MHZ BANDPASS FILTER 60.0 MHZ CRYSTAL OSCILLATOR RECEIVE DATA ANTENNA 49.3 MHZ BANDPASS FILTER VCO MIX 852.7-878.7 MHZ 950 MHZ LOWPASS FILTER BUFFER AMPLIFIER VCO 902.4-927.4 MHZ PLL SYSTEM QPSK GENERATOR DIGITAL CONTROLLER HOST INTERFACE I/Q LOWPASS FILTERS SIN COS RXD TXD T/R 20.0 MHZ CRYSTAL OSCILLATOR RECEIVE PATH TRANSMIT PATH

VTech Group of Companies VTech Wireless, Inc. 1 Corporate Park Drive, Suite 100, Irvine, California 92606-5113, U.S.A. Tel: 949.752.0312 ♦=Fax: 949.752.5014 FCC ID number: The Grantee Code is NRL The FCC ID number for the 900 MHz Half Duplex Transceiver is: NRLM90SXCRN1 FCC LABEL VTech Wireless, Inc. 900MHz Half Duplex Transceiver (902-928 MHz ) FCC ID: NRLM90SXCRN1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation.

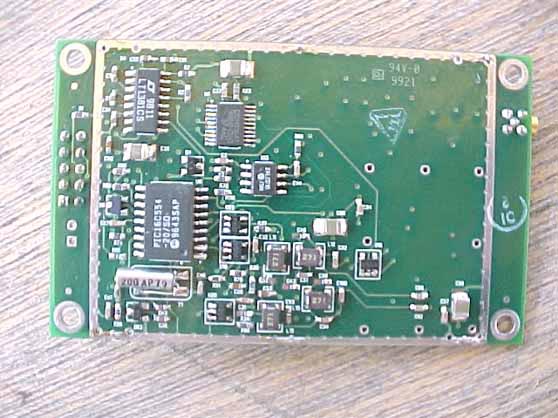

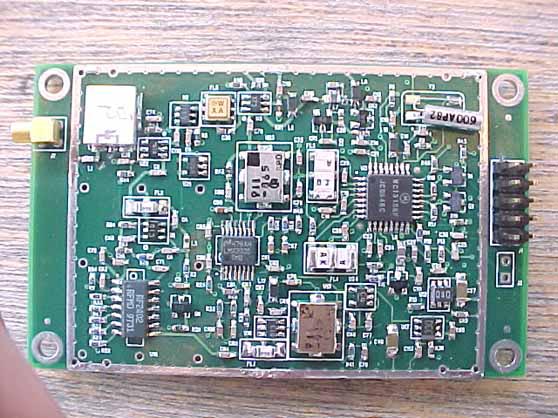

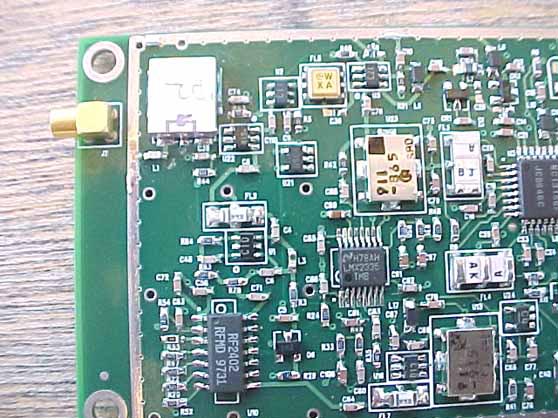

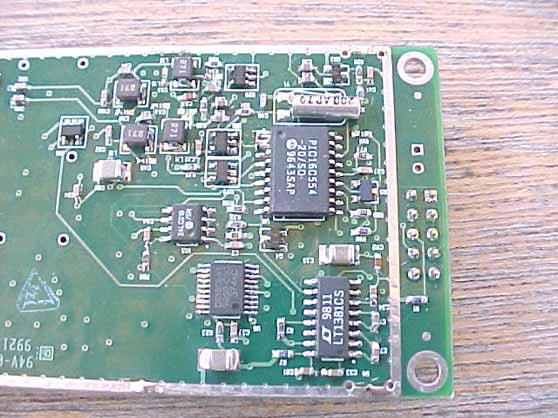

VTech Group of Companies VTech Wireless, Inc. 1 Corporate Park Drive, Suite 100, Irvine, California 92606-5113, U.S.A. Tel: 949.752.0312 ♦=Fax: 949.752.5014 NON-TECHNICAL DESCRIPTION OF THE UNIT AND ITS OPERATION: The trasnciever is a fully synthesized, half-duplex low power 900 MHz transceiver for OEM wireless data communicationn applications. This transceiver is intended for low data rate peer to peer wireless links and wireless networking applications. It has been specifically designed for cost sensitive applications that do not require the overhead of onboard protocol processing. the system level functions of error detection, error correction and network protocol precessing are not handled by the transceiver and must be performed in the host system software. The M90SXCRN1 supports a standard RS-232C voltage level base band serial interface. The transceiver requires externally supplied regulated 5 volt DC power and an antenna. The onboard micro controller can be commanded to change frequency by the host to avoid interference or frequency contention problems.

86GEJ)TQWRQH%QORCPKGU 86GEJ9KTGNGUU+PE %QTRQTCVG2CTM&TKXG5WKVG+TXKPG%CNKHQTPKC75# 6GN♦ (CZ M90SXCRN1 SCHEMATIC DIAGRAM X1 VTech Wireless, Inc. B 17Wednesday, May 26, 1999 SizeDocument NumberRev Date:Sheet of VTech Wireless, Inc. 1 Corporate Park Drive, Suite 100 Irvine, California 92606 TEL: 949.752.0312 FAX: 949.752.5014 900 MHZ HALF DUPLEX RADIO *** CONFIDENTIAL *** Last Revision: 25 JUNE 1999 NOTES: *DNP1 - Install for service line reset of cpu only. {Doc}B 900 MHZ HALF DUPLEX TRANSCEIVER, HOST INTERFACE B 27Wednesday, May 26, 1999 Title SizeDocument NumberRev Date:Sheet of VTech Wireless, Inc. +5V +5V+5V +5V +5V CARDET/ TXD RXD TXENABLE SERVICE SPARE U4 LT1381CS 1 3 2 4 5 6 7 89 10 11 1213 14 15 16 C1+ C1- V+ C2+ C2- V- TR2O REC2IREC2O TR2IN TR1I REC1OREC1I TR1O GND VCC C7 0.1uF C1 0.1uF C34 0.1uF C33 0.1uF J1 CON10 1 2 3 4 5 6 7 8 9 10 C112 470pF U18 NC7ST04M5 24 5 31 Q5 DTC144EK 1 2 3 R90 10K R89 10K C61 0.1uF R7 1 + C87 22 uF/10V + C35 22 uF/10V R1 47K R2 47K 86GEJ)TQWRQH%QORCPKGU 86GEJ9KTGNGUU+PE %QTRQTCVG2CTM&TKXG5WKVG+TXKPG%CNKHQTPKC75# 6GN♦ (CZ {Doc}B 900 MHZ HALF DUPLEX TRANSCEIVER, CONTROLLER B 37Wednesday, May 26, 1999 Title SizeDocument NumberRev Date:Sheet of VTech Wireless, Inc. +5V +5V +5V +4V +4V IMOD FCTL POTRES PLLCLK PLLDAT PLLEN RXD RXOUT PLLREF SPARE EEDATA TXD SERVICE QMOD R78 470 L11 270uH L12 270uH R32 4.7K C50 4700pF C52 0.01uF R51 2.2K C51 0.01uF C47 0.01uF U19 NC7ST04M5 24 5 31 R74 1 R26 100K R25 100K C41 0.01uF C38 47pF R111 0 U8 PIC16C558 4 3 13 6 7 8 9 10 11 12 17 18 1 2 14 5 1516 MCLR* RTCC PB7 PB0 PB1 PB2 PB3 PB4 PB5 PB6 PA0 PA1 PA2 PA3 VDD VSS XOUTXIN Q4 MMBT3904 CR3 FMMV109 C32 0.01uF C45 10pF C46 27pF Y1 H13-20.000-S-T 1 2 3 4 X1 NC X2 NC U25 TPS3823-50DVBR 1 2 3 4 5 RESET GND MR WDI VDD R38 1 R37 1 C54 0.01uF C53 4700pF C31 0.01uF R80 470 L13 270uH C100 0.01uF U20 NC7ST04M5 24 5 31 L15 270uH R30 DNP R34 DNP C43 tbd C49 tbd C55 tbd C58 tbd R98 39K R97 15K R100 39K R99 15K *DNP1 86GEJ)TQWRQH%QORCPKGU 86GEJ9KTGNGUU+PE %QTRQTCVG2CTM&TKXG5WKVG+TXKPG%CNKHQTPKC75# 6GN♦ (CZ {Doc}B 900 MHZ HALF DUPLEX TRANSCEIVER, EEPOT & NOVRAM B 47Wednesday, May 26, 1999 Title SizeDocument NumberRev Date:Sheet of VTech Wireless, Inc. +5V +5V +5V +4V +4V +4V EEDATA POTRES PLLCLK PLLDAT FCTL VCQDC VCRSSI VCQDET IFTUNE1 IFTUNE2 R96 1 C44 0.01uF R110 4.7K VCC CLK DIN RST* COUT U6 DS1806E-010 20 8 9 10 11 12 19 1 18 2 17 4 3 13 7 15 14 16 5 6 U15 24C01A 8 4 5 6 1 2 3 7 VCC VSS SDA SCLK S0 S1 S2* WP R23 10 C37 0.01uF 86GEJ)TQWRQH%QORCPKGU 86GEJ9KTGNGUU+PE %QTRQTCVG2CTM&TKXG5WKVG+TXKPG%CNKHQTPKC75# 6GN♦ (CZ X1 900MHZ OEM HALF DULEX TRANSCEIVER, FRONT END B 57Wednesday, May 26, 1999 Title SizeDocument NumberRev Date:Sheetof +5V +5V +5V +5V TXENABLE IMOD TXSYNTH 1STIF RXLO QMOD IFTUNE2 IFTUNE1 L3 100nH POWER CONTROL SUM PHASE SHIFT U10 RF2402 1 2 3 4 5 6 78 9 10 11 12 13 14 VDD2 VDD1 VPD ISIG IREF QREF QSIGLOIN N/C GND1 GND3 GND4 GND2 RFOUT U22 UPG152TA 1 2 34 5 6 OUT1 GND OUT2VC2 IN VC1 FL2 LTF3216-FR90A 13 2 I/O1I/O2 GND J7 82MMCX-S50-0-2/111 5 23 4 1 FL1 KFF6490A 21 65 9 4 38 7 OI G6G5 GND G4 G3G8 G7 R29 1 R70 75 R83 91 R44 10K R43 10K C4 47pF C5 0.01uF C6 100pF C48 100pF C63 0.001uF C39 100pF C74 100pF C57 0.01uF C72 0.01uF R84 75 U21 NC7ST04M5 24 5 31 C56 0.001uF L6 330nH C104 2.7pF C110 0.01uF C118 100pF U2 UPC2748T 1 23 4 5 6 R5 220 C36 DNP R21 220 C26 DNP L7 1.8uH C9 0.01uF L8 330nH C10 0.01uF C11 DNP FL5 SAFC915MA70N-TC 25 1 34 6 INOUT GND GNDGND GND LOGND IF RF VCC PS U5 UPC8112T 123 456 R39 DNP U1 UPC2708T 1 23 4 5 6 R3 10 C71 100pF R22 470 R20470 R53 820 R47 470 R52 470 + C59 22 uF/10V C60 0.047uF C62 0.047uF R54 1 CR1 FMMV109 C12 0.01uF CR2 FMMV109 C13 0.01uF R40 22K C8 100pF C98 1.5pF Q6 NDS352P VDD = TRANSMIT 0.0V = RECEIVE ANTENNA 86GEJ)TQWRQH%QORCPKGU 86GEJ9KTGNGUU+PE %QTRQTCVG2CTM&TKXG5WKVG+TXKPG%CNKHQTPKC75# 6GN♦ (CZ X1 900MHZ OEM HALF DUPLEX TRANSCEIVER, IF SECTION B 67Wednesday, May 26, 1999 Title SizeDocument NumberRev Date:Sheet of +4V+5V +5V +4V 1STIF VCQDET VCRSSI RXOUT CARDET/ VCQDC FL4 SK107MA-A0-10 FL3 SK107MA-A0-10 L10 330nH L9 1.5uH J3 1 2 U12 TK11340 123 456 <CTRL>GNDBYPASS Vout GND Vin Q1 DTC144EK 1 2 3 Y2 H13-60.000-S-3OT 1 2 3 4 X1 G1 X2 G2 Q2 DTC144EK 1 2 3 R9 430 R10 430 R8 4.7K R12 160K R15 10 R11 100K R17 47K R16 100K R19 27K R14 0 R6 1K R45 47K R46 47K C18 0.001uF C24 0.001uF C23 0.001uF C17 56pF C14 0.001uF C15 0.01uF C19 0.001uF C16 27pF C21 0.01uF C22 100pF C20 0.01uF C111 0.001uF C30 100pF C29 0.001uF C69 0.1uF CR8 FMMV109 IF AMPLIMITER 5PF 1.1V - - + + U3 MC13156FB 31 32 27 1 2622586121314182829302322 16151110975431721 24 19 20 RF1 RF2 LOB M OUT LO EVCC1VEE1VCC2NC1NC2NC3NC4NC5NC6NC7NC8RSSIVEE2 QD OUT QD COIL LD2LD1 LIM IN IF OUT ID2ID1 IF IN DS INHOLD CD DS G DATA C28 0.001uF C25 27pF R13 62K C2 0.01uF R27 150K C27 4.7uF/16V QUAD DET TEST POINT RSSI TEST POINT 86GEJ)TQWRQH%QORCPKGU 86GEJ9KTGNGUU+PE %QTRQTCVG2CTM&TKXG5WKVG+TXKPG%CNKHQTPKC75# 6GN♦ (CZ {Doc}X1 900 MHZ HALF DUPLEX TRANSCEIVER, SYNTHESIZER B 77Wednesday, May 26, 1999 Title SizeDocument NumberRev Date:Sheetof VTech Wireless, Inc. +5V +5V TXSYNTH TXENABLE PLLEN PLLDAT PLLCLK PLLREF RXLO FL7 LTF3216-FR90A 13 2 I/O1I/O2 GND U17 TK11333BMCL 12 3 46 5 CTLGND1 BYP VOUTVIN GND2 C67 0.001uF C65 0.1uF C64 100pF R41 1K R48 47K R42 220 C76 100pF R49 18K U24 FMC4A 12 34 5 R33 1K R24 100 C82 100pF C85 100pF R35 220 R31 1K C97 10pF C91 4700pF C106 10pF C70 10pF C81 220pF C86 100pF C88 100pF C113 0.01uF C77 0.001uF R50 8.2K C79 10pF C90 470pF C83 100pF U16 UPC2745T 1 23 4 5 6 C68 0.001uF L17 390nH C78 0.001uF C80 2200pF C84 0.01uF C75 0.001uF U11 LMX2335TM 5 3 21 413 1615 14 12 8 9 10 11 6 7 Fin DO1 VP1VCC1 GND1GND2 VCC2VP2 DO2 Fin2 FoLD CLK DATA LE OSCin OSCo U13 MQE911-915 B CP M G1G2G3G4 VCC CTLFOUT N…

Text truncated - open the document above for the full version.

FCC ID: NRLM90SXCRN1 Report No.: B90629D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Conducted Emissions Test 13 7.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.3 RF Band Edges 15 8. CONCLUSIONS 16 FCC ID: NRLM90SXCRN1 Report No.: B90629D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Modifications to the EUT B Additional Models Covered Under This Report C Diagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors D Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site FCC ID: NRLM90SXCRN1 Report No.: B90629D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: 900 MHz Half Duplex Transceiver Model: M90SXCRN1 S/N: 01 Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: VTech Wireless, Inc. 1 Corporate Park Drive, Suite 100 Irvine, California 92606-5113 Test Date: June 29, 1999 IC File # for Canada IC2154-D Test Specifications : EMI requirements FCC Title 47, Part 15 Subpart C, Sections 15.205 and 15.249 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz Complies with the Class B limits of FCC Title 47, Part 15 Subpart B; and Subpart C, section 15.207 2 Radiated RF Emissions, 10 kHz - 9300 MHz Complies with the limits of FCC Title 47, Part 15, Subpart B and Subpart C, sections 15.205 and 15.249 FCC ID: NRLM90SXCRN1 Report No.: B90629D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the 900 MHz Half Duplex Transceiver Model: M90SXCRN1. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by FCC Title 47, Part 15, Subpart B and Subpart C, sections 15.205 and 15.249. FCC ID: NRLM90SXCRN1 Report No.: B90629D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel VTech Wireless, Inc. Terry Flach Engineering Thomas Craft President Compatible Electronics Inc. Kyle Fujimoto Test Engineer Scott McCutchan Lab Manager 2.4 Date Test Sample was Received The test sample was received on June 29, 1999 2.5 Disposition of the Test Sample The test sample was returned to VTech Wireless, Inc. on July 7, 1999. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Number S/N Serial Number HP Hewlett Packard ITE Information Technology Equipment CML Corrected Meter Limit LISN Line Impedance Stabilization Network FCC ID: NRLM90SXCRN1 Report No.: B90629D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 7 of 16 3. APPLICABLE DOCUMENTS The following documents are referenced or used in the preparation of this EMI Test Report. SPEC TITLE FCC Title 47, Subpart C. FCC Rules – Radio frequency devices (including digital devices) – Intentional Radiators ANSI C63.4 1992 Methods of measurement of radio-noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz. FCC Title 47, Subpart B. FCC Rules – Radio frequency devices (including digital devices) – Unintentional Radiators FCC ID: NRLM90SXCRN1 Report No.: B90629D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 8 of 16 4. DESCRIPTION OF TEST CONFIGURATION 4.1 Description of Test Configuration - EMI Setup and operation of the equipment under test. Specifics of the EUT and Peripherals Tested The 900 MHz Half D…
