NRTSZJENSMW0C30ABMicrowave Oven

30 Litre Electronic Microwave Read the Instructions carefully and Keep for Future Reference WD1000DI-C30C(A) OwnersI n struction M anual IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE - WARNING: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; - WARNING: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; - WARNING: it is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy; - WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode - WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use; - only use utensils that are suitable for use in microwave ovens - when heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition; - if smoke is observed, switch of or unplug the appliance and keep the door closed in order to stifle any flames; - microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; - the contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns; - eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; - the oven should be cleaned regularly and any food deposits removed; - failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation; - if the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. SPECIFICATIONS Power consumption: Output: Grill Heater: Convection: Operating Frequency: Outside Dimensions: Oven Cavity Dimensions: Oven Capacity: Uncrated Weight: 230V~50Hz,1450W 900W 1000W 1100W 2,450MHz 531mm(W) X 530mm(D) X 300mm(H) 350mm(W) X 372mm(D) X 232mm(H) 30litres Approx. 20kg RADIO INTERFERENCE Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures. a. Clean the door and sealing surface of the oven. b. Place the radio, TV, etc. as far away from your microwave oven as possible. c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception. BEFORE YOU CALL FOR SERVICE 1. If the oven will not perform at all, the display does not appear or the display disappears: a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance. 2. If the microwave power does not function: a) Check to see whether the timer is set. b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT. Note: The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only. -3- -4- INSTALLATION 1. Make sure all the packing materials are removed from the inside of the door. 2. Inspect the oven after unpacking for any visual damage such as: Misaligned Door Damaged Door Dents or Holes in Door Window and Screen Dents in Cavity If any of the above are visible, DO NOT use the oven. 3. This Microwave Oven weighs 20 kg and must be placed on a horizontal surface strong enough to support this weight. 4. The oven must be placed away from high temperature and steam. 5. DO NOT place anything on top of the oven. 6. Keep the oven at least 8 cm away from both sidewalls and 10 cm away from rear wall to ensure the correct ventilation. 7. DO NOT remove the turn -table drive shaft. 8. As with any appliance, close supervision is necessary when used by children. WARNING-THIS APPLIANCE MUST BE EARTHED. 1. The plug socket should be within easy reach of the power cord 2. This oven requires 1.5 KVA for its input. consultation with service engineer is suggested when installing the oven. CAUTION:This oven is protected internally by a 250V,10 Amp Fuse. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: Green-and-yellow : Earth Blue : Neutral Brown : Live As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings indentifying the terminals in your plug, proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol coloured green of green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. -5- SAFETY INSTRUCTIONS FOR GENERAL USE Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven: 1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven. 2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes. 3. D…

Text truncated - open the document above for the full version.

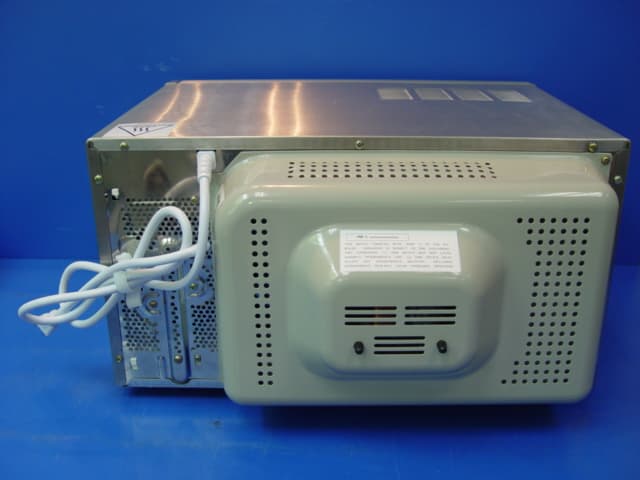

FCC ID:NRTSZJENSMWOC30AB External photo:1 External photo:2 External photo:3

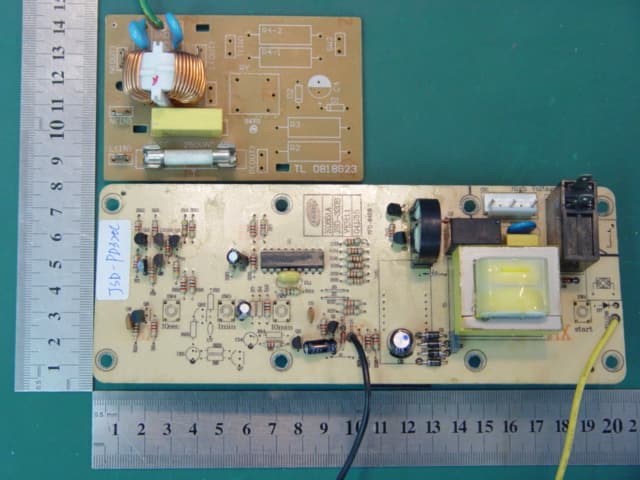

FCC ID:NRTSZJENSMWOC30AB internal photo:1 internal photo:2 internal photo:3 internal photo:4 internal photo:5

EMC TEST REPORT For Microwave Oven Model Number: WD1000DI-C30C (A), WP1000D-C30(B) FCC ID:NRTSZJENSMWOC30AB Report Number : WT058000946 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory Guangdong EMC Compliance Test Center Site Location : Bldg. of Metrology &Quality Inspection, Longzhu Road, Shenzhen, Guangdong, China Tel : 0086-755-26941637, 26941529, 26941531 Fax : 0086-755-26941545 Email : [email protected] Report No.: WT058000946 Page 2/27 TABLE OF CONTENTS TEST REPORT DECLARATION ........................................................................................................3 1. TEST RESULTS SUMMARY ...................................................................................................4 2. GENERAL INFORMATION ....................................................................................................5 2.1. Report information ............................................................................................................5 2.2. Laboratory Accreditation and Relationship to Customer .................................................5 2.3. Measurement Uncertainty .................................................................................................5 3. PRODUCT DESCRIPTION ......................................................................................................6 3.1. EUT Description ...............................................................................................................6 3.2. Block Diagram of EUT Configuration..............................................................................6 3.3. Operating Condition of EUT ............................................................................................6 3.4. Support Equipment ...........................................................................................................7 3.5. Test Conditions .................................................................................................................7 3.6. Modifications ....................................................................................................................7 4. TEST EQUIPMENT USED .......................................................................................................8 4.1. Test Equipment Used to Measure Conducted Disturbance ..............................................8 4.2. Test Equipment Used to Measure Radiated Disturbance .................................................8 5. CONDUCTED DISTURBANCE TEST ....................................................................................9 5.1. Test Standard and Limit ....................................................................................................9 5.2. Test Procedure ..................................................................................................................9 5.3. Test Arrangement..............................................................................................................9 5.4. Test Data ...........................................................................................................................9 6. RF POWER OUTPUT MEASUREMENT AND RESULT ..................................................11 7. RADIATED DISTURBANCE TEST ......................................................................................12 7.1. Test Standard and Limit ..................................................................................................12 7.2. Test Procedure ................................................................................................................12 7.3. Test Arrangement............................................................................................................12 7.4. Test Data .........................................................................................................................12 8. TABLE LIST .............................................................................................................................14 APPENDIX I TEST CURVES .............................................................................................................15 APPENDIX II TEST PICTURE..........................................................................................................20 Report No.: WT058000946 Page 3/27 TEST REPORT DECLARATION Applicant : SHENZHEN JENS ELECTRONIC CO., LTD Address : 71# Building changxing Industrial Zone Gongming Town, Baoan, Shenzhen, China. Manufacturer : SHENZHEN JENS ELECTRONIC CO., LTD Address : 71# Building changxing Industrial Zone Gongming Town, Baoan, Shenzhen, China. EUT Description : Microwave oven Model Number : WD1000DI-C30C (A), WP1000D-C30(B) Test Standards: FCC Part 18 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the maximum emissions from the EUT.Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The test report is valid for above tested sample only and shall not be reproduced in part without written approval of the laboratory. Tested by: Date: 2005-12-6 (Louis Lin) Checked by: Date: 2005-12-6 (Dewelly Yang) Approved by: Date: 2005-12-6 (Peter Lin) Report No.: WT058000946 Page 4/27 1. TEST RESULTS SUMMARY Table 1 Test Results Summary Test Items Test Results Conducted Disturbance Pass Radiated disturbance Pass Report No.: WT058000946 Page 5/27 2. GENERAL INFORMATION 2.1. Report information 2.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that SMQ approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that SMQ in any way guarantees the lat…
