NS634822-27RC Robot

FCC ID: NS634822-27 Ophoto1 Ophoto2 FCC ID: NS634822-27 Ophoto3 Ophoto4

FCC ID: NS634822-27 Iphoto1 Iphoto2 FCC ID: NS634822-27 Iphoto3 Iphoto4

FCC ID: NS634822-27 Technical Description : The brief circuit description is listed as follows : The Keyboard input is fed into the MCU U1 GPL61A then the MCU will output corresponding digital signal to LCD display and Signal Amplifier Q2 and fed into the RF module U2 TRCM8157. Inside the RF module, the digital is fed into the FSK transmitter IC GPRF2719B. Inside the FSK transmitter IC, the digital signal is fed to the VCO then modulated into the carrier frequency which is generated by a 10.24 MHz crystal, 13-bit programmable counter and decoder(PLL). Then the modulated RF signal is fed to a frequency doubler and a RF Power Amplifier. After this, the signal will output to the FSK transmitter IC. Finally, the transmission signal (26.995 MHz/27.195 MHz) is output to antenna through a power amplifier and band pass filter in the RF module. Antenna Used : An integral antenna (non-extendable) has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : NS634822-27 Manley Toys Limited Application For Certification (FCC ID: NS634822-27) Transmitter Sample Description : i-QUE Personal Robot (#39888 i-QUE Cartridge – Space, #34824 i-QUE Cartridge – US History, #34825 i-QUE Cartridge – World Geography, #34827 i-QUE Cartridge – Human Body & Achievement) Model : 34822 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2005] 0709743 AC/at July 6, 2007 INTERTEK TESTING SERVICES FCC ID: NS634822-27 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 : General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3 : Emission Results EXHIBIT 4 : Equipment Photographs EXHIBIT 5 : Product Labelling EXHIBIT 6 : Technical Specifications EXHIBIT 7 : Instruction Manual EXHIBIT 8 : Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: NS634822-27 ii MEASUREMENT/TECHNICAL REPORT Manley Toys Limited - MODEL: 34822 FCC ID: NS634822-27 July 6, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2005 Edition] provision. Report prepared by: Chan Kar Ming, Anthony Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: NS634822-27 iii Table of Contents 1.0 General Description .................................................................................................. 2 1.1 Product Description ............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology.................................................................................................. 3 1.4 Test Facility........................................................................................................... 3 2.0 System Test Configuration ....................................................................................... 5 2.1 Justification............................................................................................................ 5 2.2 EUT Exercising Software....................................................................................... 5 2.3 Special Accessories .............................................................................................. 5 2.4 Equipment Modification ......................................................................................... 6 2.5 Support Equipment List and Description................................................................ 6 3.0 Emission Results ...................................................................................................... 8 3.1 Field Strength Calculation...................................................................................... 9 3.1 Field Strength Calculation (cont’d)....................................................................... 10 3.2 Radiated Emission Configuration Photograph ..................................................... 11 3.3 Radiated Emission Data ...................................................................................... 12 4.0 Equipment Photographs ......................................................................................... 16 5.0 Product Labelling .................................................................................................... 18 6.0 Technical Specifications ......................................................................................... 20 7.0 Instruction Manual .................................................................................................. 22 8.0 Miscellaneous Information ..................................................................................... 24 8.1 Measured Bandwidth........................................................................................... 25 8.2 Discussion of Pulse Desensitization .................................................................... 26 8.3 Calculation of Average Factor ............................................................................. 27 8.4 Emission Test Procedures .................................................................................. 28 8.4 Emission Test Procedures (Cont’d) ..................................................................... 29 INTERTEK TESTING SERVICES FCC ID: NS634822-27 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: NS634822-27 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NS634822-27 2 1.0 General Description 1.1 P…

Text truncated - open the document above for the full version.

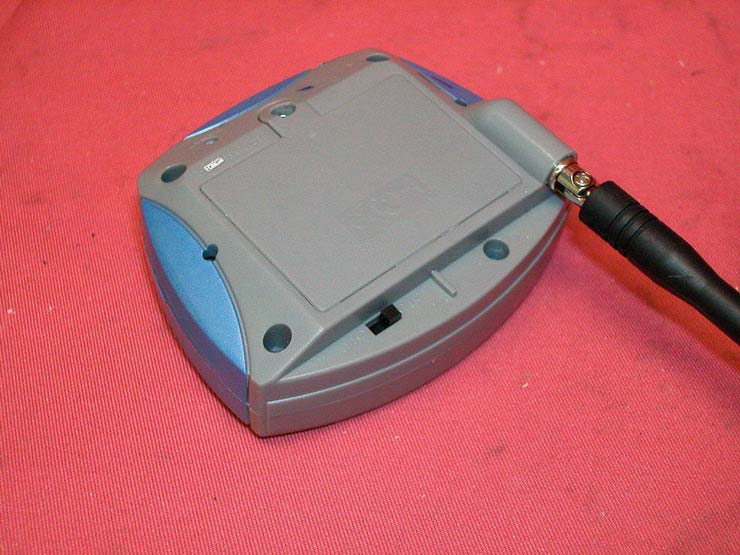

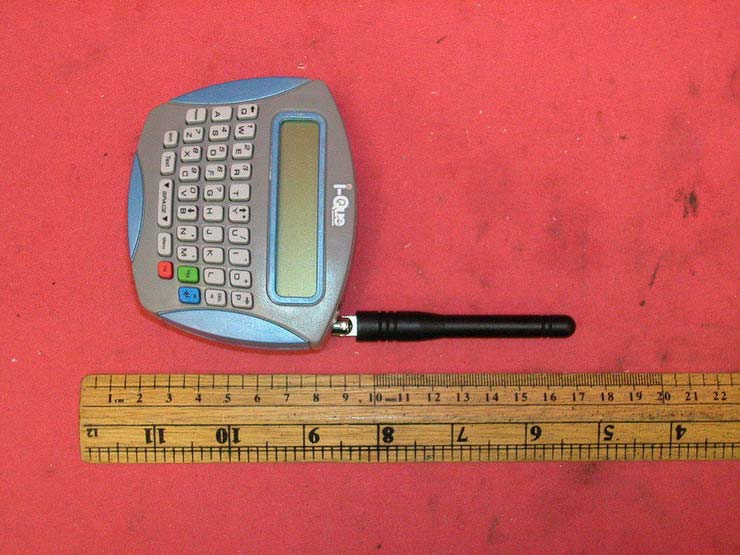

INTERTEK TESTING SERVICES Front View Back View
