NSM-TA-021899

Evolve Remote Display Network

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: May 20, 1999
Application Purpose: Original Equipment
Date of Application: Mar 28, 1999
Frequency Range: 916.30000000 - 916.80000000
Company: Evolve Remote Display Network
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

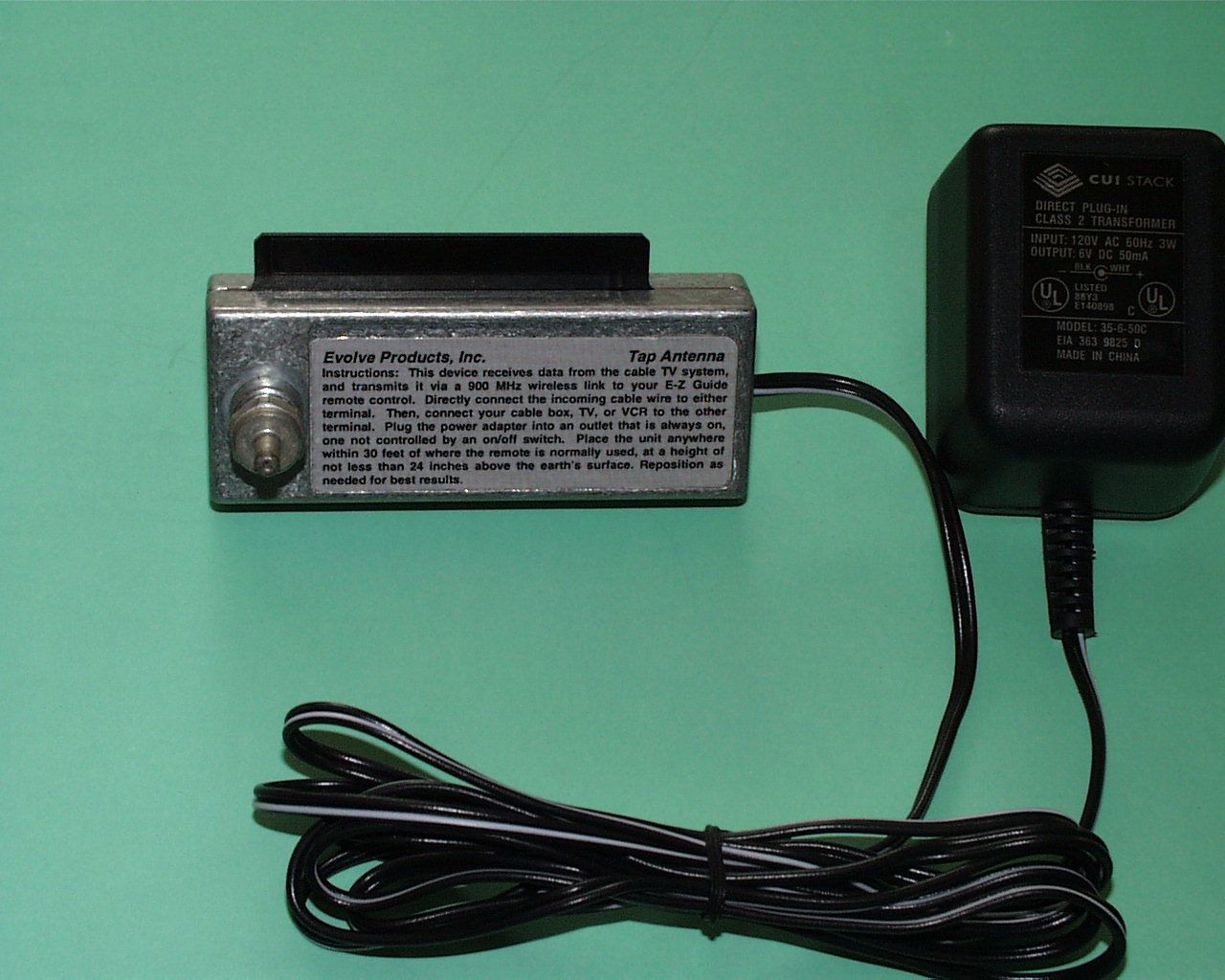

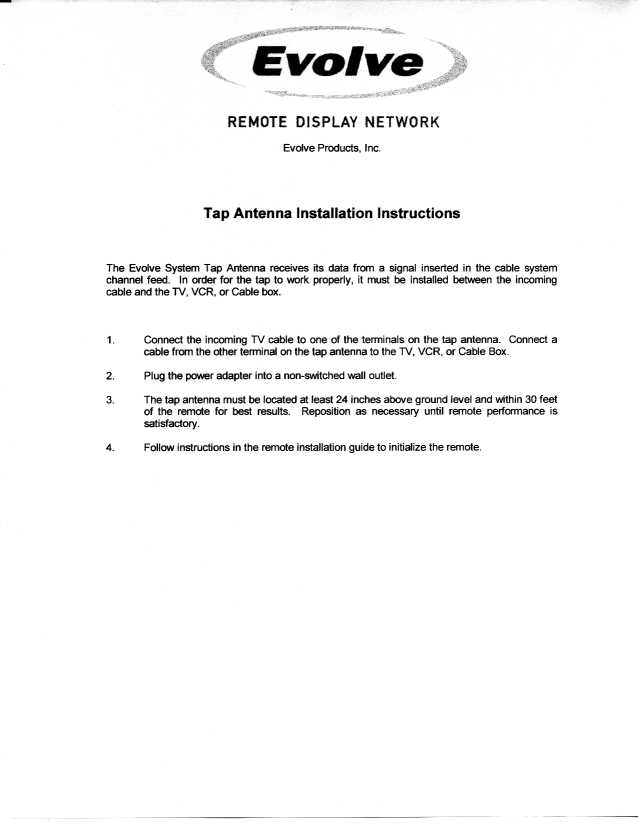

Evolve Products, Inc. Tap Antenna Installation Instructions The Evolve System Tap Antenna receives its data from a signal inserted in the cable system channel feed. In order for the tap to work properly, it must be installed between the incoming cable and the TV, VCR, or Cable box. 1. Connect the incoming TV cable to one of the terminals on the tap antenna. Connect a cable from the other terminal on the tap antenna to the TV, VCR, or Cable Box. 2. Plug the power adapter into a non-switched wall outlet. 3. The tap antenna must be located at least 24 inches above ground level and within 30 feet of the remote for best results. Reposition as necessary until remote performance is satisfactory. 4. Follow instructions in the remote installation guide to initialize the remote.
