2855 Bowers Ave Santa Clara, CA 95051-0917 TEL 408.845-8500 FAX 408.845-8501 W IRELESS RESOURCE MANAGEMENT 10 March 1999 Federal Communications Commission Authorization Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madame: The following is offered as a part of WiData’s application for equipment authorization of the Model HPC-2000-00AA Hand Held Communicator PCMCIA Card. The material addresses CFR 47 Part 15.203 requirements. WiData Model HPC-2000-00AA Hand Held Communicator PCMCIA Card Statement Addressing CFR 47 Part 15.203 Antenna Requirements The WiData model HPC_2000-00AA Hand Held Communicator is a Type II PCMCIA card based system consisting of a 2.4 GHz direct sequence spread spectrum transmitter and a 2.4 GHz on-off keyed short range transmitter and receiver. A single antenna supports all transmission and reception modes. The Type II PCMCIA card is only 0.16 inches (5 mm) thick. and is inserted into a host computer so that only a 2.12 inch (54 mm) by 0.16 inch (5mm) face is available for connection to external devices such as antennas. The 5 mm thickness severely restricts the number of options for coaxial connectors that are adequate at 2.4 GHz. We have chosen to use a MMCX connector (Amphenol p/n 908-22100) on the card. This connector series is never found in retail establishments or at distributors of standard electronic components. It is made by a very limited number of vendors and is available only directly from these vendors or their representatives. Because of the extremely small size of the mating plug it can not be practically installed on a coaxial cable without special tools which again are only available from the connector vendor. Antennas supplied with hand held computers intended for use with PCMCIA cards containing 2.4 GHz radio equipment commonly have coaxial cables terminated with MMCX plugs. WiData has chosen this MMCX connector because it has been approved in the past for similar PCMCIA applications and because it is used on antennas supplied on hand held computers designed to be used with 2.4 GHz wireless PCMCIA devices and because it is not commonly available to our end users. For these reasons we believe that the Hand Held Communicator PCMCIA Card fully complies with the requirements of CFR 47 Part 15.203. Sincerely, John A. Eisenberg Executive Vice President

2855 Bowers Ave Santa Clara, CA 95051-0917 TEL 408.845-8500 FAX 408.845-8501 W IRELESS RESOURCE MANAGEMENT Federal Communications Commission Authorization Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madame: We the undersigned, hereby authorize Intertek Testing Services to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Intertek Testing Services on our behalf shall have the same effect as our own. We also certify that no party to the application authorized hereunder is subject to a denial of benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853 (a). This agreement expires one year from the current date. Sincerely, John A. Eisenberg Executive Vice president

2855 Bowers Ave Santa Clara, CA 95051-0917 TEL 408.845-8500 FAX 408.845-8501 W IRELESS RESOURCE MANAGEMENT Federal Communications Commission Authorization Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re:WiData Hand Held Communicator PCMCIA Card Model Number HPC-2000-00AA Request for withholding from public disclosure proprietary information submitted pursuant to an application for certification of a WiData Hand Held Communicator PCMCIA Card Model Number HPC-2000-00AA. FCC ID: NSQHPC-2000-00AA Dear Sir or Madame: WiData requests that certain materials submitted with this application for certification of the Model HPC-2000-00AA Hand Held Communicator PCMCIA Card be withheld from public disclosure. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules and Section 552 (b)(4) of the Freedom of Information Act, Trade Secrets. The items marked “Confidential” contain detailed block diagrams, schematic diagrams, a detailed theory of operation and a detailed discussion of processing gain submitted to the FCC for review with this application. The information marked “Confidential”, contains proprietary information and has either been placed in an envelope marked “Confidential”, or on a separate floppy disk which is marked “Confidential”, or has been transmitted electronically. Confidential files transmitted electronically contain pages marked with a “Confidential” legend on one or more pages of the file. Information so marked contains proprietary information (trade secrets) regarding the circuit operation and capabilities (specific values of components, circuit design details and system architecture) which are the result of our extensive investment in research and development. Without the disclosed information, competitive organizations would take considerably more time to assess and develop a workable competitive product. As a result, we believe that disclosure of these company guarded materials contained in an envelope or on a disk marked “Confidential” or files transmitted electronically bearing a “Confidential” legend on any page or pages of the file, would compromise our leading position in this market. We therefore formally request that materials delivered in an envelope or on a floppy disk bearing a “Confidential” legend or transmitted electronically with one or more pages bearing a “Confidential” legend, be kept strictly confidential and not made available for inspection by any other party, except on a need to know basis for the sole purpose of the certification process. Sincerely, John A. Eisenberg Executive Vice President

2855 Bowers Ave Santa Clara, CA 95051-0917 TEL 408.845-8500 FAX 408.845-8501 W IRELESS RESOURCE MANAGEMENT Federal Communications Commission Authorization Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madame: Effective January 30, 1999, WiData Corporation moved all of its Sunnyvale, California operations to a new facility in Santa Clara, California. The new facility is larger and better suited to the current size of WiData Corporation. Old Address1259 Oakmead Parkway, Sunnyvale, CA 94086 New Address2855 Bowers Avenue, Santa Clara, CA 95051-0917 Sincerely, John A. Eisenberg Executive Vice President

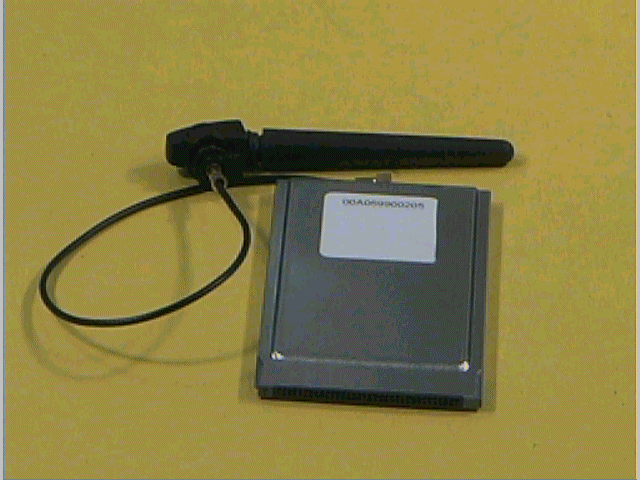

EXTERNAL PHOTOS EXTERNAL - TOP EXTERNAL - BACK

S/N:XXXXXX888888 FireFly HPC-2000-00AA This device complies with Part 15 of the FCC rules and RSS-210 of Industry Canada. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference which may cause undesired operation. Made in USA FCC ID: NSQHPC-2000-00AA

INTERNAL PHOTOS OF HPC INTERNAL CIRCUIT BOARD - TOP INTERNAL CIRCUIT BOARD - BOTTOM INTERNAL OF CASE

WiData Firefly System Processing Gain Measurement The processing gain for the Firefly system is measured using the CW jamming margin method as described in CFR 47 Part 15.247(e)(2) where Gp = S/N 0 + Mj + Lsys. For this system, the BER requirements are derived from the required message error rate because the direct sequence spread spectrum (DSSS) receiver can provide metrics for message errors, but not actual bit errors. (The system uses burst transmissions, and the bursts are discarded if a single bit error occurs.) The remainder of this memo includes the derivation of the S/N 0 of the Firefly System a description of the test setup and procedure, a summary of the results of the testing and an attachment, which contains the detailed data from the test. Both the WiData Model TFF-1000-00AA Tag and HPC-2000-00AA Handheld Communicator contain identical RFIC based transmitters and transmit the same DSSS protocol. The data below was measured with the Model HPC-2000-00AA Handheld Communicator. The receiver used for this test is a WiData Model FEC-3500-00AA. WiData’s Firefly system uses a 48-bit message length. The nature of the Firefly System is such that is not practical to directly measure processing gain by observing signal to noise ratio at the output of the receiver’s demodulator with and without the presence DSSS spreading code. Therefore we chose to make the CW jammer measurement using the WiData HPC-2000-00AA Handheld Communicator. This is because the Handheld Communicator could be placed in a mode where it repeated it DSSS message in a loop at a rapid rate. The TFF-1000-00AA Tag blinks randomly at a much slower rate. This made it impractical to measure the required 1220 data points in a reasonable timeframe. The tag and Hand Held communicator have identical RFIC based transmitters, employ the same parts and transmit identical DSSS protocols. They are both used with and demodulated by the same receiver. Because the tag and Handheld are essentially identical DSSS emitters we are submitting data for the Handheld only and request that it be applied to both products. The WiData tag digital functions are contained in a CMOS gate array. The tag’s logic does not permit it to be placed in a continuous DSSS test mode as is available in the Handheld Communicator. The CMOS gate array is masked silicon and can not be modified to add special test modes. The result of the test is a measured processing gain of 15.9 dB. This result satisfies the CFR 47 Part 15.247 requirement for a minimum of 10 dB of processing gain. BER Requirements Derivation A message throughput rate of 75 percent is acceptable for reliable operations. The burst transmission consists of 48 bits and a single bit error will cause a message error. The message error rate is related to the BER by a simple probability equation. The probability of having zero bits in error out of a 48-bit transmission is given by, Pm = (1 – Pb) L Where,Pm is the probability of receiving a message without errors Pb is the bit error rate probability or BER L is the length of the message Solving for Pb, given Pm = 75 %, we have, Pb = 1 – (Pm) (1/L) or, Pb = 1 – (.75) (1/44) = .00598 Test Setup and Procedure The processing gain test set-up consists of the following equipment connected as shown below. • WiData Model HPC-2000-00AA Handheld Communicator (unit under test) • Notebook Model 6100T Laptop Computer to control UUT • HP8648c signal generator • HP 436a and HP 8484a power meter • HP 797D directional coupler • HP 8494A and HP8496A step attenuators • WiData Model FEC-3500-00AA DSSS burst receiver Jammer/Signal Ration Test Setup HPC-2000-00AA WiData PCMCIA Card Notebook 6100T Laptop Computer HP-8648C Signal Generator HP-797D -20 dB Directional Coupler HP-8494A & HP-8496A Step Attenuators (0-81 dB) A FEC-3500-00AA WiData DSSS Receiver HP-8484A Power Head HP-436A Power Meter Connect to point A calibration The test was conducted by first putting the Handheld Communicator in a continuous DSSS test mode and measuring the power level on the power meter. The jammer level was then set to 0 dB relative to the carrier level and measured using the power meter and the signal generators internal attenuator. A step attenuator was used to adjust the jammer level relative to the signal. The Handheld Communicator left in the continuous DSSS test mode. Message error rate software was written to record the number of good messages received in a group of 128 messages. The passband of the system is +/- 30.5 MHz, so there are 61MHz/50KHz = 1220 test points across the passband of the system. The jammer frequency was set to the lowest frequency in the passband and the jammer level was adjusted until the good message rate measured 96/128 for the nominal 75% throughput. The jammer was then stepped across the passband in 50 KHz increments and the highest jammer level which still allowed 75% throughput was logged at each frequency. This information was recorded in an Excel spreadsheet. Test Results Using the jamming margin method, the processing gain (in dB) is defined as Gp = S/N + Mj + Lsys The required S/N, was derived from the equation Pb = ½ exp(-S/N) for non coherent DBPSK waveforms. Using the BER of .00598 determined above resulted in a S/N of 6.5 dB. To determine Mj, the test data from the jamming margin test was utilized. An Excel Spreadsheet showing the maximum J/S ratio which allowed a good message rate of 75 % for each of the 1220 frequencies in the passband has been submitted as a separate document. A graph summarizing this data is shown in Attachment A. After removing the J/S ratios of the worst 20 %, the lowest remaining J/S level is 7.4dB. Given the design parameters of this system, Lsys was estimated to be 2 dB. Combining these results, the measured processing gain is: Measured Processing Gain = 6.5dB + 7.4dB + 2dB = 15.9 dB ATTACHMENT A Jammer/Signal 2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 Jammer Frequnecy (MHz) Frequency (MHz) Signal PowerJammer PowerJammer/Signal 2,411.2…

Text truncated - open the document above for the full version.

Part Information | Specifications | Line Drawings Part Information: Part Number: 908-22100 Description: MicroMate Edgecard Jack Family: MicroMate Click below to add part to your request list. When you have finished browsing, click "Process Info Request" button. Add to Information Request List Specifications Electrical CECC22000 Test Requirement Impedance 50 Ohm Frequency Range DC thru 6 GHz VSWR SMT and Edgecard (Mated Pair) DC - 4 GHz 4-6 GHz Cabled Straight, Semi-Rigid Straight, Flex Right Angle, Semi- Rigid Right Angle, Flex 4.41 1.15 Max 1.40 Max 1.15 Max 1.20 Max 1.20 Max 1.25 Max 1 of 43/11/99 10:00 AM RF Products Part Drawing and Specificationshttp://www.amphenolcnp.com/RFpartsearch... &cfid=174274&cftoken=85498234 Dielectric Withstanding Voltage (at Sea Level) Working Voltage (at Sea Level) 4.4.5 4.4.4 500 V rms. 50 Hz less than or equal to 170 B rms, 50 Hz Insulation Resistance 4.4.4 greater than or equal to 500 M ohm Contact Resistance (Center Conductor) 4.4.2 less than or equal to 10 M ohm Contact Resistance (Outer Conductor) 4.4.3 less than or equal to 5 M ohm Environmental CECC22000 Test Requirement Temperature Range -40° thru 90° Temperature Shock4.6.7 Mil-STD-202, Method 107 Humidity4.6.6 Mil-STD-202, Method 103, Condition B Vibration4.6.3 3 cycles, 3 opposite directions, 10-150 Hz, 10-60 Hz: 0.75mm/0.30 in., 60-150 Hz 10G's Mechanical Shock4.6.4 Mil-STD-202, Method 213, Condition B Mechanical CECC22000 Test Requirement 2 of 43/11/99 10:00 AM RF Products Part Drawing and Specificationshttp://www.amphenolcnp.com/RFpartsearch... &cfid=174274&cftoken=85498234 Engagement Force 4.5.4 less than or equal to 3.4 lbs. Disengagement Force 4.5.41.4 lbs. to 3.4 lbs. Contact Captivation 4.5.22.3 lbs. Durability (Machined)4.7.1 greater than or equal to 500 cycles Material StandardsMaterialPlating Leads QQ-C-530BeCuGold Contact Socket QQ-C-530BeCuGold Outer ConductorQQ-C-530BeCuGold Housing (SMT) Liquid Crystal Polymer Insulator ASTM-D1457PTFE Line Drawing 3 of 43/11/99 10:00 AM RF Products Part Drawing and Specificationshttp://www.amphenolcnp.com/RFpartsearch... &cfid=174274&cftoken=85498234 Product Information Body Plating: Gold over Nickel Contact Plating: Gold over Nickel Dielectric Material: TFE or equiv per MIL-P-19468A 4 of 43/11/99 10:00 AM RF Products Part Drawing and Specificationshttp://www.amphenolcnp.com/RFpartsearch... &cfid=174274&cftoken=85498234

Intertek Testing Services FCC 15.247 & 15.249 CERTIFICATION APPLICATION FOR WiData Corporation 2.4 GHz Tracking System Model: HPC-2000-00AA FCC ID: NSQHPC-2000-00AA Job # J99002777 Number of Pages: 17pp. + Supporting Data and Documents Date of Report: March 1, 1999 This report shall not be reproduced except in full, without written approval of Intertek Testing Services. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. The results contained in this report were derived from measurements performed on the identified test samples. Any implied performance of other samples on this report is dependent on the representative of the samples tested. k:\..\fcc\15247ds.cerFCC Part 15 DSSS Cert, Ver 8/98 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 WiData Corporation, 2.4 GHz Tracking SystemDate of Test: February 9-11, 1999 FCC ID: NSQHPC-2000-00AA Report # J99002777FCC 15.247 DSSS & 15.249 Certification ii Table of Contents 1.0Summary of Tests........................................................................................................................... 1 2.0General Description........................................................................................................................ 2 2.1Product Description ............................................................................................................. 2 2.2Related Submittal(s) Grants.................................................................................................2 2.3Test Methodology................................................................................................................ 3 2.4Test Facility ......................................................................................................................... 3 3.0System Test Configuration............................................................................................................ 4 3.1Support Equipment.............................................................................................................. 4 3.2Block Diagram of Test Setup .............................................................................................. 4 3.3Justification ......................................................................................................................... 5 3.4Software Exercise Program ................................................................................................. 5 3.5Mode of Operation During Test .......................................................................................... 5 3.6Modifications Required for Compliance ............................................................................. 5 3.7Additions, deviations and exclusions from standards .......................................................... 5 4.0Measurement Results..................................................................................................................... 6 4.1Maximum Conducted Output Power at Antenna Terminals................................................ 6 4.2Minimum 6 dB RF Bandwidth ........................................................................................... 7 4.3Maximum Power Density Reading ...................................................................................... 8 4.4Out of Band Conducted Emissions...................................................................................... 9 4.5Out of Band Radiated Emissions ....................................................................................... 12 4.6Transmitter Radiated Emissions in Restricted Bands ........................................................ 12 4.7AC Line Conducted Emission ........................................................................................... 13 4.10Radiated Emissions from Digital Section of Transceiver (Transmitter) ............................ 14 4.11Radiated Emissions from Receiver Section of Transceiver (L.O. Radiation), .................. 14 4.12Processing Gain Measurements ......................................................................................... 15 4.13Transmitter Duty Cycle Calculation and Measurements.................................................... 16 6.0List of Exhibits............................................................................................................................. 17 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 WiData Corporation, 2.4 GHz Tracking SystemDate of Test: February 9-11, 1999 FCC ID: NSQHPC-2000-00AA Report # J99002777FCC 15.247 DSSS & 15.249 Certification 1 1.0Summary of Tests WiData Corporation - Model No.: HPC-2000-00AA FCC ID: NSQHPC-2000-00AA TESTREFERENCERESULTS Max. Output power15.247(b)Pass 6 dB Bandwidth15.247(a)(2)Pass Max. Power Density15.247(d)Pass Out of Band Antenna Conducted Emission15.247(c), 15.249Pass Out of Band Radiated Emission15.247(c)N/A Radiated Emission in Restricted Bands15.35(b)(c), 15.249Pass AC Conducted Emission15.207Pass Radiated Emission from Digital Part15.109Pass Radiated Emission from Receiver L.O.15.109Not Applicable Processing Gain Measurements15.247(e)Provided by applicant Antenna Requirement15.203Provided by applicant Test Engineer: Date: Xi-Ming Yang EMC Site Manager: Date: David Chernomordik Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 WiData Corporation, 2.4 GHz Tracking SystemDate of Test: February 9-11, 1999 FCC ID: NSQHPC-2000-00AA Report # J99002777FCC 15.247 DSSS & 15.249 Certification 2 2.0General Description 2.1Product Description A production version of the sample was received on February 9, 1999 in good condition. Overview of 2.4 GHz Tracking System Applicant WiData Corporation Trade Name & Model No. WiData Corporation, HPC-2000-00AA FCC Identifier NSQHPC-2000-00AA Use of ProductTracking System Manufacturer & Model of Spread Spectrum Module WiData Corporation Type of TransmissionDirect Sequence Rated RF Ou…
