NSQTFF-1015-0001WhereTag II HO

WhereNet Corp. January 2003 Page 1 WhereTag II HO User’s Guide Revision B, January 2003 Model Number: TFF-1015 WhereNet Corp. 2858 De La Cruz Blvd. Santa Clara, CA 95050 408-845-8500 WWW.WhereNet.COM WhereNet Corp. January 2003 Page 2 FCC Requirements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme à la norme NMB-001 du Canada. Radio Equipment Authorization: FCC ID: NSQTFF-1015-0001 IC: 3586B-TFF1015 FCC RF Exposure Requirements The internal antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Any changes or modifications to WhereNet Corp. equipment not expressly approved by WhereNet Corp. could void the user’s authority to operate the equipment. There are no user-serviceable parts inside. Do not attempt to open the unit to change batteries. ____________ _______________ WhereNet Corp. January 2003 Page 3 Contents Introduction...............................................................................................................4 Installation and Activation.........................................................................................7 Tag Mounting Options...............................................................................................7 Specifications..............................................................................................................8 WhereNet Corp. January 2003 Page 4 Introduction System overview The WhereNet Real Time Locating System (RTLS) is designed to permit users to determine the position of tagged assets in both indoor and outdoor facilities such as factories and freight yards. The system locates tagged assets by a process involving redundant triangulation. Each tag autonomously emits a 2.4 GHz direct sequence spread spectrum (DSSS) radio signal at predetermined blink rate. Each tag’s blink rate is randomized around its predetermined value to minimize the number of collisions between transmissions made by different tags. The signal emitted by the tag is received by a minimum of four Location Antennas. A typical transmission contains a preamble which is used to synchronize the receiver, the tag’s serial number which identifies the tag, a status word which monitors various tag functions, data stored in the tag’s memory and finally a CRC used to assure that the tag’s message is correct as received. The principal components of WhereNet’s RTLS are shown in Figure 1. WhereTag II HO Device The WhereTag II HO is the same as the existing WhereTag II with the exception that it has a 200 mW RF power amplifier added to boost the RF ASIC’s power output from 2 mW to 60mW. The WhereTag II HO is the first level component of the WhereNet Real Time Locating System (RTLS). It is a low-cost wireless device that attaches to a resource (such as an asset, pallet, container, vehicle, etc.) and periodically broadcasts, via radio, it’s unique identification number. WhereNet’s RTLS infrastructure detects that signal and precisely locates the tag and it’s associated resource. Powered by a long-life internal battery, the WhereTag II HO’s beacon signal can be configured to “blink” from every half second to once an hour. This allows some resources to be tracked second to second while others that are less mobile can be tracked less frequently. At a typical blink rate of four minutes, the tag’s battery can last six years. When excited by a WhereNet WherePort, a WhereTag II HO can alter its blink rate (typically faster) to enable more timely location updates for critical threshold zones such as shipping/receiving docks and other portals. Each WhereTag II HO has a unique identification number that is transmitted via radio during each blink. When it’s battery is running low, the tag alerts the WhereNet RTLS infrastructure so that the tag can be proactively replaced. WhereTag II HOs can be pre-programmed with 12 bytes of supplementary data (such as an asset or serial number) that can be included with each blink. WhereTag II HOs are configured with WhereNet’s WhereWand. The number is also printed as a Code 128 bar code on the tag. The bar code enables seamless integration with existing inventory systems and delivers a cost effective total resource visibility solution that extends beyond the range of the WhereNet Location Antennas. WhereTags are extremely durable and can be used both indoors and outdoors. The tag’s case is resistant to oils, solvents and hydraulic fluids. WhereNet Location Antenna This device is an active antenna that mounts remotely and is connected to the Location Processor. Its function is to receive spread spectrum radio signals from the WhereTag II devices. It converts the radio frequency signal to a lower intermediate frequency and transfers those signals to the reader processor cards in the Location Processor. WhereNet Corp January 2003 Page 5 WhereNet Location Processor The WhereNet Location Processor is a processing unit that receives WhereTag II device signals through a set of WhereNet Location Antenna and calculates location information using sophisticated digital signal processing. The Location Processor is able to track a large number of WhereTag II devices simultaneously to assure location accuracy over a large coverage area. The Location Processor forwards accurate location information, in real-time, to the WhereNet server, where information can be graphically displayed, used for report generation or accessed through the Internet. WhereNet Hand-Held Communicator or WhereWand These devices allow the users to reconfigure the blink rate and 12 bytes of memory in a WhereT…

Text truncated - open the document above for the full version.

__________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 TIMCO Engineering Inc. 849 NW State Road 45 Newberry, Florida 32669 USA IHR ZEICHEN / YOUR REF.IHR SCHREIBEN / YOUR INFORM.UNSER ZEICHEN / OUR REF. DATUM / DATE February 21, 2003 Subject:Application for TCB Certification Applicant: WhereNet Corp. Equipment: WhereTag II HO (TFF-1015-0001) FCC ID: NSQTFF-1015-0001 Dear Sirs, Submitted herewith, on behalf of Brain Boxes Limited, is an application for certification of the following Spread Spectrum Transmitter: WhereTag II HO / NSQTFF-1015-0001 Attached are the 731Form, confidentiality request letter, test report (TestRpt1=test data, TestRpt2=test plots), FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, part’s list, block diagrams, schematics and user manual. In accordance with 0.459 of CFR 47 Brain Boxes Limited hereby requests confidentiality of all Block Diagrams, Circuit Diagrams (Schematics) and Parts List (see attached Confidentiality Request Letter) for the subject application. Should you have any questions or comments concerning the above, please contact the undersigned. Kind regards. Jenifer Täubert Electronic Technology Systems Dr. Genz GmbH Storkower Strasse 38c 15526 Reichenwalde bei Berlin Germany E-mail: [email protected]

Date: January 28, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company Name: WhereNet Corp. FCC ID: NSQTFF-1015-0001 FCC Part 15 Certification Dear Sir or Madame, In accordance with 0.459 of CFR 47, WhereNet Corp. hereby requests confidentiality of all (Block Diagrams, Circuit Diagrams, Parts List, Operational Description) attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which WhereNet Corp. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, WhereNet Corp. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature: Name: Walt S. Johnson Title: Director Company: WhereNet Corp.

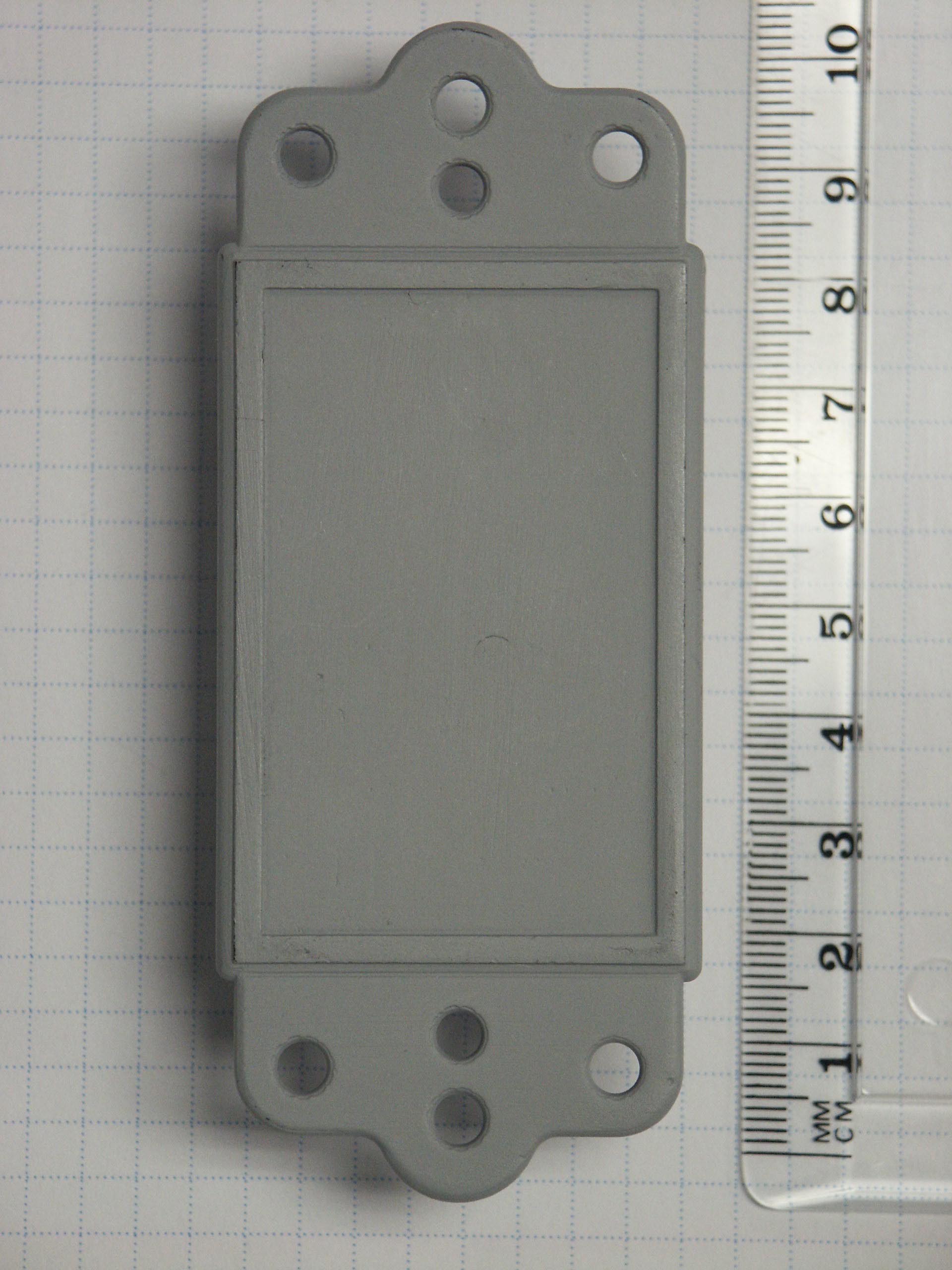

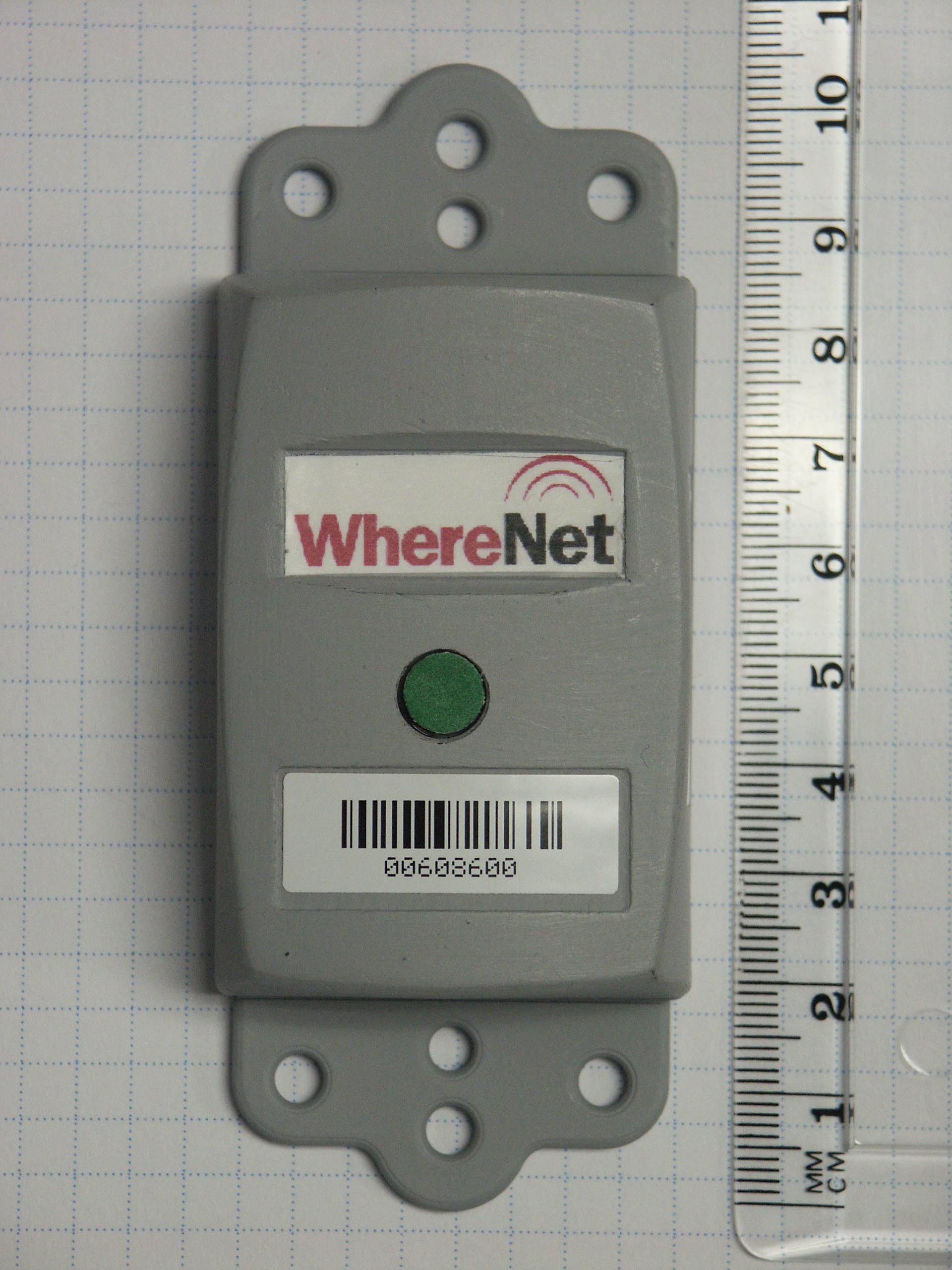

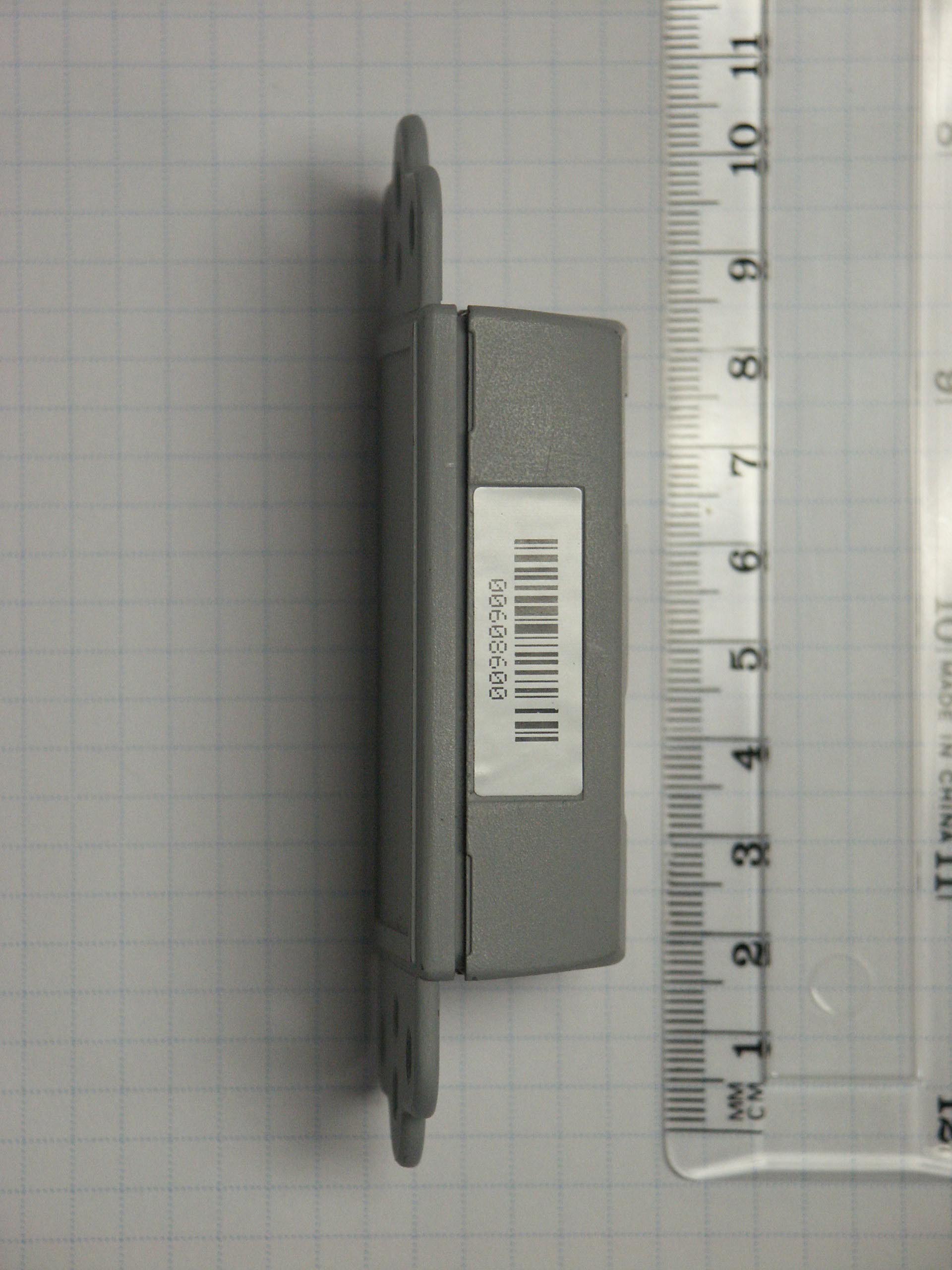

ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 1 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix A. Pictures Front Enclosure ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 2 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Front Enclosure with push button ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 3 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Side view ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 4 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Back view

NOTES:1. Material: PBT/PC RTP CO. 2099X88889Z, White or equivalent with approval from WhereNet.2. Texture outside of parts with Mold Tech MT1055. Surface finish of tool to be SPI-SPE#3 prior to texture.3. Label recess areas to be SPI-SPE#2.4. Gate to be trimmed with NTE .020 flash. Gate and ejector locations to be approved by WhereNet.5. Parts to be free of visual defects to SPI cosmetic specs. 6. Part number and revision level to be molded into inside of parts.7. Corners, fillets, and features to be molded per reference to 3D assembly file 'D0640r1.sldasm'.8. Agency artwork and model number to be applied to bottom housing label recess using EDM to .004 recess polished to SPI-SPE#3. Artwork shall use file WhereNet file 11102rA.EPS. 9. Flash not to exceed .002. 3 3 WhereNet SCALE:1:1 SIZE DWG. NO. A REV. MATERIAL FINISH See Notes See Notes DO NOT SCALE DRAWING APPLICATION USED ON NEXT ASSY DIMENSIONS ARE IN INCHESTOLERANCES:FRACTIONAL ANGULAR: MACH BEND TWO PLACE DECIMAL .010THREE PLACE DECIMAL .005 NAME DATE DRAWN CHECKEDENG APPR. MFG APPR. Q.A. SHEET 1 OF 4 WEIGHT: COMMENTS: REVISIONS DESCRIPTION REV. DATE APPROVED THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFWhereNet. ANY REPRODUCTION IN PARTOR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WhereNet IS PROHIBITED. PROPRIETARY AND CONFIDENTIAL ZONE Control Drawing, Tag II HO Housing Set D0641 1 RWB 1/10/03 1 Engineering Release per ECO C0578 1/10/03 RWB RWB 1/10/03 1 Control Drawing, Tag II HO Housing Set D0641 NOTES:1. Material: PBT/PC RTP CO. 2099X88889Z, White or equivalent with approval from WhereNet.2. Texture outside of parts with Mold Tech MT1055. Surface finish of tool to be SPI-SPE#3 prior to texture.3. Label recess areas to be SPI-SPE#2.4. Gate to be trimmed with NTE .020 flash. Gate and ejector locations to be approved by WhereNet.5. Parts to be free of visual defects to SPI cosmetic specs. 6. Part number and revision level to be molded into inside of parts.7. Corners, fillets, and features to be molded per reference to 3D assembly file 'D0640r1.sldasm'.8. Agency artwork and model number to be applied to bottom housing label recess using EDM to .004 recess polished to SPI-SPE#3. Artwork shall use file WhereNet file 11102rA.EPS. 9. Flash not to exceed .002. 8 WhereNet See Notes See Notes DIMENSIONS ARE IN INCHESTOLERANCES:FRACTIONALANGULAR: MACH BEND TWO PLACE DECIMAL .01THREE PLACE DECIMAL .005 SCALE:1:2 SIZE DWG. NO. A REV. MATERIAL FINISH DO NOT SCALE DRAWING APPLICATION USED ON NEXT ASSY DIMENSIONS ARE IN INCHESTOLERANCES:FRACTIONAL ANGULAR: MACH BEND TWO PLACE DECIMAL THREE PLACE DECIMAL NAME DATE DRAWN CHECKEDENG APPR. MFG APPR. Q.A. SHEET 2 OF 4 WEIGHT: COMMENTS: REVISIONS DESCRIPTION REV. DATE APPROVED PROPRIETARY AND CONFIDENTIAL ZONE THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFWhereNet. ANY REPRODUCTION IN PARTOR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WhereNet IS PROHIBITED. .606 1.896 .309 2.590 1.700 .345 Control Drawing, Tag II HO Housing Set D0641 1 1 .001 in/in Warpage Max .002in/in Surface Flaness D C B A AB CD 1 2 3 4 5 6 7 8 8 7 65 4 3 2 1 NEXT ASSY USED ON APPLICATION DIMENSIONS ARE IN INCHESTOLERANCES:FRACTIONALANGULAR: MACH BEND TWO PLACE DECIMAL .01THREE PLACE DECIMAL .005 INTERPRET GEOMETRICTOLERANCING PER: MATERIAL FINISH -- -- DRAWN CHECKED ENG APPR. MFG APPR. Q.A. COMMENTS: DATE NAME WhereNet TITLE: SIZE B DWG. NO. REV SHEET 3 OF 4 WEIGHT: SCALE: 1:1 REVISIONS REV. DESCRIPTION DATE APPROVED ZONE UNLESS OTHERWISE SPECIFIED: 1.896 .345 .564 THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFWhereNet. ANY REPRODUCTION IN PARTOR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WhereNet IS PROHIBITED. Control Drawing, Tag II HO Housing Set D0641 1 Flatness to .002in/in D C B A AB CD 1 2 3 4 5 6 7 8 8 7 65 4 3 2 1 NEXT ASSY USED ON APPLICATION DIMENSIONS ARE IN INCHESTOLERANCES:FRACTIONALANGULAR: MACH BEND TWO PLACE DECIMAL .01THREE PLACE DECIMAL .005 INTERPRET GEOMETRICTOLERANCING PER: MATERIAL FINISH -- -- DRAWN CHECKED ENG APPR. MFG APPR. Q.A. COMMENTS: DATE NAME TITLE: SIZE B DWG. NO. REV SHEET 4 OF 4 WEIGHT: SCALE: 1:1 REVISIONS REV. DESCRIPTION DATE APPROVED ZONE UNLESS OTHERWISE SPECIFIED: WhereNet

ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 5 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Inside Front PCB 1 and 2 ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 6 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Inside Front PCB 1, 2 back side ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 7 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Inside Front PCB 1 back side ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 8 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Inside Front PCB 1 without shielding ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 9 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Inside Back PCB 1 without shielding

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product WhereTag II HO, Model TFF-1015-0001 FCC ID: NSQTFF-1015-0001 is considered to be a mobile transceiver. The internal antenna used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement concerning minimum separation distances from enclosure of the product WhereTag II HO, Model TFF-1015-0001 will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. Company: WhereNet Corp. Address: 2858 De La Cruz Blvd. City: Santa Clara ZIP / Postal code: CA 95050 Country: USA Place, date Santa Clara, January 29. 2003 Signature Walt S. Johnson

1 TFF-1015 Transmitter Duty Cycle Calculation and Measurements. The spectrum analyzer’s (Agilent 8595E) input was driven by a 2.4 GHz receiving antenna, which was coupled to the transmit antenna of EUT. The spectrum analyzer center frequency was set to EUT’s RF channel carrier. The frequency span on the analyzer was set to ZERO SPAN. The transmitter ON time was determined from the resultant time-amplitude display. Duty Cycle Calculation: Duty cycle = Maximum ON time in 100 msec/100. For DSSS mode (see plot 4), maximum duty cycle = 2.55 msec/100 msec = 2.55% For OOK mode (see plot 6), maximum duty cycle = 9.3 msec/100 msec = 9.3% Duty Cycle Measurements: Please see pages 2-4. 2 Plot 1: DSSS Transmission at fastest repetition rate of 1.5 seconds. Each transmission consists of 8 “sub-blinks”. The number of sub-blinks is programmable from 1 to 8. Plot 2: Time interval between sub-blinks is 125msec. 3 Plot 3: Transmit on time for a DSSS short message is 0.94 msec. Plot 4: Transmit on time for a DSSS long message is 2.55 msec. 4 Plot 5: Transmit on time for an OOK short message is 4.4 msec. Plot 6: Transmit on time for an OOK long message is 9.3 msec.

Declaration concerning Antenna Specification It ́s hereby declared that the product: WhereTag II HO, Model TFF-1015-0001 FCC ID: NSQTFF-1015-0001 fulfills the requirement in FCC test relating to the antenna type. The Model TFF-1015-0001 confirms to FCC recommendation with internal antenna type: - One Inverted-F antenna - Permanently attached (built into the housing) - Gain of antenna max. 2.0dBi - Frequency range 2,400 to 2,483 MHz. The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company: WhereNet Corp. Address: 2858 De La Cruz Blvd. City: Santa Clara ZIP / Postal code: CA 95050 Country: USA Place: Santa Clara Date: January 29. 2003 Signature: Walt S. Johnson

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C Test report no.: U0M20302-7612-T-47 FCC ID: NSQTFF-1015-0001 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 1 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 2 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 04.02.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 04.02.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 3 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96-30 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96-00 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: WhereNet Corp. Street: 2858 De La Cruz Blvd. Town: Santa Clara, CA 95050 Country: USA Telephone: +1 408 845-8514 Fax: +1 408 845-8501 Contact: Mr. Walt Johnson Telephone: +1 408 845-8514 ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 4 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 09.01.2003 Date of receipt of test item: 09.01.2003 Date of test: 06.03.2003 – 10.01.2003 1.5Test item Description of test item: WhereTag II HO Type identification: TFF-1015-0001 Serial number: without FCC ID: NSQTFF-1015-0001 Use of product: Tag for Real Time Locating System Photos: See Appendix A Technical data Operating Frequencies: 2441.75 MHz for DSSS; 2446.5 MHz for OOK Radiated Power (max. 1 Watt) Mode DSSS CW 2441.75 MHz : 19.53 dBm89.74 mW Mode DSSS OOK 2446.5 MHz : 13.63 dBm23.07 mW Power supply: 3.6 V battery Operating mode: duplex Type of transmission: DSSS (Direct Sequence Spread Spectrum) Number of channels: 2 (DSSS, DSSS OOK) Duty Cycle of transmitter: DSSS: 2.55 % (2.55 msec on) DSSS OOK: 9.2 % (9.2 msec on) Antenna gain: max. 2 dBi Antenna type: internal antenna Antenna requirement: The EUT uses a permanently connected inverted F-antenna. ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 5 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Manufacturer: (if applicable) Name: Street: Town: Country: Additional information: Related Submittal(s)/Grants: None. ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 6 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2Test environment Temperature: 22 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply: 3.6 V battery Extrem conditions parameters:: test voltage - extrememin.:--(Vnom - 15 %) max: --(Vnom + 15 %) ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 7 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spektrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvcom ETS 0008AntennaLoop antennaSiemens ETS 0009AntennaLoop antennaMEB ETS 0010AntennaLoop antennaMEB ETS 0011Antennavan Veen/ FrameETS ETS 0012AntennaHK 116Rohde&Schwarz ETS 0013AntennaHL 223Rohde&Schwarz ETS 0014AntennaHL 025Rohde&Schwarz ETS 0015AntennaHL 025Rohde&Schwarz ETS 0016AntennaVHAPSchwarzbeck ETS 0017AntennaVHAPSchwarzbeck ETS 0018AntennaUHAPSchwarzbeck ETS 0019AntennaUHAPSchwarzbeck ETS 0020AntennaDP 21MEB ETS 0021AntennaDP 3MEB ETS 0022AntennaSAS-200/ 521A.H. Systeme / USA ETS 0023AntennaDP 1MEB ETS 0024Antenna mastAF 2MEB ETS 0025Antenna mastAF 2M…

Text truncated - open the document above for the full version.

Power measurement SWT 5 ms A Unit dBm RF Att 20 dBRBW 300 kHz VBW 1 MHz IN1 Ref Lvl 33 dBm Ref Lvl 33 dBm 42 dB Offset 6 MHz/Center 2.442084168 GHzSpan 60 MHz 1VIEW1SA -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1] 5.57 dBm 2.44178357 GHz 1 [T1] 5.57 dBm 2.44178357 GHz CH PWR 19.53 dBm CH BW 30.00000000 MHz C0 C0 Date: 7.FEB.2003 09:52:04

ETS Dr. Genz GmbH, GermanyRegistration number: U0M20302-7612-T-47Page 10 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH
