NSZ-AKSE3Child Seat Detection System

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 14.03.2011 FCC ID: NSZ-AKSE3 Subject: Compliance Statement in Manual Dear Sirs, Our client’s products with the above FCC ID are marketed together with vehicles, where its operation is included in the individual owner’s manual of the vehicle. We hereby assure that the following caution statement as per CFR 47, §15.21 is included in a prominent location of the owner’s manual of the cars: The title “CAUTION TO USERS” or “FCC WARNING”: “NOTE” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition, we also assure that the following statement is also included in a prominent location in the manual as per CFR 47, §15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Thomas Ring Manager Certification mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany

14.03.2011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below for the following FCC ID: NSZ-AKSE3 Schematics Parts List Operating Description Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Thomas Ring Manager Certification mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany

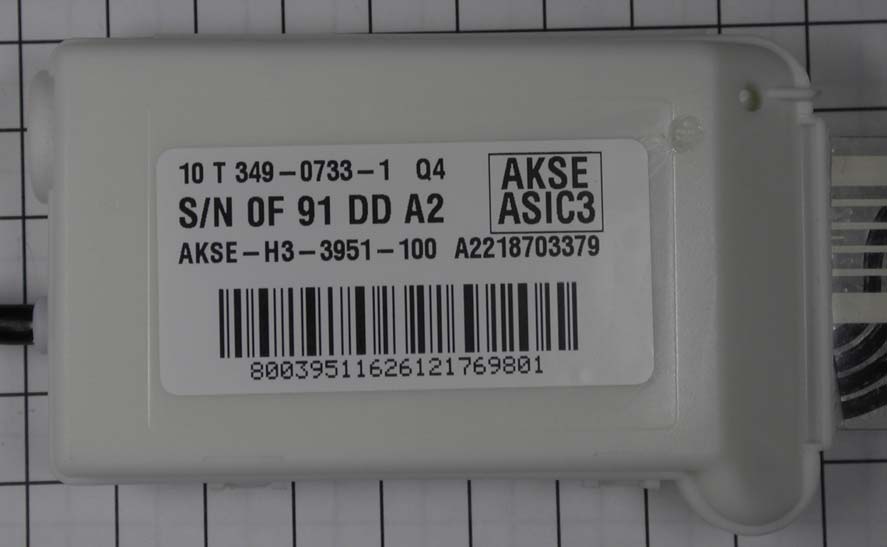

FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 5 of 16 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT

FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 5 of 16 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT

IEE S.A. MODEL: AKSE FCC ID: NSZ-AKSE3 IC: 3019A-AKSE3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received including interference that may cause undesired operation.

FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 6 of 16 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010

FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 1 of 18 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 EMI − T E S T R E P O R T - FCC Part 15.209 - Test Report No. : T34833-00-02KG 23. March 2011 ______________________________________________________________________________________________ Date of issue Type / Model Name : AKSE ASIC3 Product Description : Child seat presence & orientation detection system Applicant : IEE S.A. Address : ZAE Weiergewan, 11, rue Edmond Reuter L-5326 Contern, Luxembourg Manufacturer : IEE S.A. Address : ZAE Weiergewan, 11, rue Edmond Reuter L-5326 Contern, Luxembourg Licence holder : IEE S.A. Address : ZAE Weiergewan, 11, rue Edmond Reuter L-5326 Contern, Luxembourg Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 2 of 18 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 Photo documentation of the EUT 5 3.2 Power supply system utilised 7 3.3 Short description of the equipment under test (EUT) 7 4 TEST ENVIRONMENT 8 4.1 Address of the test laboratory 8 4.2 Environmental conditions 8 4.3 Statement of the measurement uncertainty 8 4.4 Measurement protocol for FCC 9 5 TEST CONDITIONS AND RESULTS 10 5.1 Conducted emissions 10 5.2 Field strength of the fundamental wave 11 5.3 Spurious emissions 13 5.4 Emission bandwidth 16 6 USED TEST EQUIPMENT AND ACCESSORIES 18 FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 3 of 18 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2009) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2009) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1: 2005 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 4 of 18 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 2 SUMMARY GENERAL REMARKS: None FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 16 February 2011 Testing concluded on : 22 March 2011 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Klaus Gegenfurtner Dipl.-Ing.(FH) FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 5 of 18 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 6 of 18 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 7 of 18 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3.2 Power supply system utilised Power supply voltage: : 13,5 V / DC 3.3 Short description of the equipment under test (EUT) ASKE is an RFID sensing system, which is cabable of determining the presence and orientation of a CRS placed on a passenger seat. The EuT works on the following frequencies: CH1 = 123.3 kHz CH2 = 125.2 kHz CH3 = 127.2 KHz CH4 = 129.2 kHz CH5 = 131.4 kHz CH6 = 133.6 kHz Number of tested samples: 1 Serial number: Prototype EUT operation mode: The equipment under test was operated during the measurement under the following conditions: - Continuous sweep mode on 6 frequencies between 123 kHz and 134 kHz EUT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - Model : - Model : - Model : - Model : - Model : - Model : - unscreened power cables FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 8 of 18 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 4 TEST ENVIRONMENT 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 STRASSKIRCHEN GERMANY 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accura…

Text truncated - open the document above for the full version.

FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 11 of 16 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.209: The emissions from intentional radiators shall not exceed the effective field strength limits. FCC ID: NSZ-AKSE3 mikes-testingpartners gmbh File No. T34833-00-02KG, page 13 of 16 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5.3 Spurious emissions For test instruments and accessories used see section 6 Part SER 1, SER 2. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up
