NTMEJ-6TDigital Pendant Microphone

Manual 1 2 3 4 5 6 7 8 10 11 9 12 9 Buckle clip 3 4 1 2 POWER / MUTE switch (MUTE indicator) Channel / Volume switch LCD screen Microphone 10 External mic. Input 5 Charging indicator 12 11 Charging terminal Aux input 6 7 8 Neck strap hole DC charging input Strap hole Others To reset mode, press / at the same time and switch the power on. 03/13 11/13 Specifications are subject to change without prior notice. ※ Charging mode 1. LED lits red when charging. 2. LED lits green when battery is fully charged. 3. When device is inserted to charging slot, the device powers off. 4. Battery error: LED status flashes in red when charging. (1)The battery temperature is exceeded 60 C. o (2)The duration of charging time for charger stand exceeded 7 hours. (3)The battery is defected. Volume switch LCD screen displays current volume level when press or (VOL. 1 ～ 3). Mute / Talk select Press Mute button for 2 seconds; enter into the Mute / Talk switch mode. Power OFF Press 2 seconds to turn the device off. Set up/ Installation 1. Press 0.5 second to turn on. LCD backlit lits up. 2. When power is on, the button lits blue. Power ONChannel Synchronization (Front view)(Side view)(Rear view) (Top view) (Bottom view) 1.When the receiver channel has been changed, press “set ” and “mute” buttons at the same time to sync the channel again. 2.When transmitter is set as Master, the preset channel will be A. If channel A is occupied, the channel will switch to B automatically. Once channel A transmitter has been shut off, channel B will switch back to channel A. 3.When transmitter is set as slave: a.If channel A is not switched on, channel B will not be able to transmit, and transmitter shuts off automatically after 30 minutes. b.When channel A transmitter is powered off, channel B transmitter will be powered off as well. 4.Sync range is 15 meters. 1 2 3 4 5 Digital Pendant Microphone EJ-6T Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

OKAYO Electronics Co., Ltd. No.2, Gongye 10 th Rd., Dali Dist., Taichung 41280, Taiwan Date: 19/12/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, OKAYO Electronics Co., Ltd. No.2, Gongye 10 th Rd., Dali Dist., Taichung 41280, Taiwan , hereby authorize Electronics Testing Center, Taiwan, Mr. S. S. Liou (No. 34. Lin 5. Dingfu, Linkou Dist., New Taipei City, Taiwan, R.O.C., 886-2-2602-3052#20) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 19/06/2014. Sincerely, Stephen Wei / Sales Manager ___________________________________ Name / Title Tel：886-4-24914666 E-mail：[email protected]

OKAYO Electronics Co., Ltd. No.2, Gongye 10 th Rd., Dali Dist., Taichung 41280, Taiwan Date: 19/12/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, OKAYO Electronics Co., Ltd. No.2, Gongye 10 th Rd., Dali Dist., Taichung 41280, Taiwan , hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Stephen Wei / Sales Manager ___________________________________ Name / Title Tel：886-4-24914666 E-mail：[email protected]

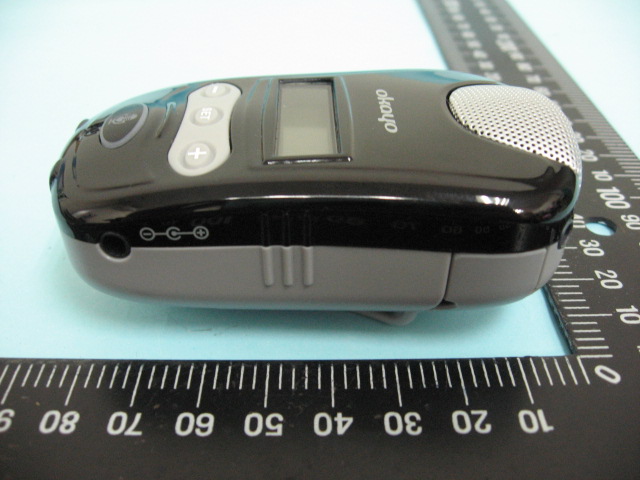

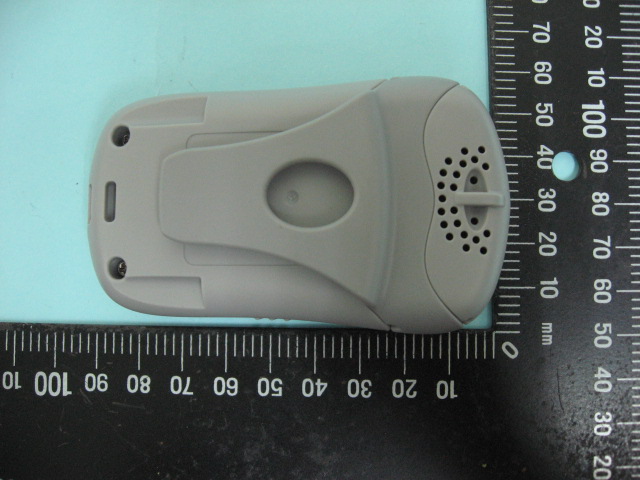

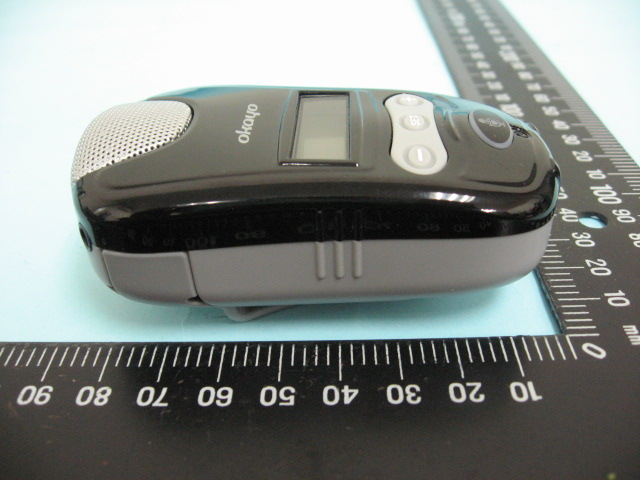

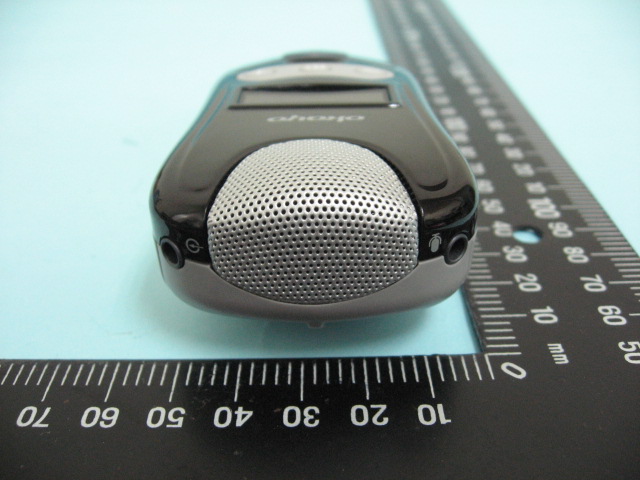

ETC Report No. : 13-08-RBF-023-01 Sheet 1 of 7 Sheets FCC ID. : NTMEJ-6T CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No. : 13-08-RBF-023-01 Sheet 2 of 7 Sheets FCC ID. : NTMEJ-6T CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No. : 13-08-RBF-023-01 Sheet 3 of 7 Sheets FCC ID. : NTMEJ-6T CONSTRUCTED PHOTOS of EUT 5. 6.

底板示意圖置中貼於凹槽內 註: 1. 字型 Calibri 2. 邊框為裁切線 FCC ID: NTMEJ-6T Digital Pendant Microphone Model: EJ-6T FREQ.: 2.4 GHz FCC ID: NTMEJ-6T Digital Pendant Microphone Model: EJ-6T FREQ.: 2.4 GHz

ETC Report No. : 13-08-RBF-023-01 Sheet 4 of 7 Sheets FCC ID. : NTMEJ-6T CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No. : 13-08-RBF-023-01 Sheet 5 of 7 Sheets FCC ID. : NTMEJ-6T CONSTRUCTED PHOTOS of EUT 9. 10. ETC Report No. : 13-08-RBF-023-01 Sheet 6 of 7 Sheets FCC ID. : NTMEJ-6T CONSTRUCTED PHOTOS of EUT 11. 12. ETC Report No. : 13-08-RBF-023-01 Sheet 7 of 7 Sheets FCC ID. : NTMEJ-6T CONSTRUCTED PHOTOS of EUT 13. 14.

I FCC Part 15 EMI TEST REPORT of E.U.T. : Digital Pendant Microphone MODEL : EJ-6T FCC ID. : NTMEJ-6T Frequency Range : 2403MHz~2478.5MHz for APPLICANT : OKAYO ELECTRONICS CO., LTD. ADDRESS : No.2, Gongye 10 th Rd., Dali Dist., Taichung 41280, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX: (02)26010910 http ： // www.etc.org.tw; e-mail ： [email protected] Report Number : 13-08-RBF-023-01 . ETC Report No. : 13-08-RBF-023-01 FCC ID. : NTMEJ-6T II TEST REPORT CERTIFICATION Applicant : OKAYO ELECTRONICS CO., LTD. No.2, Gongye 10 th Rd., Dali Dist., Taichung 41280, Taiwan Manufacturer : OKAYO ELECTRONICS CO., LTD. No.2, Gongye 10 th Rd., Dali Dist., Taichung 41280, Taiwan Description of EUT a) Type of EUT : Digital Pendant Microphone b) Trade Name : OKAYO c) Model No. : EJ-6T d) Power Supply : 3.7 V Li-ion.1200 mAh rechargeable battery Adapter:STD-05010U I/P: 100-240V ~ 47-63Hz, 0.19A MAX O/P: 5Vdc, 1.0A, 5.0W MAX e) Frequency Range : 2403MHz~2478.5MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Band Edge Requirement Pass ETC Report No. : 13-08-RBF-023-01 FCC ID. : NTMEJ-6T III Date Test Item Received : Aug. 24, 2013 Date Test Campaign Completed : Oct. 18, 2013 Date of Issue : Dec. 09, 2013 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 13-08-RBF-023-01 FCC ID. : NTMEJ-6T IV Table of Contents Page Cover Page........................................................................................................I TEST REPORT CERTIFICATION...........................................................................II Table of Contents...............................................................................................IV 1 GENERAL INFORMATION ...................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE ..................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION ......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.4.1 RF Portion ......................................................................................................................................... 11 4.4.2 Other Emissions ................................................................................................................................. 17 4.5 Field Strength Calculation ......................................................................................................... 19 4.6 Photos of Radiation Measuring Setup........................................................................................ 20 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 21 5.1 Standard Applicable ................................................................................................................... 21 5.2 Measurement Procedure.......................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 13-08-RBF-023-01 Sheet 20 of 31 Sheets FCC ID. : NTMEJ-6T 4.6 Photos of Radiation Measuring Setup ETC Report No. : 13-08-RBF-023-01 Sheet 26 of 31 Sheets FCC ID. : NTMEJ-6T 5.6 Photos of Conduction Measuring Setup
