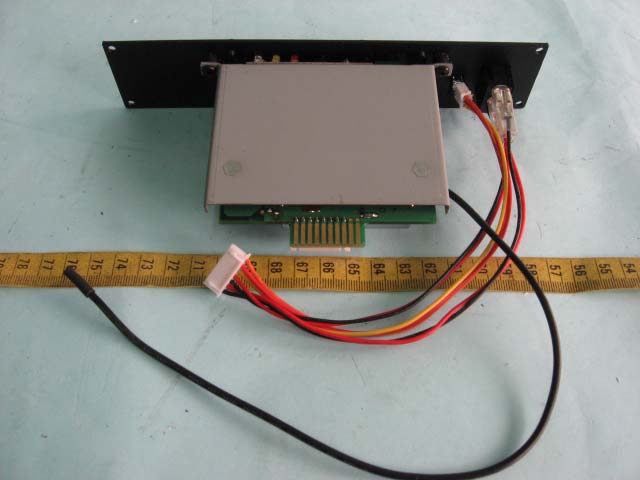

NTMTX-701Plug-in UHF Wireless Audio Link Transmitter Module

USER'S GUIDE Plug-In UHF Wireless Audio-Link Transmitter Module Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Operating Manual for Transmitter Module TX-701 Simple Introduction Thank you for purchasing this plug-in UHF wireless Audio-Link transmitter module TX-701. With up to 96 preprogrammed selectable frequencies, this module could perfectly perform without any external disturbance. Besides, with LCD display, this module could be operated and used easily. This manual includes the complete functions and operations of the wireless transmitter module. Please read this manual carefully in order to operate and use this system to its fullest potential. -1- Description of Functions Installation and Operation -2- 1. LCD display 2.TX audio indicator 3. Low audio level indicator 4. High audio level indicator 5. Setting enter 6. Up/ Down selector 7. Power switch and volume control 8. Charging LED for PA system 9. Power switch for PA system (2)(1)(3)(4)(5)(8)(9)(6) (7) a. Turn the power switch(7) clockwise to turn on the transmitter. b. The LCD display(1) will show On and then the channel used before turning off last time. c. To select the channel, press the set button(5) and the channel in LCD flash. Press up or down button (6) to select the channel to transmit, and then press set button again to enter the setting. Don't leave transmitter or receiver in hot sun, on a radiator, or near other sources of high temperature. Avoid Excessive Heat Transmitter and receiver may be damaged if dropped. Avoid Rough Handling Maintenance -3- d. Turn the volume control(7) to the proper position. e. When transmitting the signals, the TX indicator(2)will light Green to show the transmitting condition. The AF Level indicator lights Yellow(3) to show the low audio, lights Red (4)to show the high audio. Specifications -4- RF output 10mW or 30mW (according to regulation) Spurious emission Less than 250 nW Display status LCD indicator displays channel or frequency Channel select SET, UP, DOWN key Antenna Built-in Dimensions ( L* W * H ) 88 * 64 * 24 mm Weight 170 g Oscillation type Adjustable frequency Pre-programmed max. 96 switchable channels PLL synthesized control OSC Carrier frequency range Group 1. 740 ~ 752 MHz (96 ch.) Group 2. 794 ~ 806 MHz (96 ch.) Group 3. 863 ~ 865 MHz (16 ch.) Switching bandwidth Ambient temperature Maximum deviation Dynamic range Pre/De- emphasis Squelch Max. 12 MHz -10 ~ 50 50 kHz, with level limiting 110 dB 50 s Tone key and noise lock dual-squelch Frequency response Operating range 70 Hz ~ 16 kHz (wireless) 50 ~ 70 M (open field) with built-in antenna

910805 2 E-J Electronics Co., Ltd. 4F, No. 11, Lane 125, Sec. 1, Kuo Kwang Road, Ta Li City, Taichung Hsien, Taiwan, R.O.C. Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 910805 3 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Stephen Wei / Sales Manager E-J Electronics Co., Ltd. 4F, No.11,Lane 125, Sec 1, Kuo Kwang Rd., Ta Li City, Taichung Hsien, Taiwan.

E-J ELECTRONICS CO., LTD., FCC ID: NTMTX-701, Assess AN07T6571, Notice#1 Inbox from "[email protected]" <[email protected]> hide details Mar 5 (2 to [email protected] cc [email protected], [email protected], [email protected], [email protected] date Mar 5, 2007 7:04 PM subject E-J ELECTRONICS CO., LTD., FCC ID: NTMTX-701, Assessment NO.: AN0 7 Notice#1 Dear S.S. Liou, The review of this application is complete. The following items are needed to complet e issue the grant. 1. The user manual states that the antenna can be either internal or external. The a details about the antenna tested. The approval will be issued only for antennas include revise the test report or provide a separate antenna specification with details about the please refer to item 7 below) 2. The modular approval letter needs additional information. Conditions for modula required content for the modular approval request letter are shown below. Please pr o approval letter to include information as applicable in items M1-M8 below. MODULAR APPROVAL LETTER INFORMATION ITEMS M1. The modular transmitter must have its own RF shielding. This is intended to e n does not have to rely upon the shielding provided by the device into which it is installe modular transmitter emissions to comply with Part 15 limits. It is also intended to preve the RF circuitry of the module and any wires or circuits in the device into which the mo coupling may result in non-compliant operation. M2. The modular transmitter must have its own power supply regulation. This is in t the module will comply with Part 15 requirements regardless of the design of the powe the device into which the module is installed. Any antenna used with the module must module, either at the time of initial authorization or through a Class II permissive chang calculation for licensed modules must account not just for compliance with MPE but al ERP/EIRP limits. M3. The modular transmitter must be tested in a stand-alone configuration, i.e., the inside another device during testing. This is intended to demonstrate that the module with Part 15 emission limits regardless of the device into which it is eventually installe d transmitter module will be battery powered, it must comply with the AC line conducted Section 15.207. AC or DC power lines and data input/output lines connected to the m ferrites, unless they will be marketed with the module. The length of these lines shall b actual use or, if that length is unknown, at least 10 centimeters to insure that there is n case of the module and supporting equipment. Any accessories, peripherals, or supp connected to the module during testing shall be unmodified or commercially available . M4. The licensed module must have a FCC ID label on the module itself. That FCC visible through a window on the final device or it must be visible when an access pane easily removed. If not, a second label must be placed on the outside of the final device following text: Contains "FCC ID: xxxyyyzzz" The Grantee may either provide such a l which must be included in the application for equipment authorization, or, must provid e along with the module which explain this requirement. In the latter case, a copy of the included in the application for equipment authorization. M5. The modular transmitter must comply with any applicable RF exposure require m FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.3 (f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perf environmental evaluation for RF Exposure to demonstrate compliance. In addition, sp transmitters operating under Section 15.247 are required to address RF Exposure com with Section 15.247(b)(4). Modular transmitters approved under other Sections of Par may also need to address certain RF Exposure concerns, typically by providing specif Page 1 of 3 3/7/2007http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk operating instructions for users, installers and other interested parties to ensure comp M6. The final device must be designed for mobile (> 20 cm separation) or fixed op e cm) is not permitted - Reference TCB Exclusion List (17 July 2002) II(g)]. M7. The maximum antenna gain to allow compliance with RF exposure requiremen of Certification for the module. M8. The Grant should include the following words in the device description or grant transmitter" or "transmitter module" General information about modular approvals is in FCC DA 00-1407. Since this appli c device, references to Part 15 are not applicable and have been removed from the list a 1407 can be accessed at the following link. http://www.fcc.gov/Bureaus /Engineering_Technology/Public_Notices/2000/da001407. Best regards, Tim Dwyer CCS Technical Reviewer The items indicated above must be submitted before processing can continue on the a application. Failure to provide the requested information within 30 days of the original in application dismissal and forfeiture of the filing fee. Also, please note that partial re s processing time and should not be submitted. Any questions about the content of this be directed to the e-mail address listed below the name of the sender. Reply Reply to all Forward Invite [email protected] to Gmail from "[email protected]" <[email protected]> hide details Mar 5 (2 to [email protected] cc [email protected] date Mar 5, 2007 7:05 PM subject E-J ELECTRONICS CO., LTD., FCC ID: NTMTX-701, Assessment NO.: AN0 7 Notice#1 - Show quoted text - Reply Reply to all Forward Invite [email protected] to Gmail from Tim Dwyer <[email protected]> hide details Mar 5 (2 to [email protected], [email protected], [email protected] date Mar 5, 2007 7:05 PM subject Fwd: E-J ELECTRONICS CO., LTD., FCC ID: NTMTX-701, Assessment N O AN07T6571, Notice#1 mailed-by gmail.com - Show quoted text - Reply Reply to all Forward from SS <[email protected]> hide details 6:12 am (4 hou to [email protected] cc [email protected], helen…
