NTQSICARE310-1Universal Remote Control for Disabled Persons

Version 4.1 User Manual / Page 1 evo @ soft 5 International Inc. SICARE Pilot Client Information User Manual May 1998 Version 4.1 User Manual / Page 2 evo @ soft 5 International Inc. SICARE Pilot - User Manual Table of Contents 1.Fields of Applications 2.Hardware 3.Overview of Functions 4.Turning on your SICARE Pilot 5.Operating your SICARE Pilot in the holder 6.Operating your SICARE Pilot using power / while charging 7.Operating the SICARE Pilot 8.Configuring the SICARE Pilot 9.Running the SICARE Pilot by voice or key 10.Special commands 11.SICARE Pilot display 12.Special functions 13.Retraining single commands 14.Safety precautions 15.FCC - User’s notice Version 4.1 User Manual / Page 3 evo @ soft 5 International Inc. SICARE Pilot - User Manual 1. Fields of Application Thanks to modern technology, physically disabled persons are now able to cope on their own with most everyday situations. The many different ways of operating modern devices, however, means that the disabled person has not only frequently to rethink, but often has to change control units. SICARE Pilot is a mobile device for controlling and operating numerous appliances and equipment designed specifically for the disabled, as well as for household technology, communication and entertainment electronics. SICARE Pilot converts spoken commands into signals to control equipment designed specially for this purpose. The signals are outputed by: • Infrared transmitter, e.g. for television, video recorder, hi-fi equipment, telephone, and lighting • Radio transmitter, e.g. X-10 access • Wired interfaces, e.g. for motorized adjustable beds SICARE Pilot can be operated as an installed device from the mains (the power supply unit is also the battery charger) or as a portable device with batteries. ok Haus Fig. 1: Fields of application Version 4.1 User Manual / Page 4 evo @ soft 5 International Inc. SICARE Pilot - User Manual ∂ OFF/ON switch Pin 1 device bottom Pin 29 The slide switch has two positions: 1) Switch set upwards means that the device is in stand-by mode. Pressing one of both keys turns the device on. 2) Switch set downwards means that the device is switched off. ∑Infrared transmitter ∏LCD Display Four lines, with 20 characters each, green back-lighted LED πKeys The SICARE Pilot can be operated via speech or by using the keys. t = SCROLL key: The SCROLL key changes between commands in a command level. OK = OK key: The OK key carries out the selected command ∫Socket for external switch Interface (connection) for external features ªLoudspeaker/microphone socket Interface (connection) for an external microphone, an external loudspeaker/headphone, or a headset ºBuilt-in microphone The built-in microphone is adjusted so that it responds at short distances only ΩBuilt-in loudspeaker æCombination interface In one socket, the combination interface unifies the serial and parallel interface, connections for an external loudspeaker and an external microphone, connections for external keys, as well as connections for power. øRechargeable battery/regular battery switch Set the switch in the battery holder to A for rechargeable battery operation; OR set the switch to B for regular battery operation ATTENTION ! This switch must always be set firmly in one or the other position, otherwise the unit could be damaged!! Telephone Numb ∂ ∂ Off/On switch ∑ Infrared transmitter ∏ LCD display π Keys ∫ Socket for external keys ª Loudspeaker/microphone socket º Built-in microphone Ω Built-in loudspeaker æCombination interface ø Rechargeable batteries/battery holder with integrated slide switch (rear-side) Pin 2Pin 30 ø∑ ∏ π ∫ ª º Ω æ 2. Hardware Version 4.1 User Manual / Page 5 evo @ soft 5 International Inc. SICARE Pilot - User Manual 3. Overview of Functions With the SICARE Pilot, up to 64 different commands can be stored. Simple commands such as “on”, “off”, “left”, “right”, etc. can be added to any other command and can therefore be used more than once in combination. The SICARE Pilot sends commands like “Turn on TV” automatically via the selected interface to the desired device. Each command can initiate actions on various devices at the same time. For example, as soon as the phone rings, the volume on the radio and TV are turned down. The range of the SICARE Pilot’s functions depends on the configuration of the device. The SICARE Pilot is configured using PC software supplied with it. Configuration consists of: • Defining the menu structure Choosing the menu items, branches and actions • Setting the parameters for actions Transmission type and value • Training the voice pattern Having copied the configuration data into the pilot, the device can be operated entirely without the PC. The commands are given by speaking, using the voice pattern recognition. If there are problems of recognition in operation, it is possible to retrain every command word on the Pilot. Other individuals can operate the SICARE Pilot with control keys. All menu items and actions are shown on the display. Version 4.1 User Manual / Page 6 evo @ soft 5 International Inc. SICARE Pilot - User Manual 4. Turning on your SICARE Pilot When the SICARE Pilot is turned on ∂, the device is in stand-by mode. Pressing the SCROLL key or the OK key π starts the device. After briefly showing the software version on the display, the first word of the main-menu level is shown in the first line of the display. ATTENTION ! The SICARE Pilot is delivered with 2 empty rechargeable batteries. These must be charged for at least 3 hours, before a configuration from the PC can be transferred into the SICARE Pilot! Failing to pay attention to this can put your SICARE Pilot into an errant condition which can only be corrected at the factory! 5. Operating your SICARE Pilot in the holder Operation in the holder is done for the following reasons: • To operate your SICARE Pilot using the mains • To charge the rechargeable batteries • For exchanging data between a PC and the SICARE Pilot • For teaching th…

Text truncated - open the document above for the full version.

December 1, 1999 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 USA Dear Sir/Madam:Our File Ref. 9R01703 FCC ID: NTQSICARE310-1 Applicant: Tash International Inc. Equipment: 310 MHz Remote Control transmitter FCC Confirmation no.: EA96114 We have successfully electronically filed all the required documentation for an application for Certification in accordance with FCC Part 15 on the above mentioned equipment, December 1, 1999. Enclosed, please find a cheque in the amount of $940.00 US, a copy of FCC Remittance Form 159, a copy of the FCC Form 731 confirmation number and a copy of the list of exhibits. If you require additional administrative information, please do not hesitate to contact me at 1-800-563-6336 (extension 232). If you require additional technical information, please contact Mr. Russell Grant at same (extension 223). Thank you in advance for your assistance in this matter. Sincerely, Ruby Dulmage Administrative Clerk KTL Ottawa Encl.

SERIES 8400 FCC ID: NTQS1CARE310-1 CAN: 301102937

Back of Sicare pilot: Battery Compartment FCC ID: NTQSICARE310-1

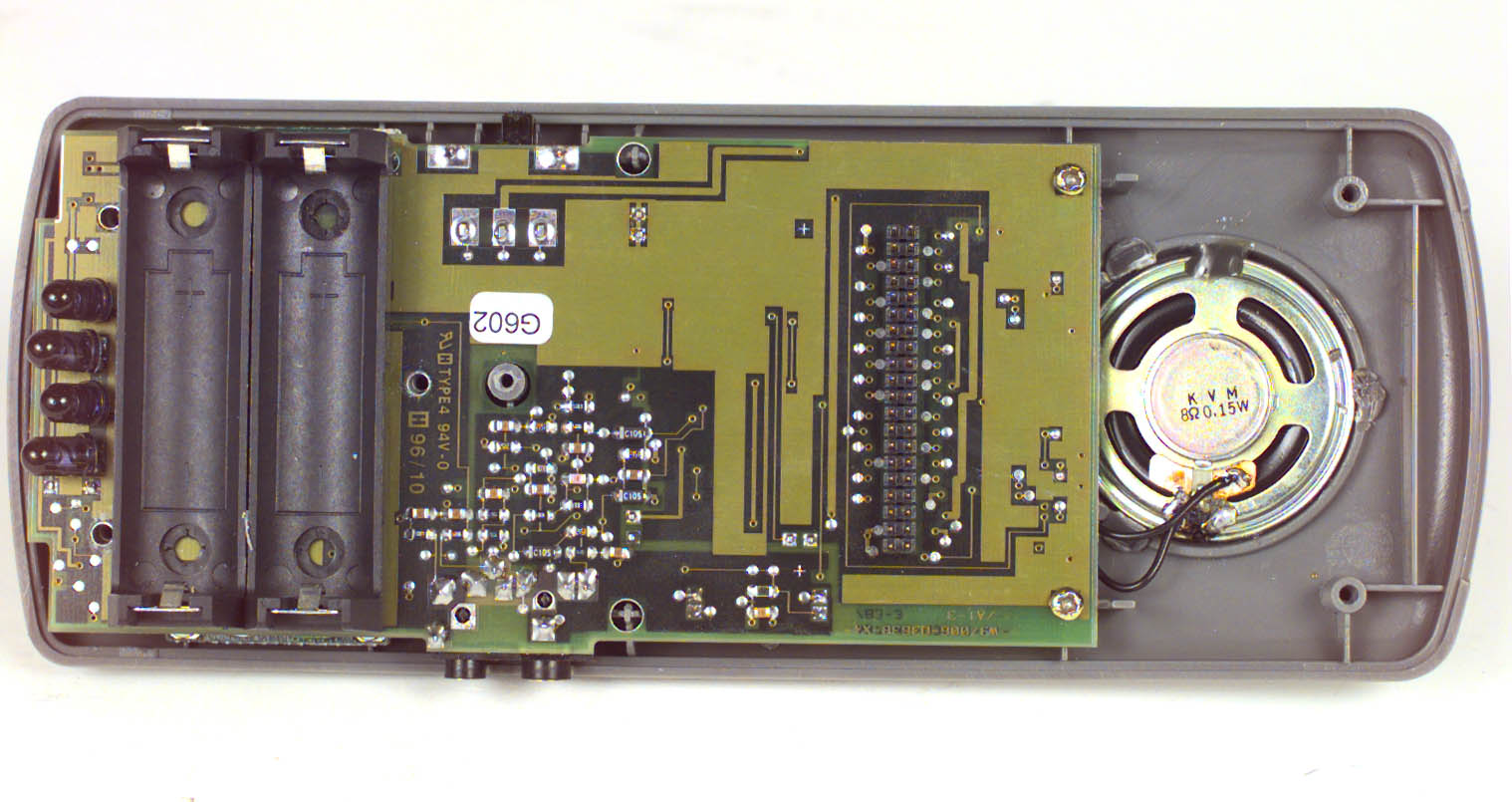

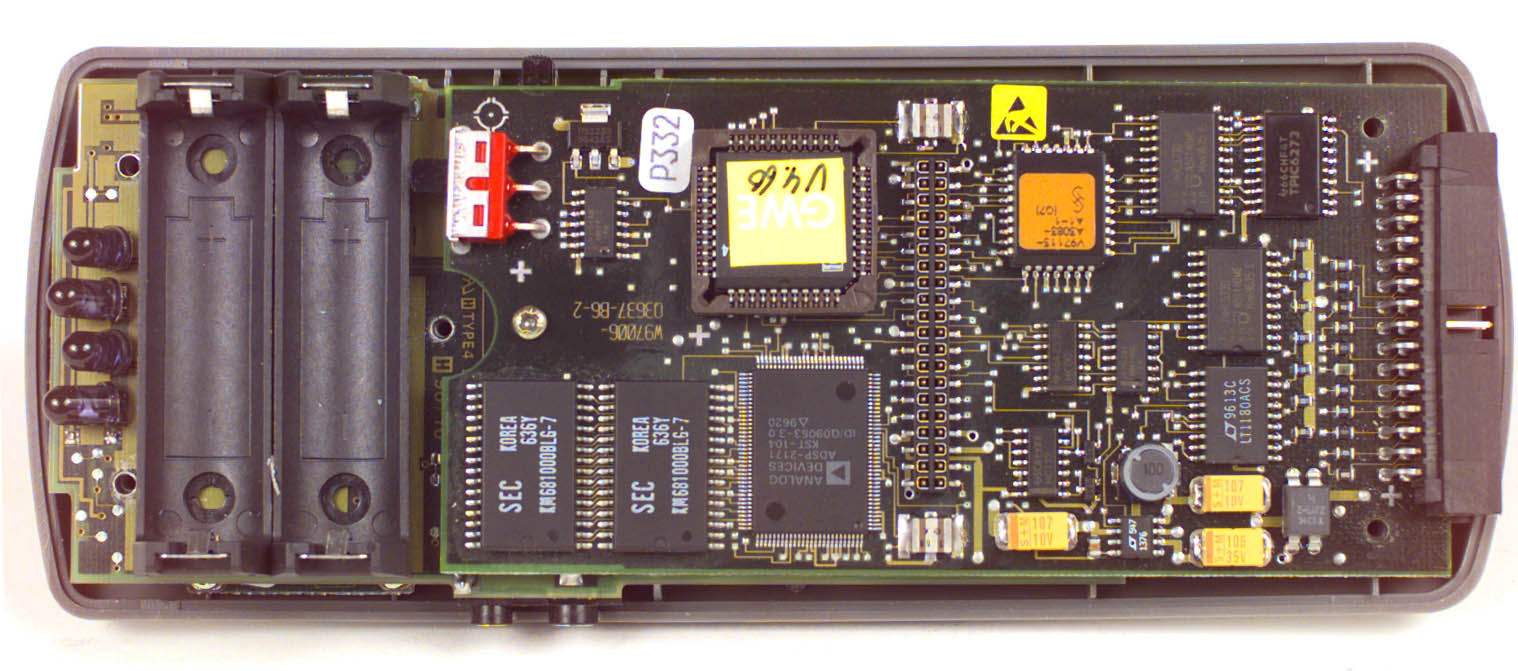

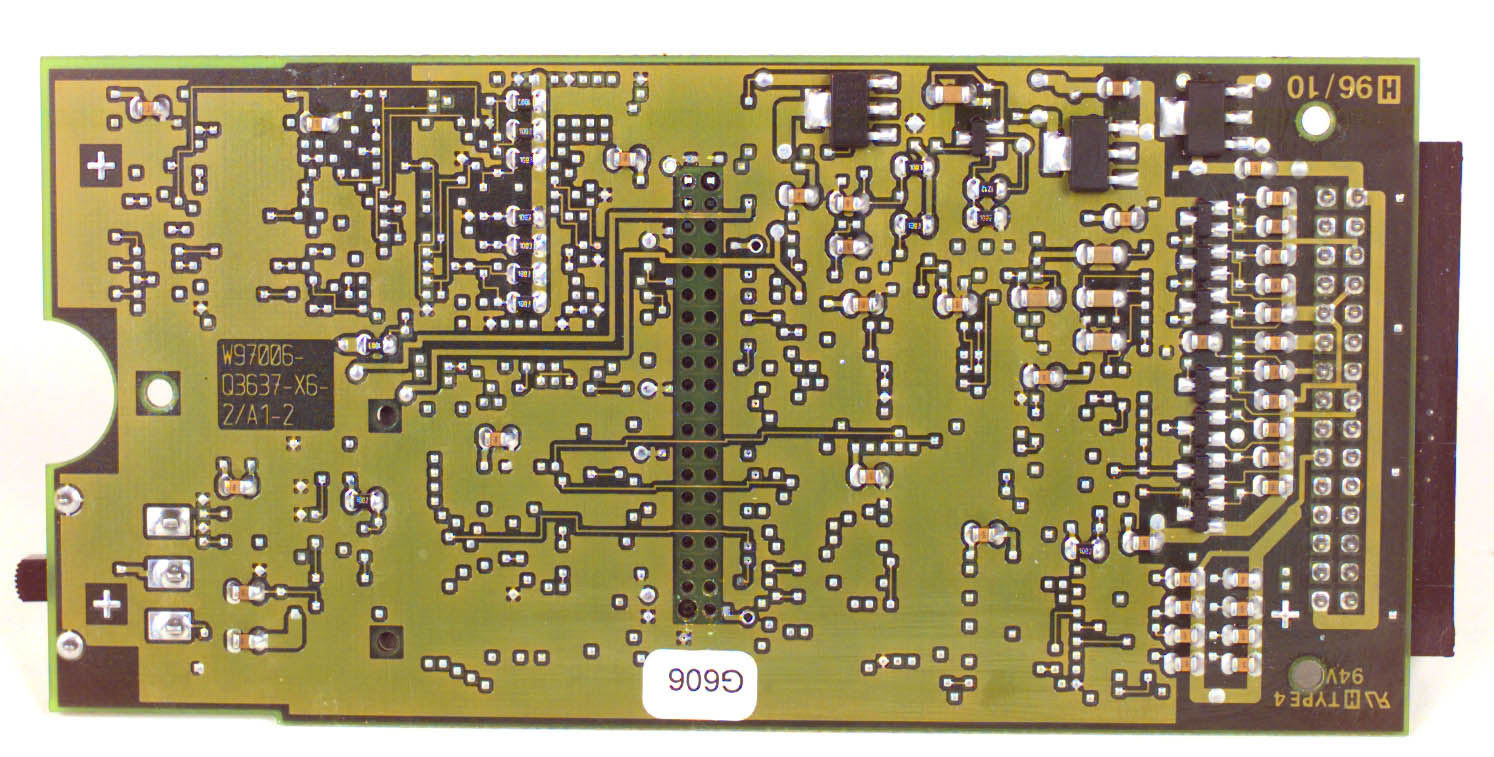

Master: ktlPT15231 Date: September 14, 1999 KTL Test Report:9R01703 Issue 2.0 Applicant:Tash International Inc. Unit 1 – 91 Station Street Ajax, Ontario L1S 3H2 Equipment Under Test:The Tash International (E.U.T.)“310 MHz Remote Control Transmitter” FCC ID:NTQSICARE310-1 In Accordance With:FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:24 KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R01703 EQUIPMENT: The Tash International “310 MHz Remote Control Transmitter” FCC ID: NTQSICARE310-1 Issue 2.0 Page 2 of 22 Table of Contents Section 1. Summary of Test Results .....................................................................................................3 Section 2. Equipment Under Test (E.U.T.) ..........................................................................................5 Section 3. Transmission Requirements ................................................................................................7 Section 4. Radiated Emissions ............................................................................................................12 Section 5. Occupied Bandwidth..........................................................................................................15 Section 6. Frequency Tolerance Devices in the Frequency Band 40.66 - 40.77 MHz....................17 Section 7. Periodic Alternate Field Strength Requirements............................................................18 Section 8. Powerline Conducted Emissions .......................................................................................19 Section 9. Block Diagrams...................................................................................................................20 Section 10. Test Equipment List ............................................................................................................22 ANNEX A Restricted Bands ................................................................................................................A1 KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R01703 EQUIPMENT: The Tash International “310 MHz Remote Control Transmitter” FCC ID: NTQSICARE310-1 Issue 2.0 Page 3 of 22 Section 1.Summary of Test Results Manufacturer:Tash International Inc. Model No.:8400 Serial No.:597006-S3640-X1 Date Received In Laboratory: September 9, 1999 KTL Identification No.: Item #1 General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DS C Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 It is recommended that the margin of compliance be improved to allow for manufacturing tolerances. TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist TESTED BY: _____________________________________ DATE: ___________________ Glen Westwell, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R01703 EQUIPMENT: The Tash International “310 MHz Remote Control Transmitter” FCC ID: NTQSICARE310-1 Issue 2.0 Page 4 of 22 Summary Of Test Data Name of TestParagraph NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)Not Applicable Periodic Alternate Field Strength Requirements15.231(e)Not Applicable Powerline Conducted Emissions15.207Not Applicable Footnotes For N/A’s: Test Conditions: IndoorTemperature: 23 °C Humidity:42 % OutdoorTemperature: 23 °C Humidity:42 % KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R01703 EQUIPMENT: The Tash International “310 MHz Remote Control Transmitter” FCC ID: NTQSICARE310-1 Issue 2.0 Page 5 of 22 Section 2.Equipment Under Test (E.U.T.) General Equipment Information Frequency Range: 310 MHz (Fixed) Operating Frequency(ies) of Sample: 310 MHz Type of Emission: L1D Emission Designator: 72K0L1D Supply Power Requirement: 2 x AA Batteries Duty Cycle Calculation: (1)Sync. Pulse Length= 8.8 mS Data Pulse Length= 500 μS Worst Case in 100 mSec (2)1 x Sync. Pulse= 8.8 mS 33 x Data Pulse= 16.5 mS Total RF On Time= 25.3 mS (3) Duty Cycle Factor (dB) 20 Log ö ç è æ mS mS 100 3.25 = -11.9 dB KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R01703 EQUIPMENT: The Tash International “310 MHz Remote Control Transmitter” FCC ID: NTQSICARE310-1 Issue 2.0 Page 6 of 22 Configuration of the Equipment Under Test (A) EUT KTL OttawaFCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R01703 EQUIPMENT: The Tash International “310 MHz Remote Control Transmitter” FCC ID: NTQSICARE310-1 Issue 2.0 Page 7 of 22 Section 3.Transmission Requirements NAME OF TEST: Transmission Requir…
