NU9RS22820037TWireless Propane Level Gauge (Transmitter)

Long Range Wireless LP Gas Tank Level Meter Model Number: RS-228 Owner’s Manual Please read before using this equipment. 2 RS-228IM Rev. A 1-12-2004 Contents FCC INFORMATION 3 INTRINSIC SAFETY INFORMATION 3 IMPORTANT Information 4 Features 7 Installing Batteries 5 In the Remote Transmitter 5 In the Base Station 5 Mounting the System 5 Selecting a Location 5 Mounting the Remote Transmitter 6 Operation 6 Reading the tank level 6 Low Tank Level Alarm 6 Forcing a signal search 7 Horizontal vs. Vertical tank configuration 7 Care 7 Specifications 7 3 RS-228IM Rev. A 1-12-2004 FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. o Consult the dealer or an experienced radio/TV technician for help. INTRINSIC SAFETY INFORMATION The remote transmitter is Intrinsically Safe Apparatus for use in Class I, Division 1, Group D Hazardous (Classified) Locations per ANSI/UL 913 and CAN/CSA C22.2 No. 157 Securite Intrinseque: Ex ia Control Drawing # 040108A0001 1. WHEN INSTALLED AS SHOWN THE WIRELESS TRANSMITTER AND HALL SENSOR ARE INTRINSICALLY SAFE FOR HAZARDOUS LOCATION: CLASS 1, DIVISION 1, GROUP D 2. INTRINSICALLY SAFE WIRING MUST BE INSTALLED IN ACCORDANCE WITH ARTICLE 504 OF THE NEC ANSI/NFPA 70 OR IF APPLICABLE THE CANADIAN ELECTRICAL CODE. 3. WIRELESS TRANSMITTER AND HALL SENSOR SHALL BE INSTALLED IN ACCORDANCE WITH RS-228 INSTALLATION INSTRUCTIONS. 4. HALL SENSOR:: ROCHESTER GAUGES R3D SENSOR. 5. WIRELESS TRANSMITTER: ROBERTSHAW RS228 WIRELESS LP TANK LEVEL TRANSMITTER. 6. WARNING! TO REDUCE RISK OF IGNITION OF A FLAMMABLE OR EXPLOSIVE ATMOSPHERE, BATTERY MUST BE CHANGED ONLY IN A LOCATION KNOWN TO BE NON-HAZARDOUS. 7. WARNING: TO REDUCE THE RISK OF EXPLOSION, DO NOT MIX OLD BATTERIES WITH NEW BATTERIES, OR MIX BATTERIES FROM DIFFERENT MANUFACTURES. 8. WARNING! SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY. 9. WARNING! TO PREVENT IGNITION OF FLAMMABLE OR COMBUSTABLE ATMOSPHERES, DISCONNECT POWER BEFORE SERVICING. 4 RS-228IM Rev. A 1-12-2004 IMPORTANT Information Warning! – Substitution of Components May Impair Intrinsic Safety Warning! – To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing. Warning! – To reduce risk of ignition of a flammable or explosive atmosphere, batteries must be changed only in a location known to be non-hazardous. Warning! – To reduce the risk of explosion, do not mix old batteries with used batteries, or mix batteries from different manufacturers. Caution! – Replace batteries only with two of each (3V total): 1. Duracell MN1500 LR6 1.5 volt AA alkaline batteries 2. Energizer 2012 L91 1.5volt AA lithium batteries 3. Novacell AM3 LR6 1.5V AA Alkaline Batteries. The following additional precautions should be observed: 1. Use only the type and size batteries specified in the user manual. 2. Do not dispose of the batteries in fire. They may explode. Check with local codes for possible special disposal instructions. 3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes, skin. It may be toxic if swallowed. 4. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns. 5. Do not attempt to recharge the batteries identified for use with this product. The batteries may leak corrosive electrolyte or explode. 6. Do not attempt to rejuvenate the batteries identified for use with this product by heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes or skin. 7. When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and discharged batteries could increase internal cell pressure and rupture the discharged batteries. 8. When inserting batteries into this product, the proper polarity or direction must be observed. Reverse insertion of the batteries can cause charging, and that may result in leakage or explosion. 9. Remove batteries from this product if the product will not be used for a long period of time (Several months or more) since during this time the battery could leak in the product. 10. Discard “dead” batteries as soon as possible since “dead” batteries are more likely to leak in the product. 11. Do not store this product, or the batteries identified for use with this product in high-temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be protected from condensation during storage and defrosting. Batteries should be s…

Text truncated - open the document above for the full version.

Transmitter: MCU (U1) JA55420 (4MHz) Battery Low Detect Propane Level Meter RC Oscillator (4MHz) Modulator Oscillator (433.92MHz) Transmiting Antenna

INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T External Photo Front View Rear View

Transmitter:

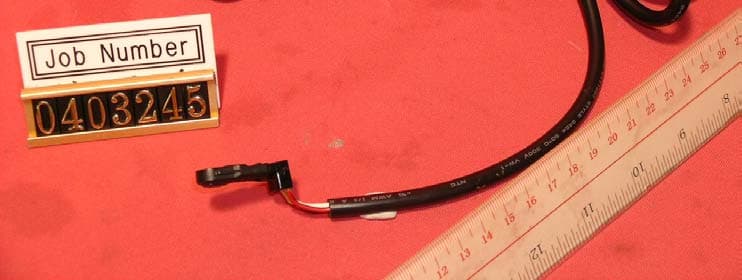

INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T Internal Photo Photo-1 Photo-2 INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T Internal Photo Photo-3 Photo-4 INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T Internal Photo Photo-5 Photo-6

Honor Tone LTD RS228 circuit description Transmitter: Rated Voltage: 3V Operating Frequency: 433.9MHz Battery Low Detect: detect the battery level (if the battery is at low level, a signal will send to the MCU, U1.) Propane Level Meter propane level meter use magnetic induction to measure the propane level and the data will send to the MCU, U1. MCU (U1) MCU would be triggered after receive data from propane level meter. A serial of digital signal would be generated by the MCU, U1 and encode to the RF signal. RC Oscillator (Y1) Supply MCU clock time (4MHz) RF Transistor BFR93A (Q101) Modulator Resonator (Y101) Oscillator of 433.92MHz frequency

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Robertshaw Controls Company Application For Certification (FCC ID: NU9RS22820037T) Transmitter 0403245 TL/ Sandy Lee December 6, 2004 INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T ii MEASUREMENT/TECHNICAL REPORT Robertshaw Controls Company - MODEL: Robertshaw RS-228 FCC ID: NU9RS22820037T December 6, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Tommy Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 4.0 Equipment Photographs .....................................................................................15 5.0 Product Labelling ................................................................................................17 6.0 Technical Specifications ....................................................................................19 7.0 Instruction Manual ..............................................................................................21 8.0 Miscellaneous Information .................................................................................23 8.1 Measured Bandwidth .........................................................................................24 8.2 Discussion of Pulse Desensitization ...................................................................25 8.3 Calculation of Average Factor ............................................................................26 8.4 Emissions Test Procedures................................................................................27 INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Transmitter operating at 433.9MHz. The EUT is powered by 3V d.c. (2 x 1.5V “AA” battery). It measures the propane level and transmits the gas and battery level signal to the co…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES FCC ID: NU9RS22820037T Radiated Emissions Test Setup Front View Rear View RS-228 RS-228
