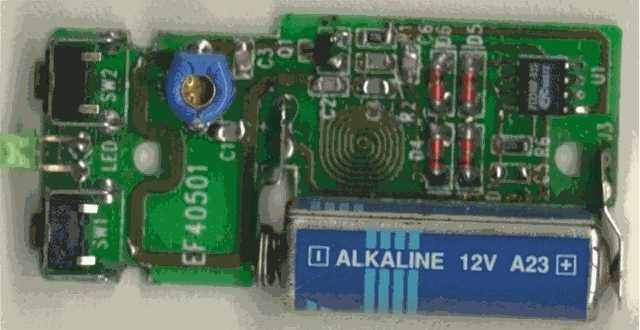

FUNCTIONAL DESCRIPTION The Garage Door Opener (receiver) and Garage Door Transmitter, models GR-300M and CT-300 The receiver (GR-300M) is typically mounted inside the user’s garage and is connected to the manual switch wires of garage door openers. The GR-300M has a stranded wire for an antenna. The transmitter (CT-300) is capable of sending three different signals to activate up to three separate garage door openers, via the receiving unit. It’s designed to be either mounted in the dashboard of an automobile, or carried as on a key chain. The user selects which door to activate 1, 2 or 3 by depressing either button 1, for door one, or 2 for door two. Door three is selected by depressing buttons 1 and 2 simultaneously. The CT-300 sends different digital codes on singular frequency depending on what buttons are depressed. The antenna for the transmitter is a spiral integral to the printed circuit board. The CT-300 had a fresh battery installed for testing.

PROJECT #: 01SC02405 FCC ID: NUQ-CT300 Underwriters Laboratories IncA not-for-profit organization dedicated 1655 Scott Blvd Page 1 of 66 to public safety and committed to Santa Clara CA 95050-4169quality service for over 100 years. EMC Services Department Tel: (408) 985-2400 x32397 Fax: (408) 556-6071 FCC CLASS B COMPLIANCE TEST REPORT for Electromagnetic Emissions of GARAGE DOOR OPENER AND GARAGE DOOR TRANSMITTER Model Number: GR-300M AND CT-300 Serial Number: Prototype FCC ID: NUQ-CT300 PROJECT #: 01SC02507 Prepared for: MIKADO TECHNOLOGY COMPANY 1435 Huntington Avenue #C South San Francisco, CA 94080 Prepared by: Underwriters Laboratories, Incorporated 11825 Niles Canyon Road Sunol, CA 94586 (925) 862-9051 REPORT DATE: FEBRUARY 19, 2001 PROJECT #: 01SC02405 FCC ID: NUQ-CT300 Page 2 of 66 FCC CLASS B COMPLIANCE TEST REPORT FOR GARAGE DOOR OPENER AND GARAGE DOOR TRANSMITTER MODEL GR-300M AND CT-300 Prepared for: MIKADO TECHNOLOGY CO. South San Francisco, CA 94080 Prepared by: Underwriters Laboratories, Inc. SignatureDate PROJECT #: 01SC02405 FCC ID: NUQ-CT300 Page 3 of 66 LIST OF REVISIONS REVISION NUMBERPAGEPAGEPAGE AND DATECHANGED SUBSTITUTEDADDED PROJECT #: 01SC02405 FCC ID: NUQ-CT300 Page 4 of 66 REPRODUCTION CLAUSE Any reproduction of this document must be done in full. No single part of this document may be reproduced without written permission of Underwriters Laboratories, Inc., 11825 Niles Canyon Road, Sunol, CA 94586. PROJECT #: 01SC02405 FCC ID: NUQ-CT300 Page 5 of 66 TABLE OF CONTENTS TITLEPAGE TITLE PAGE..................................................................................................1 SIGNATURE PAGE.......................................................................................2 LIST OF REVISIONS.....................................................................................3 REPRODUCTION CLAUSE..........................................................................4 TABLE OF CONTENTS................................................................................5 VERIFICATION OF COMPLIANCE.............................................................7 GENERAL INFORMATION .........................................................................8 DEVIATIONS................................................................................................8 TEST RESULTS.............................................................................................8 LETTER OF AUTHORIZATION.................................................................10 SYSTEM DESCRIPTION.............................................................................12 PRODUCT INFORMATION........................................................................14 FCC ID LABEL............................................................................................15 FCC LABEL PLACEMENT.........................................................................17 BLOCK DIAGRAMS OF EUT.....................................................................19 SCHEMATICS.............................................................................................21 OPERATION MANUAL..............................................................................26 PRODUCT CABLING INFORMATION......................................................29 SUMMARY..................................................................................................34 PROJECT #: 01SC02405 FCC ID: NUQ-CT300 Page 6 of 66 TABLE OF CONTENTS (continued) SECTIONTITLE PAGE APPENDIX A PHOTOGRAPHS................................................................36 APPENDIX B TEST FACILITY................................................................47 APPENDIX C TEST EQUIPMENT............................................................49 APPENDIX D TEST METHODS...............................................................52 APPENDIX E CLASS TYPES...................................................................55 APPENDIX FLABELING REQUIREMENTS..........................................57 APPENDIX G DATA READINGS.............................................................59 APPENDIX H TEST PROCEDURES.........................................................66 PROJECT #: 01SC02405 FCC ID: NUQ-CT300 Page 7 of 66 VERIFICATION OF COMPLIANCE Equipment Under Test:Garage Door Opener and Garage Door Transmitter Model Numbers:GR-300M and CT-300 Serial Number:Prototype Company:Mikado Technology Co. 1435 Huntington Ave. #C S. San Francisco, CA 94080 Test Specification:FCC Class B (ANSI C63.4, 1992) Type of Test:Conducted 450 kHz - 30 MHz Radiated 30 MHz - 1 GHz Garage Door Opener Performance Criteria:For Line Conducted test, emissions must not exceed the limits stated in CFR 47 Part 15, Subpart B, Section 107-(a). Garage Door Transmitter For Radiated test, emissions must not exceed the limits stated in CFR 47 Part 15, Subpart C, Section 15.231. Garage Door Opener For Radiated test, emissions must not exceed the limits stated in CFR 47 Part 15, Subpart B, Section 109-(a). Date Tested:January 31, 2001 Tested By:Wayne Fisher The above equipment was tested by Underwriters Laboratories, Inc., for compliance with the requirements set forth in the FCC Class B Rules and Regulations. This said equipment in the configuration described in the report, shows that maximum emission levels emanating from the equipment are within the compliance requirements. PROJECT #: 01SC02405 FCC ID: NUQ-CT300 Page 8 of 66 GENERAL INFORMATION Customer:Mikado Technology Co. 1435 Huntington Ave. #C S. San Francisco, CA 94080 Contact Person:Sammy Wu Phone Number:(650) 615-9466 Equipment Under Test:Garage Door Opener and Garage Door Transmitter Model Number:GR-300M and CT-300 Serial Number:Prototype FCC ID Number:NUQ-CT300 Test Standard:CFR 47 Part 15, Subpart B 1999 (ANSI C63.4-1992), Class B CFR 47 Part 15, Supbart C 1999 Type of Test:Conducted 450 kHz - 30 MHz Radiated 30 MHz - 1 GHz Performance Criteria:Garage Door Opener For Line Conducted test, emiss…
