NV6-CS8033Bluetooth CF Card

CS8033 Bluetooth CF Card User Manual CS8033 Bluetooth CF Card is a plug in unit for a Compact Flash host printer. It enables you to connect wirelessly to your Bluetooth enabled PC/laptop’s, PDAs, and mobile phone for printing with encryption security. To install the Bluetooth CF card, insert the CF card into the CF card slot on the Bluetooth capable printer. Restart the printer unit. Now the Bluetooth printer is ready to accept the print job wirelessly from a Bluetooth enable device with appropriate profiles. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This Class B digital apparatus complies with Canada RSS-210. Cet appareil numérique de la classe B est conforme à la norme CNR-210 du Canada According to FCC 15.21, please be cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

From: Lucy [[email protected]] Sent: Monday, August 04, 2003 3:01 AM To: Mike Kuo Cc: Jonson Lee (E-mail); ? ??; C&C Lab. - Eric Subject: Re: In-Tech Electronics Limited, FCC ID: NV6-CS8033, Assessment NO.: AN03T3088 Hi Mike, Below are answer for In-Tech, FCC ID NV6-CS8033, and please help to review them and issue the grant as fast as you can, thank you. Q#1, please refer to the attached file for revised operational description that the antenna has been revised as 2.85dBi. Q#2 and Q#3, we have re-did the test and revised the the test procedure and its version as ANSI C63.4:1992 as recorded in the attached RF test report. Q#4-6, please refer to the attached revised user manual for details. (But regard Q#4, can't CF card be taken as a ITE accessory at the same time?) Best Regards, Lucy ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "Eric (E-mail)" <[email protected]>; "Lucy (E-mail)" <[email protected]>; "Ting (E-mail)" <[email protected]> Cc: "Jonson Lee (E-mail)" <[email protected]> Sent: Monday, August 04, 2003 2:38 PM Subject: FW: In-Tech Electronics Limited, FCC ID: NV6-CS8033, Assessment NO.: AN03T3088 -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Sunday, August 03, 2003 10:29 PM Subject: In-Tech Electronics Limited, FCC ID: NV6-CS8033, Assessment NO.: AN03T3088 Question #1: In the operational description file, the antenna is PCB type with 0 dBi gain. Such antenna gain statement does not agree with Antenna specification. In addition, in the test report, antenna gain is stated as ceramic type with max. of 2.85dBi gain. Please go over your submission file and harmonize the antenna type and antenna gain information. Question #2: Page 2 of test report stated that ANSI C63.2 :1992 measurement procedures was used and followed. However, there are several places in the test report stated ANSI C63.4:2001 measurement procedures was used. Please harmonize your measurement procedures statements in the test report. Question #3: Peak output power: Channel power method was used for power measurement. By looking at the spectrum plots, it looks like the average method was used. 15.247 is requiring Peak output power measurement not average. Please provide the detail instrument setting used during the measurement. Question #4: User Manual contains FCC DoC logo and DoC statement. Such FCC logo and statement only applicable to the device subject to FCC DoC procedures. This CF card does not subject to FCC DoC procedure, please remove such statement and logo. Question #5: User Manual does not contain information required per section 15.21 of FCC rules, please provide revised user manual to comply this requirement. Question #6: Per the description contains in the user manual, this CF card can be used with notebook computer, PDA or cellular phone, this CF card when use with these device is considered as portable device. The RF exposure statement to limit the device to maintain 20cm separation distance to the device can not be achieve by the end user. Due to the output power is below the low threshold, SAR evaluation is not required. No separation distance is requried for this device. Please remove separation distance requirement in the user manual. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

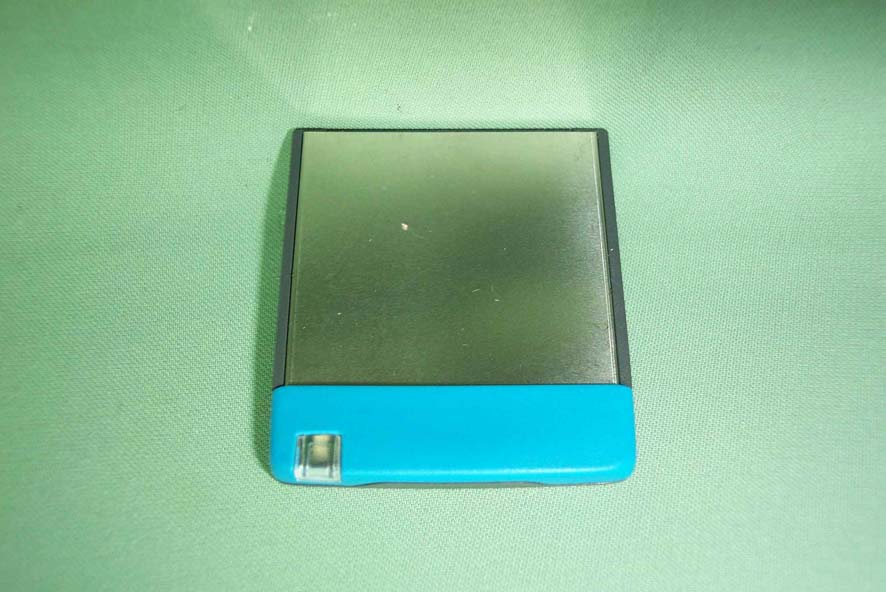

C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 52 Rev. 00 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 53 Rev. 00 Front view of EUT Front view of EUT

C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 54 Rev. 00 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 55 Rev. 00 Internal View of EUT – 1 Internal View of EUT – 2 C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 56 Rev. 00 Internal View of EUT - 3 Internal View of EUT – 4

C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 1 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Bluetooth CF Card Trade Name: Abe Model No.: CS8033 / C8249A FCC ID: NV6-CS8033 Report No.: B30624207-RP Issue Date: July 11, 2003 Prepared for In-Tech Electronics Limited Unit 7-10, 2/F, Century Centre, 44-46 Hung To Road, Kwun Tong, Kowloon, H.K. Prepared by C&C LABORATORY, CO., LTD. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, Taiwan. TEL: 886-3-3240332 FAX: 886-3-3245235 This report shall not be reproduced, except in full, without the written approval of C&C Laboratory, Co., Ltd. C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: In-Tech Electronics Limited Unit 7-10, 2/F, Century Centre, 44-46 Hung To Road, Kwun Tong, Kowloon, H.K. Equipment Under Test: Bluetooth CF Card Trade Name: Abe Model No.: CS8033 / C8249A Model Difference: All the above Models are identical except the model designation Serial Number: Nil File Number: B30624207-RP Date of Test: July 9~10, 2003 We hereby certify that: The above equipment was tested by C&C Laboratory Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as de- scribed in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved by: Harris Lai Executive Vice President C&C Laboratory Co., Ltd. C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION .........................................................................................................5 1.1 Product Description ............................................................................................................................5 1.2 Related Submittal(s) / Grant (s) ..........................................................................................................5 1.3 Test Methodology ...............................................................................................................................5 1.4 Test Facility.........................................................................................................................................5 1.5 Special Accessories.............................................................................................................................5 1.6 Equipment Modifications....................................................................................................................5 2. SYSTEM TEST CONFIGURATION ............................................................................................6 2.1 EUT Configuration .............................................................................................................................6 2.2 EUT Exercise ......................................................................................................................................6 2.3 Test Procedure.....................................................................................................................................6 2.4 Configuration of Tested System..........................................................................................................7 3. SUMMARY OF TEST RESULTS .................................................................................................8 4. DESCRIPTION OF TEST MODES ..............................................................................................8 5. CONDUCTED EMISSION TEST..................................................................................................9 5.1 Standard Applicable............................................................................................................................9 5.2 EUT Setup...........................................................................................................................................9 5.3 Measurement Procedure......................................................................................................................9 5.4 Measurement Equipment Used: ........................................................................................................10 5.5 Measurement Result..........................................................................................................................10 6. PEAK OUTPUT POWER MEASUREMENT............................................................................13 6.1 Standard Applicable..........................................................................................................................13 6.2 Measurement Procedure....................................................................................................................13 6.3 Measurement Equipment Used: ........................................................................................................13 6.4 Measurement Result..........................................................................................................................13 7. 20dB BANDWIDTH MEASUREMENT .....................................................................................14 7.1 Standard Applicable..........................................................................................................................14 7.2 Measurement Procedure....................................................................................................................14 7.3 Measurement Result.......................................................................................................................…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 49 Rev. 00 APPENDIX 1 PHOTOGRPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 50 Rev. 00 Radiated Emission Set up Photos C&C Laboratory Co. Ltd. REPORT NO: B30624207-RP ID: NV6-CS8033 DATE: July 11, 2003 Page 51 Rev. 00 Conducted Emission Set Up Photos
