NV6-CS8035Bluetooth Headset

1 TM Abe Bluetooth Headset Abe CS8035 User Manual Index Picture shows........................................................................2 Charging the battery...............................................................3 Turning on the Headset ..........................................................3 Turning off the Headset.. .......................................................3 Putting Headset in Pairing Mode...........................................4 Bluetooth Connection............................................................5 Answering incoming calls.....................................................5 Transferring calls...................................................................5 Ending calls............................................................................6 To make a new call................................................................6 Redialing last dialed number..................................................6 Adjusting speaker volume......................................................6 Right or left ear.......................................................................7 Putting way.............................................................................8 Low-battery indication...........................................................9 Battery recharging.................................................................9 Fully charge............................................................................9 Charging Connection Diagrams.......................................10,11 Accessories Table ................................................................12 FCC warning statement.........................................................13 TM Hong Kong 香港 Unit 207-210, 2/F., Century Centre, 44-46 Hung to Road. Kwun Tong, Kowloon, Hong Kong. 九龙观塘鸿图道 44-46 号世纪工商中心 2 楼 207-210 室 Tel(电话):(852)2191-8899 Fax(传真):(852) 2191-7788 E-mail (电 邮): [email protected] Website (网址): www.abe-hk.com 2 Abe Bluetooth Headset 1 1. On/Off ( S1) 2. Volume Up (S2) 3. Volume Down (S3) 4. LED 5. DC Socket 3 4 5 2 6 7 8 6. Speaker 7. Microphone 8. Ear hook 9 9. Knuckle Joint 3 Charging the battery Thank you for buying new Abe Bluetooth Headset. Before first time use, it is important to charge the battery for 12 hours. Turning on the Headset While the Headset ( HS ) is powered down, press and hold S1 for 2 seconds. A low tone followed by a high tone will indicate that the HS is powered up. Green LED will turn on for 1 second. Afterward, green LED will flash every 3 seconds. Turning off the Headset While the HS is powered up, press and hold S1 for 3 seconds. A high tone followed by a low tone will indicate that the HS is powered down. Red will turn on for 1 second. LED will be turned off when the HS is powered down. 4 Putting Headset in Pairing Mode While the HS is powered off, press and hold S1 for 4 seconds. Red and Green LEDs flashing alternately will indicate the HS is in Pairing Mode. Follow the operating instructions for your Bluetooth mobile phone to start the pairing process. Typically, this has to be done by going to a setup or connect menu and then selecting the options to discover Bluetooth devices. Bluetooth may take several seconds to establish a connection. Your phone's display should indicate that it has found the“CS8035”headset and asks if you want to pair it. You should confirm this. The phone's display would prompt you for a passkey or PIN. Enter a sequence of “1234”. The headset LED will flash Green every 3 seconds, indicating successful pairing. Usually the phone will also ask whether you want to change the headset's name. We would recommend you should approve the CS8035 name and not change it. If pairing does not occur as expected. Turn the headset and phone off and wait for10 seconds. Turn the headset and phone on again and repeat all steps from beginning. 5 Bluetooth Connection For some models of Bluetooth phone such as Nokia 3650 or Sony Ericsson T630, T610 or T68i, it is necessary to set the CS8035 in connect mode before conversation, please follow the operating instructions of your Bluetooth phone to set pairing to Abe Bluetooth headset. Answering Incoming Calls When an incoming call is present, the HS will ring. Pressing S1 will answer the call. The green LED will continue to flash fast while the call is in session. (Once every second) Transferring Calls (For Nokia 3650 or equivalent models) Calls can be transferred from the Bluetooth phone to the HS and from the HS to the Bluetooth phone. To transfer a call from the Bluetooth phone to the HS: press S1 once, the call will be transferred to the HS. To transfer a call from HS to the Bluetooth phone, please follow the operating instructions of your phone. Muting the microphone To mute the microphone during an active call Pressing both S2 and S3 buttons simultaneously for about a second, the microphone will be muted. A periodic beep tone will be heard while the mute function is active. To end the mute function When the microphone is muted, press on both S2 and S3 buttons simultaneously will end the mute function and the periodic beep tone will stop. 6 Ending Calls While a call is in session on the Headset HS, pressing S1 will disconnect the call. After the call is disconnected, the green LED will flash normally. To reject a call (For Nokia 3650, Siemens S55, or equivalent models) When the HS rings, press and hold S1 until you hear a long beep tone. To make a new call To make a call using voice dialing 1. Make sure the phone and the HS are on within the range of each other. Press S1. 2. After the beep tone, voice dial as you normally would. If using the Bluetooth phone adapter, say the voice command after the phone beeps (not after the headset’s beep tone). To know when the phone beeps in relation to the headset beep, you can make a test call using voice dialing. Redialing last dialed number (For Nokia 3650, Siemens S55, or equivalent models) To redial the last dialed number, press a…

Text truncated - open the document above for the full version.

Mike Kuo From: [email protected] Sent: May25 2004 Tuesday 3:20 AM To: Mike Kuo Cc: [email protected]; [email protected]; [email protected] Subject: FW: In-Tech Electronics Limited, FCC ID:NV6-CS8035, AN04T3894 6/2/2004 Hi Mike, For your question #1 Sorry for forgetting to attach the label format sample. Best Rgds, WK ----- wklo/ccsemc 2004/05/25 06:16 PM ----- Hi Mike, Here are our replies. Question #1: The proposed FCC ID label format does not comply with FCC rule. The FCC ID number shall be in the format of " FCC ID:NV6-CS8035". In the proposed ID label format, FCC DoC logo is used instead of FCC. Please submit revised FCC ID label format. Our Reply #1: The FCC ID label format is revised as attached. Question #2: This device is portable device, please delete section 7.7 MPE estimate information from Test report. Our Reply #2: Removal is done as attached. Question #3: In the last page of user manual, it include MPE safety information and 20 cm separation distance separation on this portable device. Please remove these statement and provide revised user manual. wklo 2004/05/25 05:54 PM Mike Kuo <[email protected]> ting/ccsemc@ccsemc, cert/ccsemc@ccsemc, harris/ccsemc@ccsemc Our Reply #3: The statement is removed as attached. Best Rgds, WK -----Original Message----- From: CERTADM Sent: Sunday, May 23, 2004 11:26 PM To: Mike Kuo Subject: In-Tech Electronics Limited, FCC ID:NV6-CS8035, AN04T3894 Notice_content ------------- Question #1: The proposed FCC ID label format does not comply with FCC rule. The FCC ID number shall be in the format of " FCC ID:NV6-CS8035". In the proposed ID label format, FCC DoC logo is used instead of FCC. Please submit revised FCC ID label format. Question #2: This device is portable device, please delete section 7.7 MPE estimate information from Test report. Question #3: In the last page of user manual, it include MPE safety information and 20 cm separation distance separation on this portable device. Please remove these statement and provide revised user manual. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Mike Kuo <[email protected]> 2004/05/24 02:27 PM "CCS-Taiwan, Ting (E-mail)" <[email protected]>, "CCS-Taiwan, Wklo (E-mail)" <[email protected]> 6/2/2004

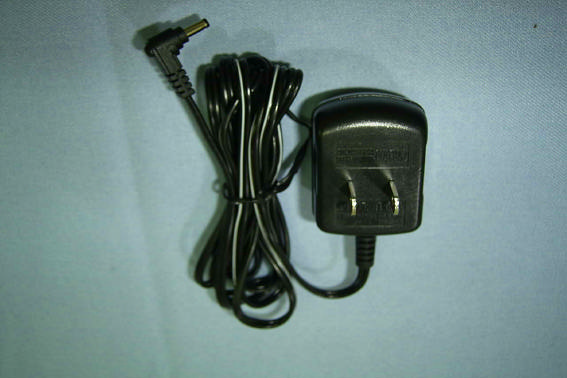

Compliance Certification Services Inc. Report No: B40326201 Date of Issue: April 27, 2004 Page 1 of EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40326201 Date of Issue: April 27, 2004 Page 2

Compliance Certification Services Inc. Report No: B40326201 Date of Issue: April 27, 2004 Page 3 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40326201 Date of Issue: April 27, 2004 Page 4

LW T ab c Inches0.374 ± .0080.079 ± .0080.047 + .004/ -.0080.053 ± .008 0.043 ± .0040.010 ± .004 mm9.5 ± 0.2 2.0 ± 0.21.2 + 0.1/- 0.21.35 ± 0.21.1 ± 0.10.25 ± 0.1 Terminal Configuration 1INPUT 2NC Mechanical Dimensions “High Frequency Ceramic Solutions” 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 www.johanson technology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Input PowerImpedanceOperating Temperature RangeReel Qty 3 Watts max50 Ω-40 to +85°C1000 Part FrequencyPeak GainAve. GainReturn Number(MHz)(XZ-V)(XZ-V)Loss 2450AT45A100_2400 - 25003.0 dBi typ.1.0 dBi typ. 9.5 dB min. 2.45 GHz Chip AntennaP/N 2450AT45A100 Detail Specification Page 1 of 3 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Mounting Considerations Mount these devices with brown colored side facing up. Line width should be designed to provide 50Ωimpedance matching characteristics. a) Without Matching Circuit (moderate bandwidth)b) With Matching Circuit* (wide bandwidth) *Matching circuit and component values will depend on PCB layout. “High Frequency Ceramic Solutions” www.johanson technology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2.45 GHz Chip AntennaP/N 2450AT45A100 Detail Specification Page 2 of 3 Test Board for Electrical Characteristic Measurements Typical Return Loss for P/N 2450AT45A100 a) Without Matching Circuitb) With Matching Circuit “High Frequency Ceramic Solutions” www.johanson technology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2.45 GHz Chip AntennaP/N 2450AT45A100 Detail Specification Page 3 of 3 Typical Radiation Patterns for P/N 2450AT45A100

Compliance Certification Services Inc. Report No: B40326201-RP FCC ID:NV6-CS8035 Date of Issue: April 27, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page 1 of 58 FCC 47 CFR PART 15 SUBPART C TEST REPORT For In-Tech Electronics Ltd. Bluetooth Headset Model: CS8035 Trade Name: Abe Prepared for In-Tech Electronics Ltd. Unit 207-210, 2/F., Century Centre, 44-46 Hung To Road, Kwun Tong, Hong Kong Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40326201-RP FCC ID:NV6-CS8035 Date of Issue: April 27, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT .................................................................................................. 10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 7.1 PEAK POWER......................................................................................................................... 11 7.2 PEAK POWER SPECTRAL DENSITY......................................................................................... 14 7.3 BAND EDGES MEASUREMENT ..................................................................................... 17 7.4 FREQUENCY SEPARATION ............................................................................................ 22 7.5 TIME OF OCCUPANCY (DWELL TIME) ........................................................................ 29 7.6 RADIO FREQUENCY EXPOSURE............................................................................................. 37 7.7 SPURIOUS EMISSIONS ...................................................................................................... 38 7.8 POWERLINE CONDUCTED EMISSIONS.................................................................................... 51 APPENDIX 1 PHOTOGRPHS OF TEST SETUP.......................................................................... 55 Compliance Certification Services Inc. Report No: B40326201-RP FCC ID:NV6-CS8035 Date of Issue: April 27, 2004 Page 3 1. TEST RESULT CERTIFICATION Applicant: In-Tech Electronics Ltd. Unit 207-210, 2/F., Century Centre, 44-46 Hung To Road, Kwun Tong, Hong Kong Equipment Under Test: Bluetooth Headset Trade Name: Abe Model: CS8035 Date of Test: April 14 ~ 22, 2004 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Harris.W. Lai Devin Chang Director of Linkou Laboratory Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B40326201-RP FCC ID:NV6-CS8035 Date of Issue: April 27, 2004 Page 4 2. EUT DESCRIPTION Product Bluetooth Headset Trade Name Abe Model Number CS8035 Model Discrepancy N/A Power Supply Model: MA132-065010 Input: AC 120V, 60Hz Output: DC 6.5V, 100mA Frequency Range 2402 – 2480MHz Transmit Power -4.45dBm Modulation Technique GFSK Transmit Data Rate 1MHz Number of Channels 79 Channels Antenna Designation Chip Antenna Temperature Range 0 ~ + 55°C Note: This sub…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40326201-RP FCC ID:NV6-CS8035 Date of Issue: April 27, 2004 Page 57 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B40326201-RP FCC ID:NV6-CS8035 Date of Issue: April 27, 2004 Page 58 Conducted Emission Set Up Photos
