NV6-CS8060Bluetooth Headset

In Tech Electronics Ltd
Bluetooth Headset - FCC ID NV6-CS8060 - In Tech Electronics Ltd
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Nov 16, 2005
Application Purpose
Original Equipment
Date of Application
Nov 16, 2005
Equipment Note
Bluetooth Headset
Frequency Range
2402.00000000 - 2480.00000000
Company
In Tech Electronics Ltd
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2 5 !!!!! Headset in den Pairing Mode (Verbindungsmodus) bringenAnrufe weiterleitenStellen Sie sicher, dass das HS vollkommen aufgeladen und dass das Ladegerät vomHandy getrennt ist, bevor Sie die Verbindung starten. Bei ausgeschaltetem HS 4Sekunden lang S1 gedrückt halten. Die rote und grüne LED-Anzeigen blinkenabwechselnd und signalisieren, dass das HS sich im Pairing Mode befindet.Befolgen Sie die Betriebsanleitungen Ihres Bluetooth-Telefones, um den PairingVorgang zu starten. Normalerweise muss dazu das Setup- oder Verbindungsmenüaufgerufen und dann die Optionen zur Identifikation der Bluetooth Geräte gewähltwerden. Bluetooth braucht einige Sekunden, um eine Verbindung herzustellen.Auf dem Display Ihres Handys erscheint die Meldung, dass das “CS8059” Headsetgefunden wurde und die Frage, ob Sie es registrieren möchten. In diesem Fall müssenSie dies bestätigen. Das Display des Handys fragt Sie nach einen Passcode oder einePIN. Geben Sie die Zahlenfolge von “0000” ein.Wenn die LED-Anzeige des HS alle 3 Sekunden grün blinkt, bedeutet das, dass derVerbindungsvorgang erfolgreich beendet wurde. Normalerweise fragt das Handy, obSie den Namen des Headsets ändern möchten. Wir empfehlen Cs8059 als Namen zubestätigen und nicht zu ändern. Sie können so viele Headsets und Geräte in IhremHandy registrieren, wie Sie möchten. Im Fall, dass der Verbindungsvorgang nicht wievorgesehen abläuft: Schalten Sie das Headset und das Handy aus und warten Sie 10Sekunden. Nun schalten Sie das Headset und das Handy wieder an und wiederholenSie die Schritte Pairing Mode von Anfang an.Wenn Sie einen Anruf erhalten, hören Sie über das HS einen Rufton. Drücken Sie aufS1, beantworten Sie den Anruf. Die grüne LED-Anzeige leuchtet kurz und dannwiederholt auf (jede Sekunde) während der Anruf im Gange ist. (Für Nokia 3650 oder ähnliche Modelle) Sind Sie mit einem Anrufer verbunden, können die Anrufe vom Bluetooth-Telefon aufdas HS und vom HS auf das Bluetooth-Telefon weitergeleitet werden.Um die Anrufe vom Bluetooth-Telefon auf das HS weiterzuleiten: Drücken Sie einmalS1, der Anruf wird auf das HS weitergeleitet.Um einen Anruf vom HS auf das Bluetooth-Telefon weiterzuleiten, folgen Sie demBedienungshandbuch Ihres Handys.Um das Mikrofon während eines aktuellen Gesprächs stumm zu schalten:Drücken Sie S2 und S3 gleichzeitig eine Sekunde lang, das Mikrofon wird stummgeschaltet. Ein unterbrochener Beep-Ton ertönt solange die Stumm-Funktion aktiv ist.Wenn das Mikrophon stumm geschaltet ist, drücken Sie S2 und S3 gleichzeitig, um dieStumm-Funktion zu beenden; der Beep-Ton wird beendet. “” Nach erfolgreicher Verbindung des HS und des Handys wird das Handy “verbinden”anzeigen Dann Wählen Sie “Ja” um die Verbingdung herzustellen Nun sind Sie bereit, über das HS Anrufe zu machen oder Anrufe anzunehmen. Für andere Telefoneverwenden Sie die jeweiligen Bedienungshandbücher um die Verbindung herzustellen.Bluetooth-Verbindung herstellenAnrufe annehmenStummschalten des Mikrofons , .. Stumm-Funktion beenden !!!! Putting Headset in Pairing Mode Establishing Link Answering Incoming Calls Transferring Calls Muting the microphone Make sure the HS is fully charged and charging cable disconnected from it beforepairing starts. While the HS is powered off, press and hold S1 for 4 seconds. Redand Green LEDs flashing alternately will indicate that the HS is in Pairing Mode.Follow the operating instructions for your mobile phone to start the pairing process. Typically, this has to be done by going to a setup or connectmenu and then selecting the options to discover devices. may take several seconds to establish a connection. Your phone s display should indicate that it has found the CS8059 headset and asks if you want to pair it. You should confirm this. The phone s displaywould prompt you for a passkey or PIN. Enter a sequence of 0000 . The headset LED will flash Green every 3 seconds, indicating successful pairing.Usually the phone will also ask whether you want to change the headset s name.We recommend you should approve the Cs8059 name and not change it. Youcan pair as many headsets and devices as you wish in your mobile phone.If pairing does not occur as expected. Turn the headset and phone off and wait for10 seconds. Turn the headset and phone on again and repeat all steps frombeginning.After pairing, the mobile phone will show connect then please select YES to establish the link Now you are ready to make and answer calls on the HS For other phones please follow the operation manual to establish the linkWhen an incoming call is present, the HS will ring . Pressing S1 will answer thecall. The green LED will continue to flash fast while the call is in session. (Onceevery second) (For Nokia 3650 or equivalent models) When you are in session, calls can be transferred from the phone to the HS and from the HS to the phone. To transfer a call from the phone to the HS: press S1 once, the call will be transferred to the HS. To transfer a call from HS to the phone, please follow the operating instructions of your phone. Pressing both S2 and S3 buttons simultaneously for about a second, themicrophone will be muted. A periodic beep tone will be heard while the mutefunction is active.When the microphone is muted, press on both S2 and S3 buttons simultaneouslywill end the mute function and the periodic beep tone will stop. Bluetooth Bluetooth Bluetooth Bluetooth Bluetooth Bluetooth Bluetooth To mute the microphone during an active callTo end the mute function ' “” ' “” ' “ ” , “ ” .. ,. Bluetooth ! 7 TM CS8059 Bluetooth ® Headset User Manual http://www.abe-hk.com Benutzerhandbuch User Manual D E 1 BenutzerhandbuchInhalt Abbildungen des Headsets..................... Laden des Akkus ............................... ................................ ...... .......1 Einschalten des Headsets ................................................... ...... ......1 Ausschalten des Headsets ................................................... .... .......1 Bluetooth-Verbindun…

Text truncated - open the document above for the full version.

Users Manual

2 5 !!!!! Headset in den Pairing Mode (Verbindungsmodus) bringenAnrufe weiterleitenStellen Sie sicher, dass das HS vollkommen aufgeladen und dass das Ladegerät vomHandy getrennt ist, bevor Sie die Verbindung starten. Bei ausgeschaltetem HS 4Sekunden lang S1 gedrückt halten. Die rote und grüne LED-Anzeigen blinkenabwechselnd und signalisieren, dass das HS sich im Pairing Mode befindet.Befolgen Sie die Betriebsanleitungen Ihres Bluetooth-Telefones, um den PairingVorgang zu starten. Normalerweise muss dazu das Setup- oder Verbindungsmenüaufgerufen und dann die Optionen zur Identifikation der Bluetooth Geräte gewähltwerden. Bluetooth braucht einige Sekunden, um eine Verbindung herzustellen.Auf dem Display Ihres Handys erscheint die Meldung, dass das “CS8060” Headsetgefunden wurde und die Frage, ob Sie es registrieren möchten. In diesem Fall müssenSie dies bestätigen. Das Display des Handys fragt Sie nach einen Passcode oder einePIN. Geben Sie die Zahlenfolge von “0000” ein.Wenn die LED-Anzeige des HS alle 3 Sekunden grün blinkt, bedeutet das, dass derVerbindungsvorgang erfolgreich beendet wurde. Normalerweise fragt das Handy, obSie den Namen des Headsets ändern möchten. Wir empfehlen CS8060 als Namen zubestätigen und nicht zu ändern. Sie können so viele Headsets und Geräte in IhremHandy registrieren, wie Sie möchten. Im Fall, dass der Verbindungsvorgang nicht wievorgesehen abläuft: Schalten Sie das Headset und das Handy aus und warten Sie 10Sekunden. Nun schalten Sie das Headset und das Handy wieder an und wiederholenSie die Schritte Pairing Mode von Anfang an.Wenn Sie einen Anruf erhalten, hören Sie über das HS einen Rufton. Drücken Sie aufS1, beantworten Sie den Anruf. Die grüne LED-Anzeige leuchtet kurz und dannwiederholt auf (jede Sekunde) während der Anruf im Gange ist. (Für Nokia 3650 oder ähnliche Modelle) Sind Sie mit einem Anrufer verbunden, können die Anrufe vom Bluetooth-Telefon aufdas HS und vom HS auf das Bluetooth-Telefon weitergeleitet werden.Um die Anrufe vom Bluetooth-Telefon auf das HS weiterzuleiten: Drücken Sie einmalS1, der Anruf wird auf das HS weitergeleitet.Um einen Anruf vom HS auf das Bluetooth-Telefon weiterzuleiten, folgen Sie demBedienungshandbuch Ihres Handys.Um das Mikrofon während eines aktuellen Gesprächs stumm zu schalten:Drücken Sie S2 und S3 gleichzeitig eine Sekunde lang, das Mikrofon wird stummgeschaltet. Ein unterbrochener Beep-Ton ertönt solange die Stumm-Funktion aktiv ist.Wenn das Mikrophon stumm geschaltet ist, drücken Sie S2 und S3 gleichzeitig, um dieStumm-Funktion zu beenden; der Beep-Ton wird beendet. “” Nach erfolgreicher Verbindung des HS und des Handys wird das Handy “verbinden”anzeigen Dann Wählen Sie “Ja” um die Verbingdung herzustellen Nun sind Sie bereit, über das HS Anrufe zu machen oder Anrufe anzunehmen. Für andere Telefoneverwenden Sie die jeweiligen Bedienungshandbücher um die Verbindung herzustellen.Bluetooth-Verbindung herstellenAnrufe annehmenStummschalten des Mikrofons , .. Stumm-Funktion beenden !!!! Putting Headset in Pairing Mode Establishing Link Answering Incoming Calls Transferring Calls Muting the microphone Make sure the HS is fully charged and charging cable disconnected from it beforepairing starts. While the HS is powered off, press and hold S1 for 4 seconds. Redand Green LEDs flashing alternately will indicate that the HS is in Pairing Mode.Follow the operating instructions for your mobile phone to start the pairing process. Typically, this has to be done by going to a setup or connectmenu and then selecting the options to discover devices. may take several seconds to establish a connection. Your phone s display should indicate that it has found the CS8060 headset and asks if you want to pair it. You should confirm this. The phone s displaywould prompt you for a passkey or PIN. Enter a sequence of 0000 . The headset LED will flash Green every 3 seconds, indicating successful pairing.Usually the phone will also ask whether you want to change the headset s name.We recommend you should approve the CS8060 name and not change it. Youcan pair as many headsets and devices as you wish in your mobile phone.If pairing does not occur as expected. Turn the headset and phone off and wait for10 seconds. Turn the headset and phone on again and repeat all steps frombeginning.After pairing, the mobile phone will show connect then please select YES to establish the link Now you are ready to make and answer calls on the HS For other phones please follow the operation manual to establish the linkWhen an incoming call is present, the HS will ring . Pressing S1 will answer thecall. The green LED will continue to flash fast while the call is in session. (Onceevery second) (For Nokia 3650 or equivalent models) When you are in session, calls can be transferred from the phone to the HS and from the HS to the phone. To transfer a call from the phone to the HS: press S1 once, the call will be transferred to the HS. To transfer a call from HS to the phone, please follow the operating instructions of your phone. Pressing both S2 and S3 buttons simultaneously for about a second, themicrophone will be muted. A periodic beep tone will be heard while the mutefunction is active.When the microphone is muted, press on both S2 and S3 buttons simultaneouslywill end the mute function and the periodic beep tone will stop. Bluetooth Bluetooth Bluetooth Bluetooth Bluetooth Bluetooth Bluetooth To mute the microphone during an active callTo end the mute function ' “” ' “” ' “ ” , “ ” .. ,. Bluetooth ! 7 TM CS8060 Bluetooth ® Headset User Manual http://www.abe-hk.com Benutzerhandbuch User Manual D E 1 BenutzerhandbuchInhalt Abbildungen des Headsets..................... Laden des Akkus ............................... ................................ ...... .......1 Einschalten des Headsets ................................................... ...... ......1 Ausschalten des Headsets ................................................... .... .......1 Bluetooth-Verbindun…

Text truncated - open the document above for the full version.

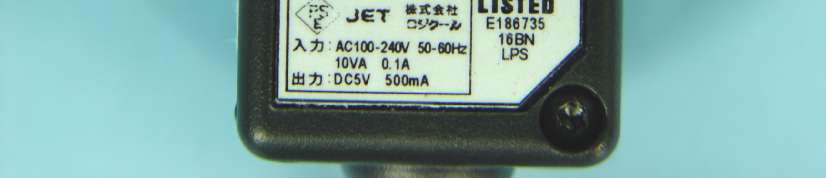

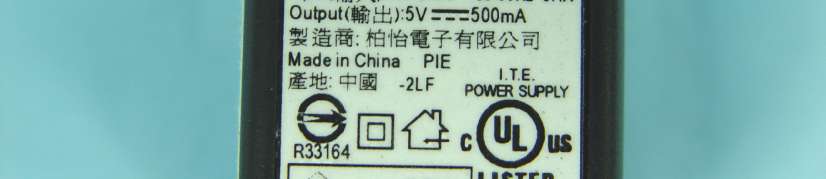

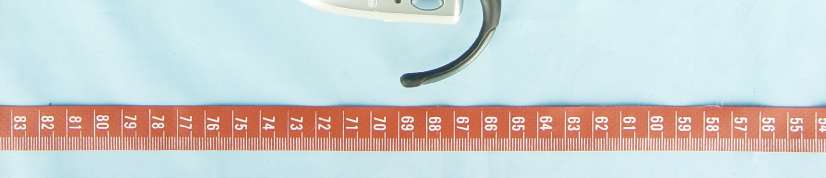

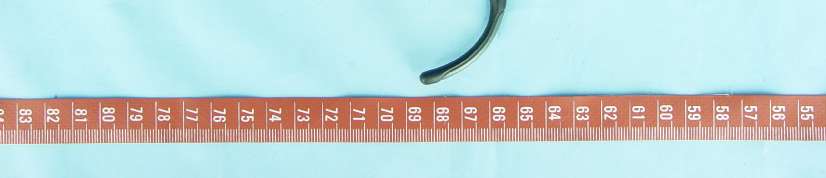

External Photos

Page 1 CONSTRUCTION PHOTOS OF EUT Model No: CS8059 Page 2 Page 3 Model No: CS8060 Page 4

ID Label/Location Info

CS8059_LABEL LOCATION.jpg (1152 x 856 x 24) CS8060_LABEL LOCATION.jpg (1152 x 856 x 24)

ID Label/Location Info

SN: FCC ID:NV6-CS8060 Model:CS8059 SN: FCC ID:NV6-CS8060 Model:CS8060

Internal Photos

Page 1 CONSTRUCTION PHOTOS OF EUT Model No: CS8060 Page 2 Page 3 Page 4 Model No: CS8059 Page 5 Page 6

Operational Description

FCC ID: NV6-CS8060 Report No.: RF941021L08 Operational Description The transmitter of the EUT (Bluetooth Headset) is powered by battery. The antenna is PCB antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual. This device is a Frequency Hopping device with 79 hopping frequencies.

RF Exposure Info

FCC ID: NV6-CS8060 Report No: SA941021L08 1 RF EXPOSURE REPORT REPORT NO.: SA941021L08 MODEL NO.: CS8059/CS8060 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: In-Tech Electronics Ltd. ADDRESS: 207-210, 2F., Century Centre, 44-46 Hung To Road, Kwun Tong, Kowloon, Hong Kong ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: NV6-CS8060 Report No: SA941021L08 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NV6-CS8060 Report No: SA941021L08 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: NV6-CS8060 Report No: SA941021L08 4 5 Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.580 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power3.472.223 EIRP Power3.472.223 *Note: The antenna is PCB antenna with 0dBi gain Threshold for no SAR evaluation is 24.580mW Transmitter power is 2.223mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Test Report

FCC ID: NV6-CS8060 Report No.: RF941021L081Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941021L08 MODEL NO.: CS8059/CS8060 RECEIVED: Oct. 21, 2005 TESTED: Nov. 01 ~ Nov. 03, 2005 ISSUED: Nov. 07, 2005 APPLICANT: In-Tech Electronics Ltd. ADDRESS: 207-210, 2F., Century Centre, 44-46 Hung To Road, Kwun Tong, Kowloon, Hong Kong ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 56 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA NO. 2177-01 FCC ID: NV6-CS8060 Report No.: RF941021L082Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION............................................................................................................................. 4 2.SUMMARY OF TEST RESULTS .................................................................................................... 5 2.1 MEASUREMENT UNCERTAINTY.................................................................................................. 5 3.GENERAL INFORMATION ............................................................................................................. 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................... 6 3.2 DESCRIPTION OF TEST MODES ................................................................................................. 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST............................................................................ 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................................................ 8 3.3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................................................. 10 3.3.4 DESCRIPTION OF SUPPORT UNITS......................................................................................... 10 4. TEST TYPES AND RESULTS .......................................................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT ................................................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.2 TEST INSTRUMENTS ..................................................................................................................11 4.1.3 TEST PROCEDURES .................................................................................................................. 12 4.1.4 DEVIATION FROM TEST STANDARD ........................................................................................ 12 4.1.5 TEST SETUP................................................................................................................................ 13 4.1.6 EUT OPERATING CONDITIONS.................................................................................................13 4.1.7 TEST RESULTS ........................................................................................................................... 14 4.2 RADIATED EMISSION MEASUREMENT..................................................................................... 20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................................................. 20 4.2.2 TEST INSTRUMENTS ................................................................................................................. 21 4.2.3 TEST PROCEDURES .................................................................................................................. 22 4.2.4 DEVIATION FROM TEST STANDARD ........................................................................................ 22 4.2.5 TEST SETUP................................................................................................................................ 23 4.2.6 EUT OPERATING CONDITIONS.................................................................................................23 4.2.7 TEST RESULTS ........................................................................................................................... 24 4.3 NUMBER OF HOPPING FREQUENCY USED ............................................................................ 28 4.3.1 LIMIT OF HOPPING FREQUENCY USED .................................................................................. 28 4.3.2 TEST INSTRUMENTS ................................................................................................................. 28 4.3.3 TEST PROCEDURES .................................................................................................................. 28 4.3.4 DEVIATION FROM TEST STANDARD ........................................................................................ 29 4.3.5 TEST SETUP................................................................................................................................ 29 4.3.6 TEST RESULTS ........................................................................................................................... 29 4.4 DWELL TIME ON EACH CHANNEL............................................................................................. 31 4.4.1 LIMIT OF DWELL TIME USED .................................................................................................... 31 4.4.2 TEST INSTRUMENTS ................................................................................................................. 31 4.4.3 TEST PROCEDURES ........................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: NV6-CS8060 Report No.: RF941021L0853Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NV6-CS8060 Report No.: RF941021L0854Report Format Version 2.0.4 RADIATED EMISSION TEST

Contact Information

Applicant

Jacky Tsang(R & D Manager)
[email protected]852 2191-8899Fax: 852 2191-7788

Technical Contact

Advance Data Technology Corporation (Hwa Ya)Cody Chang
[email protected]886-3-3183232

No. 19, Hwa Ya 2nd Rd., Kwei Shan Hsiang · Taoyuan Hsien · Taiwan

Non-Technical Contact

Advance Data Technology CorporationStephanie Hung
[email protected]886-3-3183232

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen
[email protected]886-3-3183232Fax: 886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz2.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operating instructions for satisfying RF exposure compliance requirements.
