NVP-04441M49LT1Walkie Talkie

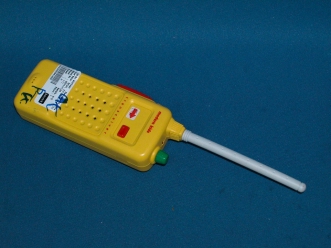

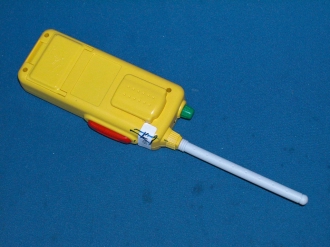

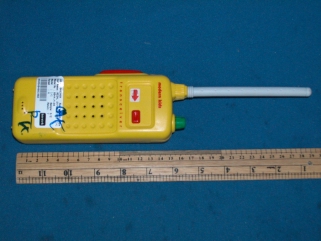

FCC ID: NVP-04441M49LT1 Ophoto1 Ophoto2 FCC ID: NVP-04441M49LT1 Ophoto3 Ophoto4

FCC ID: NVP-04441M49LT1 Iphoto1 Iphoto2 FCC ID: NVP-04441M49LT1 Iphoto3 Iphoto4 FCC ID: NVP-04441M49LT1 Iphoto5 Iphoto6

FCC ID: NVP-04441M49LT1 Technical Description : The brief circuit description is listed as follows : - Q5, XTAL and associated circuit act as RF Oscillator. - T2 and associated circuit act as RF Modulator. - Q1 and associated circuit act as RF Amplifier. - Q2 and associated circuit act as Superregenerative Receiver. - Q3, Q4 and associated circuit act as AF Power Amplifier. Antenna Used : A permanent spring antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : NVP-04441M49LT1 The Little Tikes Company Application For Certification (FCC ID: NVP-04441M49LT1) Transmitter Sample Description : Little Tikes Walkie Talkie Model : 88441M100 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [12-8-2003] 0403484 WN/at March 26, 2004 INTERTEK TESTING SERVICES FCC ID: NVP-04441M49LT1 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: NVP-04441M49LT1 ii MEASUREMENT/TECHNICAL REPORT The Little Tikes Company - MODEL: 88441M100 FCC ID: NVP-04441M49LT1 March 26, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-8- 2003 Edition] provision. Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: NVP-04441M49LT1 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology ................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation.................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information................................................................................... 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Emission Test Procedures ................................................................................ 25 8.2 Emission Test Procedures (Cont’d).................................................................... 26 INTERTEK TESTING SERVICES FCC ID: NVP-04441M49LT1 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: NVP-04441M49LT1 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NVP-04441M49LT1 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC Walkie Talkie operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by a 9V battery. The EUT has a volume switch and two buttons. The volume switch is used to switch on or off the EUT and to adjust the volume. The button on the left side of the EUT is used to switch the EUT from rece…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
