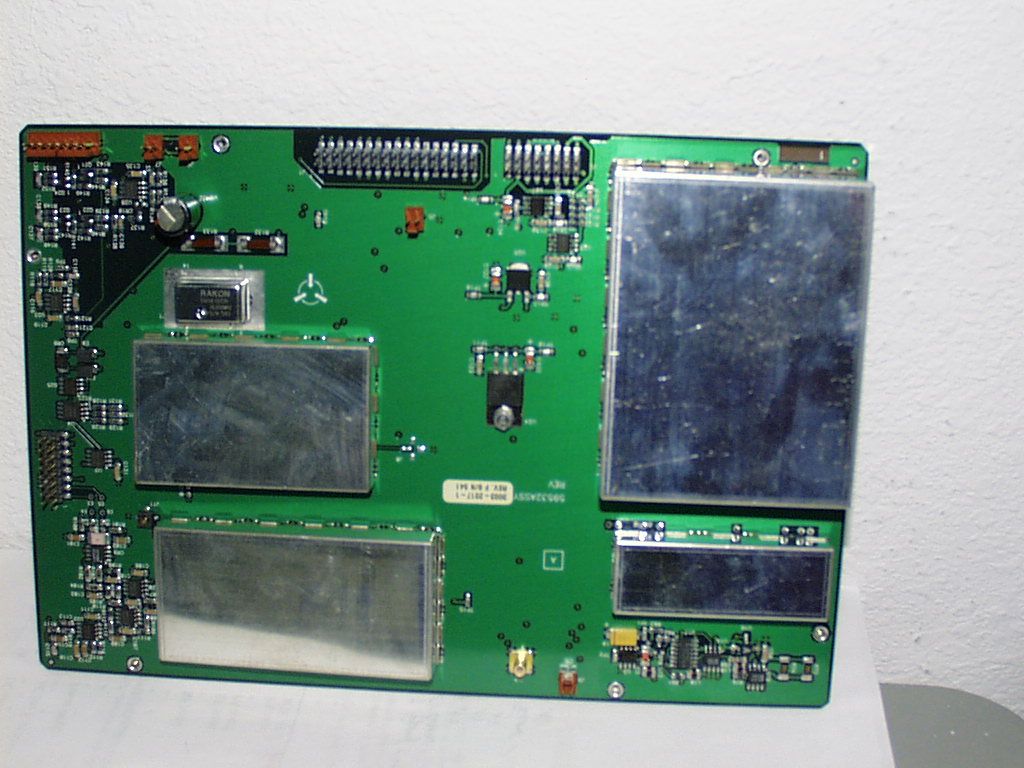

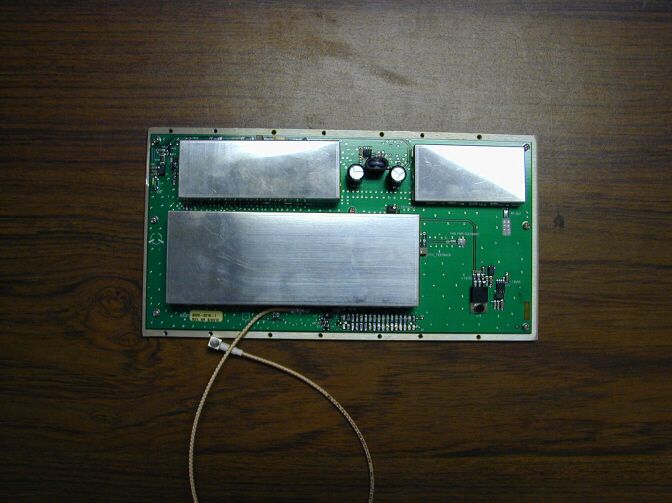

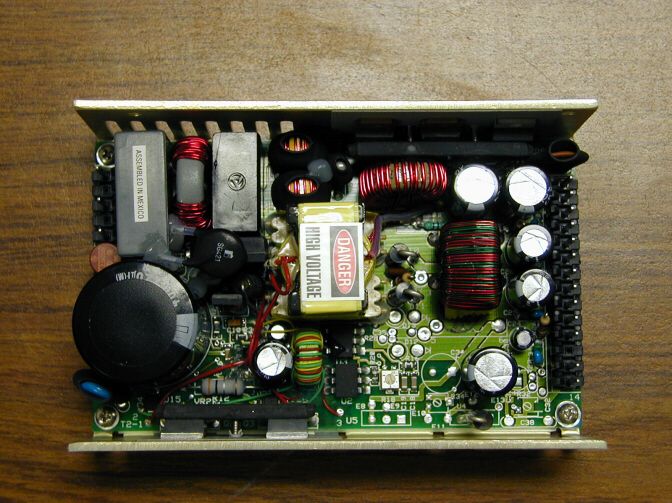

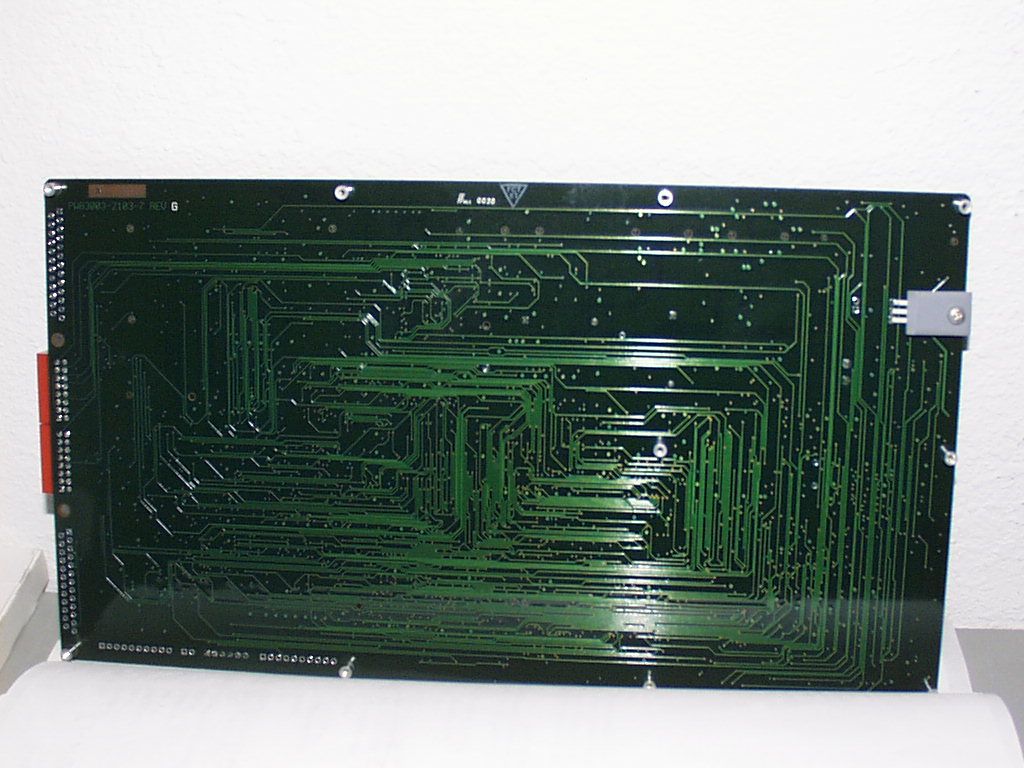

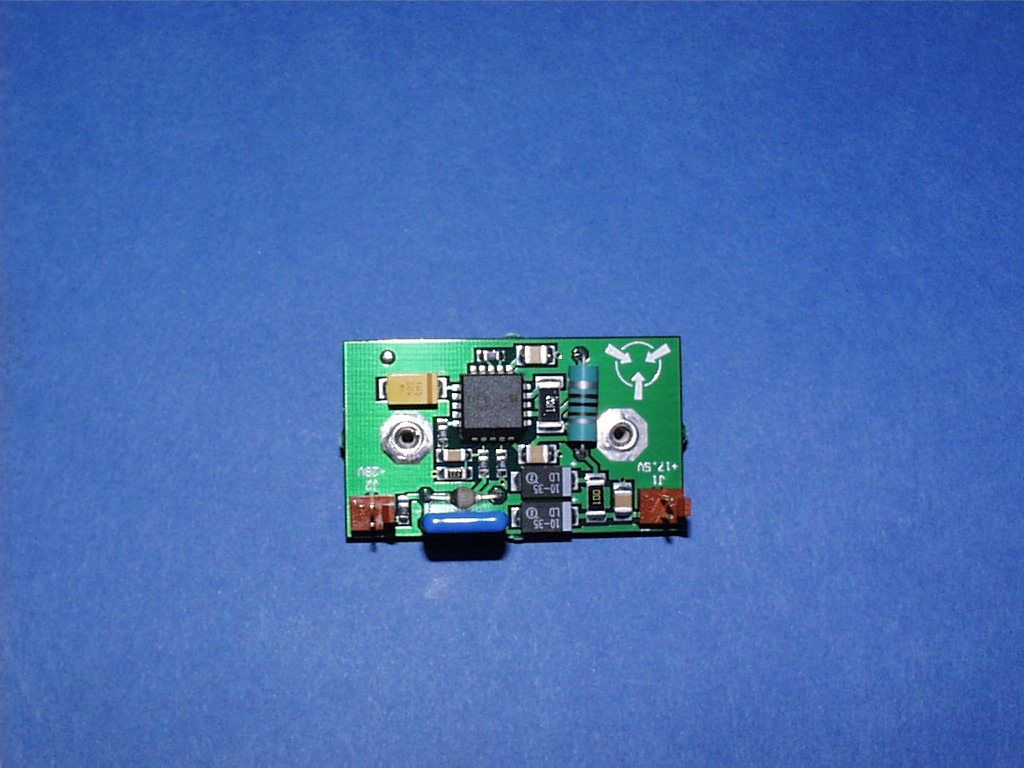

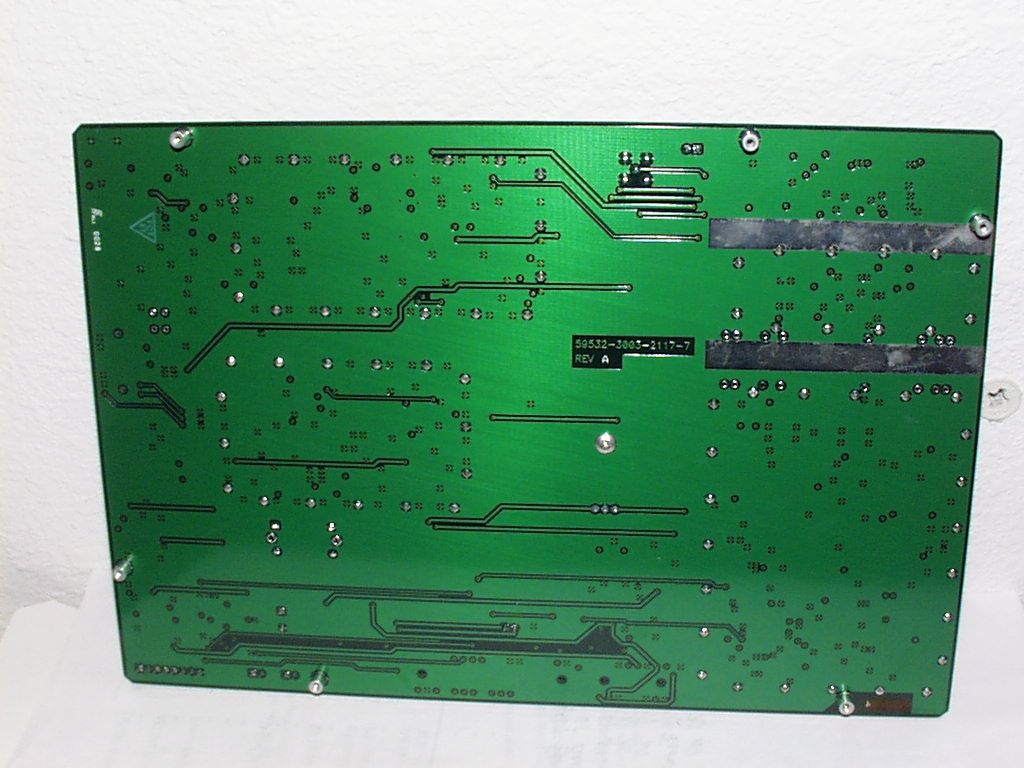

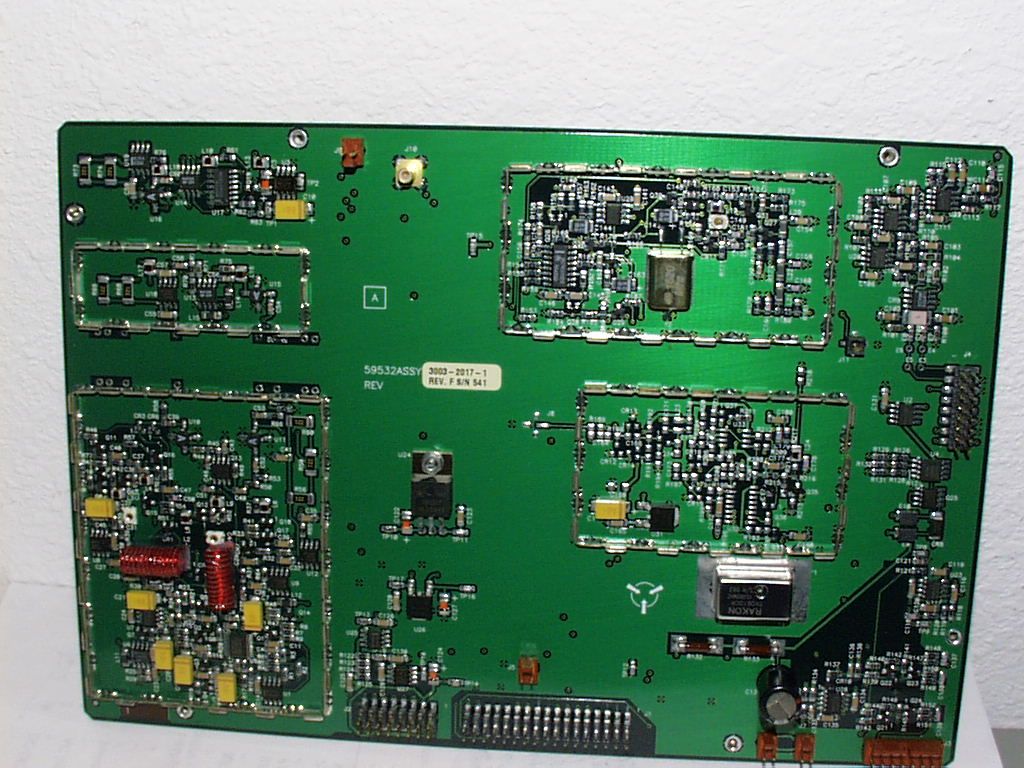

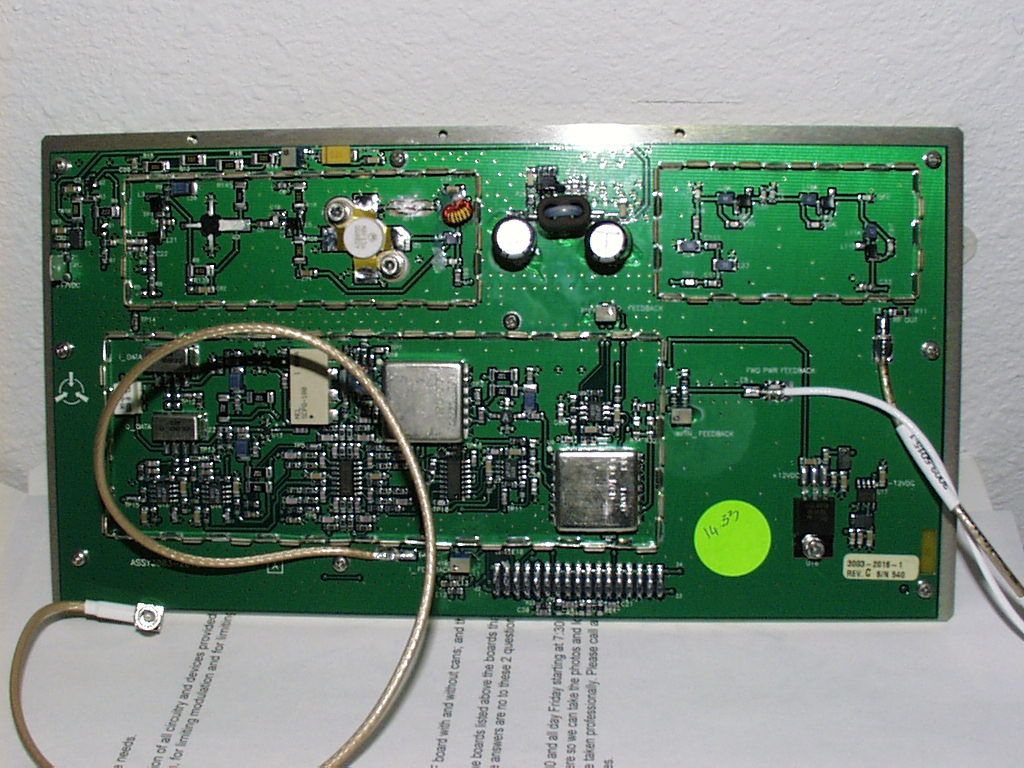

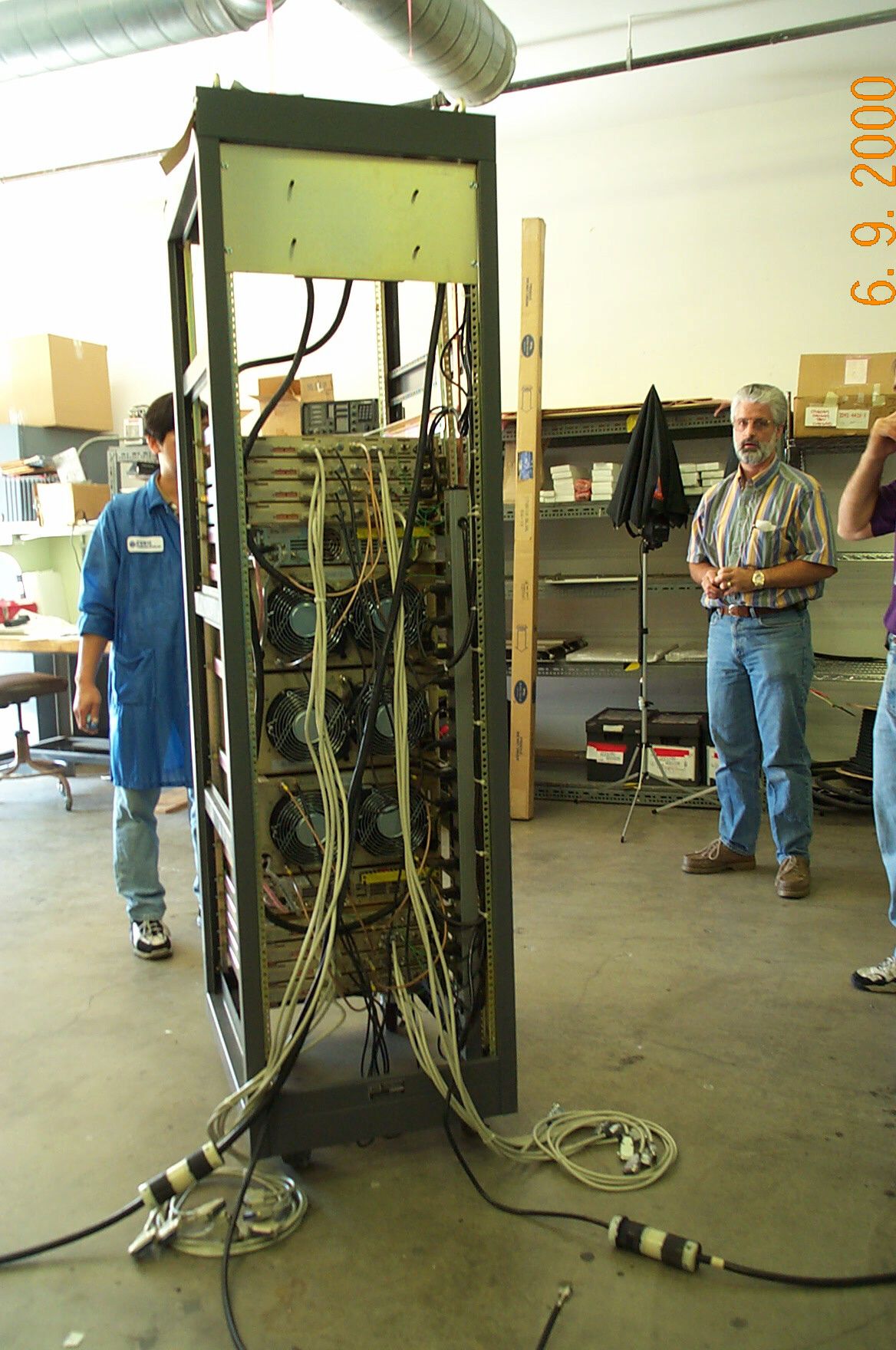

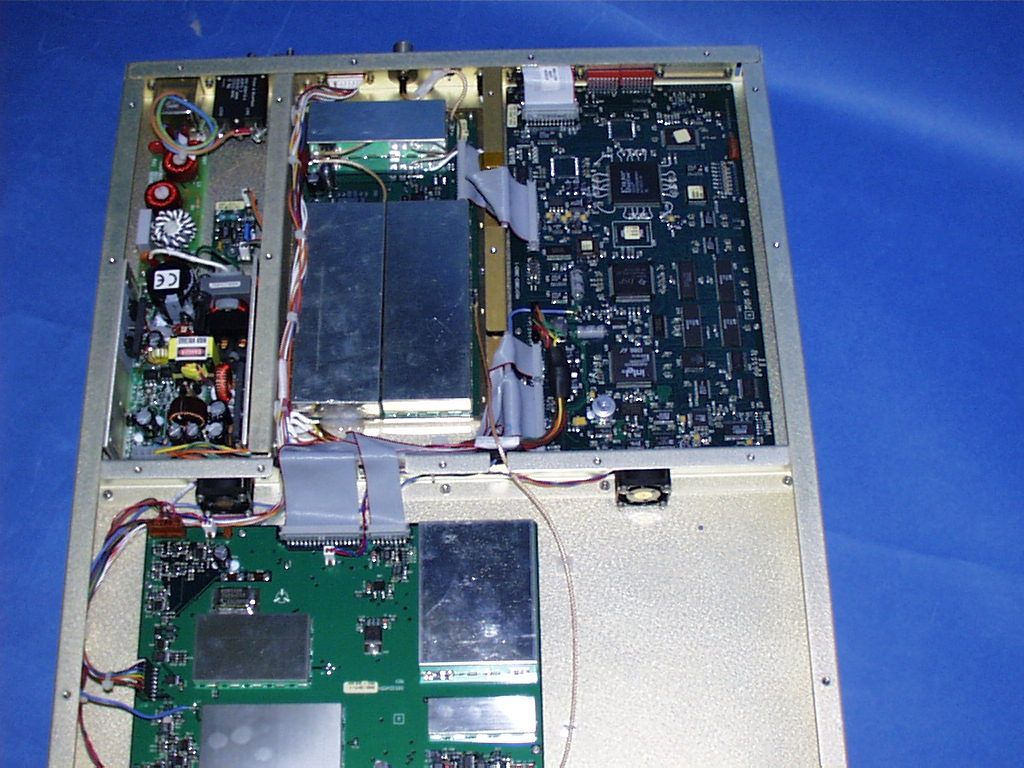

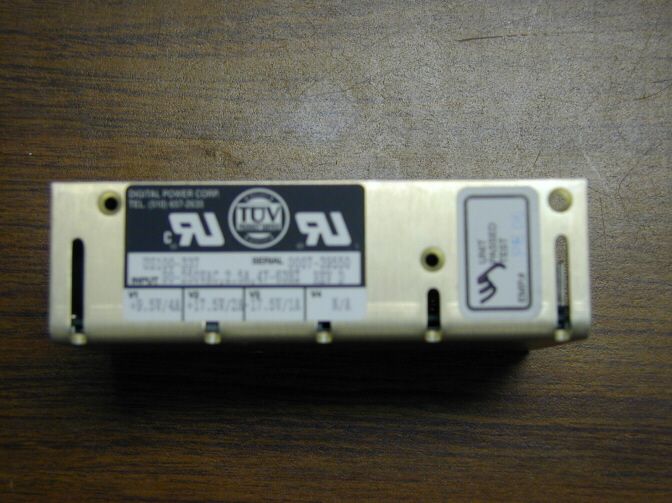

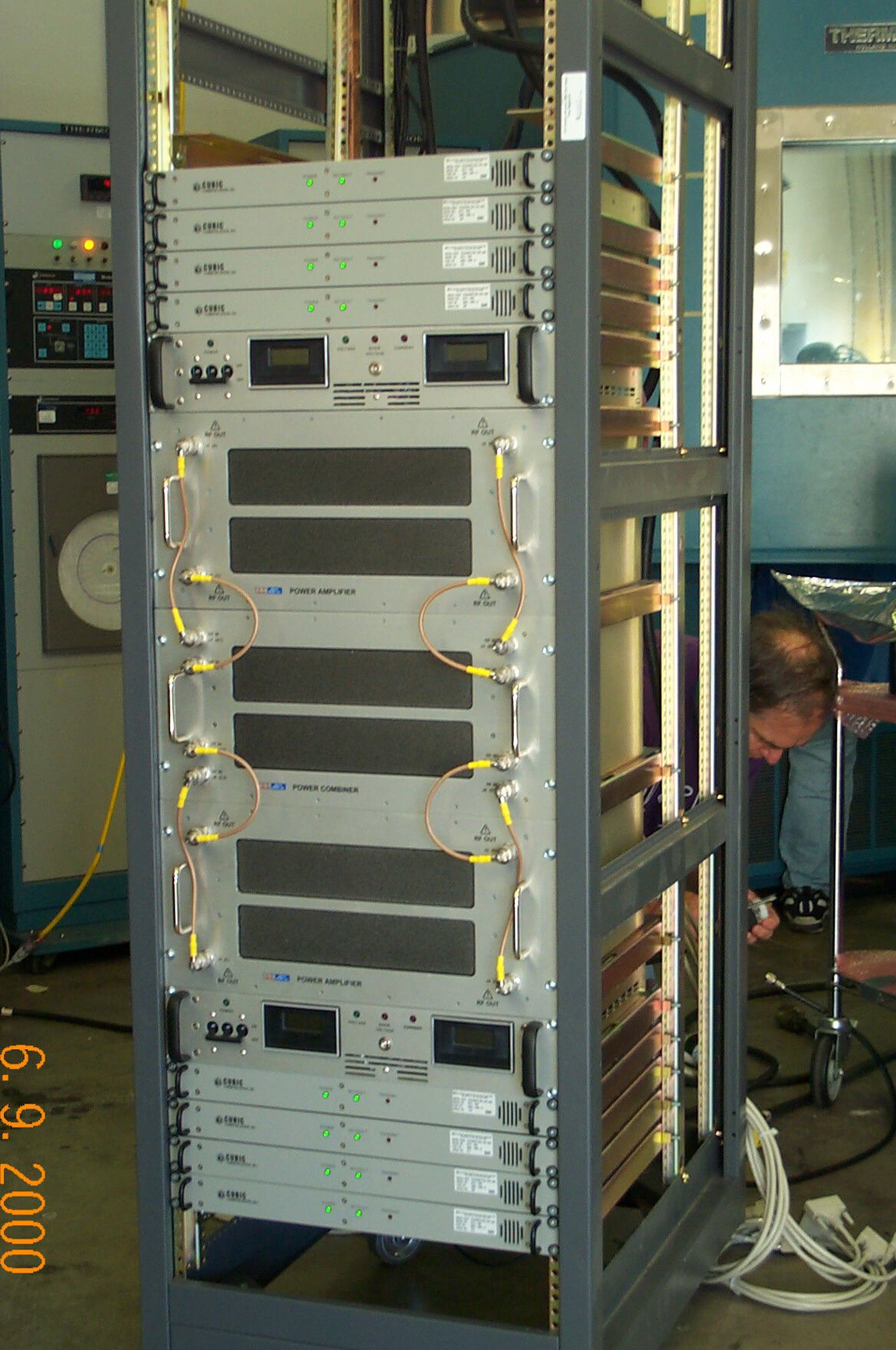

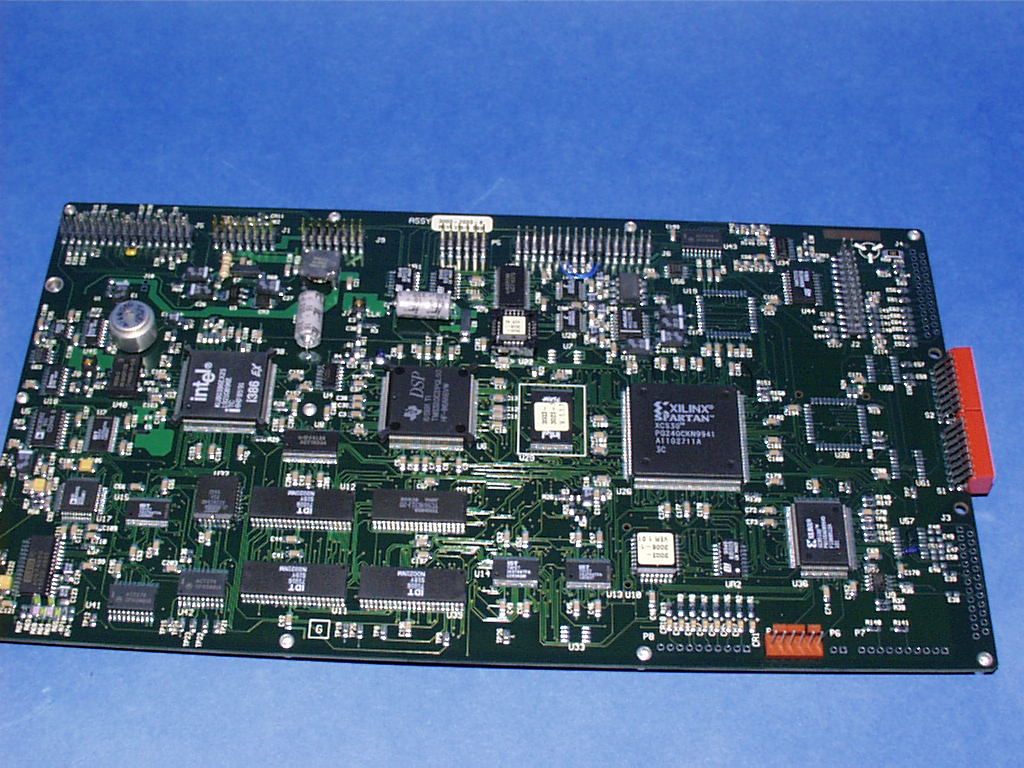

NVSMTC-100TMCPAMTC-100T MCPA

Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 1 Rev.No 1.0 ATTESTATION STATEMENT GENERAL REMARKS: SUMMARY: All tests according to FCC Part 2, Paragraphs, 2.1046; 2.1047(a); 2.1049; 2.1051; 2.1053; 2.1055; Part 80, Paragraphs 80.205; 80.209(a); 80.211; 80.213(e); 80.215(c)(1) were . ! - Performed " - Not Performed The Equipment Under Test ! - Fulfills FCC Part 2, Paragraphs, 2.1046; 2.1047(a); 2.1049; 2.1051; 2.1053; 2.1055; and Part 80, Paragraphs 80.205; 80.209(a); 80.211; 80.213(e); 80.215(c)(1). " - Does not fulfill the general approval requirements cited on page 1. - TÜV PRODUCT SERVICE, INC. - Responsible Engineer: Jim Owen (EMC Engineer)

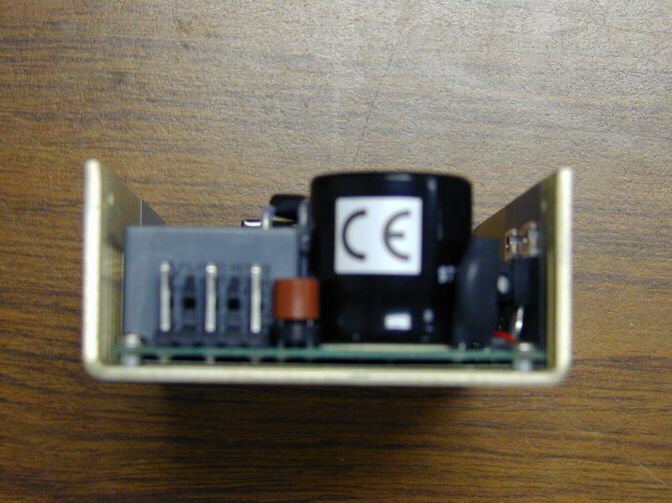

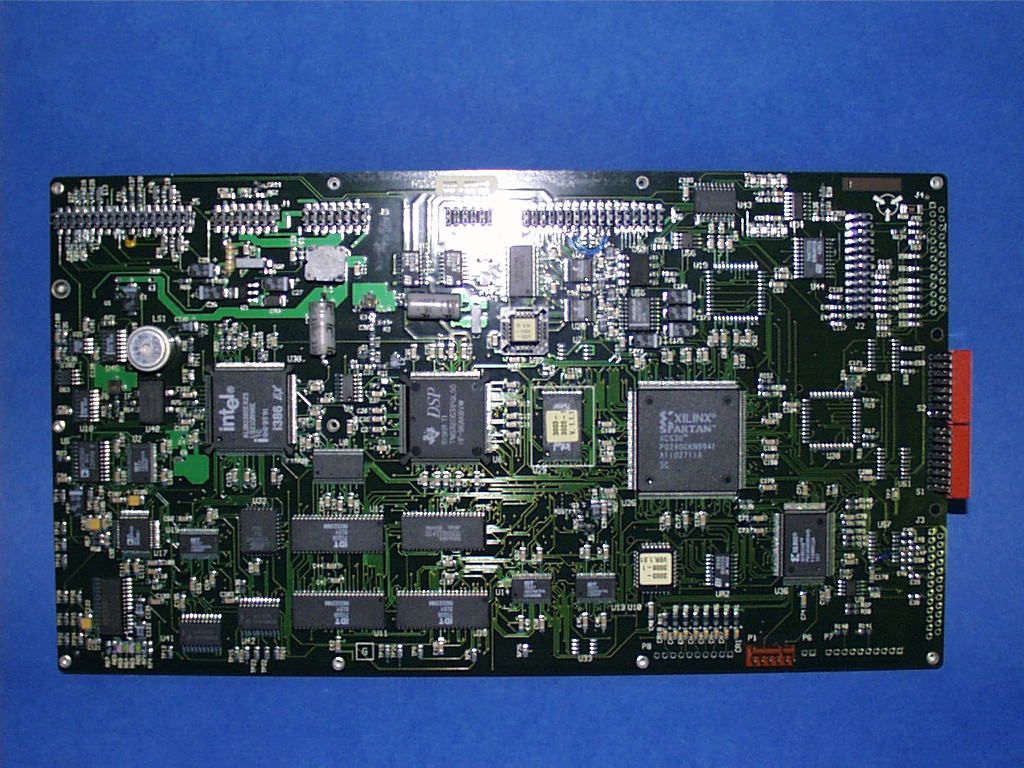

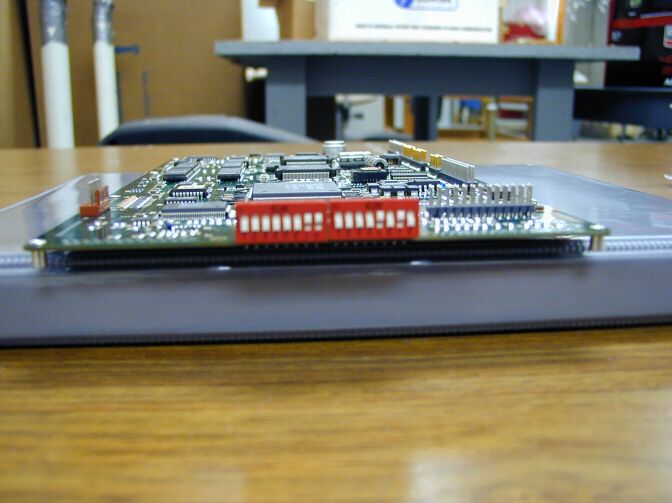

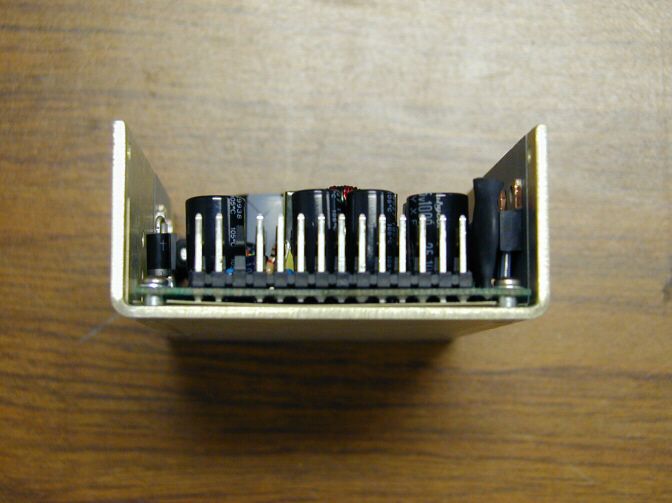

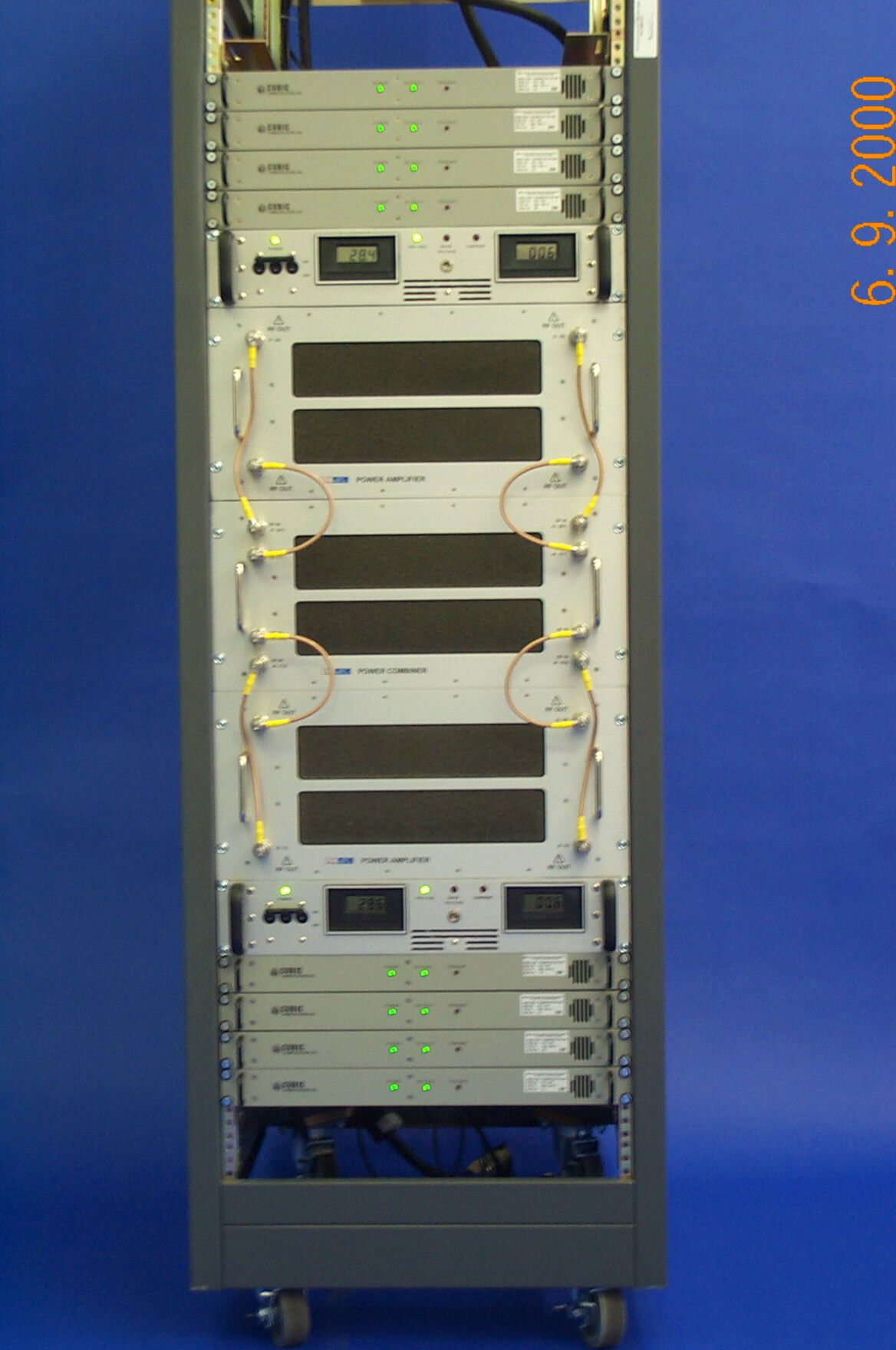

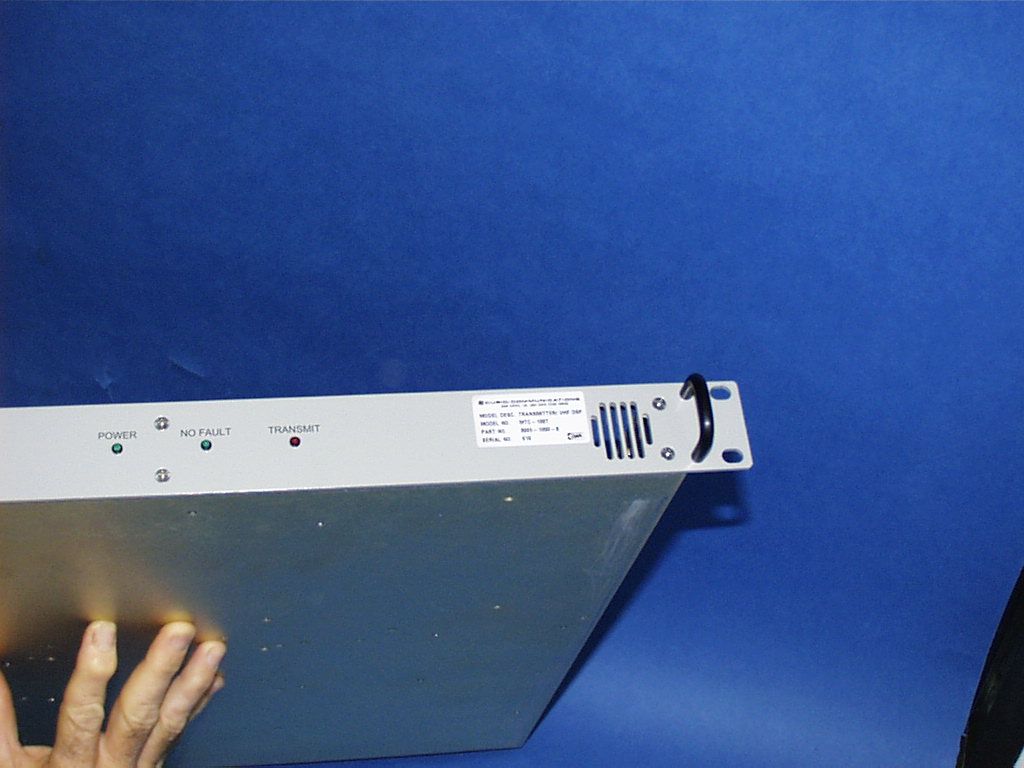

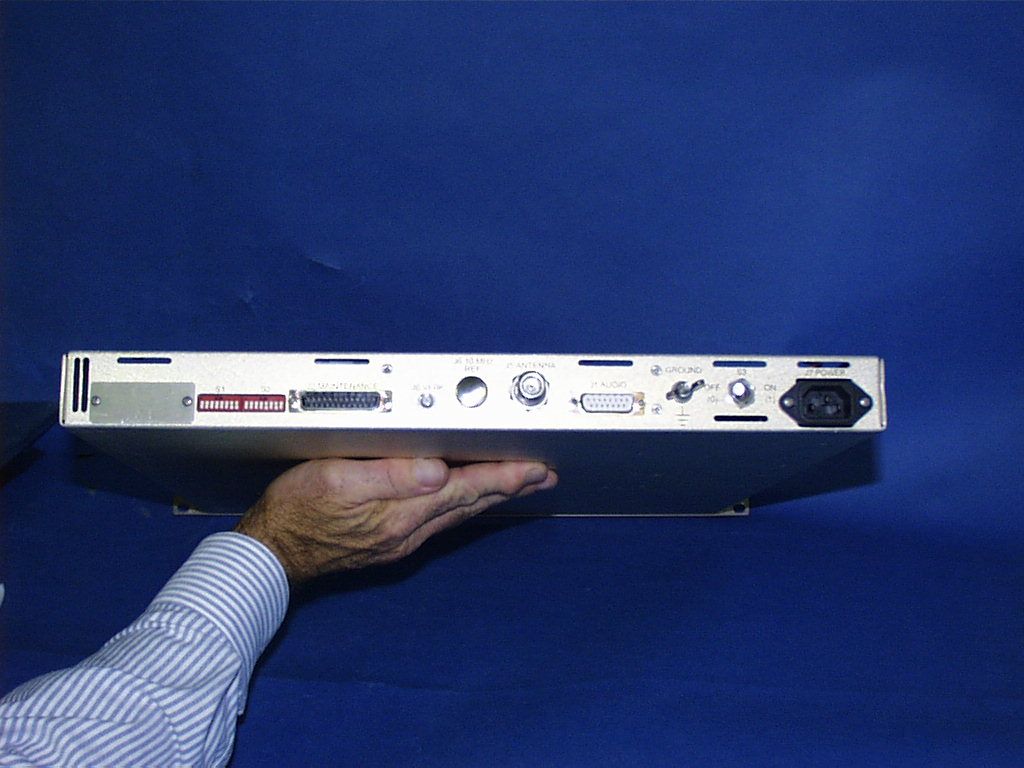

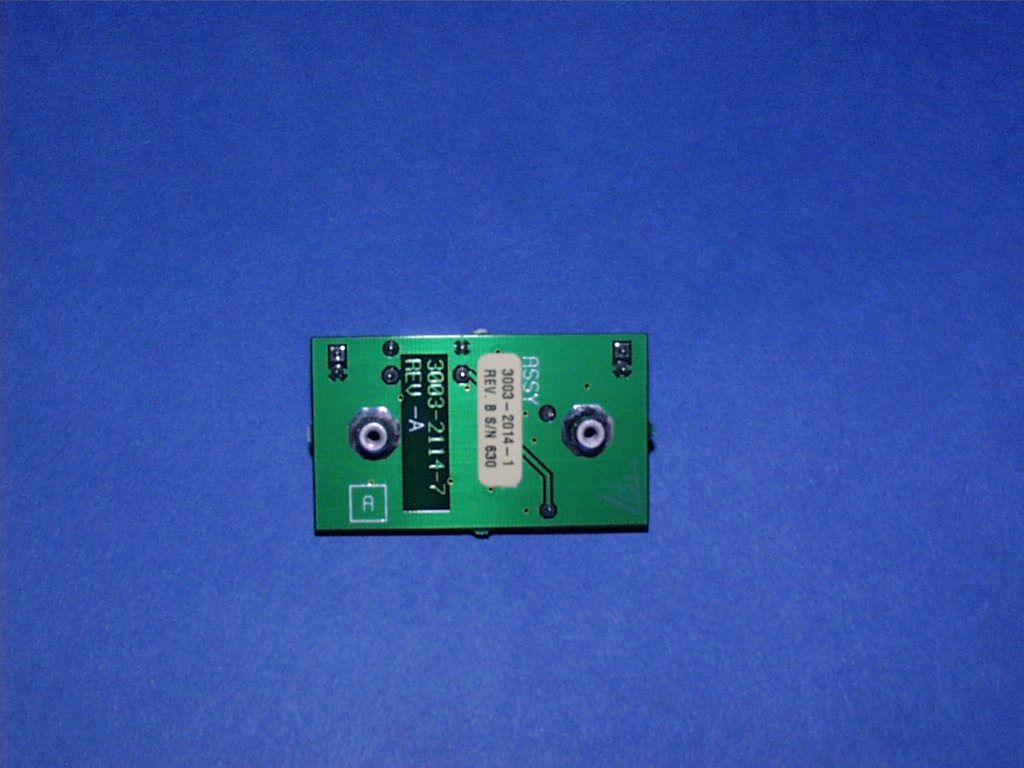

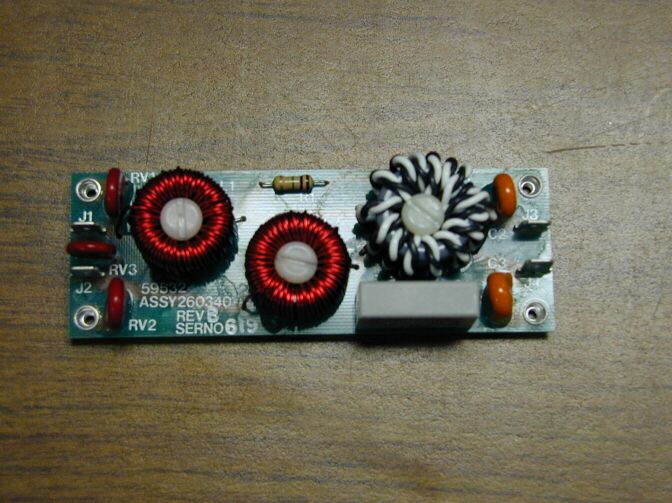

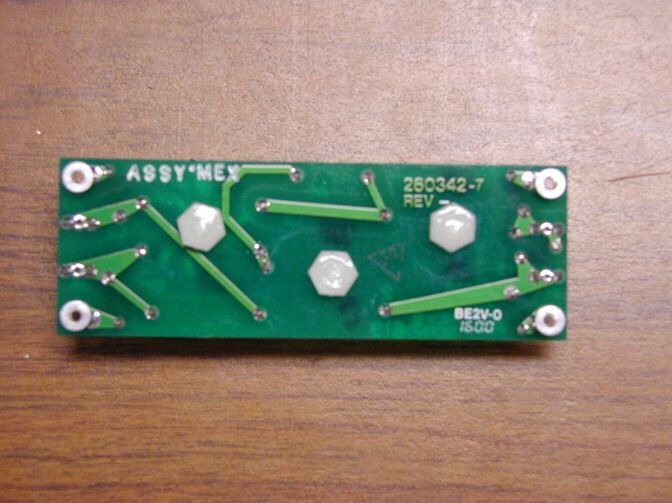

FINAL PARENT PARNT_DESREV PT_USE SEQN COMPONENTCOMP_DESCQUANTITY COMP_UM 260340-2 PWA,AC LIB DWGPL 001 D260340 PWA,AC LI0EA 260340-2 PWA,AC LIB DWGPL 002 D260341 SCHEMATIC0EA 260340-2 PWA,AC LIB DWGPL 003 D260420 TEST PROC0EA 260340-2 PWA,AC LIB DWGPL 004 PL260340 PWA,AC LI0EA 260340-2 PWA,AC LIB KITPL 001 260340-2XPWA,AC LI1EA 260340-2XPWA,AC LIB DWGPL 001 D260340 PWA,AC LI0EA 260340-2XPWA,AC LIB DWGPL 002 PL260340 PWA,AC LI0EA 260340-2XPWA,AC LIB KITPL 002 260342-7 PWB,AC LI1EA 260340-2XPWA,AC LIB KITPL 006 779-003 ADHESIVE, 0 EA 260340-2XPWA,AC LIB KITPL 008 475-132 DIODE,VAR3EA 260340-2XPWA,AC LIB KITPL 011 027-240 IND,TOROI2EA 260340-2XPWA,AC LIB KITPL 014 027-241 IND,DUAL, 1 EA 260340-2XPWA,AC LIB KITPL 017 046-105 RES,CARBO1EA 260340-2XPWA,AC LIB KITPL 020 090-011 CAP,POLYE1EA 260340-2XPWA,AC LIB KITPL 023 072-109 CAP,FIXED2EA 260340-2XPWA,AC LIB KITPL 026 146-067 TERMINAL, 4 EA 260340-2XPWA,AC LIB KITPL 029 458-187 STANDOFF, 4 EA 260340-2XPWA,AC LIB KITPL 032 455-216 SCREW,NYL 3 EA 260340-2XPWA,AC LIB KITPL 035 455-140 NUT,NYLON3EA 3003-2003PWA,DIGITU DWGPL 001 D3003-200PWA,DIGIT0EA 3003-2003PWA,DIGITU DWGPL 002 PL3003-20PWA,DIGIT0EA 3003-2003PWA,DIGITU DWGPL 003 D3003-240SCHEMATIC0EA 3003-2003PWA,DIGITU DWGPL 004 CP3003-32UPLOADABL 0 EA 3003-2003PWA,DIGITU DWGPL 005 D3003-280TEST PROC0EA 3003-2003PWA,DIGITU DWGPL 006 CP3003-32UPLOAD,FL 0 EA 3003-2003PWA,DIGITU KITPL 002 3003-2003PWA,DIGIT1EA 3003-2003PWA,DIGITU KITPL 100 073-136 CAP,ELECT2EA 3003-2003PWA,DIGITU KITPL 104 081-103 CAP,SEMI-1EA 3003-2003PWA,DIGITU KITPL 140 152-023 TRANSDUCE1EA 3003-2003PWA,DIGITU KITPL 145 172-137 SWITCH,DI2EA 3003-2003PWA,DIGITU KITPL 158 263-629 SHOULDER 1 EA 3003-2003PWA,DIGITU KITPL 159 311-036 INSULATOR1EA 3003-2003PWA,DIGITU KITPL 170 344-219 CONN, HEA 1 EA 3003-2003PWA,DIGITU KITPL 190 458-104 STANDOFF, 1 EA 3003-2003PWA,DIGITU KITPL 192 458-290 STANDOFF, 10 EA 3003-2003PWA,DIGITU KITPL 256 501-084 IC,VOLT R1EA 3003-2003PWA,DIGITU KITPL 258 672-040 WIRE,ELE 0 IN 3003-2003PWA,DIGITU KITPL 300 672-069 WIRE,ELEC0IN 3003-2003PWA,DIGITU KITPL 336 779-003 ADHESIVE, 0 EA 3003-2003PWA,DIGITU KITPL 338 784-007 SOLDER,WI0EA 3003-2003PWA,DIGITU DWGPL 001 D3003-200PWA,DIGIT0EA 3003-2003PWA,DIGITU KITPL 003 3003-2103PWB,DIGIT1EA 3003-2003PWA,DIGITU KITPL 004 3003-3020IC PGMD F1EA 3003-2003PWA,DIGITU KITPL 006 506-128 IC,XILINX1EA 3003-2003PWA,DIGITU KITPL 007 3003-3005IC,PGMD X1EA 3003-2003PWA,DIGITU KITPL 009 3003-3008IC,PGMD D1EA 3003-2003PWA,DIGITU KITPL 010 011-075 IND,CHIP 1 EA 3003-2003PWA,DIGITU KITPL 012 012-533 IND,COIL 1 EA Page 1 FINAL 3003-2003PWA,DIGITU KITPL 020 027-202 IND,FERRI2EA 3003-2003PWA,DIGITU KITPL 021 027-207 IND,FERRI6EA 3003-2003PWA,DIGITU KITPL 022 027-233 IND,FERRI35 EA 3003-2003PWA,DIGITU KITPL 028 041-011 RES,CHIP, 1 EA 3003-2003PWA,DIGITU KITPL 029 046-151 RES,CARBO1EA 3003-2003PWA,DIGITU KITPL 030 050-016 RES,NETWO3EA 3003-2003PWA,DIGITU KITPL 032 056-229 RES,FILM 2 EA 3003-2003PWA,DIGITU KITPL 040 062-004 RES,CHIP 1 EA 3003-2003PWA,DIGITU KITPL 049 066-000 RES,FILM 2 EA 3003-2003PWA,DIGITU KITPL 050 066-100 RES,FILM 1 EA 3003-2003PWA,DIGITU KITPL 052 066-101 RES,FILM 13 EA 3003-2003PWA,DIGITU KITPL 054 066-102 RES,FILM 14 EA 3003-2003PWA,DIGITU KITPL 056 066-103 RES,FILM 26 EA 3003-2003PWA,DIGITU KITPL 058 066-104 RES,FILM 2 EA 3003-2003PWA,DIGITU KITPL 060 066-153 RES,FILM 1 EA 3003-2003PWA,DIGITU KITPL 061 066-203 RES,FILM 1 EA 3003-2003PWA,DIGITU KITPL 062 066-221 RES,FILM 2 EA 3003-2003PWA,DIGITU KITPL 063 066-222 RES,FILM 2 EA 3003-2003PWA,DIGITU KITPL 064 066-273 RES,FILM 1 EA 3003-2003PWA,DIGITU KITPL 066 066-330 RES,FILM 2 EA 3003-2003PWA,DIGITU KITPL 067 066-432 RES,FILM 2 EA 3003-2003PWA,DIGITU KITPL 068 066-471 RES,FILM 1 EA 3003-2003PWA,DIGITU KITPL 070 066-472 RES,FILM 5 EA 3003-2003PWA,DIGITU KITPL 072 066-510 RES,FILM 1 EA 3003-2003PWA,DIGITU KITPL 074 066-682 RES,FILM 1 EA 3003-2003PWA,DIGITU KITPL 075 066-822 RES,FILM 1 EA 3003-2003PWA,DIGITU KITPL 080 069-044 CAP,TANTA 6 EA 3003-2003PWA,DIGITU KITPL 082 069-045 CAP,TANTA 8 EA 3003-2003PWA,DIGITU KITPL 084 069-046 CAP,TANTA 1 EA 3003-2003PWA,DIGITU KITPL 090 069-200 CAP,TANTA 2 EA 3003-2003PWA,DIGITU KITPL 092 069-204 CAP,TANTA 3 EA 3003-2003PWA,DIGITU KITPL 110 097-102 CAP,CER S9EA 3003-2003PWA,DIGITU KITPL 112 097-182 CAP,CER S1EA 3003-2003PWA,DIGITU KITPL 120 098-104 CAP,CER S138 EA 3003-2003PWA,DIGITU KITPL 121 REF DESIGCONTINUAT0EA 3003-2003PWA,DIGITU KITPL 122 REF DESIGCONTINUAT0EA 3003-2003PWA,DIGITU KITPL 130 146-160 TEST POIN39 EA 3003-2003PWA,DIGITU KITPL 160 321-062 CONN,RF O2EA 3003-2003PWA,DIGITU KITPL 168 322-080 CONN, HEA 1 EA 3003-2003PWA,DIGITU KITPL 169 322-170 CONN, HEA 2 EA 3003-2003PWA,DIGITU KITPL 172 322-204 CONN, HEA 1 EA 3003-2003PWA,DIGITU KITPL 174 322-077 CONN, HEA 2 EA 3003-2003PWA,DIGITU KITPL 176 341-091 SOCKET,201EA 3003-2003PWA,DIGITU KITPL 200 475-192 DIODE,SCH1EA 3003-2003PWA,DIGITU KITPL 206 475-241 DIODE,REC1EA 3003-2003PWA,DIGITU KITPL 208 475-299 DIODE,LED9EA 3003-2003PWA,DIGITU KITPL 209 476-183 TRANSISTO1EA 3003-2003PWA,DIGITU KITPL 210 476-186 TRANSISTO1EA 3003-2003PWA,DIGITU KITPL 224 476-260 TRANSISTO1EA Page 2 FINAL 3003-2003PWA,DIGITU KITPL 230 477-489 IC,OP AMP1EA 3003-2003PWA,DIGITU KITPL 236 477-534 IC,OCTAL 1 EA 3003-2003PWA,DIGITU KITPL 240 477-603 IC,OPTO-I1EA 3003-2003PWA,DIGITU KITPL 245 485-056 OSC,50MHZ1EA 3003-2003PWA,DIGITU KITPL 246 501-086 IC,500MA-1EA 3003-2003PWA,DIGITU KITPL 248 502-066 IC,AMP,DI1EA 3003-2003PWA,DIGITU KITPL 260 504-015 IC,RS-2321EA 3003-2003PWA,DIGITU KITPL 264 504-055 IC,RS-4851EA 3003-2003PWA,DIGITU KITPL 269 505-042 IC,24 BIT2EA 3003-2003PWA,DIGITU KITPL 270 506-019 IC,HEX IN1EA 3003-2003PWA,DIGITU KITPL 271 505-043 IC,14 BIT1EA 3003-2003PWA,DIGITU KITPL 272 506-020 IC,HEX SC1EA 3003-2003PWA,DIGITU KITPL 273 506-035 IC,OCTAL 3 EA 3003-2003PWA,DIGITU KITPL 274 506-069 IC,16 BIT1EA 3003-2003PWA,DIGITU KITPL 284 506-123 IC,386 EM1EA 3003-2003PWA,DIGITU KITPL 286 506-132 IC,XILINI1EA 3003-2003PWA,DIGITU KITPL 289 506-126 IC,…

Text truncated - open the document above for the full version.

Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 1 Rev.No 1.0 MEASUREMENT AND TECHNICAL REPORT CUBIC COMMUNICATIONS 9535 Waples Street San Diego, CA 92121 DATE: 18 September 2000 This Report Concerns:Original Grant: XClass II Change: Equipment Type:MTC-100T/MCPA Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes: Defer until: No: X Company Name agrees to notify the Commission by:N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes:*No: (*) FCC Part 2, Paragraphs, 2.1046; 2.1047(a); 2.1049; 2.1051; 2.1053; 2.1055; Part 80, Paragraphs 80.205; 80.209(a); 80.211; 80.213(e); 80.215(c)(1) Report Prepared by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 619 546 3999 Fax: 619 546 0364 Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 2 Rev.No 1.0 TABLE OF CONTENTS Pages 1 GENERAL INFORMATION4 1.1Product Description4 1.2Related Submittal Grant6 1.3Tested System Details6 1.4Test Methodology7 1.5Test Facility8 1.6Part 2 Requirements9 2 SYSTEM TEST CONFIGURATION14 2.1Justification14 2.2EUT Exercise Software14 2.3Special Accessories14 2.4Equipment Modifications14 2.5Configuration of Tested System14 3RADIATED EMISSION EQUIPMENT/DATA17 Field Strength Calculation 4 CONDUCTED EMISSION EQUIPMENT/DATA 5 FREQUENCY STABILITY EQUIPMENT/DATA 7Signature page Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 3 Rev.No 1.0 1 GENERAL INFORMATION 1.1Product Description Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 6 Rev.No 1.0 1 GENERAL INFORMATION (continued) 1.2Related Submittal/Grant None 1.3Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system are: None 1.4Test Methodology Purpose of Test:To demonstrate compliance with the ANSI C63.4 setup. Test Performed:X1. Conducted Emissions, FCC Part 2, Paragraphs 2.1046; 2.1047(a); 2.1049; 2.1051 and Part 80, Paragraph 80.215; 80.213(e); 80.205; 80.211; 80.209(a) 2. Radiated Emissions EN55022: 1992 Class B limit, 30 - 1,000 MHz, 10 meters X3. Radiated Emission per FCC Part 2, Paragraph 2.1053 4. Engineering evaluations X5. Frequency Stability, Part 2, Paragraph 2.1053 and Part 80, Paragraph 80.209(a) Both Conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8 - M1983. Radiated testing was performed at an antenna-to-EUT distance of 3 meters (1 - 10 GHz). 1.5Test Facility The open area test site and conducted measurement data were tested by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 619 546 3999 Fax: 619 546 0364 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 7 Rev.No 1.0 1.6 Part 2 Requirements DC Voltages / DC Currents +9.5 V ± 0.5 V / 4 amps maximum +17.5 V ± 0.5 V / 2 amps maximum -17.5 V ± 0.5 V / 1 amps maximum +28 V ± 0.4 V / 0.1 amps maximum Equipment Specifications Microprocessor model number: Intel386(TM) EX TMS320C31 (DSP) The full name and mailing address of the manufacturer of the device and the applicant for certification. Applicant for Certification Cubic Communications Inc. 9535 Waples Street San Diego CA 92121-2953 MTC-100T Manufacturer Cubic Communications Inc. 9535 Waples Street San Diego CA 92121-2953 MCPA Delta Sigma Inc. 7209 Arlington Ave. Unit G Riverside, CA 92503 System Integrator Harris Corporation 1000 Perimeter Road Bldg 21A Palm Bay, FL 32905 Equipment does not employ digital modulation techniques. Equipment is not an AM broadcast sterophonic exciter-generator intended for interfacing with existing certified, or formerly type accepted or notified transmitters. Type of Emission: 13K9F3E. Frequency Range: 156-162 MHz Range of operating power values or specific operating power levels: N/A Maximum power rating 20 W. Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 8 Rev.No 1.0 2.SYSTEM TEST CONFIGURATION 2.1Justification The MTC-100T/MCPA was initially tested for FCC emission in the following configuration: See Block Diagram. 2.2EUT Exercise Software None 2.3Special Accessories None 2.4Modification None 2.5Configuration of Tested System See Block Diagram. Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 9 Rev.No 1.0 3RADIATED EMISSION EQUIPMENT/DATA The following data lists the significant emission frequencies, measured levels, correction factor (which includes cable and antenna corrections), the corrected reading, and the limit. See following page(s). See test setup photos for radiated emissions test setup. Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 14 Rev.No 1.0 Emissions Test Conditions: RADIATED EMISSIONS, FCC Part 2, Paragraph 2.1053 The RADIATED EMISSIONS measurements were performed at the following test location : o - Test not applicable n - Canyon #1 (10- and 30-Meter Open Area Test Site), Carroll Canyon, San Diego (Calibration Due Date: 03 September 2003) Testing was performed at a test distance of: o - 1 meters n - 3 meters o - 10 meters Test Equipment Used : Model No.Prop. No.DescriptionManufacturerSerial No.Cal Due Date 8566B407Spectrum AnalyzerHewlett Packard2311A0220910/00 85662B406Spectrum Analyzer DisplayHewlett Packard2309A0468210/00 3115453Antenna, Double Ridge GuideEMCO9412-436310/00 AMF-3D-010180-35-10P752752Pre-Amplifier (20 dB gain), 1 to 18 GHz Miteq, Inc.614344* LPB 2520/A738Antenna, LPBAntenna Research116905/01 ESVS 30466ReceiverRohde & Schwarz833825/00312/00 Remarks:(*) Verified internally Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 15 Rev.No 1.0 Field Strength Calculation If a preamplifier was used during the Radiated Emission Testing, it is required that the amplifier gain must be subtracted from the Spectrum Analyzer (Meter…

Text truncated - open the document above for the full version.

Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 1 Rev.No 1.0 MEASUREMENT AND TECHNICAL REPORT CUBIC COMMUNICATIONS 9535 Waples Street San Diego, CA 92121 DATE: 18 September 2000 This Report Concerns:Original Grant: XClass II Change: Equipment Type:MTC-100T/MCPA Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes: Defer until: No: X Company Name agrees to notify the Commission by:N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes:*No: (*) FCC Part 2, Paragraphs, 2.1046; 2.1047(a); 2.1049; 2.1051; 2.1053; 2.1055; Part 80, Paragraphs 80.205; 80.209(a); 80.211; 80.213(e); 80.215(c)(1) Report Prepared by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 619 546 3999 Fax: 619 546 0364 Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 2 Rev.No 1.0 TABLE OF CONTENTS Pages 1 GENERAL INFORMATION3 1.1Product Description3 1.2Related Submittal Grant6 1.3Tested System Details6 1.4Test Methodology6 1.5Test Facility6 1.6Part 2 Requirements7 2 SYSTEM TEST CONFIGURATION8 2.1Justification8 2.2EUT Exercise Software8 2.3Special Accessories8 2.4Equipment Modifications8 2.5Configuration of Tested System8 3RADIATED EMISSION EQUIPMENT/DATA9 Field Strength Calculation15 4 CONDUCTED EMISSION EQUIPMENT/DATA16 5 FREQUENCY STABILITY EQUIPMENT/DATA30 7Signature page37 Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 3 Rev.No 1.0 1 GENERAL INFORMATION 1.1Product Description Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 6 Rev.No 1.0 1 GENERAL INFORMATION (continued) 1.2Related Submittal/Grant None 1.3Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system are: None 1.4Test Methodology Purpose of Test:To demonstrate compliance with the ANSI C63.4 setup. Test Performed:X1. Conducted Emissions, FCC Part 2, Paragraphs 2.1046; 2.1047(a); 2.1049; 2.1051 and Part 80, Paragraph 80.215; 80.213(e); 80.205; 80.211; 80.209(a) 2. Radiated Emissions EN55022: 1992 Class B limit, 30 - 1,000 MHz, 10 meters X3. Radiated Emission per FCC Part 2, Paragraph 2.1053 4. Engineering evaluations X5. Frequency Stability, Part 2, Paragraph 2.1053 and Part 80, Paragraph 80.209(a) Both Conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8 - M1983. Radiated testing was performed at an antenna-to-EUT distance of 3 meters (1 - 10 GHz). 1.5Test Facility The open area test site and conducted measurement data were tested by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 619 546 3999 Fax: 619 546 0364 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 7 Rev.No 1.0 1.6 Part 2 Requirements DC Voltages / DC Currents +9.5 V ± 0.5 V / 4 amps maximum +17.5 V ± 0.5 V / 2 amps maximum -17.5 V ± 0.5 V / 1 amps maximum +28 V ± 0.4 V / 0.1 amps maximum Equipment Specifications Microprocessor model number: Intel386(TM) EX TMS320C31 (DSP) The full name and mailing address of the manufacturer of the device and the applicant for certification. Applicant for Certification Cubic Communications Inc. 9535 Waples Street San Diego CA 92121-2953 MTC-100T Manufacturer Cubic Communications Inc. 9535 Waples Street San Diego CA 92121-2953 MCPA Delta Sigma Inc. 7209 Arlington Ave. Unit G Riverside, CA 92503 System Integrator Harris Corporation 1000 Perimeter Road Bldg 21A Palm Bay, FL 32905 Equipment does not employ digital modulation techniques. Equipment is not an AM broadcast sterophonic exciter-generator intended for interfacing with existing certified, or formerly type accepted or notified transmitters. Type of Emission: 13K9F3E. Frequency Range: 156-162 MHz Range of operating power values or specific operating power levels: N/A Maximum power rating 20 W. Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 8 Rev.No 1.0 2.SYSTEM TEST CONFIGURATION 2.1Justification The MTC-100T/MCPA was initially tested for FCC emission in the following configuration: See Block Diagram. 2.2EUT Exercise Software None 2.3Special Accessories None 2.4Modification None 2.5Configuration of Tested System See Block Diagram. Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 9 Rev.No 1.0 3RADIATED EMISSION EQUIPMENT/DATA The following data lists the significant emission frequencies, measured levels, correction factor (which includes cable and antenna corrections), the corrected reading, and the limit. See following page(s). See test setup photos for radiated emissions test setup. Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 14 Rev.No 1.0 Emissions Test Conditions: RADIATED EMISSIONS, FCC Part 2, Paragraph 2.1053 The RADIATED EMISSIONS measurements were performed at the following test location : o - Test not applicable n - Canyon #1 (10- and 30-Meter Open Area Test Site), Carroll Canyon, San Diego (Calibration Due Date: 03 September 2003) Testing was performed at a test distance of: o - 1 meters n - 3 meters o - 10 meters Test Equipment Used : Model No.Prop. No.DescriptionManufacturerSerial No.Cal Due Date 8566B407Spectrum AnalyzerHewlett Packard2311A0220910/00 85662B406Spectrum Analyzer DisplayHewlett Packard2309A0468210/00 3115453Antenna, Double Ridge GuideEMCO9412-436310/00 AMF-3D-010180-35-10P752752Pre-Amplifier (20 dB gain), 1 to 18 GHz Miteq, Inc.614344* LPB 2520/A738Antenna, LPBAntenna Research116905/01 ESVS 30466ReceiverRohde & Schwarz833825/00312/00 Remarks:(*) Verified internally Report No. 0337-08 (FCC ID: NVSMTC-100T MCPA) Page 15 Rev.No 1.0 Field Strength Calculation If a preamplifier was used during the Radiated Emission Testing, it is required that the amplifier gain must be subtracted from the Spectrum Analyzer (Mete…

Text truncated - open the document above for the full version.

From: Clive Winkler <[email protected]>, on 10/23/00 6:25 PM: To: smtp@DAN7@Servers[<[email protected]>],Mary Washington@EMC@PSSDG To Tim Ganea & Mary Washington, I have examined Annex J entitled "Guidance for Determination of Necessary Bandwidth". I note the highest Order of Preference in determining the necessary bandwidth is item 1 in the General paragraph 2.1. For FM voice, they generally follow Carson's Rule. The particular formula is spelled out for this case in Table A.III.2. CALCULATION Following the formula for FM telephony from Table A (formula III.2) for our case where the deviation is 5kHz, then D=5000, M=3000 (for average voice) and this gives Bn=16000Hz. This leads to the emission designator of 16K00F3E. COMMENTS I note that the measurement undertaken by TUV at the -20dB points gives a slightly higher bandwidth for the 1kHz test tone than 12kHz (Carson's Rule for the test tone). They measure 13.9kHz. This is partly due to the resolution bandwidth of the spectrum analyser (300Hz) which contributes approximately 900Hz at the -20dB points, and partly due to the difference between the bandwidths at -20dB (TUV's measurement point) and -3dB (theoretical using Carson's rule). This total error is then 1.9kHz. We choose to follow para 2.1 section 1 and use the preferred theoretical formula. Can you please amend the certificate and forward to Tim Ganea at CCI? Dr Clive Winkler VP Advanced Development CUBIC Communications Inc An ISO-9001 Certified Company

Oscillator Voltmeter Output Modulation Analyzer Input Load EUT Audio Input RF Output SG-100/A 5 2 4 1 3 1. Synthesized Function Arb Generator, Tektronix, Model SG-100/A, P/N CC000167 Cal Date: 4/27/00 Cal Due: 4/27/01 2. True RMS Voltmeter, Fluke, Model 8920A, S/N 3170038 Cal Date: 1/4/00 Cal Due 1/27/01 3. NCR Tenuline Coaxial Attenuator (30 dB), Bird Electronic Corp., Model 8329-300, S/N 4381 4. Modulation Analyzer, Hewlett Packard, Model 8901A, S/N 2705A04768 Cal Date: 12/23/99 Cal Due: 12/23/00 5. Oscilloscope, Tektronix, Model 465B, S/N TE6177 Cal Date: 6/12/00 Cal Due: 6/12/01

Modulation Limiting Neg/Pos Peaks @156MHz 0.001.002.003.004.005.006.00 16 10 0 -10 -20 -30 -40 Audio Level (dB) FM Deviation (KHz) 300 Hz Pos. Pk300 Hz Neg. Pk1KHz Pos. Pk1KHz Neg. Pk2.5KHz Pos. Pk2.5KHz Neg. Pk3KHz Pos. Pk3KHz Neg. Pk

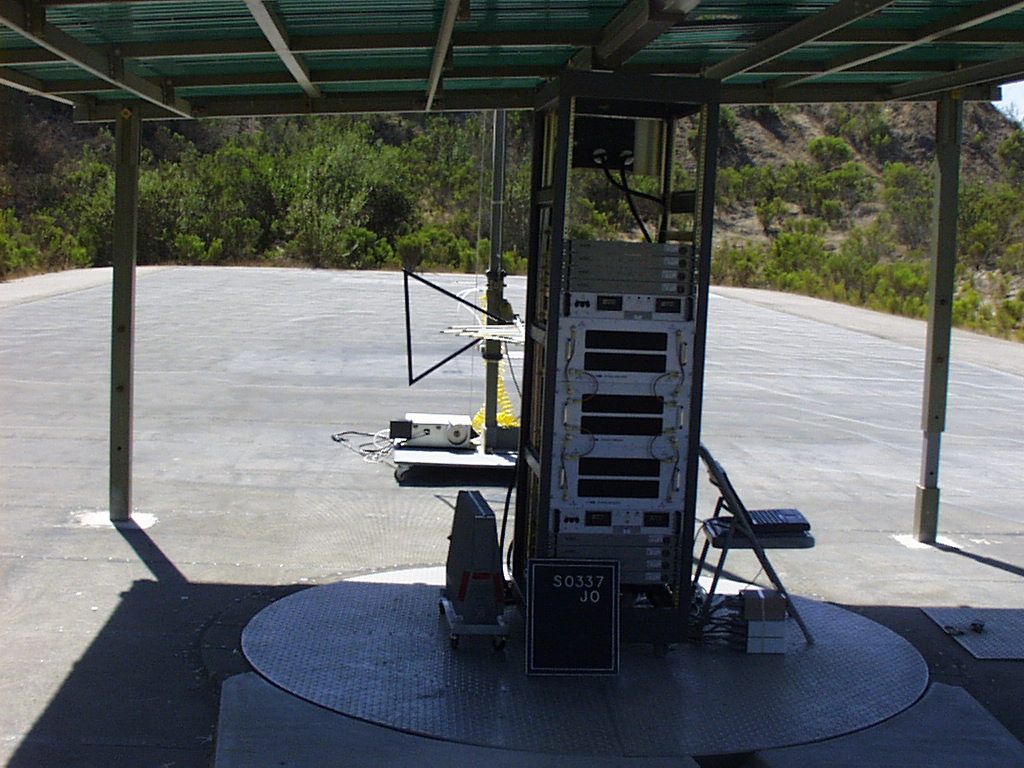

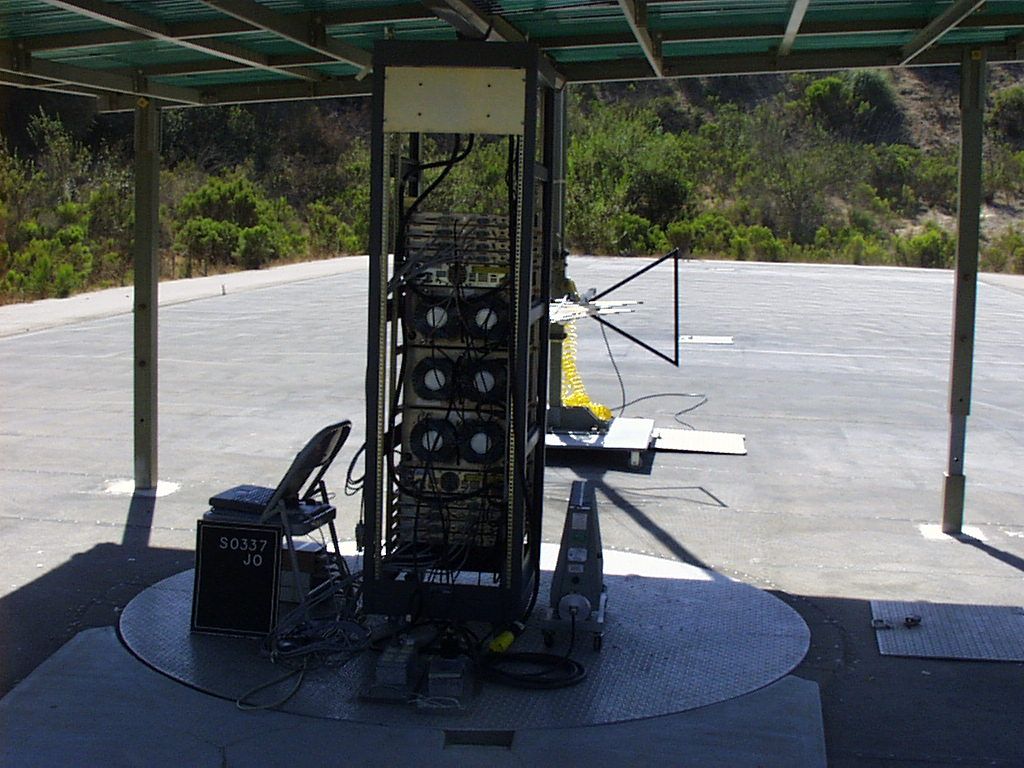

Filter RF Output RF Input EUT S/N Signal Generator Isolato r Signal Generator Isolato r Combin er Load Reflected Directional Test Coupler Port Attenuato r Power Sensor Power Meter Attenuator Spectrum Analyzer Load 100 W Configuration Part 2, Paragraph 2.989 and 2.991 and Intermodulation Conducted Emissions Test Setup 2.1046, 2.1049, 2.1051 ATTR (customer supplied) Spectrum Analyzer EUT HPF added as needed. Test Setup for 2.1047(a) and 80.213(e) Swept input frequency from 300 Hz to 5 kHz increments of 100 Hz. EUT J Audio RF Out Coaxial Attenuator 21.5 MHz Synthesized Function/Arb Generator SIG out Dynamic Signal Analyzer Input Modulation Analyzer Output Input AttenuatorAttenuator EUT Frequency Stability 2.1055 and 80.209(a) Mid Channel 159 MHz AC Multimeter Coaxial Attenuator AttenuatorAttenuator Frequency Counter
