NWKHF10008LED RF Remote Control

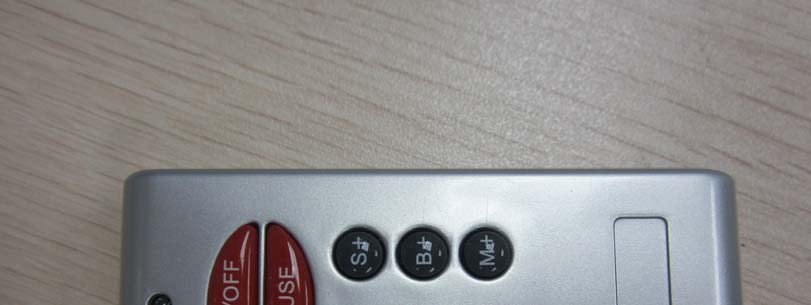

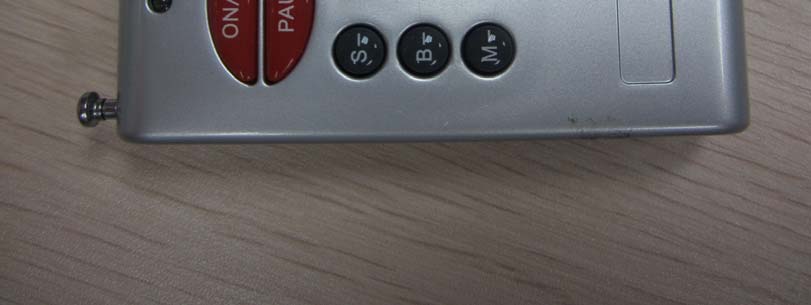

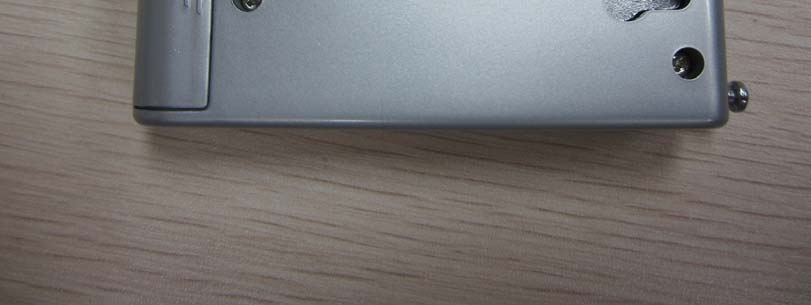

User manual This device is a 8 key wireless remoter, use PT2264 IC, and have 6561 types of code, main used for control LED light 一、Specification: Operation voltage：DC12V/23mA Working frequency：433.92Mhz Standby current：0mA Working current：27mA Code：PT2264 Transmission distance：>800m(open site and sensetive: -103dbm) Output watt：<-10dBm Transmite speed：<10Kbps Modulate：OOK（amplitude modulation ） Operation temperature：-10°C- +70°C Size：85*37*16mm Key quantity：eight key 二、Picture 三、FCC statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

ZHENGJI LIGHTING&ELECTRONICS TECHNOLOGY CO., LTD. PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 5/9/2012 Authority to Act as an Agent We declare that the following representative (agent) Name Jamy Yu Position Assistant Director Company Name Dongguan Dongdian Testing Service Co., Ltd. Address No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China 523808 Tel / Fax 0769-22891499-8609 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name LED RF remote control Model Name HF1000-8 Brand Name N/A We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name Dick Zhang Position Manager Company Name ZHENGJI LIGHTING&ELECTRONICS TECHNOLOGY CO., LTD. Address 3F, B Building, Second Laowei Industrial Area, Dalang Street, Longhua Bao’an District , Shenzhen , Guangdong , China Tel / Fax 0755-26627654 / 0755-26627652 In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-F12025 Page 22 of 23 7. Photos of the EUT

Label Location LED RF remote control M/N: HF1000-8 FCC ID: NWKHF10008 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-F12025 Page 22 of 23 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-F12025 Page 23 of 23 END OF REPORT

FCC CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel: +86-0769-22891499 Report No: DDT-F12025 Issued Date: 2012/05/08 Applicant : ZHENGJI LIGHTING&ELECTRONICS TECHNOLOGY CO.,LTD Address : 3F, B Building, Second Laowei Industrial Area, Dalang Street, Longhua Baoan District , Shenzhen , Guangdong , China Equipment under Test : LED RF remote control Model No : HF1000-8 FCC ID : NWKHF10008 Manufacturer : ZHENGJI LIGHTING&ELECTRONICS TECHNOLOGY CO.,LTD Address : 3F, B Building, Second Laowei Industrial Area, Dalang Street, Longhua Baoan District , Shenzhen , Guangdong , China Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-F12025 Page 2 of 24 TABLE OF CONTENTS Test report declares..........................................................................................................3 1. Summary of test results ............................................................................................................... 4 2. General test information .............................................................................................................. 5 2.1. Description of EUT ..................................................................................................................... 5 2.2. Accessories of EUT..................................................................................................................... 5 2.3. Assistant equipment used for test ................................................................................................ 5 2.4. Block diagram of EUT configuration for test ............................................................................. 5 2.5. Test environment conditions ....................................................................................................... 5 2.6. Test laboratory............................................................................................................................. 6 2.7. Measurement uncertainty ............................................................................................................ 6 3. Radiated emission ....................................................................................................................... 7 3.1. Test equipment ............................................................................................................................ 7 3.2. Block diagram of test setup ......................................................................................................... 7 3.3. Limit ............................................................................................................................................ 8 3.4. Test Procedure............................................................................................................................. 9 3.5. Test result .................................................................................................................................. 10 4. stop transmitting time test ......................................................................................................... 17 4.1. Test equipment .......................................................................................................................... 17 4.2. Block diagram of test setup ....................................................................................................... 17 4.3. Limits ........................................................................................................................................ 17 4.4. Test Procedure........................................................................................................................... 17 4.5. Test result .................................................................................................................................. 17 5. 20dB Bandwidth........................................................................................................................ 19 5.1. Test equipment .......................................................................................................................... 19 5.2. Block diagram of test setup ....................................................................................................... 19 5.3. Limits ........................................................................................................................................ 19 5.4. Test Procedure........................................................................................................................... 19 5.5. Test result .................................................................................................................................. 19 6. Test setup photograph ............................................................................................................... 21 7. Photos of the EUT ..................................................................................................................... 22 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-F12025 Page 4 of 24 1. Summary of test results EMISSION Description of Test Item Standard Results Conducted Emission Test FCC Part 15C: 15.207 ANSI C63.10: 2009 N/A Radiated Emission Test FCC Part 15C: 15.231 (b) ANSI C63.10: 2009 PASS Stop Transmitting Time Test FCC Part 15C: 15.231(a)(1) PASS 20 dB Bandwidth Test FCC Part 15C: 15.231(c) PASS N/A is an abbreviation for Not Applicable. Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-F12025 Page 5 of 24 2. General test information 2.1. Description of EUT Note: EUT is the ab. of equipment under test. 2.2. Accessories of EUT Description of Accessories Manufacturer Model number or Type Other / / / / 2.3. Assistant equipment used for test Description of Assistant equipment Manufacturer Model number or Type Other / / / / 2.4. Block diagram o…
