NWY-10KPet Containment System - 10 kHz Transmitter

1 Petronix Pet Patrol   Indoor and/or Outdoor Full Featured Pet Containment System Preliminary Users Manual DRAFT COPY TABLE OF CONTENTSPAGE NUMBER INTRODUCTION2 ILLUSTRATED LIST OF PARTS INCLUDED2 PRINCIPLE OF OPERATION Control Console2 Indoor Zone Control4 Outdoor Zone Control4 Correction Collar5 HOW IT WORKS5 INSTALLING THE SYSTEM System Setup6 Installing Indoor Zones Installing Outdoor Zones Installing the System Console Installing the Correction Collar CONFIRMING CORRECT SYSTEM SETUP TROUBLESHOOTING THE SYSTEM Correcting Weak Signal Radio Areas Collar Battery Replacement Console Clock Battery Replacement Finding and Fixing Outdoor Wire Breaks CONTACTING PETRONIX Obtaining Technical Assistance Purchasing Additional System Components 2 INTRODUCTION Congratulations on your decision to manage your pesky family pets with the best pet containment system available today. Control of the roaming behavior of your household pets is a challenging goal that can also be exasperating. The Pet Patrol system is the first pet containment system on the market to provide both indoor and outdoor control for both dogs and cats. Pet Patrol also has many previously unavailable features, such as; programmability of up to twelve independent zones, outdoor out-of-bounds detection (free return in bounds, without correction), individual management of up to four pets, central control console to monitor and program functions, wireless network interconnections for ease of installation and use, attractive and comfortable styling, and many more. LIST OF PARTS INCLUDED ITEMQuantity Central control and system information console1 Indoor zone controller1 Outdoor zone controller1 Wall plug-in AC adapter power supply3 Pet correction collar electronics module with self-adjusting probes1 Pet correction collar battery1 Pet correction collar ‘Snap Lock’ ‘Comfort Fit’ segment kit1 (8-numbered ‘Snap Lock’ segments, 2-each numbered 1 – 4) (22-plain ‘Snap Lock’ segments fits necks 6” – 28”) (1-male ‘Snap Lock’ collar closure segment) (1-female ‘Snap Lock collar closure segment) Outdoor boundary wire (500 foot spool)1 Set of training flags1 Installation/Training video1 Users manual1 3 PRINCIPLE OF OPERATION Control Console The control console is the nerve center of your state-of-the-art pet containment system. All system configuration information is stored in this unit, and when necessary, individual component data is transmitted to the respective zone control or collar. The console contains a battery operated real time clock to manage programmed time functions. Recent pet activity history is maintained in electronic memory as long as power is supplied. System setup configuration data is stored in permanent memory, and will survive a power outage. Power is provided to the control console by the AC adapter provided, plugged into a nearby household outlet. Communication to and from the zone controls and collars in your system is accomplished by 900MHz-radio networking. This is a background activity that continuously monitors the status of your installed system. When a new system is installed in your neighborhood, or when you add components to your own system, the radio network will intermesh your system functions automatically. Therefore, it is important to keep your console and zone controls powered at all times after installation. They use only a tiny amount of electrical power and should even remain on when you are on vacation. If not, you may come home from vacation and find on power-up, that your system will need to be completely re- configured. Re-configuration is automatic, but may take several minutes to complete and during re-configuration, your system is not available for use. The control console provides many programmable features to simplify your duties as the one responsible for the care and feeding of your most dependant family members, your pets. A four line by forty-character display is provided to assist you in the operation of the console. There are four function keys above the display for accessing pet functions for up to four pets. The four keys are also status lighted in three colors, (red, green, and orange) to communicate pet status at a glance. Warnings of undesirable conditions use a steady red, or a flashing red button if very serious. Less serious warnings use steady or flashing orange button. A steady green button indicates normal conditions. Non-lighted buttons indicates unused pet channels. The individual pet names are indicated under each button in the display. There are also five programming function keys below the display, to assist you with your setup and operational tasks. These keys will have multiple functions depending on the operation being performed. The varied functions are labeled in the display directly above each button as the display prompted task proceeds. Display prompting is employed to guide you through the various programming tasks, such as; setting the time and date, adding, editing or deleting a pet name, programming feeding time room access, etc. An internal beeper is also employed to provide audible feedback of keystrokes and system warnings. In addition to the keypad and display system, a serial port connector is located on the rear of the case to allow connection to a personal computer for simplified and expanded operations. The RS-232 connection to a personal computer allows the use of multiple Pet Patrol systems for the management of more than four pets in a single installation. Contact Petronix for the availability of the Windows Pet Patrol Control Center software and serial cable for your personal computer. 4 Indoor Zone Control The indoor zone control is used by the Pet Patrol system to manage the access of an individual pet to household areas. These areas could be individual rooms or certain items of furniture. The zone control is mounted on a wall near the floor next to a doorway to control access to a room. Mounting under a table or couch is employed to control ac…

Text truncated - open the document above for the full version.

TÜV MANAGEMENT SERVICEPhone: (651) 631 2487 TÜV PRODUCT SERVICE INC.Fax: (651) 638 0285 1775 Old Highway 8 NW, Suite 104email [email protected] New Brighton MN 55112-1891http:://www.tuvglobal.com Divisions of TÜV America Inc., a subsidiary of TÜV Süddeutschland and TÜV Nord Group TÜV PRODUCT SERVICE INC 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of Petronix Inc Indoor Zone Control/Outdoor Zone Control Pet Containment System – 10 kHz transmitter Model No: 5000/6000 I am an Electromagnetic Compatibility Engineer for TÜV PRODUCT SERVICE INC, Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. TÜV PRODUCT SERVICE INC has been authorized by David Paquette, President, of Petronix Inc, to make Certification measurements on the 5000/6000 Indoor Zone Control/Outdoor Zone Control Pet Containment System – 10kHz transmitter. These tests were made by me or under my supervision at our Wild River Laboratory which is on file with the FCC under Paragraph 2.948 of the FCC Rules. Test data required by the TCB is included in this report. It is submitted that the above equipment meets the FCC Part 15, Subpart C Requirements and Certification is hereby requested. Joel T. Schneider Chief Engineer Minnesota Wild River Lab TÜV Product Service [email protected] Dated: 20 February 2001

A A B B C C D D E E 44 33 22 11 Matching Jim Barry 916.5MHZ Transceiver 16MHZ Osc. John Titus Nov. 25, 2000 EEPROM 3.3VDC Reg 5VDC Reg 12VDC Unreg -------------PETRONIX, INCORPORATED------------- Antenna 16C558 Microprocessor Snubber FET DriverFET BridgeAntenna TXSW TXData RXData 10KHz Modulated FCC ID: NWY-916 FCC ID: NWY-10K A PETRONIX, INCORPORATED XX Sunday, May 06, 2001 66 B WESTBORO, MASSACHUSETTS Indoor Zone Control Block Diagram Title Size Rev Date:Sheetof Drwg No Material: Finish: Date of Origin: Appvd By: Drawn By: ALL INFORMATION, DRAWINGS AND IDEAS HEREIN, CONSTITUTE A CONFI- DENTIAL DISCLOSURE OF AND ARE ITS EXCLUSIVE PROPERTY, AND MUST NOT, WITHOUT WRITTEN AUTHORIZATION, BE DIVULGED, REPRODUCED, COPIED OR APPROPRIAT- ED IN WHOLE OR IN PART FOR ANY PURPOSE. A A B B C C D D E E 44 33 22 11 Nov. 25, 2000 FET Driver -------------PETRONIX, INCORPORATED------------- John Titus 16MHZ Osc. 12VDC Unreg 916.5MHZ Transceiver Antenna 10KHz Jim Barry FET Bridge 5VDC Reg RXData TXData 3.3VDC Reg TXSW EEPROM 16C558 Microprocessor Modulated AntennaMatching FCC ID: NWY-916 FCC ID: NWY-10K ALL INFORMATION, DRAWINGS AND IDEAS HEREIN, CONSTITUTE A CONFI- DENTIAL DISCLOSURE OF AND ARE ITS EXCLUSIVE PROPERTY, AND MUST NOT, WITHOUT WRITTEN AUTHORIZATION, BE DIVULGED, REPRODUCED, COPIED OR APPROPRIAT- ED IN WHOLE OR IN PART FOR ANY PURPOSE. A PETRONIX, INCORPORATED XX Sunday, May 06, 2001 66 B WESTBORO, MASSACHUSETTS Outdoor Zone Control Block Diagram Title Size Rev Date:Sheetof Drwg No Material: Finish: Date of Origin: Appvd By: Drawn By:

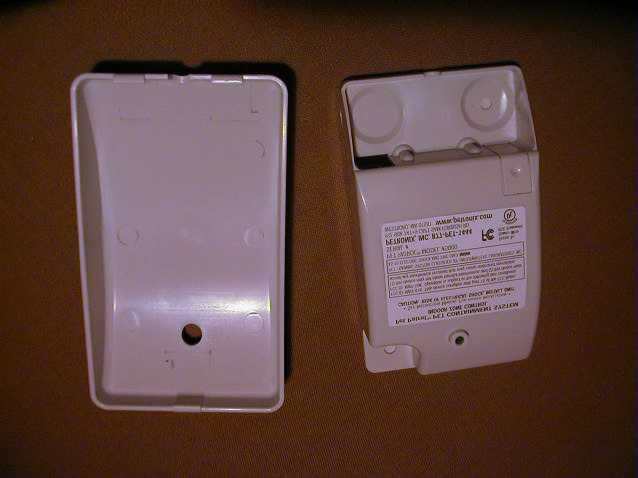

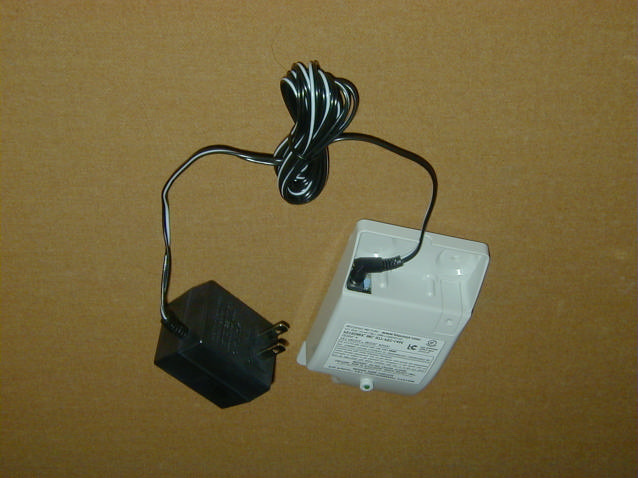

INDOOR ZONE CASE ZONE & POWER BACK ZONE & POWER TOP

INDOOR ZONE LABEL OUTDOOR ZONE LABEL ZONE AND POWER TOP

INDOOR ZONE BOARD CLOSE INDOOR ZONE BOARD OUTDOOR ZONE BOARD CLOSE OUTDOOR ZONE BOARD ZONE CONTROL BOARD BOTTOM

Page 1 of 2FCC ID# NWY-5000 FCC ID: NWY-916 & NWY-10K DESCRIPTION OF CIRCUIT FOR PETRONIX INDOOR ZONE CONTROL The Petronix Indoor Zone Control is one unit of a number of units comprising an electronic pet containment system. Use of the Indoor Zone Control enables a user to establish an electronic zone that can serve as boundary or area beyond which a pet is not allowed. The unit is powered by an unregulated +12VDC wall plug, ungrounded power supply. The +12VDC is regulated to +5VDC for the microprocessor and related logic. The +12VDC is also regulated to +3.3VDC for the 916.5Mhz transceiver functions. The +12VDC is utilized to supply power to the FET bridge. The microprocessor is a 16C558 with an external 16Mhz crystal. The transceiver uses an internal 916.5Mhz SAW filter as an oscillator. The Indoor Zone Control receives instructions and transmits status reports VIA OOK 916.5MHz. The Zone Control also generates a modulated 10KHz signal radiated by an internal antenna to produce a "zone" of coverage around the unit. The zone controller only responds to RF data packets that contain its ID address. In normal operation, this may as frequently as once every 4.8 seconds and as long as once every 2.5 minutes The RF data transmitted is in the form of a Manchester encoded data stream where each on/off period is 1 msec in duration. A standard data stream starts by sending four (4) Manchester encoded 1’s followed by a code violation bit. The code violation is a logic 0 of 3 msec duration followed by a logic 1 of 3 msec duration. After the code violation sequence a Manchester encoded start bit (1) is sent followed by 24 Manchester encoded data bits. Finally two (2) checksum bits are sent. Total transmission time of the data stream is 66 msec. During the remaining 84 msec of the frame, the console listens for a response from the addressed unit. The 10KHz command protocol consists of a Manchester encoded signal where each on/off period is 2 msec. The 10KHz is sent out in alternating periods of 150 msec (opposite periods of the RF frames). A standard data stream starts by sending four (4) Manchester encoded 1’s followed by a code violation bit. The code violation is a logic 0 of 7 msec duration followed by a logic 1 of 7 msec duration. After the code violation sequence a Manchester encoded start bit (1) is sent followed by 24 Manchester encoded data bits. Finally two (2) checksum bits are sent. Total transmission time of the data stream is 66 msec. Page 2 of 2FCC ID# NWY-5000 The microprocessor outputs signals to the FET driver, LED, piezo sounder and to the 916.5 Mhz transceiver. Signals to the transceiver provide the control over it's various modes of operation, transmit and receive. Other microprocessor lines allow snubbing of the 10KHz signal energy in the antenna. Output from the 916.5Mhz transceiver is fed into a matching circuit to filter out the harmonics and to match the impedance of a whip antenna mounted to the circuit board. Page 1 of 2FCC ID# NWY-6000 FCC ID: NWY-916 & NWY-10K DESCRIPTION OF CIRCUIT FOR PETRONIX OUTDOOR ZONE CONTROL The Petronix Outdoor Zone Control is one unit of a number of units comprising an electronic pet containment system. Use of the Outdoor Zone Control enables a user to establish one or more electronic zones that can serve as boundary beyond which a pet is not allowed. The unit is powered by an unregulated +12VDC wall plug, ungrounded power supply. The +12VDC is regulated to +5VDC for the microprocessor and related logic. The +12VDC is also regulated to +3.3VDC for the 916.5Mhz transceiver functions. The +12VDC is utilized to supply power to the FET bridge. The microprocessor is a 16C558 with an external 16Mhz crystal. The transceiver uses an internal 916.5Mhz SAW filter as an oscillator. The Outdoor Zone Control receives instructions and transmits status reports VIA OOK 916.5MHz. The Zone Control also generates a modulated 10KHz signal radiated by a wire loop arranged to create a boundary in the desired location(s). The zone controller only responds to RF data packets that contain its ID address. In normal operation, this may as frequently as once every 4.8 seconds and as long as once every 2.5 minutes The RF data transmitted is in the form of a Manchester encoded data stream where each on/off period is 1 msec in duration. A standard data stream starts by sending four (4) Manchester encoded 1’s followed by a code violation bit. The code violation is a logic 0 of 3 msec duration followed by a logic 1 of 3 msec duration. After the code violation sequence a Manchester encoded start bit (1) is sent followed by 24 Manchester encoded data bits. Finally two (2) checksum bits are sent. Total transmission time of the data stream is 66 msec. During the remaining 84 msec of the frame, the console listens for a response from the addressed unit. The 10KHz command protocol consists of a Manchester encoded signal where each on/off period is 2 msec. The 10KHz is sent out in alternating periods of 150 msec (opposite periods of the RF frames). A standard data stream starts by sending four (4) Manchester encoded 1’s followed by a code violation bit. The code violation is a logic 0 of 7 msec duration followed by a logic 1 of 7 msec duration. After the code violation sequence a Manchester encoded start bit (1) is sent followed by 24 Manchester encoded data bits. Finally two (2) checksum bits are sent. Total transmission time of the data stream is 66 msec. The microprocessor outputs signals to the FET driver, LED, piezo sounder and to the 916.5 Mhz transceiver. Signals to the transceiver provide the control over it's various modes of operation, transmit and receive. Page 2 of 2FCC ID# NWY-6000 Output from the 916.5Mhz transceiver is fed into a matching circuit to filter out the harmonics and to match the impedance of a whip antenna mounted to the circuit board.

Telecommunications Certification Body Declaration of Compliance to RF Exposure Limits for Humans The 5000 Indoor Zone Control and 6000 Outdoor Zone Control for pet containment system complies with the RF exposure limits for humans as called out in FCC Part 2 Section 2.1093. The transmitters are used to set up an electric fence. It is exempt from RF evaluation based on its operating frequency of 10 kHz, and output power of 365 microwatts based on TP = (FS x D) 2 / 30 x 1.64, (4466 uV/m x 30) 2 / 30 x 1.64. This would be less than the 200 milliwatt requirement for a portable device. Joel T Schneider TUV Product Service

PRODUCT SERVICE TEST RESULT SUMMARY FCC PART 15 SUBPART C Section 15.209 MANUFACTURER'S NAMEPetronix Inc NAME OF EQUIPMENTIndoor Zone Control/Outdoor Zone Control Pet Containment System – 10 kHz transmitter MODEL NUMBER 5000/6000 MANUFACTURER'S ADDRESS9 Captain Samuel Forbush Road PO Box 1085 Westboro MA 01581-3556 TEST REPORT NUMBERW0654 TEST DATE12-13 December 2000 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 15 Subpart C Section 15.209. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 15 Subpart C Section 15.209. Date:29 January 2001 Location:Taylors Falls MNG. S. JakubowskiJ. T. Schneider USATest EngineerLead Engineer Not Transferable File No. WC1G065401, Page 1 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File No.: WC1G065401 Date of issue:29 January 2001 Model No.: 5000/6000 Product Type: Indoor Zone Control/Outdoor Zone Control Pet Containment System – 10 kHz transmitter Applicant: Petronix Inc Manufacturer: Petronix Inc License holder: Petronix Inc Address: 9 Captain Samuel Forbush Road : PO Box 1085 : Westboro MA 01581-3556 Test Result: nn Positiveoo Negative Test Project Number: Reference(s) W0654 Total pages including Appendices25 TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI File No. WC1G065401, Page 2 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE D I R E C T O R Y - EMISSIONS Page(s) A)Documentation Test report1 – 12 Directory2 Test Regulations3 B)Test data Conducted emissions on AC power leads5 Field strength of fundamental6 Field strength of spurious emissions7-8 Test Setup Photo(s)See Test Setup Exhibit C)Appendix A Constructional Data Form / Product Information A2 – A13 File No. WC1G065401, Page 3 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: -------------------------------------------------------------------------------- o - EN 50081-1 / 1991 o - EN 55011 / 1991o - Group 1o - Group 2 o - Class Ao - Class B o - EN 55013 / 1990 o - EN 55014 / 1987o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55014 / 1993o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55015 / 1987 o - EN 55015 / A1:1990 o - EN 55015 / 1993 o - EN 55022 / 1987o - Class Ao - Class B n - FCC Part 15 Subpart C Section 15.209 o - BS o - VCCIo - Class Ao - Class B o - FCCo - Class Ao - Class B o - AS 3548 (1992)o - Class Ao - Class B o - CISPR 11 (1990) o - Group 1o - Group 2 o - Class Ao - Class B o - CISPR 22 (1993) o - Class Ao - Class B File No. WC1G065401, Page 4 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Environmental conditions in the lab: Actual Temperature: 23 °C Relative Humidity: 9 % Atmospheric pressure: 99.6 kPa Power supply system: 60 Hz – 115 VAC – 1 phase Sign Explanations: o - not applicable n - applicable File No. WC1G065401, Page 5 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE CONDUCTED EMISSIONS on AC power leads No conducted emissions were measured within 30 dB of the 15.207 limit from the outdoor zone controller. No conducted emissions were measured within 30 dB of the 15.207 limit from the indoor zone controller. The CONDUCTED EMISSIONS (INTERFERENCE VOLTAGE) measurements were performed at the following test location: o - Test not applicable o - Wild River Lab Large Test Site (Open Area Test Site) o - Wild River Lab Small Test Site (Open Area Test Site) o - Oakwood Lab (Open Area Test Site) n - Wild River Lab Screen Room o - New Brighton Lab Shielded Room Test equipment used : Model NumberManufacturerDescriptionSerial NumberCal Due n -3825/2EMCO 50 Ω LISN 8812-14394-01 n -ESHS-20Rhode-SchwarzEMI Receiver837055/0033-01 All measurement instrumentation is traceable to the National Institute of Standards and Technology (NIST) and is calibrated annually. Conducted emission…

Text truncated - open the document above for the full version.

File No. W211557801, Page A3 of A12 EMM0096 REV 09.95 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Screen Room Other Measurements: 2 meters from top of EUT to ceiling 80 cm from closest part of EUT to the LISN Non-conducting Table EUT LISN SIDE VIEW 80 cm EUT LISN Instrumentation Table Receiver 40 cm Non-conducting Table TOP VIEW LISN Vertical Ground Plane 40 cm TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Small Test Site (STS) EUT 180 27090 0 60 Hz 50 Hz Turntable is 1.2 meters in diameter Enlarged View of Shelter (4 meters square) STS Building Shelter 3 meter antenna 10 meter antenna 30 meter antenna Turntable Control Cable Ground Screen (34 meters long x 12 meters wide) 8 meters
