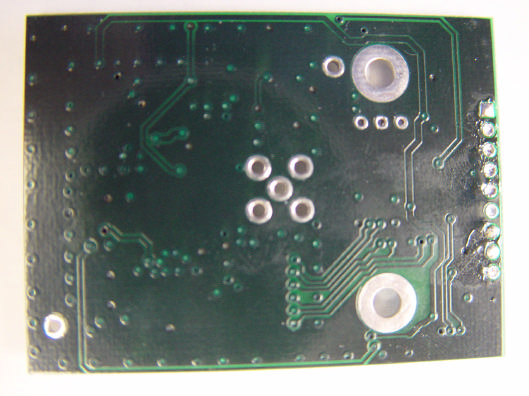

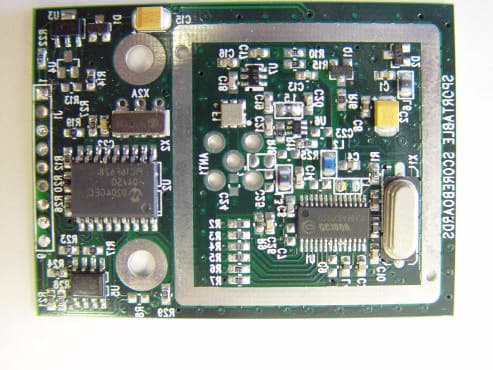

NXLXCVR3000900 MHz Scoreboard Transmitter

SETUP & OPERATION INSTRUCTIONS NXLXCVR3000 900 MHz WIRELESS CONTROL Connecting The Transmitter IMPORTANT FCC STATEMENTS 1. Connect the transmitter’s interface cable to the 8-pin female end of the adapter cable, then plug the 5-pin male end of the adapter cable into either of the controller’s control cable jacks. (See Figure 1) 2. Supply power to the controller using the supplied 12- volt DC wall transformer. Connect the transformer to the power receptacle on the back of the controller before plugging the wall transformer into a live outlet. (See Figure 1) 3. Turn the controller’s POWER switch ON. When the POWER switch is turned ON the controller’s LCD will read: To Continue Last Game Press Enter To Start New Game Press Reset Pressing either ENTER or RESET will enter the controller’s game mode. From here, the operator can begin scoring the game or enter the option menu where the game may be changed and keyboard options such as contrast and clock functions may be set. For complete and detailed operating instructions for your scoreboard model(s), please refer to the OPERATION MANUAL included with the scoreboard(s). FCC ID: NXLXCVR3000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION! Any modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This is set forth by FCC 47 CFR 15.21.

INFORMATION FOR FCC SUBMITTAL 900MHZ Transceiver Block Diagram

FCC ID Label: The compliance statement is enclosed in the User’s Manual FCC ID Label Location FCC ID: NXLXCVR3000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including including interference that may cause undesired operation. PN 9300XXX Label Here

Operating Description This transceiver device can operate in half duplex mode on 16 different frequencies in the 902-928MHZ ISM band. While it is frequency agile, it does not actively “hop” between frequencies. The particular channel, or frequency is set via the serial link. The transceiver IC uses the 14.7456MHZ crystal as a reference for the PLL. Based on information coming in the serial channel, the microcontroller will set the operating frequency and mode (RX or TX). After this, the microcontroller is tasked with the baseband data exchange, usually via the RS485 link. For transmitter operation the transceiver’s PLL is programmed to the desired frequency and the RF data is FSK modulated (30KHZ typical frequency deviation) out the TX signal path shown in the block diagram. The microcontroller also drives the antenna switch to connect the TX output of the transceiver to the SAW filter. The filter reduces harmonics and any other spurious emissions before the signal is applied to the antenna. The exact frequency that corresponds to each of the channels is shown in the table below. For receiver operation the transceivers PLL is programmed to 150KHZ below the desired reception frequency (see table below). The IF is therefore approximately 150KHZ but exists only within the silicon of the transceiver. There is no external IF signal or filter. The microcontroller puts the transceiver in receive mode, and drives the antenna switch so that the RX signal path is chosen. In this mode the SAW filter is used to increase the selectivity of the receiver and decrease the possibility of blocking. Channel vs Frequency Table Channel Frequency Channel Frequency 00 904.898 08 915.430 01 905.951 09 916.484 02 908.058 10 917.537 03 909.111 11 918.590 04 910.164 12 919.643 05 911.217 13 920.697 06 912.271 14 922.803 07 913.324 15 923.857

55 44 33 22 11 D D C C B B A A RF LNA_ENAB RX TX RX_FROM_PCDCLKLOCK PALE DIO RSSIPDATA PCLK PCLK PDATA PALE DCLK RSSI LNA_ENAB I O G RX TX DE I G O DIO DE TX_TO_PCRX_FROM_PC MODE LOCK MODE TX_TO_PCLNA_ENAB +3V_DIGGNDRXDSPARE_IORS485BMD SPARE_IO VIN TXDRS485A +3V_RF +3V_RF +3V_RF +3V_RF +3V_DIG +3V_DIG +3V_RF +3V_DIG +3V_DIG TitleSize Document Number R ev Date: Sheet of A Schematic, 900MHZ Tranceiver B 11 Monday, December 02, 2002 ALTERNATE REGULATOR - SOT-89 TC55R P3002EMB713 C26R29U7J1Q1D2L7 LAST USED 0 OHM 5.6nH 8.2pF 6.8pF 5pF U3 NJU7221U30 GND 1 Vin 2 Vout 3 C14 10pF C4 330pF R14 1K X2 4MHZ 13 2 Q1 MMBT3904 R2910K U2PIC16F628 RA0/AN0 17 RA1/AN1 18 RA2/AN2/VREF 1 RA3/AN3/CMP1 2 RA4/T0CKI/CMP2 3 RA5/MCLR/THV 4 RB0/INT 6 RB1/RX/DT 7 RB2/TX/CK 8 RB3/CCP1 9 RB4/PGM 10 RB5 11 RB6/T1OSO/T1CKI 12 RB7/T1OSI 13 VSS 5 VDD 14 RA7/OSC1/CLKIN 16 RA6/OSC2/CLKOUT 15 L58.7nH C23 DNP C24 DNP R15 1K R11 10K R5 10KR8 D NP R17 1K R21 1K U4 DNP GND 1 Vin 2 Vout 3 R9 27K L14.7nH R18510 D1 BAW56/SOT R2882K C18 47pF C5 8.2pF R 19 510 C10 22pF C20 47pF C16 1nF L4 BEAD R26 10K R13DNP F1 EPCOS B3588 GND 1 I 2 GND 3 GND 4 O 5 GND 6 C8 33nF C31nF R1027K C1947pF C25 DNP U7 UPG152TA OUT2 3 OUT1 1 IN 5 GND 2 VCONT2 4 VCONT1 6 R6 10K C11nF R23 4.7 OHM C21 3pF C12DNP R161K J1 CON9 123456789 C22 0.1uF C11 18pF C7 DNP ANT1 ANTENNA C17 1nF + C153.3uF R2 10K L7 DNP C6 12pF C26 0.1uF L22.5nH X114.7456MHZ C9DNP R27 10K D2 BZX84C5V1 R1 82K C135pF U5 SN65HVD12D RO 1 DI 4 VCC 8 DE 3 RE 2 A 6 B 7 R3 10K + C23.3uF R22 4.7 OHM R 20 510 R4 10K L6120nH R7 10K R24 4.7 OHM R12 10K R25 DNP U6 MAX2643 VCC 4 BIAS 1 GND 2 RFIN 3 GND 5 RFOUT 6 U1 CC1000 AVDD 1 AVDD 5 AVDD 9 AVDD 15 DVDD 21 AGND 6 AGND 7 AGND 8 RFIN 3 RFOUT 4 L1 10 L2 11 CHP_OUT 12 R_BIAS 13 XOSC_Q1 18 XOSC_Q2 17 DGND 20 DGND 22 DIO 23 DCLK 24 PCLK 25 PDATA 26 PALE 27 RSSI/IF 28 AGND 2 AGND 14 AGND 16 AGND 19 L3120nH

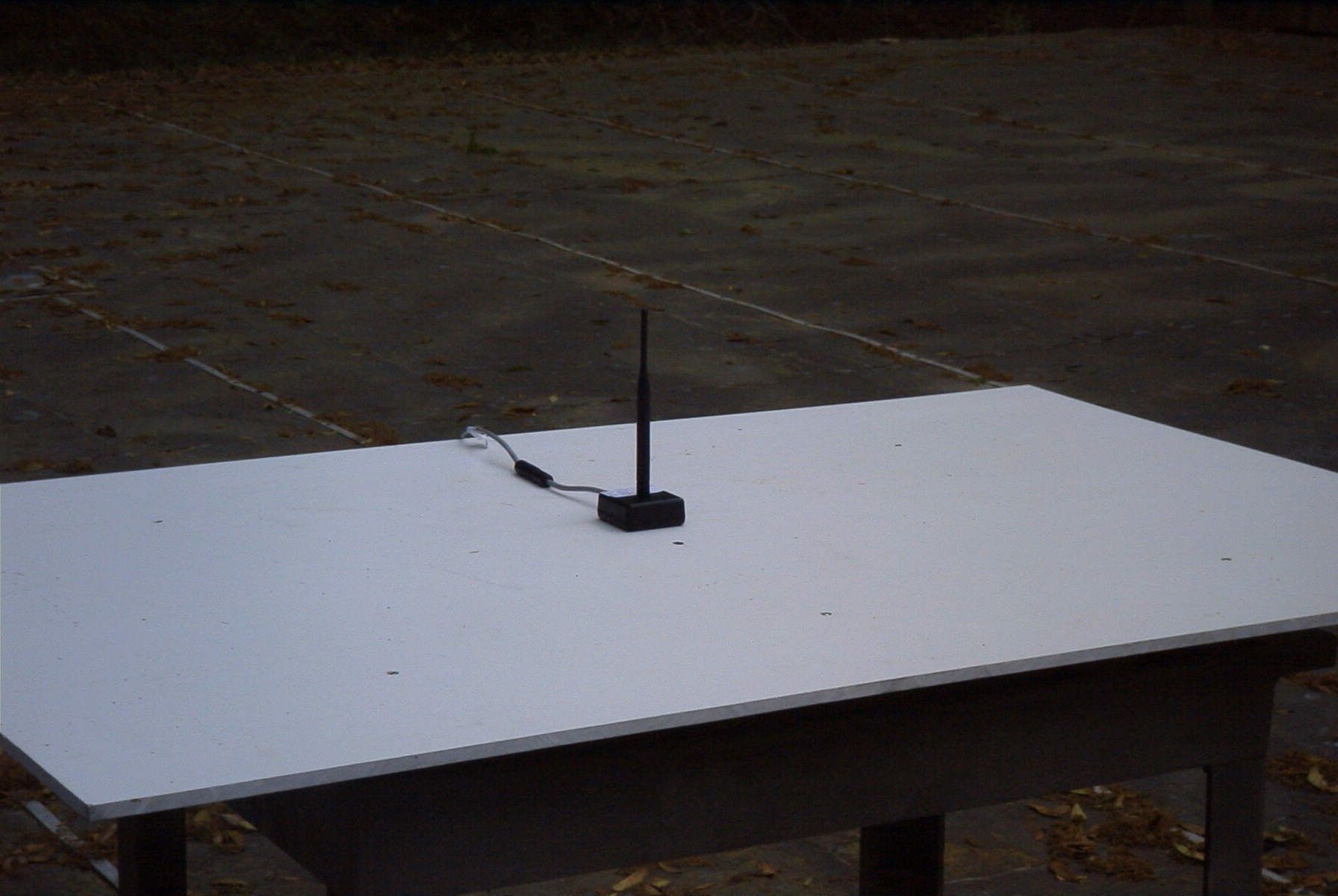

APPLICANT: SPORTABLE SCOREBOARDS FCC ID: NXLXCVR3000 REPORT #: S/SPORTABLE_NXL\331UT3\331UT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT : SPORTABLE SCOREBOARDS FCC ID : NXLXCVR3000 TEST REPORT CONTAINING: PAGE 1-3.........TEST EQUIPMENT LIST PAGE 4...........TEST PROCEDURE PAGE 5...........RADIATION INTERFERENCE TEST DATA PAGE 6...........OCCUPIED BANDWIDTH PAGE 7...........OCCUPIED BANDWIDTH PLOT – LOW PAGE 8...........OCCUPIED BANDWIDTH PLOT – MIDDLE PAGE 9...........OCCUPIED BANDWIDTH PLOT – HIGH EXHIBIT ATTACHMENTS: EXHIBIT 1.........FCC ID LABEL SAMPLE & LOCATION EXHIBIT 2.........BLOCK DIAGRAM EXHIBIT 3.........SCHEMATIC EXHIBIT 4.........INSTRUCTION MANUAL EXHIBIT 5.........EXTERNAL PHOTO EXHIBIT 6.........INTERNAL PHOTOS EXHIBIT 7.........OPERATIONAL DESCRIPTION EXHIBIT 8.........TEST SET UP PHOTOGRAPH APPLICANT: SPORTABLE SCOREBOARDS FCC ID: NXLXCVR3000 REPORT #: S/SPORTABLE_NXL\331UT3\331UT3TestReport.doc PAGE: 1 of 12 EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/03 X RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/03 X Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/03 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/02 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/03 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/03 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/03 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/03 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 APPLICANT: SPORTABLE SCOREBOARDS FCC ID: NXLXCVR3000 REPORT #: S/SPORTABLE_NXL\331UT3\331UT3TestReport.doc PAGE: 2 of 12 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/03 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 X Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/03 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/03 Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/03 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/03 APPLICANT: SPORTABLE SCOREBOARDS FCC ID: NXLXCVR3000 REPORT #: S/SPORTABLE_NXL\331UT3\331UT3TestReport.doc PAGE: 3 of 12 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/03 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/03 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/03 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/03 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/03 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/03 Egg Timer Unk CHAR 8/31/01 8/31/03 Measuring Tape, 20M Kraftixx 0631-20 CHAR 2/1/02 2/1/04 Measuring Tape, 7.5M Kraftixx 7.5M PROFI 2/1/02 2/1/04 Coaxial Cable #51 Insulated Wire Inc. NPS 2251-2880 Timco #51 CHAR 1/23/02 1/23/04 Coaxial Cable #64 Semflex Inc. 60637 Timco #64 CHAR 1/24/02 1/24/04 Coaxial Cable #65 General Cable Co. E9917 RG233/U Timco #65 CHAR 1/23/02 1/23/04 Coaxial Cable #106 Unknown Unknown Timco #106 CHAR 1/23/02 1/23/04 APPLICANT: SPORTABLE SCOREBOARDS FCC ID: NXLXCVR3000 REPORT #: S/SPORTABLE_NXL\331UT3\331UT3TestReport.doc PAGE: 4 of 12 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmitting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient …
