NXXBL-554Bluetooth USB Adaptor

Print Date: 15.05.2002 Br ai n B o xes Li mi t ed, U ni t 3C , W a ver tr e e B oul e var d S ou th, Wa ver tr ee Tech nol og y P ar k, Li ver po ol , L 7 9PF, U K Tel : + 44 ( 0) 151 2 20 25 00 Fa x: + 4 4 ( 0) 1 51 25 2 0 44 6 We b: w ww .br ai n bo xes.c om E mai l : s al es@br ai nb o xes.c om Installation Guide BL-500 Bluetooth PCMCIA Card in Windows 2000 Draft: 1.0 C:\Documents and Settings\peter\My Documents\Bluetooth\Declaration of Conformity-Bluetooth BL-500.doc Issue Date: 03/09/2002 Revision Number: Rev B Declaration of Conformity Bluetooth PC Card – Rev 5. Product Code: BL-500 We, Brain Boxes Limited, of Unit 3c Wavertree Boulevard South, Wavertree Technology Park, Liverpool L7 9PF, United Kingdom declare that the Product listed above is in conformance with the essential requirements of the European Council Directive: 1999/5/EC (R & TTE) Radio and Telecommunications Terminal Equipment Directive (following Annex III of this Directive) The essential requirements being: Safety of the user (Article 3.1a) Following directive 73/23/EEC; 93/68/EEC Electromagnetic Compatibility (article 3.1b) Following directive 89/336/EEC Effective use of the spectrum (article 3.2) Following notified body opinion from ETS Dr Genz, GmbH, Storkower Strasse 38c, D-15526, Reichenwalde bei Berlin, Germany This declaration is based upon compliance with the following standards: EN 60950: 1992; Safety information Technology Equipment, including Electrical Business Equipment EN 301 489-1/-17: 2000; EN50081 – 1: 1992; EN 50082 – 1: 1997 Electromagnetic compatibility ETS 300 328-2: 2000 Radio Equipment and Systems (RES); Wideband transmission systems; Technical characteristics and test conditions for data transmission equipment operating in the 2.4 GHz ISM band and using spread spectrum modulation techniques. This Declaration is made under our sole responsibility. Authorised Signatory: Date: 03 September 2002 P M Gray Brain Boxes Limited Unit 3c Wavertree Boulevard South Wavertree Technology Park Liverpool L7 9PF, UK Regulatory Information Bluetooth product operating in 2.4GHz band for Home and Office use. Europe – EU Declaration of Conformity This device complies with the R&TTE Directive 1999/5/EC, and the following standards; EN60950: 1992; EN60335-1: 1994 Safety information technology equipment, including Electrical Business Equipment ETS300826; EN301489/1-17:2000; EN50081-1:1992; EN50082-1:1997 Electromagnetic compatibility ETS300328-2:2000 Radio Equipment and Systems (RES); Widebase transmission systems; Technical characteristics and test conditions for data transmission equipment operating in the 2.4GHz ISM band and using spread spectrum modulation techniques. Important Notice for use in France and Italy Italy: License required for use. Your reseller will tell you the procedure to follow. E’necessaria la concessione ministeriale anche per l’uso. Verification con I rivenditori la procedura da seguire. France: Low power device (1mW), there is no limitation for indoor or outdoor use. Dispositif à faible uissance (1mW), pas de limitation pour son usage à l’intérieur ou a l’extérieur. STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Notice - FCC Compliance Statement for United States Users: This equipment has been tested and found to comply within the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - reorient or relocate the receiving antenna - increase the separation between the equipment and receiver - connect the equipment into an outlet different from that to which the receiver is connected - consult the dealer or an experienced radio/TV technician for help. Caution - changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. Important Safety Information • Do not open the case. There are no user serviceable parts inside the unit • Do NOT plug in, turn on or attempt to operate an obviously damaged unit. • Do not alter or modify the cable assembly, or attempt to connect the cable(s) except as directed in the User Guide. • Do not expose this product to extremes of heat or cold, or to moisture – i.e. dripping or splashing. Instal l a ti on Gui d e B L- 50 0 Bl uet oot h PCMCIA card in Windows2000.doc © Copyright Brain Boxes Li mited 2002 Page 2 of 6 BL-500 Bluetooth PC Card Installation T hi s secti on will gi ve you all the i nformati on that i s needed to install your Brai n Boxes Bl uetooth PC Card Hardware into your computer running the Windows 2000 Operating System. Insert the Bl uetooth Product CD i nto your CDROM dri ve. Insert the Bluetooth PC Card into a free PC Card slot Windows 2000 will detect your card and start the Found New Hardw are Wizard. Instal l a ti on Gui d e B L- 50 0 Bl uet oot h PCMCIA card in Windows2000.doc © Copyright Brain Boxes Li mited 2002 Page 3 of 6 Click Next Select “Search for a suitable driv er for my dev ice”. Cli ck Next Select CD-ROM drives. Cli ck Next Instal l a ti on Gui d e B L- 50 0 Bl uet oot h PCMCIA card in Windows2000.doc © Copyright Brain Boxes Li mited 2002 Page 4 of 6 The Wizard has found the re…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 23 rd September 2002 Request for Confidentiality BRAIN BOXES LIMITED FCC ID: NXX BL-554 FCC Part 15 Certification Gentlemen, In accordance with 0.459 of CFR 47, Brain Boxes Limited hereby requests confidentiality of all Block Diagrams, Circuit Diagrams, Parts List, Schematics attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Brain Boxes Limited considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Brain Boxes Limited considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature: Name: Peter M Gray Title: Business Development Manager Company: Brain Boxes Limited

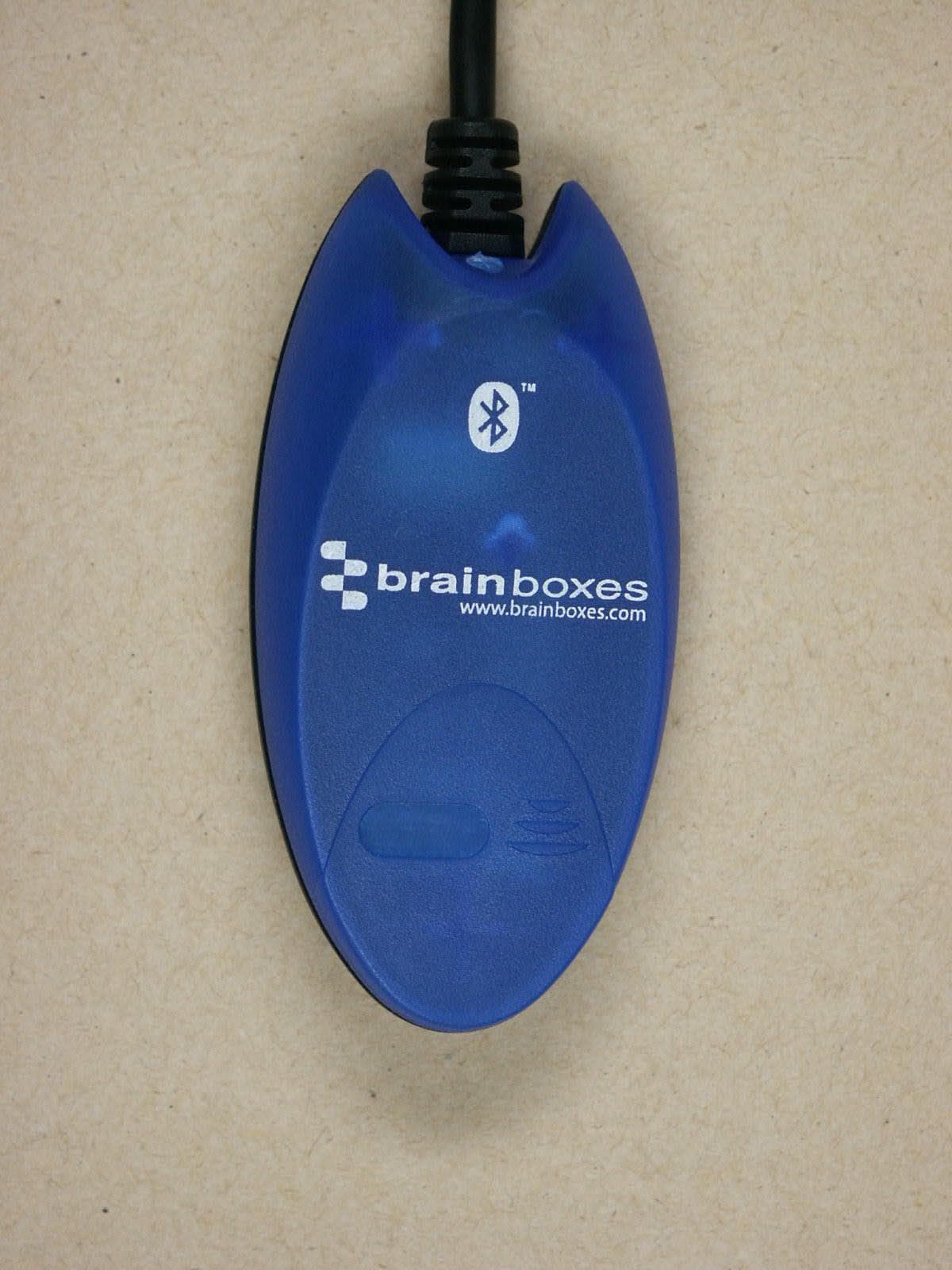

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 1 of 8 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 2 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 3 of 8

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 4 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 5 of 8

Print Date: 25.09.2002 Brain Boxes Limited, Unit 3C, Wavertree Boulevard South, Wavertree Technology Park, Liverpool, L7 9PF, UK Tel: +44 (0)151 220 2500 Fax: +44 (0)151 252 0446 Web: www.brainboxes.com Email: [email protected] CONFIDENTIAL This document is not for distribution outside of Brain Boxes Limited and the Bluetooth SIG. BL-554 Operational Description Version: 1.00 CONFIDENTIAL BL-554 Operational Description.doc © Copyright Brain Boxes Limited 2002 Page 2 1. Outline This document outlines an ‘Operational Description’ of our current Bluetooth product BL-554. 2. How the hopping sequence is generated. The channel is represented by a pseudo-random hopping sequence hopping through the 79 or 23 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to a RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1600 hops/s. All Bluetooth units participating in the piconet are time- and hop-synchronized to the channel. 3. Hopping sequence channels. The relevant hopset table is given below: Geography Regulatory Range RF Channels USA, Europe and most other countries 2.400-2.4835 GHz f=2402+k MHz, k=0,...,78 4. How the hopping channels are used. Frequency hopping systems operating in the 2400-2483.5 MHz shall use an average time of occupancy on any frequency not greater than 0.4 seconds within a 30 second period. This means that for the product referred to, the hopping channels are used equally on average. 5. How the associated receiver has the ability to shift frequencies. The synthesizer changes frequency between receive slot and transmit slot, but always returns to the same receive frequency. Thus the product referred to operates so that the receiver shifts frequencies in synchronization with the transmitted signals 6. Input bandwidths match the hopping channel bandwidths The input bandwidths of the system receiver match the hopping channel bandwidths of their corresponding transmitter.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C Test report no.: G0M20205-6647-T-48 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 1 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 2 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Futhermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 12.08.2002N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 12.08.2002Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 3 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY:BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 1.3Details of approval holder Name: Brain Boxes Limited Street: 3c Wavertree Boulevard South Wavertree Technology Park Town: Liverpool L7 9PF Country: UK Telephone: +44 151 220 2500 Fax: +44 151 252 0446 Contact: Mr. Peter Gray Telephone: +44 151 220 2500 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 4 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 27.05.2002 Date of receipt of test item: 27.05.2002 / 12.07.2002 Date of test: 27.05.2002/ 12.07.2002 1.5Test item Description of test item: USB Bluetooth Adaptor Type identification: BL-554Brand Name: USB Bluetooth Adaptor Serial number: Test model without serial number. Photos: See annex Technical data Frequency band: 2.4 – 2.4835MHz Frequency ( ch A): 2.402 GHz Frequency (ch B): 2.441 GHz Frequency (ch C): 2.480 GHz TransmitterVnomVnom Power (ch A) : Conducted: 2,42 dBmRadiated: 5,37 dBm Power (ch B) : Conducted: 2,02 dBmRadiated: 3,77 dBm Power (ch C) : Conducted: 0,61 dBmRadiated: 1,21 dBm Vnom –15 %Vnom +15 % Power (chA) : Radiated: 5,13 dBmRadiated: 5,44 dBm Power (ch B) : Radiated: 3,54 dBmRadiated: 3,29 dBm Power (ch C) : Radiated: 0,93 dBmRadiated: 0,93 dBm Antenna transmitter: integral(internal antenna)Antenna gain : -0,3dBi Antenna receiver: (internal antenna) Power supply : 230V AC / 120V AC Operating mode: duplex Type of modulation: FHSS ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 5 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Manufacturer: (if applicable) Name: Brain Boxes Limited Street: 3c Wavertree Boulevard South Wavertree Technology Park Town: Liverpool L7 9PF Country: UK Additional information:The radiated measurements were performed with the host device Panasonic CF-72, powered U nom = 230V AC. The conducted measurement at (AC) Power Line was carried out with the DELL Laptop Inspiration 7000 . ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 6 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course ý of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests ̈ performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply: 230 (USB) V Extrem conditions parameters:: test voltage - extrememin :195,5 V, AC max:264,5 V, AC ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 7 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spektrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvcom ETS 0008AntennaLoop antennaSiemens ETS 0009AntennaLoop antennaMEB ETS 0010AntennaLoop antennaMEB ETS 0011Antennavan Veen/ FrameETS ETS 0012AntennaHK 116Rohde&Schwarz ETS 0013AntennaHL 223Rohde&Schwarz ETS 0014AntennaHL 025Rohde&Schwarz ETS 0015Ante…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 6 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 7 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20205-6647-T-48Page 8 of 8
