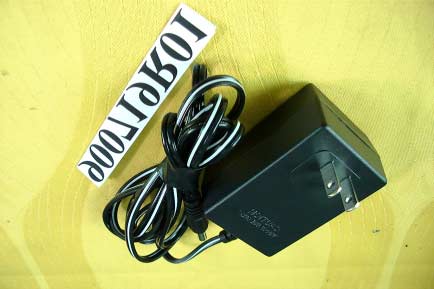

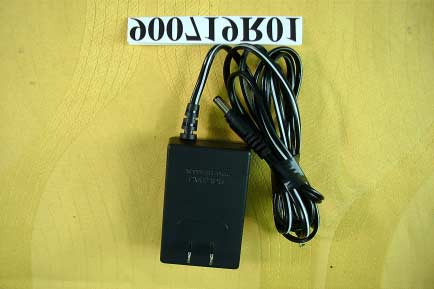

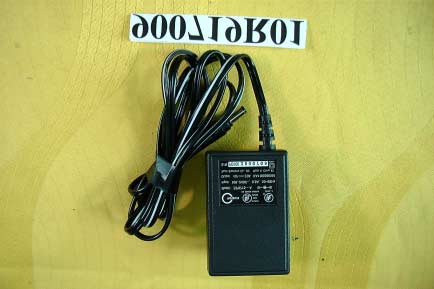

FCC ID: NYT-WL200103 Report No.: RF900719R01 1 Issued: August 7, 2001 ANNEX PHOTOGRAPHS OF EUT FCC ID: NYT-WL200103 Report No.: RF900719R01 2 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 3 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 4 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 5 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 6 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 7 Issued: August 7, 2001

FCC ID LABEL LOCATION

FCC ID: NYT-WL200103 Report No.: RF900719R01 8 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 9 Issued: August 7, 2001

FCC ID: NYT-WL200103 Report No.: RF900719R01 10 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 11 Issued: August 7, 2001

FCC ID: NYT-WL200103 Report No.: RF900719R01 12 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 13 Issued: August 7, 2001

FCC ID: NYT-WL200103 ADT No.900719R01 Operational Description The transmitter of the EUT (Wireless Router) is powered by power adapter and connected with notebook through RJ45 port. The antenna is dipole antenna, the antenna connector is MCX. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: NYT-WL200103 Report No.: RF900719R01 1 Issued: August 7, 2001 FCC TEST REPORT REPORT NO.: RF900719R01 MODEL NO.:WR-2201, EW-2100, EW-2101, WA-601, WA-2201, Wireless Router RECEIVED: July 19, 2001 TESTED: July 12 ~ July 31, 2001 APPLICANT:ARGUS TECHNOLOGIES CO., LTD. ADDRESS:8F, No. 183, Kang Chien RD., Nei-Hu District, Taipei, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Ling, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 Lab Code: 200102-0 FCC ID: NYT-WL200103 Report No.: RF900719R01 2 Issued: August 7, 2001 Table of Contents 1CERTIFICATION........................................................................................... 4 2SUMMARY OF TEST RESULTS .................................................................. 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .............................. 7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................................... 9 4.1.2TEST INSTRUMENTS ...........................................................................................................9 4.1.3TEST PROCEDURES .......................................................................................................... 10 4.1.4TEST SETUP ....................................................................................................................... 10 4.1.5EUT OPERATING CONDITIONS......................................................................................... 11 4.1.6TEST RESULTS ................................................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 18 4.2.2TEST INSTRUMENTS ......................................................................................................... 19 4.2.3TEST PROCEDURES .......................................................................................................... 20 4.2.4TEST SETUP ....................................................................................................................... 21 4.2.5EUT OPERATING CONDITIONS......................................................................................... 21 4.2.6TEST RESULTS ................................................................................................................... 22 4.36DB BANDWIDTH MEASUREMENT ......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 27 4.3.2TEST INSTRUMENTS ......................................................................................................... 27 4.3.3TEST PROCEDURE ............................................................................................................28 4.3.4TEST SETUP ....................................................................................................................... 28 4.3.5EUT OPERATING CONDITIONS......................................................................................... 28 4.3.6TEST RESULTS ................................................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER.......................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 33 4.4.2INSTRUMENTS.................................................................................................................... 33 4.4.3TEST PROCEDURES .......................................................................................................... 34 4.4.4TEST SETUP ....................................................................................................................... 34 4.4.5EUT OPERATING CONDITIONS......................................................................................... 34 4.4.6TEST RESULTS ................................................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ........................................... 36 4.5.2TEST INSTRUMENTS ......................................................................................................... 36 4.5.3TEST PROCEDURE ............................................................................................................37 4.5.4TEST SETUP ....................................................................................................................... 37 4.5.5EUT OPERATING CONDITION ........................................................................................... 37 4.5.6TEST RESULTS ................................................................................................................... 38 4.6BAND EDGES MEASUREM…

Text truncated - open the document above for the full version.

FCC ID: NYT-WL200103 Report No.: RF900719R01 42 Issued: August 7, 2001 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below ñ20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ TEST RECEIVER ESMI 848926/005 846839/018 Dec 28, 2001 HP ATTENUATOR8496B3247A18505 Cal. on use HP PLOTTER7475A2641V27755 N/A NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. FCC ID: NYT-WL200103 Report No.: RF900719R01 43 Issued: August 7, 2001 4.6.4 EUT OPERATING CONDITION Same as Item 3.4.5 4.6.5 TEST RESULTS The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot on the following 2 pages shows 49.21dB delta between carrier maximum power and local maximum emission in restrict band (2.48671GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.6 (Page 26) is 94.1dBuV/m, so the maximum field strength in restrict band is 94.10-49.21=44.89dBuV/m which is under 54 dBuV/m limit. FCC ID: NYT-WL200103 Report No.: RF900719R01 44 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 45 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 46 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 47 Issued: August 7, 2001 FCC ID: NYT-WL200103 Report No.: RF900719R01 48 Issued: August 7, 2001 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna used in this product is dipole antenna and only the internal connector MCX is used. The maximum Gain of the antenna is 1dBi only. FCC ID: NYT-WL200103 Report No.: RF900719R01 49 Issued: August 7, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NYT-WL200103 Report No.: RF900719R01 50 Issued: August 7, 2001 RADIATED EMISSION TEST FCC ID: NYT-WL200103 Report No.: RF900719R01 51 Issued: August 7, 2001 6 INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USAFCC, NVLAP, UL GermanyTUV Rheinland JapanVCCI New ZealandMoC NorwayNEMKO R.O.C.BSMI, DGT, CNLA Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Lin Kou EMC Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC Lab: Tel: 886-35-935343 Fax: 886-35-935342 Lin Kou Safety Lab: Tel: 886-2-26093195 Fax: 886-2-26093184 Lin Kou RF&Telecom Lab Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also.
