O25PZ-400NW

Unimo Technology Co., Ltd.

FM HANDHELD TRANSCEIVER

Click to zoom

Application Details

Equipment Class: TNF - Licensed Non-Broadcast Transmitter Held to Face
Date of Grant: Jan 18, 2010
Application Purpose: Original Equipment
Date of Application: Jan 17, 2010
Equipment Note: FM HANDHELD TRANSCEIVER
Frequency Range: 406.10000000 - 470.00000000
Company: Unimo Technology Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

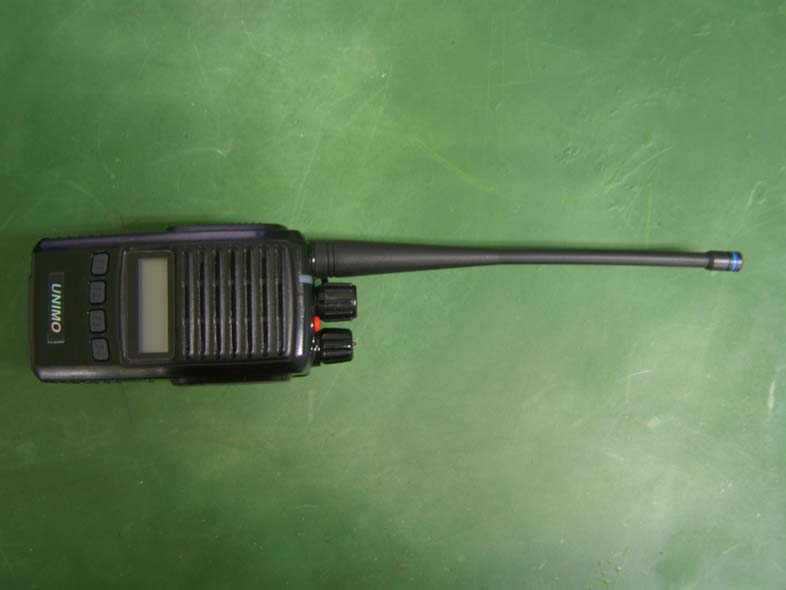

External Photos

ID Label/Location Info

Internal Photos

Operational Description

Parts List/Tune Up Info

RF Exposure Info

Test Report

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
8	9	406.1 MHz - 470 MHz	4 W	16K0F3E	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power listed is rated conducted. Maximum conducted output power is 41 Watts per 90.205(s). This device must be restricted to work related operations in an Occupational/Controlled RF exposure Environment, not exceeding a maximum transmitting duty factor of 50% as described in this composite filing. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with the Occupational/Controlled SAR limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. Body-worn operating configuration is limited to the specific belt-clip supplied for use with this product that provides at least 2.5 cm separation between the device and the users body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values are - Head: 3.11 W/kg; Body-worn: 6.70 W/kg accounting for a 50 % duty cycle.
