O2L38200POWERZ-200 Electric Radio Control Airplane

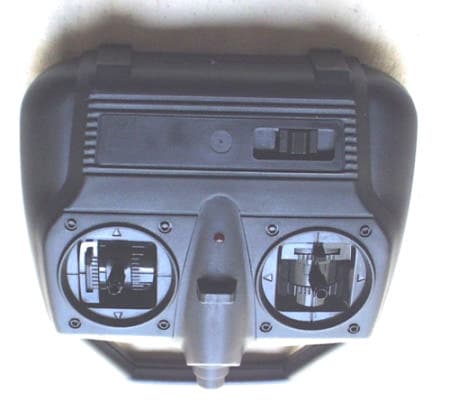

FCC ID: O2L38200 FRONT VIEW OF DEVICE

FCC ID:O2L38200 MADE IN CHINA This device complies with part 15 of FCC Rules. Operation is subject to the following two condition: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: O2L38200 BOTTOM VIEW OF DEVICE WITH FCC ID LABEL

FCC ID: O2L38200 FRONT VIEW OF PRINTED WIRING BOARD

FCC ID: O2L38200 BOTTOM VIEW OF PRINTED WIRING BOARD

Date: 2000-05-15 TEST REPORT Page 1 of 8 No.: HM102433 Law Man KitKitty ChoyPatrick Wong Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE:ZEI003) ZELOX INTERNATIONAL LTD. 2-6 Granville Road, Albion Plaza, 11/F., Room 1105, Tsimshatsui, Kowloon, Hong Kong DATE OF SAMPLES RECEIVED: 2000.04.07. DATE OF TESTING: 2000.05.12. DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:POWERZ-200 ELECTRIC RADIO CONTROL AIRPLANE Manufacturer:ZELOX INTERNATIONAL LTD. Model Number:38200 Brand Name:POWERZ Rating: 12V d.c. ("AA" size battery × 8) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK:Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED after modification with the clause 15.227 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2000-05-15 TEST REPORT Page 2 of 8 No.: HM102433 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1) Measurement of Emission of RF energy on the carrier frequency...........Satisfactory (2) Measurement of the out-of band emissions including harmonics.............Satisfactory (3) Measurement of Emission Within Band Edges.......................................Satisfactory (4) Measurement of Line-Conducted Voltage onto AC Power Line..............Not applicable T E S T D A T A Please refer to the attached result sheets. Date: 2000-05-15 TEST REPORT Page 3 of 8 No.: HM102433 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2000.05.12. Emission of RF energy on the carrier frequency -- 26.996 MHz (PEAK VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m 26.99660.8V+18.579.39225.7100000.0 ================================================================== Emission of RF energy on the carrier frequency -- 26.996 MHz (AVERAGE VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m 26.99658.3V+18.576.86918.310000.0 ================================================================== ... to be continued Date: 2000-05-15 TEST REPORT Page 4 of 8 No.: HM102433 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2000.05.12. The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB(mV)H-VdBdB(mV/m)mV/mmV/m ###54.025.2V+12.938.180.4100.0 81.029.8H+8.938.786.1100.0 108.028.1V+12.240.3103.5150.0 135.027.6H+10.838.483.2150.0 162.025.8H+9.535.358.2150.0 189.0<1.0+11.1<12.1<4.0150.0 216.0<1.0+12.2<13.2<4.6200.0 243.0<1.0+13.5<14.5<5.3200.0 270.0<1.0+16.0<17.0<7.1200.0 297.0<1.0+16.5<17.5<7.5200.0 324.0<1.0+16.6<17.6<7.6200.0 350.9<1.0+16.7<17.7<7.7200.0 377.9<1.0+17.4<18.4<8.3200.0 404.9<1.0+18.2<19.2<9.1200.0 431.9<1.0+19.5<20.5<10.6200.0 458.9<1.0+20.1<21.1<11.4200.0 485.9<1.0+20.3<21.3<11.6200.0 512.9<1.0+20.9<21.9<12.4200.0 539.9<1.0+22.1<23.1<14.3200.0 566.9<1.0+22.8<23.8<15.5200.0 593.9<1.0+23.3<24.3<16.4200.0 620.9<1.0+23.4<24.4<16.6200.0 ... to be continued Date: 2000-05-15 TEST REPORT Page 5 of 8 No.: HM102433 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2000.05.12. The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB(mV)H-VdBdB(mV/m)mV/mmV/m ###647.9<1.0+23.6<24.6<17.0200.0 674.9<1.0+24.9<25.9<19.7200.0 701.9<1.0+25.1<26.1<20.2200.0 728.9<1.0+25.4<26.4<20.9200.0 755.9<1.0+26.4<27.4<23.4200.0 782.9<1.0+26.8<27.8<24.5200.0 809.9<1.0+26.7<27.7<24.3200.0 836.9<1.0+26.1<27.1<22.6200.0 863.9<1.0+26.8<27.8<24.5200.0 890.9<1.0+27.1<28.1<25.4200.0 917.9<1.0+27.5<28.5<26.6200.0 944.9<1.0+28.1<29.1<28.5200.0 971.9<1.0+28.2<29.2<28.8500.0 ================================================================== ====================SUMMARY=================== All data is within limits ============================================= Broad-band Antennas were used both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================= Date: 2000-05-15 TEST REPORT Page 6 of 8 No.: HM102433 *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges. TEST REFERENCE: FCC Rules Part 15 section 15.227(26.96-27.28MHz) TEST CONDITION: Normal TEST DATE : 2000.05.12. RESULTS AND NOTES L: FCC Lower Band Edge .......................................................................-> 26.960MHz H: FCC Higher Band Edge ......................................................................-> 27.280MHz C: Unmodulated carrier at frequency .......................................................-> 26.996MHz D: No. of dB from unmodulated carrier ...................................................-> 54.90dB SPECTRUM ANALYZER SETTINGS Resolution bandwidth: 7.8KHz Frequency span: 10.0KHz/div No. of dB/div: 10.0dB/div FCC Limit Minimum No. of dB from unmodulated carrier required : 26.0dB ================SUMMARY================ All data is within limits ========================================= Date: 2000-0…
