O2X9807REMOTE CONTROL TRANSMITTER

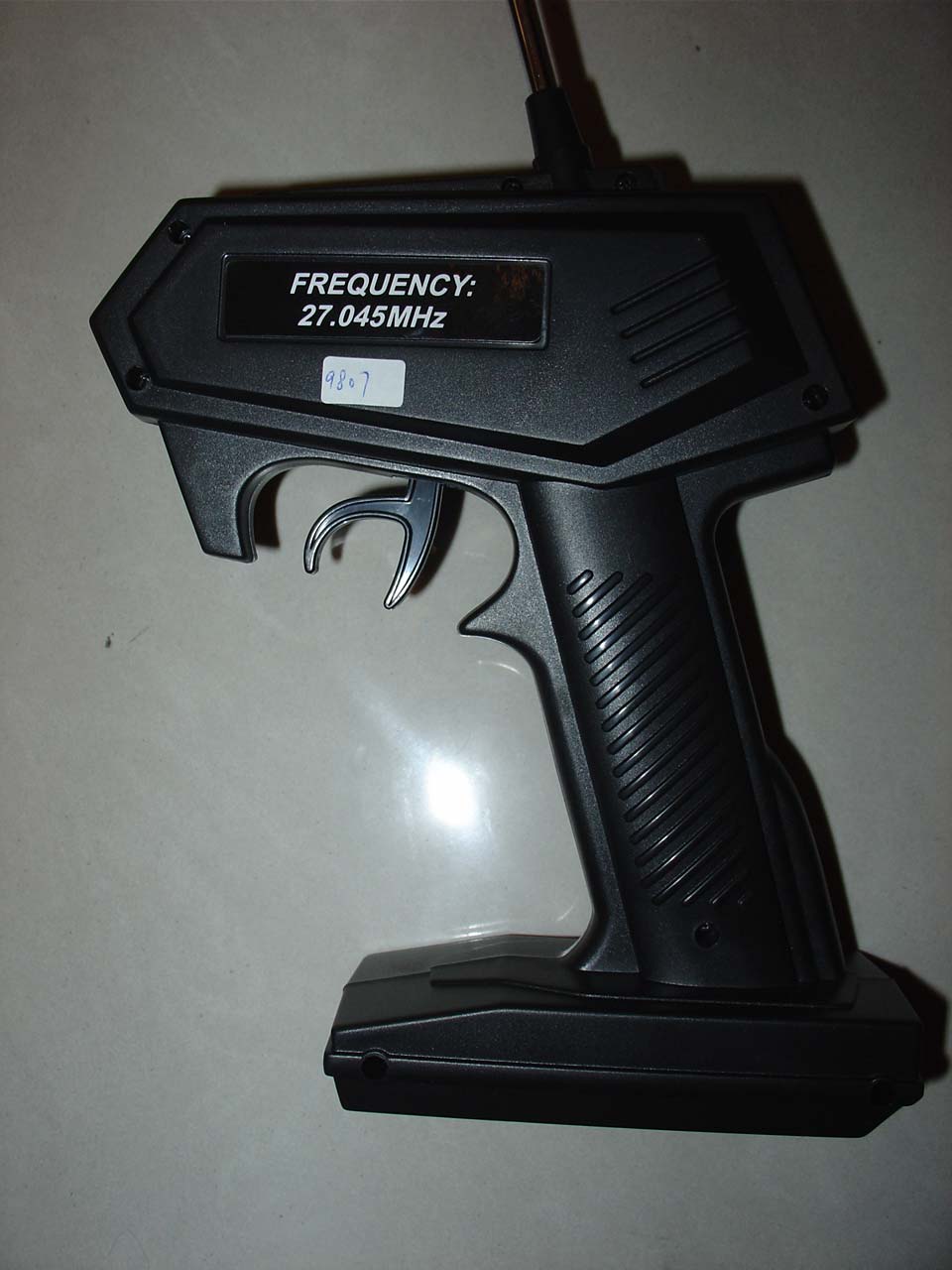

GOLDEN BRIGHT MANUFACTURER LTD. FCC ID: O2X9807 EXTERNAL PHOTOGRAPHS

FCC ID Label FCC ID: O2X9807 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

GOLDEN BRIGHT MANUFACTURER LTD. FCC ID: O2X9807 INTERNAL PHOTOGRAPHS

9807 P51-D MUSTANG TX 1. Circuit Description Q3 become 27.045MHz crystal oscillator and provide carrier wave for Q4 modulation . Q4 adjust IC output modulated signal to modulation and provide buffer amplifier . The output of Q4 bas the matching network consisting of L2C10L3 and C11 . that limit harmonious content and effect the proper coupling of the antenna to the output stage. Q5and Q2 control Q3 bring 27.045MHz crystal oscillator. 2. Antenna ground and power source. The antenna consists of a 45cm long telescopic chrome over brass tubing. There is no external ground connection, the ground is only that of the printed circuit board . Electric current is supplied by a 9 Volts Primary storage ceil.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: GOLDEN BRIGHT MANUFACTURER LTD. FCC ID: O2X9807 REPORT #: V:\G\GOLDEN_BRIGHT\506UT6\Extra506UT6\506UT6TestReport.doc COVER SHEET Test Report Product Name: REMOTE CONTROL TRANSMITTER FCC ID: O2X9807 Applicant: GOLDEN BRIGHT MANUFACTURER LTD. ROOM 1008-9, PENINSULA CENTRE NO 67 MODY ROAD, TST EAST KOWLOON HONG KONG Date Receipt: 3/9/2006 Date Tested: 3/14/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: GOLDEN BRIGHT MANUFACTURER LTD. FCC ID: O2X9807 REPORT #: V:\G\GOLDEN_BRIGHT\506UT6\Extra506UT6\506UT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: GOLDEN BRIGHT MANUFACTURER LTD. FCC ID: O2X9807 TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURE PAGE 3...............RADIATION INTERFERENCE TEST DATA PAGE 4...............OCCUPIED BANDWIDTH PAGE 5...............OCCUPIED BANDWIDTH PLOT PAGE 6...............TEST SET UP PHOTO EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: GOLDEN BRIGHT MANUFACTURER LTD. FCC ID: O2X9807 REPORT #: V:\G\GOLDEN_BRIGHT\506UT6\Extra506UT6\506UT6TestReport.doc Page 1 of 6 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log-Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/04 7/10/06 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: GOLDEN BRIGHT MANUFACTURER LTD. FCC ID: O2X9807 REPORT #: V:\G\GOLDEN_BRIGHT\506UT6\Extra506UT6\506UT6TestReport.doc Page 2 of 6 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4- 2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: GOLDEN BRIGHT MANUFACTURER LTD. FCC ID: O2X9807 REPORT #: V:\G\GOLDEN_BRIGHT\506UT6\Extra506UT6\506UT6TestReport.doc Page 3 of 6 APPLICANT: GOLDEN BRIGHT MANUFACTURER LTD. FCC ID: O2X9807 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/m ABOVE 960 MHz 54.0 dBuV/m TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Pol Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 27.00 46.5 H 0.80 13.76 61.06 18.94 27.00 66.2 V 0.80 12.44 79.44 0.56 54.00 17.4 H 1.01 10.16 28.57 11.43 54.00 24.0 V 1.01 9.90 34.91 5.09 81.10 22.1 V 1.24 8.35 31.69 8.31 108.10 10.2 V 1.46 10.85 22.51 20.99 135.20 10.1 V 1.65 14.83 26.58 16.92 162.20 4.8 V 1.84 17.57 24.21 19.29 189.30 6.8 H 2.03 13.93 22.76 20.74 189.30 8.1 V 2.03 14.53 24.66 18.84 216.30 10.4 V 2.18 11.47 24.05 21.95 216.30 10.9 H 2.18 11.61 24.69 21.31 243.20 11.4 H 2.32 12.13 25.85 20.15 243.20 13.4 V 2.32 12.09 27.81 18.19 270.40 8.6 H 2.45 13.21 24.26 21.74 270.40 19.0 V 2.45 13.22 34.67 11.33 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. All measurements below 30 MHz were taken using an EMC Test Systems Passive Loop Antenna. TEST PROCEDURE : The procedure used was ANSI STANDARD C63.4-2003. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and …
