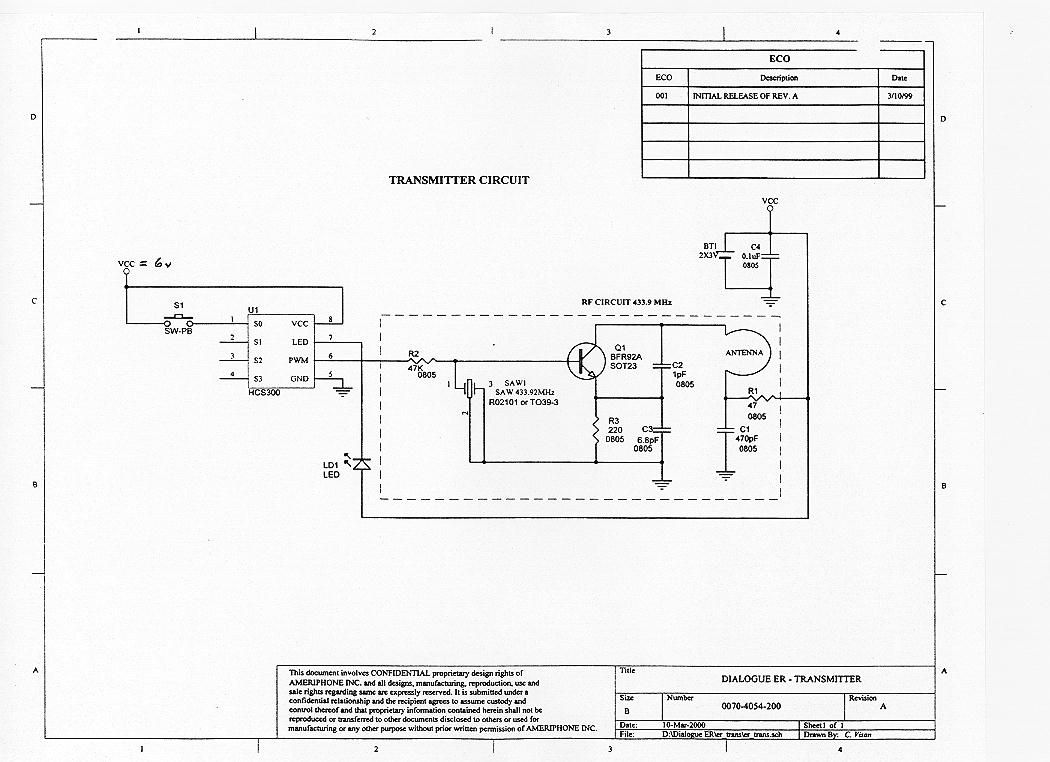

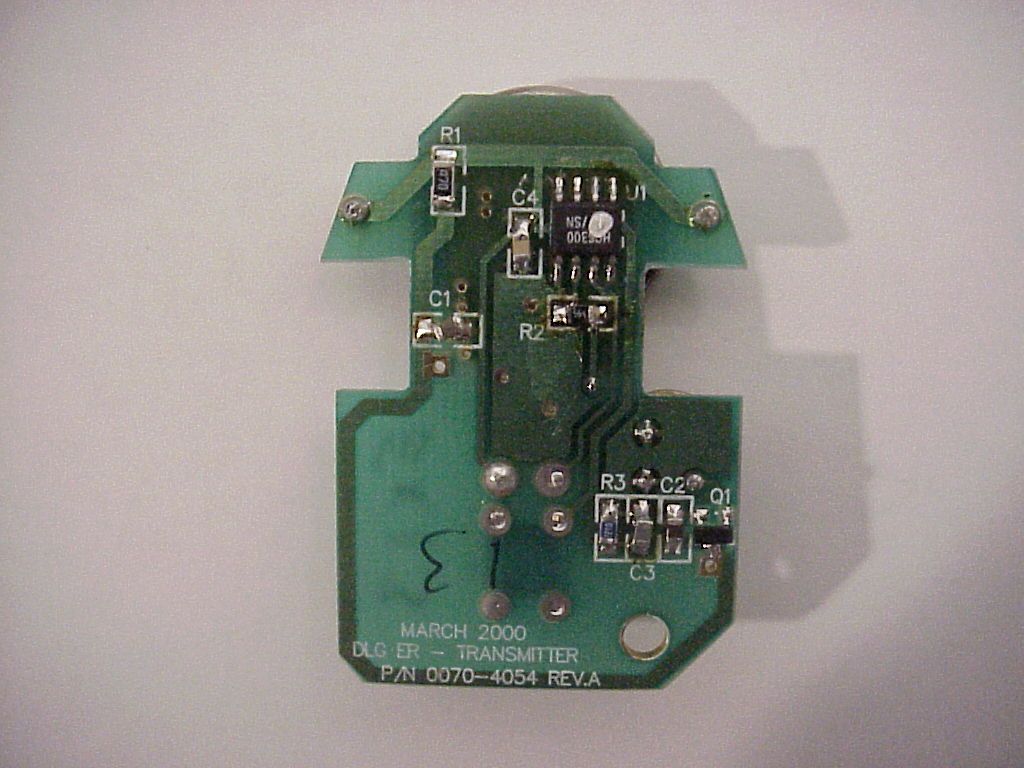

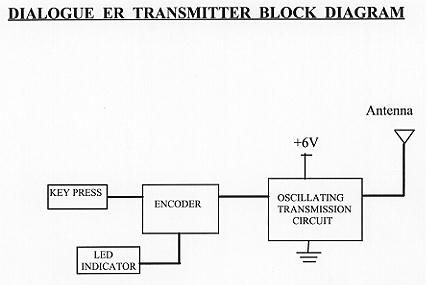

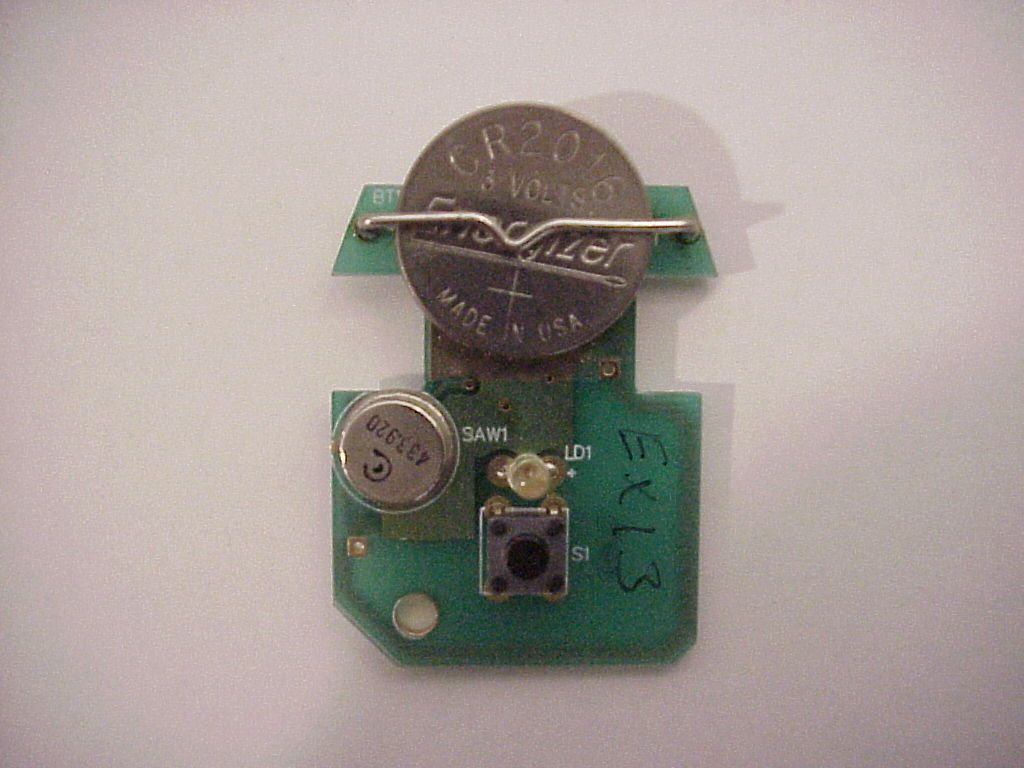

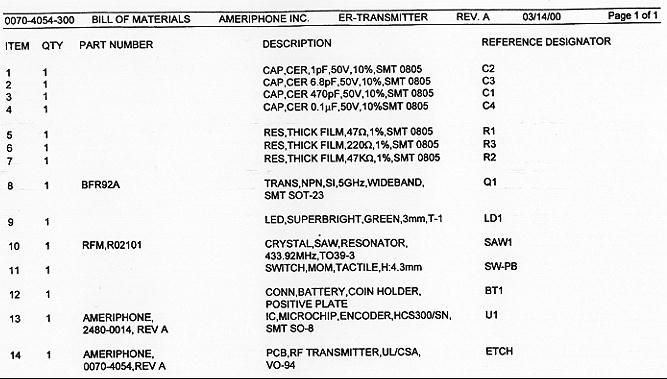

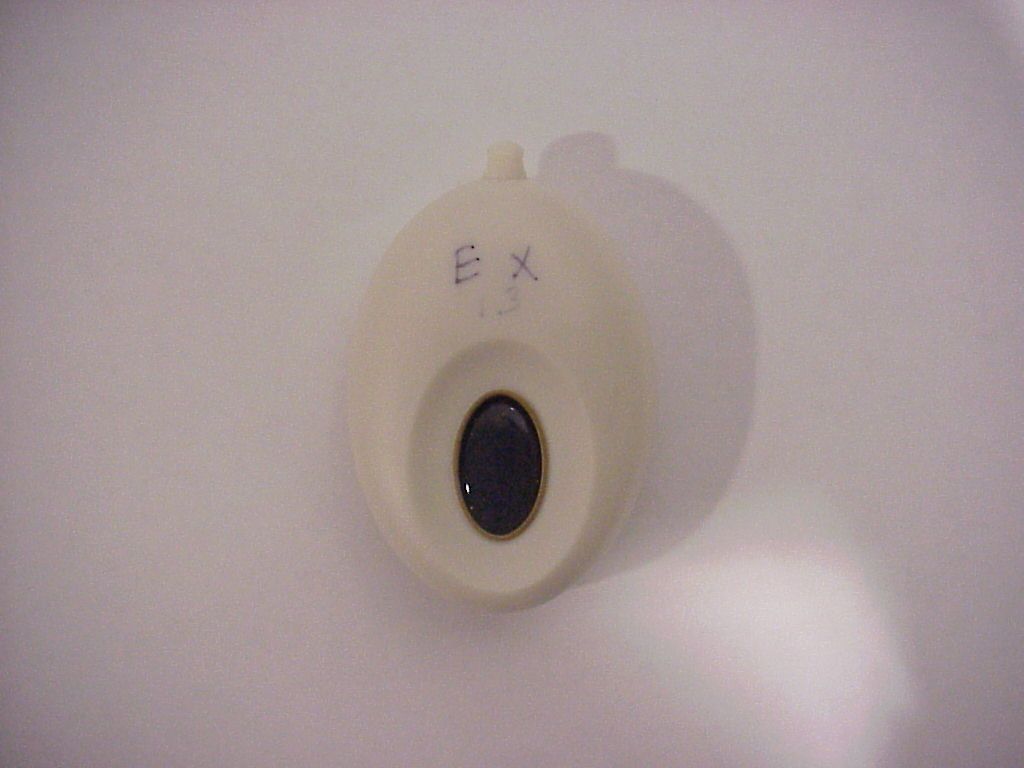

O32-ERTDialogue ER Transmitter

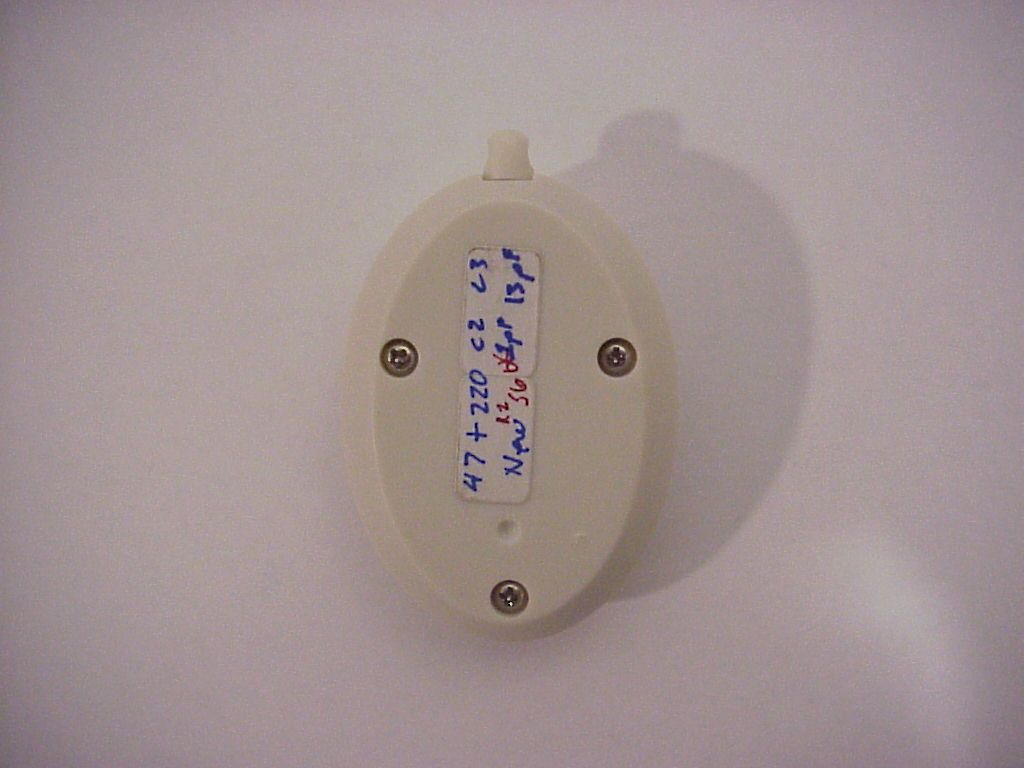

FCC ID Label FCC ID: O32-ERT Location of Label on the EUT FCC Label Loca ti on

Garwood Laboratories, Inc. Garwood Laboratories, Inc.Garwood Laboratories, Inc. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No. FR1462 EUT: Remote Control Date: June 16, 2000 1 of 26 EMC Measurement / Technical Report FCC Test Specification : FCC Part 15, Subpart C §15.231 Type of Authorization : Certification Manufacturer : Ameriphone, Inc. Equipment Under Test : Remote Wireless Transmitter Model Dialogue ER Transmitter Test Report No. : FR1462 Purchase Order No. : KC130 Document History Revision Issue Date Affected Pages Description of Modifications Revised By Approved By N/C June 16, 2000 Initial release Garwood Laboratories, Inc. Garwood Laboratories, Inc.Garwood Laboratories, Inc. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No. FR1462 EUT: Remote Control Date: June 16, 2000 2 of 26 EMC Measurement / Technical Report Document No. FR1462 From Garwood Laboratories, Inc. World Compliance Division Test for Ameriphone, Inc. Remote Wireless Transmitter Model Dialogue ER Transmitter Test Personnel Test Dates Eric Nguyen – Lead EMC Engineer June 8, 2000 Test Facility Address City, State, Zip Code Phone Fax Garwood Laboratories, Inc. 565 Porter Way Placentia, CA 92870 (714) 572-2027 (714) 572-2025 This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the equipment tested. This report may not be used to claim product endorsement by NVLAP or any agency of the U.S. government. Garwood Laboratories, Inc. Garwood Laboratories, Inc.Garwood Laboratories, Inc. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No. FR1462 EUT: Remote Control Date: June 16, 2000 3 of 26 TABLE OF CONTENTS (This document contains a total of 26 pages [excluding] attachments.) MEASUREMENT / TECHNICAL REPORT SUMMARY ............................................................................ 4 1. GENERAL INFORMATION................................................................................................................... 5 1.1 Product Description ...................................................................................................... 5 1.2 Related Submittal(s)/ Grant(s) ...................................................................................... 5 1.3 Tested System Description ............................................................................................ 5 1.4 Test Methodology .......................................................................................................... 6 1.5 Test Facility................................................................................................................... 7 2. PRODUCT LABELING.......................................................................................................................... 8 2.1 FCC ID Label................................................................................................................8 2.2 Location of Label on EUT............................................................................................. 8 2.3 Information to the User ................................................................................................. 8 3. SYSTEM TEST CONFIGURATION ....................................................................................................... 9 3.1 Justification ................................................................................................................... 9 3.2 EUT Exercise Software/Equipment ............................................................................... 9 3.3 Special Accessories ....................................................................................................... 9 3.4 Equipment Modifications .............................................................................................. 9 3.5 Configuration of Tested System .................................................................................. 10 3.6 Details of Tested System.............................................................................................. 10 4. BLOCK DIAGRAM(S) OF EUT........................................................................................................... 11 5. TEST MEASUREMENT AND EUT PHOTOS ..................................................................................... 12 6. TEST DATA .......................................................................................................................................... 17 6.1 Conducted Emissions Limits ....................................................................................... 17 6.2 Conducted Emissions Results...................................................................................... 17 6.3 General Radiated Emissions Requirements ................................................................ 18 6.4 General Radiated Emissions Results........................................................................... 18 6.5 Field Strength of Emissions Requirements.................................................................. 19 6.6 Summary Table for Highest Field Strength Levels ..................................................... 20 6.7 Field Strength Calculation .......................................................................................... 21 6.8 Occupied Bandwidth ...…
