O38-I85BReceiver Unit of the Remote Bedding Control

1 User Manual WARMING PRODUCTS IMPORTANT INSTRUCTIONS-DO NOT DESTROY As with all electrical products, misuse of product or failure toproperly follow the instructions may cause overheating, fire, orpersonal injury. Please read the product label and all of theinstructions before using your warming product.1 Do not use this warming product with an infant, a child, an incapacitated person, a paraplegic, a quadriplegic, a diabetic,one insensitive to heat such as a person with poor bloodcirculation, or anyone who cannot clearly understand theinstructions and/or operate the controls. 2 Do not use with damaged cords. Damaged cords can lead to fire. Do not trap, fold, cross, or pinch cords between bed slats,mattress, or springs, or against walls, footboards, or bed frame. 3 Do not dry clean this warming product. Cleaning liquid may damage the insulation of the heating element. Improperlaundering may cause problems with the heating wire which canlead to fire. 4 Do not pinch, flex, or expose the heating wire to rubbing. A damaged heating wire may result in possible overheating or fire. 5 Turn off the control for the warming product when not using.6 Keep control away from an open window.7 Do not use pins; they may damage the electric wiring. 8 Be sure this blanket/mattress pad/throw is used only on an AC supply current circuit of 110-120 volts. Do not use with anextension cord. 9 Excissive heating may result from folding blanket, when in actual use. 10 Keep all dogs, cats, and other pets away from this warming product. This is an electrical appliance that they can damageor be injured by. 11 Do not use blanket/mattress pad on a waterbed, sofa, bunk bed, or mechanically adjustable bed and do not use throw on awaterbed, bunkbed, or mechanically adjustable bed. 12 Do not use another electronic heating device in conjunction with your warming product. 13 Use the proper size blanket/mattress pad for your bed. For example, use a Twin Size warming blanket on a Twin Size bed. 14 If the following Important Instructions are not followed the warming product will not operate properly. 15 If you see the warming product operating improperly, unplug it immediately and call Sunbeam Consumer Service at the 800number listed under “How to Obtain Warranty Service”. Warnings and Safeguards 1 Welcome Thank you for choosing a Sunbeam ® warming product. With your purchase you’ve made a real investment inyour comfort and can look forward to staying warm andcozy for many cool days to come.With over 50 years of experience and over 25 millionhouseholds using a Sunbeam ® warming product, you can rest comfortably knowing that Sunbeam ® is the brand to trust...for quality and performance.So get ready for a more restful sleep. Table of contentsDD Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Warming Blanket . . . . . . . . . . . . . . . . . . . . . . . 2 Mattress Pad . . . . . . . . . . . . . . . . . . . . . . . . . . 3 DD Convertible Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5 Warming Blanket . . . . . . . . . . . . . . . . . . . . . . . 4 Mattress Pad . . . . . . . . . . . . . . . . . . . . . . . . . . 5 DD 2 Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7 Warming Blanket . . . . . . . . . . . . . . . . . . . . . . . 6 Mattress Pad . . . . . . . . . . . . . . . . . . . . . . . . . . 7 DD Z Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9 Warming Blanket . . . . . . . . . . . . . . . . . . . . . . . 8 Mattress Pad . . . . . . . . . . . . . . . . . . . . . . . . . . 9 DD Gradient Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11 Warming Blanket . . . . . . . . . . . . . . . . . . . . . . 10 Mattress Pad . . . . . . . . . . . . . . . . . . . . . . . . . 11 DDY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13 Warming Blanket . . . . . . . . . . . . . . . . . . . . . . 12 Mattress Pad . . . . . . . . . . . . . . . . . . . . . . . . . 13 LED Throw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14Auto-off feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 How to obtain warranty service . . . . . . . . . . . . . 20 2 DD Remote Features:• REMOTE CONTROL – sends heat level control commands to the base unit and adjusts the blankets warmth accordingly. • ELECTRONIC DIGITAL CONTROL – for easy setting with backlit LCD• AUTO-OFF – 10 hour independent auto-off (see page 15) • 10 TEMPERATURE SETTINGS – select your personal comfort• PRE-HEAT – for cozy warmth before bedtime• SOLID STATE – for accurate and consistent heat control• EASY OPERATION – Electronic digital controller for easy operation• EASY GRIP – ergonomic control for easy operation • CORDLESS – no more wires to tangle• AUDIBLE BEEP – when changing heat settings, on/off setting and automatic programming selections. Pre-heat1 To use the preheat feature, simply press the round “On/Off” button andthen press the “Preheat” button. The preheat function will heat the bed fora period of 30 minutes. 2 To reset the preheat feature, simply press the “On/Off” button OFF. 3 To turn back ON repeat step1. CAUTION: Do not plug main power cord into the wall outlet until you have completely set up your warming blanket per the instructions.IF YOU DO NOT FOLLOW THIS SEQUENCE, THE WARMING BLANKET WILL NOT WORK.• Disconnect power cord from wall before detaching control from warmi…

Text truncated - open the document above for the full version.

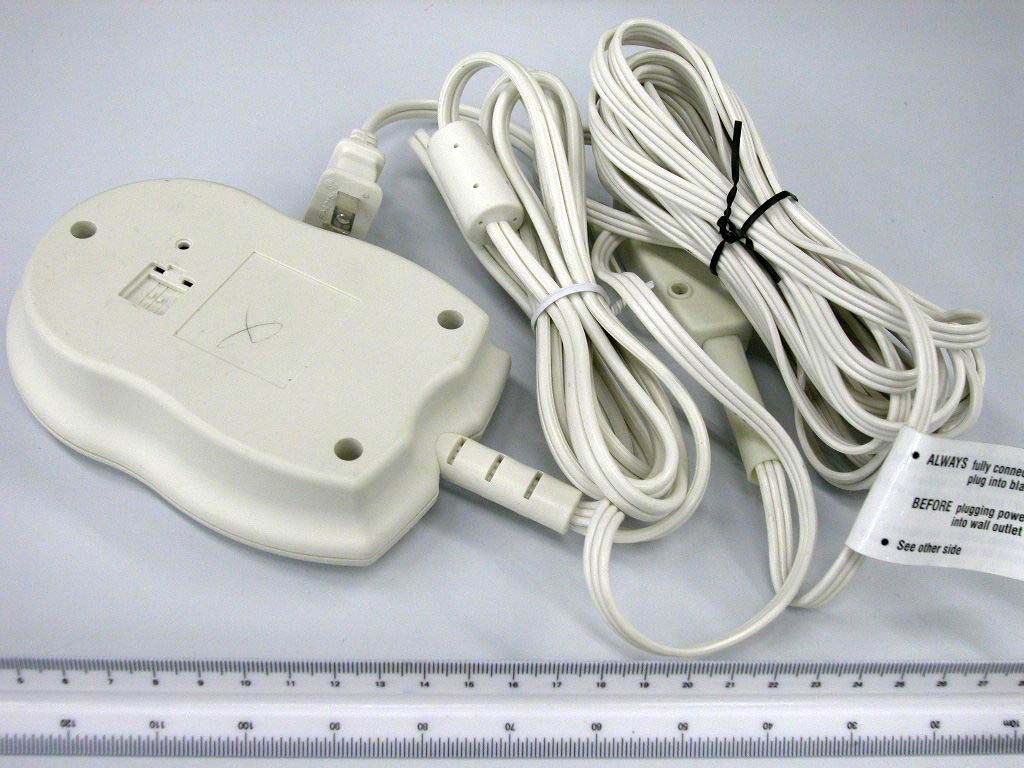

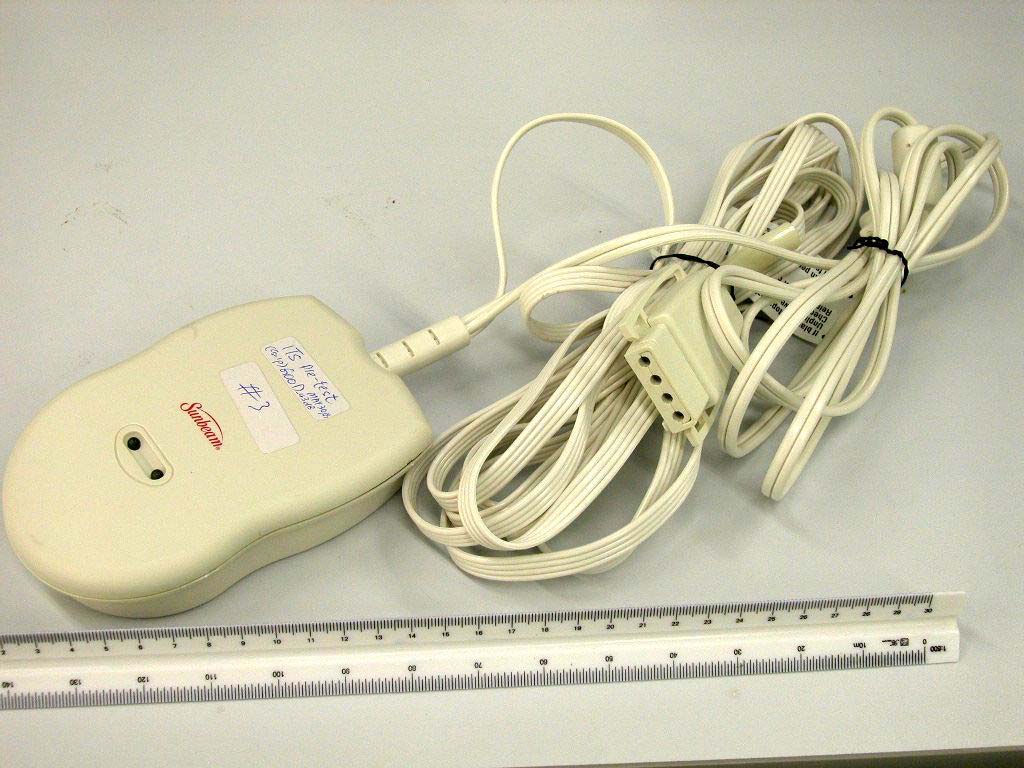

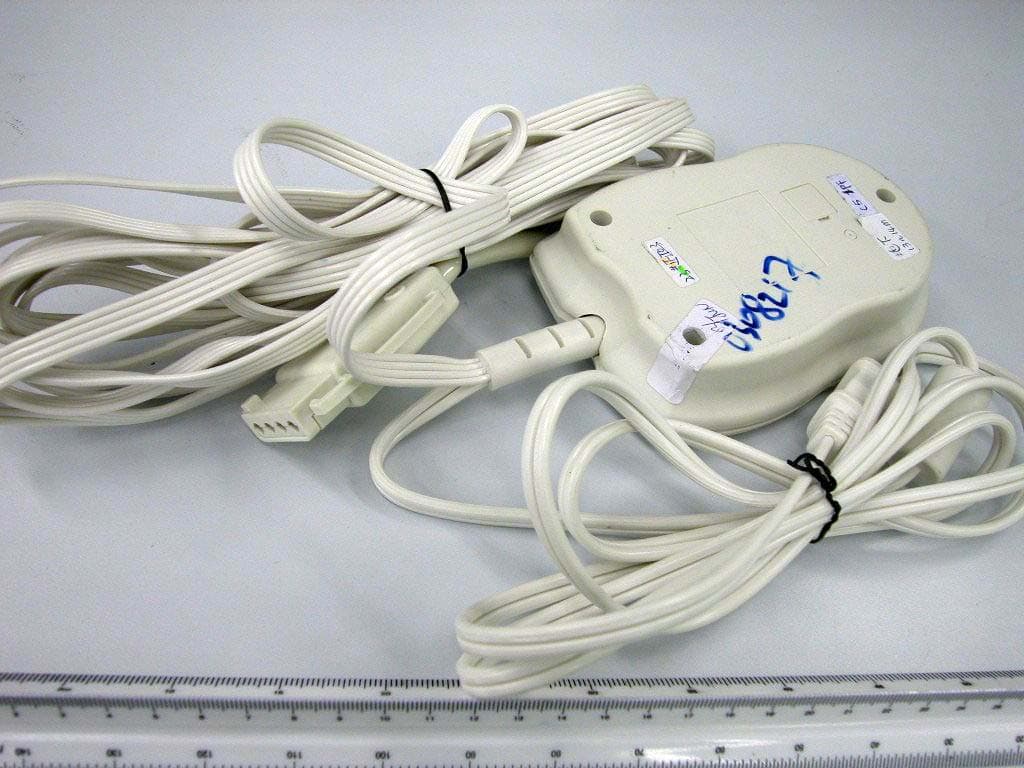

Test Setup FCCID : O38-I85B External Photo –front (Dual) External Photo – rear (Dual) Test Setup FCCID : O38-I85B External Photo – front (Single) External Photo – rear (Single)

Model No: I85BKQ AC 120V~, 60Hz, 180Wx2 3043555 CONTROL MADE IN CHINA FABRIQUE EN CHINE FCC ID: O38-I85B IC: CONFORMS TO UL STD 964 CERTIFIED TO CSA STD. C22.2 No. 101 ® C US 35.5 * 32.2mm

Test Setup FCC ID : O38-I85B Internal Photo – 1 (Dual) Internal Photo – 2 (Dual) Test Setup FCC ID : O38-I85B Internal Photo – 3 (Dual) Internal Photo – 4 (Single) Test Setup FCC ID : O38-I85B Internal Photo – 5 (Single) Internal Photo – 6 (Single)

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Sunbeam Products, Inc. Application For Certification (FCC ID: O38-I85B) Superregenerative Receiver 0308217 DL/Ann Choy June 13, 2003 INTERTEK TESTING SERVICES FCC ID: O38-I85B i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: O38-I85B ii MEASUREMENT/TECHNICAL REPORT Sunbeam Products, Inc. - MODEL: Dual Base Style No. I85BKQ Single Base Style no. I85B FCC ID: O38-I85B This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [08-20-02 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8504 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: O38-I85B iii Table of Contents 1.0 General Description............................................................................................................2 1.1 Product Description..............................................................................................................2 1.2 Related Submittal(s) Grants..................................................................................................2 1.3 Test Methodology.................................................................................................................3 1.4 Test Facility..........................................................................................................................3 2.0 System Test Configuration.................................................................................................5 2.1 Justification..........................................................................................................................5 2.2 EUT Exercising Software.....................................................................................................5 2.3 Special Accessories..............................................................................................................5 2.4 Equipment Modification.......................................................................................................6 2.5 Measurement Uncertainty.....................................................................................................6 2.6 Support Equipment List and Descriptin................................................................................6 3.0 Emission Results.................................................................................................................8 3.1 Field Strength Calculation....................................................................................................9 3.2 Radiated Emission Configuration Photograph....................................................................10 3.3 Radiated Emission Data......................................................................................................11 3.4 Conducted Emission Configuration Photograph.................................................................13 3.5 Conducted Emission Data...................................................................................................14 4.0 Equipment Photographs...................................................................................................16 5.0 Product Labelling.............................................................................................................18 6.0 Technical Specifications...................................................................................................20 7.0 Instruction Manual...........................................................................................................22 8.0 Miscellaneous Information...............................................................................................24 8.1 Stabilization Waveform......................................................................................................25 8.2 Discussion of Pulse Desensitization....................................................................................26 8.3 Calculation of Average Factor............................................................................................27 8.4 Emissions Test Procedures.................................................................................................28 INTERTEK TESTING SERVICES FCC ID: O38-I85B iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Setup Photo Conducted Emission conducted photos.doc Test Report Conducted Emission Test Result conducted.pdf External Photo External Photo …

Text truncated - open the document above for the full version.

Intertek Testing Services ETL SEMKO Report No.:0308217 Ctrl No.: PAGE 1 Tested By:Hong, Report No.:0308217 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Intertek Testing Services ETL SEMKO Report No.:0308217 Ctrl No.: Tested By:Hong, Report No.:0308217 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 53.9 66.0 0.21000 48.6 63.2 0.34500 35.1 59.1 0.41500 29.7 57.6 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit exceeded

Test Setup FCCID : O38-I85B Radiated -front Radiated - rear

Test Setup FCCID : O38-I85B Conduct Photo - 1 Conduct Photo - 2 Test Setup FCCID : O38-I85B Conduct Photo – 3
