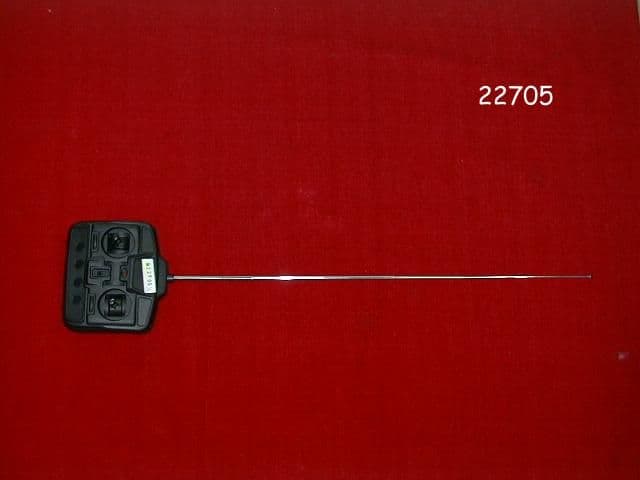

O3N9034Remote Control Car

electronic GmbH FCC – Testreport No. FCC-22705 Date: 07.06.2000 Page 1 (6) TEST EQUIPMENT LIST QuantityEquipmentSerial-numberManufacturer 2Receiver ESVS 30#82852/006Rohde & Schwarz Receiver ESVS 30#833825/010Rohde & Schwarz 3Receiver ESHS 30#839667/002Rohde & Schwarz Receiver ESHS 30#839667/008Rohde & Schwarz Receiver ESHS 30#39667/008Rohde & Schwarz 2Broadband antenna 30MHz-1000 MHz CBL 6111 #1064 #1331 Chase 1Loop Antenna 9kHz-30MHz HFH2-Z2 #871336/48Rohde & Schwarz 1Turntable DT 312#312/336Deisel 3Shielded room DC... 10 GHz 3,5 m x 3,5 mSiemens 2LISN ESH2-Z5#831079/018Rohde & Schwarz LISN ESH2-Z5#879675/028Rohde & Schwarz 1LISN NSLK 8127#8127230Schwarzbeck 2Antenna mast system AM 9104Schwarzbeck 3Plotter HP7550A#2936A43117Hewlett Packard Plotter HP7550A#2631A46736Hewlett Packard Plotter HP7550B#3026A03892Hewlett Packard 1Spectrum Analyzer 8562A#3043A05643Hewlett Packard 3Controller 300Hewlett Packard Controller 300Hewlett Packard Controller 300Hewlett Packard 3Floppy-Disk-Drive 9122C#2804A04362Hewlett Packard Floppy-Disk-Drive 9122D#2614A63990Hewlett Packard Floppy-Disk-Drive 9122D#2339A13495Hewlett Packard 3Monitor 35741B#8838J26540Hewlett Packard Monitor 35731B#8627K33194Hewlett Packard Monitor 35731B#8619K25961Hewlett Packard 3Keyboard 46021AD#2844S60217Hewlett Packard Keyboard 46021AD#2645S20154Hewlett Packard Keyboard 46021AD#2706S40044Hewlett Packard electronic GmbH FCC - Testreport No. FCC-22705 Date: 07.06.2000 Page 2 (6) Equipment under test (on turntable) Testreceiver ESHS30 R+S FDD 9122C HP Computer 300 HP Monitor 35731B HP IEEE-Bus TESTFACILITY required test distance (3m, 10m, ..) Loop Antenna HFH2-Z2 Rohde & Schwarz Radiated Emission Testprocedure Magnetic field emissions Plotter 7550A HP Keyboard 46021AD HP electronic GmbH FCC - Testreport No. FCC-22705 Date: 07.06.2000 Page 3 (6) Notes for Radiation Measurement (Magnetic field emissions) acc. to ANSI C63.4 - 1992 1. Measurement facility: Measurement facility located at Frontenhausen (Germany) on field with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 2. Measuring instrumentations: Rohde & Schwarz ESHS 30 Test Receiver ( 9 KHz - 30 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 10 KHz. 3. Frequency range scanned: The frequency range 9KHz - 30 MHz has been scanned. Readings of the highest emissions relating to the limit were reported as above. 4. Measuring antenna: Loop Antenna for the frequency range 9kHz - 30MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The center of the loop 1m above the ground plane, positioned with its plane vertical at the specified distance and rotated about its vertical axis and placed horizontally for maximum response at each azimuth about the EUT. 5. Arrangement of EUT: During the test, the sample was operated at rated supply voltage and arranged for maximum emissions. 6. Measuring Procedure: In accordance with the relevant sections of American National Standards Institute (ANSI) C63.4-1992 "Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 KHz to 40 GHz". electronic GmbH FCC - Testreport No. FCC-22705 Date: 07.06.2000 Page 4 (6) electronic GmbH FCC - Testreport No. FCC-22705 Date: 07.06.2000 Page 5 (6) electronic GmbH FCC - Testreport No. FCC-22705 Date: 07.06.2000 Page 6 (6)

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 22705/0/400F FCC – Test Report No. 22705/0/400F Date:2000-06-07 Page 2 of 11 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: Remote Control Car -- 27 MHz Transmitter Model: 9034 Applicant: KAO SHEK TOYS MANUFACTURES LTD Manufacturer : JJ ELECTRONICS ASSEMBLY CO. FCC – Test Report No. 22705/0/400F Date:2000-06-07 Page 3 of 11 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure 8. Interference Radiation (Datasheet) 9. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) 10. Measurement of Emissions within Band Edges (Datasheet) 11. Notes for Measurement of Emissions within Band Edges FCC – Test Report No. 22705/0/400F Date:2000-06-07 Page 4 of 11 LABORATORY - REPORT APPLICANT: ADDRESS: KAO SHEK TOYS MANUFACTURES LTD Block A & B, 9/F., Cheung Fat Bldg. 7-9 Hill Road Shektongtsui, HK HONG KONG DATE OF SAMPLE RECEIVED: 2000-05-05 DATE OF TESTING: 2000-05-09 to 2000-06-07 DESCRIPTION OF SAMPLE: Product:Remote Control Car -- 27 MHz Transmitter Manufacturer:JJ ELECTRONICS ASSEMBLY CO. Model number:9034 Rating:DC 9V ('6F22' Size Battery x 1) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. (Signature provided on printed copy to client) Authorized Signature Remark : Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 22705/0/400F Date:2000-06-07 Page 5 of 11 Summary of Test Results Interference Radiation: Test result: O.K. Test data: See attached data sheet Interference Voltage: Test result: N.A. Test data: N.A. Measurement of Emissions within Band Edges Test result: O.K. Test data: See attached data sheet FCC – Test Report No. 22705/0/400F Date:2000-06-07 Page 6 of 11 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50 Ω , 50 μ H 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50 Ω , 50 μ H 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW10555 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ 120 cm FCC – Test Report No. 22705/0/400F Date:2000-06-07 Page 7 of 11 Radiated Emission Test Procedure Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 Test Report No. 22705/0/400F Page : 8 of 11 92Interference Radiation Measurement of Radiated Emissions (27MHz-1000MHz) Acc:FCC Part 15 Subpart C IECC Ref:22705/0/400FTest Equipment Model:9034Receiver: ESVP Rohde & Schwarz Applicant:KAO SHEK TOYS MANUFACTURES LTDAntenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:Remote Control Car Connected sets: - Operating mode:Power "On" Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result (μV/m) Vert. Test Result (μV/m) Limit (μV/m) Harm.254.28<16296.3< 1358 100 Harm.381.42<16275.2< 1241 100 Harm.4108.56<16<169.5< 19 < 19 150 Harm.5135.7<16<1612.2< 26 < 26 150 Harm.6162.84<16<1613.6< 30 < 30 150 Harm.7189.98<16<1614.8< 35 < 35 150 Harm.8217.12<16<1615.7< 38 < 38 200 Harm.9244.26<16<1616.5< 42 < 42 200 Harm.10271.4<16<1617.3< 46 < 46 200 Harm.11298.54<16<1618.0< 50 < 50 200 Harm.12325.68<16<1616.8< 44 < 44 200 Harm.13352.82<16<1617.4< 47 < 47 200 Harm.14379.96<16<1617.9< 50 < 50 200 Harm.15407.1<16<1618.4< 52 < 52 200 Harm.16434.24<16<1618.8< 55 < 55 200 Harm.17461.38<16<1619.2< 57 < 57 200 Harm.18488.52<16<1619.5< 60 < 60 200 Harm.19515.66<16<1619.9< 62 < 62 200 Harm.20542.8<16<1620.1< 64 < 64 200 Harm.21569.94<16<1620.5< 67 < 67 200 Harm.22597.08<16<1620.9< 70 < 70 200 Harm.23624.22<16<1621.2< 73 < 73 200 Harm.24651.36<16<1621.6< 76 < 76 200 Harm.25678.5<16<1622.1< 80 < 80 200 Harm.26705.64<16<1622.5< 84 < 84 200 Harm.27732.78<16<1622.8< 87 < 87 200 Harm.28759.92<16<1623.2< 91 < 91 200 Harm.29787.06<16<1623.5< 95 < 95 200 Harm.30814.2<16<1623.9< 99 < 99 200 Harm.31841.34<16<1624.2< 103 < 103 200 Harm.32868.48<16<1624.6< 107 < 107 200 Harm.33895.62<16<1624.9< 111 < 111 200 Harm.34922.76<16<1625.3< 117 < 117 200 Harm.35949.9<16<1625.8< 122 < 122 200 Harm.36977.04<16<1626.2< 128 < 128 500 Radiation emission (30 metres) at fundamental frequency (refer to test report no. FCC-22705 issued by PKM Electronic GmbH) : Frequency (MHz) Test Result, QP (dBμV)Limit (dBμV) 27.1454880 Test result: ̋ ̋ O.K. Date: 07 Jun 2000 Operator: _______________ FCC – Test Report No. 22705/0/400F Date:2000-06-07 Page 9 of 11 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.…

Text truncated - open the document above for the full version.

electronic GmbH FCC – Testreport No. FCC-22705 Date: 07.06.2000 Page 1 (6) TEST EQUIPMENT LIST QuantityEquipmentSerial-numberManufacturer 2Receiver ESVS 30#82852/006Rohde & Schwarz Receiver ESVS 30#833825/010Rohde & Schwarz 3Receiver ESHS 30#839667/002Rohde & Schwarz Receiver ESHS 30#839667/008Rohde & Schwarz Receiver ESHS 30#39667/008Rohde & Schwarz 2Broadband antenna 30MHz-1000 MHz CBL 6111 #1064 #1331 Chase 1Loop Antenna 9kHz-30MHz HFH2-Z2 #871336/48Rohde & Schwarz 1Turntable DT 312#312/336Deisel 3Shielded room DC... 10 GHz 3,5 m x 3,5 mSiemens 2LISN ESH2-Z5#831079/018Rohde & Schwarz LISN ESH2-Z5#879675/028Rohde & Schwarz 1LISN NSLK 8127#8127230Schwarzbeck 2Antenna mast system AM 9104Schwarzbeck 3Plotter HP7550A#2936A43117Hewlett Packard Plotter HP7550A#2631A46736Hewlett Packard Plotter HP7550B#3026A03892Hewlett Packard 1Spectrum Analyzer 8562A#3043A05643Hewlett Packard 3Controller 300Hewlett Packard Controller 300Hewlett Packard Controller 300Hewlett Packard 3Floppy-Disk-Drive 9122C#2804A04362Hewlett Packard Floppy-Disk-Drive 9122D#2614A63990Hewlett Packard Floppy-Disk-Drive 9122D#2339A13495Hewlett Packard 3Monitor 35741B#8838J26540Hewlett Packard Monitor 35731B#8627K33194Hewlett Packard Monitor 35731B#8619K25961Hewlett Packard 3Keyboard 46021AD#2844S60217Hewlett Packard Keyboard 46021AD#2645S20154Hewlett Packard Keyboard 46021AD#2706S40044Hewlett Packard electronic GmbH FCC - Testreport No. FCC-22705 Date: 07.06.2000 Page 2 (6) Equipment under test (on turntable) Testreceiver ESHS30 R+S FDD 9122C HP Computer 300 HP Monitor 35731B HP IEEE-Bus TESTFACILITY required test distance (3m, 10m, ..) Loop Antenna HFH2-Z2 Rohde & Schwarz Radiated Emission Testprocedure Magnetic field emissions Plotter 7550A HP Keyboard 46021AD HP electronic GmbH FCC - Testreport No. FCC-22705 Date: 07.06.2000 Page 3 (6) Notes for Radiation Measurement (Magnetic field emissions) acc. to ANSI C63.4 - 1992 1. Measurement facility: Measurement facility located at Frontenhausen (Germany) on field with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 2. Measuring instrumentations: Rohde & Schwarz ESHS 30 Test Receiver ( 9 KHz - 30 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 10 KHz. 3. Frequency range scanned: The frequency range 9KHz - 30 MHz has been scanned. Readings of the highest emissions relating to the limit were reported as above. 4. Measuring antenna: Loop Antenna for the frequency range 9kHz - 30MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The center of the loop 1m above the ground plane, positioned with its plane vertical at the specified distance and rotated about its vertical axis and placed horizontally for maximum response at each azimuth about the EUT. 5. Arrangement of EUT: During the test, the sample was operated at rated supply voltage and arranged for maximum emissions. 6. Measuring Procedure: In accordance with the relevant sections of American National Standards Institute (ANSI) C63.4-1992 "Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 KHz to 40 GHz". electronic GmbH FCC - Testreport No. FCC-22705 Date: 07.06.2000 Page 4 (6) electronic GmbH FCC - Testreport No. FCC-22705 Date: 07.06.2000 Page 5 (6) electronic GmbH FCC - Testreport No. FCC-22705 Date: 07.06.2000 Page 6 (6)
