O3T065-005-0351Leveltronic NT and Minilevel NT with radio TX

WYLER AG Im Hölderli CH-8405 WINTERTHUR Switzerland Tel.0041 (0) 52 233 66 66 Fax.0041 (0) 52 233 20 53 Homepage: http://www.wylerag.com E-Mail : [email protected] OPERATOR'SMANUAL LEVELTRONIC NT and MINILEVEL NT with Radio transmission and LEVELMETER 2000 File: „nt_funke.doc“April 24/.2000 Seite 2 von 53 Seiten Content SubjectPage 1. BASICS3 1.1. Instrument's overview3 1.2. Measuring instruments / External display instruments4 1.3. Measuring procedure / general use6 1.4. Zero setting by reversal measurement (Absolute ZERO)11 1.5. Applications11 1.6. WYLER software LEVEL SOFT16 2. DETAILED INFORMATION to the various instruments18 2.1. MINILEVEL / LEVELTRONIC „classic“18 2.2. MINILEVEL / LEVELTRONIC „NT“32 3. TECHNICAL DATA45 3.1. LEVELTRONIC NT45 3.2. MINILEVEL NT45 3.3. RADIO MODULE46 4. UPGRADE OF MINILEVEL NT AND LEVELTRONIC NT TO RADIO TRANSMISSION UNITS47 5. MAINTENANCE / easy to cure malfunctions49 6. ACCESSORIES / SPARE PARTS51 7. STORING51 8. DECLARATION OF CONFORMITY 52 Änderungen / Modifications: Datum / DateGeändert durch Modified by Beschreibung der Änderung Description of modifications Thefollowing manualsare ready for download on the internet homepage http://www.wylerag.com: • DYNAM, the software for measuring and monitoring for use with ZEROTRONIC- sensors • LEVELSOFT WIN99, the software for inclination and flatness measurement with WYLER inclination measuring instruments • LEVELMETER 2000 • LEVELMETER „light“ • +CLINO PLUS+, the handy inclination measuring instrument • CLINO 2000, the instrument with a number of features • MINILEVEL / LEVELTRONIC „classic“ and „NT“ • Remote Display, the simple display unit • COMPENDIUM, the informative brochure for our agents with an overview on our products, technologies and applications • Interface description RS485 These manuals can also be received against a nominal fee on a CD„ALL-IN-ONE“if ordered at WYLER AG. On this CD the manuals are available in different languages Seite 3 von 53 Seiten 1.BASICS The family of electronic inclination measuring instruments is very well suited for all kind of precision measurement. Two configurations are possible I.Communication from the measuring instrument to the external display unit via cable Using this conventional configuration the data transmission between the measuring instruments (MINILEVEL NT und LEVELTRONIC NT) are connected to the external display unit (LEVELMETER 2000 or Levelmeter C25 (analogue model)) with cables II.Communication from the measuring instrument to the external display unit via radio module Using the configuration „wireless transmission“ the data will be transmitted via radio transmission to the external display unit (possible with LEVELMETER 2000 only) IMPORTANT:The MINILEVEL NT still can be used as stand alone instruments as well Depending on the country in which the units are used the respective available free to use frequencies are 433MHz or 902 MHz. (Technical data seePoint 3) 1.1INSTRUMENT’S OVERVIEW MINILEVEL NTwith integrated display and radio transmission unit installed 2LEVELTRONIC NTwith LEVELMETER 2000 and cable connection 2MINILEVEL NTwith LEVELMETER 2000 and radio transmission module as an engineer set Seite 4 von 53 Seiten 1.2MEASURING INSTRUMENTS / EXTERNAL DISPLAY UNITS Differences between MINILEVEL / LEVELTRONIC concerning display. TheMINILEVELis equipped with anintegrated displayand can be used as a stand-alone instrument. It is however possible to connect it to a Levelmeter (E.g. LEVELMETER 2000) to receive remote display or to use it together with another instrument for differential measurement. Picture right: MINILEVEL NT with integrated radio transmission module MINILEVEL NTwith integrated radio transmission module TheLEVELTRONICinstruments are not equipped with an internal display and require therefore the connection to anexternal display unit. Picture rights: LEVELTRONIC with integrated radio transmission module LEVELTRONIC NTwith integrated radio transmission module 2LEVELTRONIC NTwith LEVELMETER 2000 (Cable connection) 2LEVELTRONIC NTwith LEVELMETER 2000 and radio transmission box Seite 5 von 53 Seiten Differences between LEVELMETER 25, C25 and LEVELMETER 2000 LEVELMETER C25/DC Measured values in analogue form possible via cables only TheLEVELMETER C25is very simple in using Possible connections are: • LEVELTRONIC NT • MINILEVEL NT • MINILEVEL „classic“ LEVELMETER 2000 Digital data transmission possible via cables or via wireless transmission TheLEVELMETER 2000has a number of built-in sophisticated options, which can be used by the skilled user. TheVersion „RADIO TRANSMISSION“is only possible with the LEVELMETER 2000 The LEVELMETER C25 and LEVELMETER 2000 are especially well suited for use with the above-mentioned instruments, especially when differential measurement is applied in precision measurements. (Engineer set) All the mentioned instruments are optimally used together with theflatness measurement software of WYLER AG (LEVELSOFT WIN99) Seite 6 von 53 Seiten 1.3MEASURING PROCEDURE / GENERAL USE 1.3.1. TYPICAL CONFIGURATION WITH AND WITHOUT RADIO TRANSMISSION Analogue data transmission Two LEVELTRONIC NT or MINILEVEL NT are connected to a LEVELMETER C25 Digital data transmission via cables Two LEVELTRONIC NT or MINILEVEL NT connected with a LEVELMETER 2000 Digital data transfer via radio transmission Two LEVELTRONIC NT or MINILEVEL NT wireless connected via a transmission box to a LEVELMETER 2000 Digital data transfer via radio transmission as well as with cable Generally it is also possible to connect one of the instruments via cable to the LEVELMETER 2000 and receive the data of the second, further away instrument, via radio transmission to the LEVELMETER 2000. Additional information to the configuration can be seen under Point 2 „Detailed information to the various instruments” Seite 7 von 53 Seiten 1.3.2. BASIC SET-UP OF THE INCLINATION MEASURING INSTRUMENTS/PLUS-MINUS RULE The instrument should always be placed in a way that the cable…

Text truncated - open the document above for the full version.

WYLER AG Im Hölderli CH-8405 WINTERTHUR Switzerland Tel.0041 (0) 52 233 66 66 Fax.0041 (0) 52 233 20 53 Homepage: http://www.wylerag.com E-Mail:[email protected] BLOCK DIAGRAM for FCC Application LEVELTRONIC NT and MINILEVEL NT with Radio transmission and LEVELMETER 2000 Radio Module USA with 902MHz FCC ID:O3T065-005-0351 Applicant:Wyler AG Switzerland Correspondence Reference Number:16011 731 Confirmation Number:EA98309 File: „block diagram fcc nt_funke.doc“September 2000 Seite 2 von 2 Seiten B LOCK DIAGRAM RADIO MODULE RFM 900 - LC

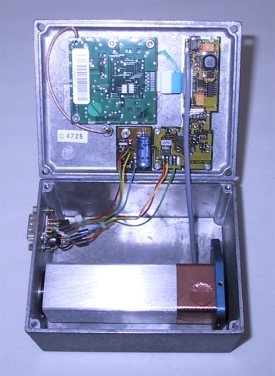

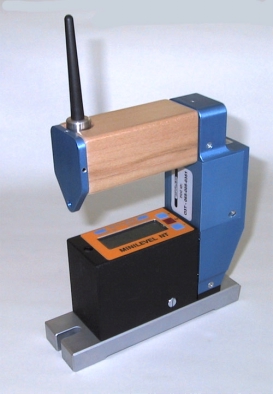

WYLER AG Im Hölderli CH-8405 WINTERTHUR Switzerland Tel.0041 (0) 52 233 66 66 Fax.0041 (0) 52 233 20 53 Homepage: http://www.wylerag.com E-Mail:[email protected] • FCC ID / Label Location • External PHOTOS • Internal PHOTOS for FCC Application LEVELTRONIC NT and MINILEVEL NT with Radio transmission and LEVELMETER 2000 Radio Module USA with 902MHz FCC ID:O3T065-005-0351 Applicant:Wyler AG Switzerland Correspondence Reference Number:16011 731 Confirmation Number:EA98309 File: „photos fcc nt_funke.doc“September 2000 Seite 2 von 6 Seiten Channel switch 10 Channels are available: The same channel is required for the instruments connected together In case of transmission problems another channel may be chosen. The originally used channel may be occupied by another user. LED red Sender/Receiver ON Power for sensor ON Power for sensor only ON Not enough battery power ON / OFF Measuring instrument and data transmission ON/OFF LED green Data transmission (sending/receiving) Display USA 902 MHz Display USA 902MHz Connector Cable connection to LEVELMETER for conventional transmission of data Switch ON the instrument • press once only the button <ON/OFF> the instrument and the sender/receiver starts to work. The red LED is blinking rapidly • with another short push to the button the sender/receiver may be stopped. Local measurement with the instrument only. The red LED is blinking slowly. • with another short push to the button the sender/receiver is activated again Switch OFF the instrument • Press the button <ON>/<OFF> a few seconds until the red LED has stopped blinking. Seite 3 von 6 Seiten Instrument MINILEVEL NT with integrated Radio Transmission Module Handle of the MINILEVEL NT with attached “FCC ID”- Label Seite 4 von 6 Seiten Handle of the Instrument MINILEVEL NT with integrated Radio Transmission Module dismantled (Antenna with Module and Cover) Handle of the Instrument MINILEVEL NT with integrated Radio Transmission Module dismantled Seite 5 von 6 Seiten Antenna for the Instrument MINILEVEL NT with integrated Radio Transmission Module as well as for the Radio Box (VIEW “PCB Side”) Antenna for the Instrument MINILEVEL NT with integrated Radio Transmission Module as well as for the Radio Box (“Top View”) Radio Box with integrated Radio Transmission Module labeled with FCC ID Seite 6 von 6 Seiten Opened Radio Box with integrated Radio Transmission Module

WYLER AG Im Hölderli CH-8405 WINTERTHUR Switzerland Tel.0041 (0) 52 233 66 66 Fax.0041 (0) 52 233 20 53 Homepage: http://www.wylerag.com E-Mail:[email protected] • FCC ID / Label Location • External PHOTOS • Internal PHOTOS for FCC Application LEVELTRONIC NT and MINILEVEL NT with Radio transmission and LEVELMETER 2000 Radio Module USA with 902MHz FCC ID:O3T065-005-0351 Applicant:Wyler AG Switzerland Correspondence Reference Number:16011 731 Confirmation Number:EA98309 File: „photos fcc nt_funke.doc“September 2000 Seite 2 von 6 Seiten Channel switch 10 Channels are available: The same channel is required for the instruments connected together In case of transmission problems another channel may be chosen. The originally used channel may be occupied by another user. LED red Sender/Receiver ON Power for sensor ON Power for sensor only ON Not enough battery power ON / OFF Measuring instrument and data transmission ON/OFF LED green Data transmission (sending/receiving) Display USA 902 MHz Display USA 902MHz Connector Cable connection to LEVELMETER for conventional transmission of data Switch ON the instrument • press once only the button <ON/OFF> the instrument and the sender/receiver starts to work. The red LED is blinking rapidly • with another short push to the button the sender/receiver may be stopped. Local measurement with the instrument only. The red LED is blinking slowly. • with another short push to the button the sender/receiver is activated again Switch OFF the instrument • Press the button <ON>/<OFF> a few seconds until the red LED has stopped blinking. Seite 3 von 6 Seiten Instrument MINILEVEL NT with integrated Radio Transmission Module Handle of the MINILEVEL NT with attached “FCC ID”- Label Seite 4 von 6 Seiten Handle of the Instrument MINILEVEL NT with integrated Radio Transmission Module dismantled (Antenna with Module and Cover) Handle of the Instrument MINILEVEL NT with integrated Radio Transmission Module dismantled Seite 5 von 6 Seiten Antenna for the Instrument MINILEVEL NT with integrated Radio Transmission Module as well as for the Radio Box (VIEW “PCB Side”) Antenna for the Instrument MINILEVEL NT with integrated Radio Transmission Module as well as for the Radio Box (“Top View”) Radio Box with integrated Radio Transmission Module labeled with FCC ID Seite 6 von 6 Seiten Opened Radio Box with integrated Radio Transmission Module

WYLER AG Im Hölderli CH-8405 WINTERTHUR Switzerland Tel.0041 (0) 52 233 66 66 Fax.0041 (0) 52 233 20 53 Homepage: http://www.wylerag.com E-Mail:[email protected] • FCC ID / Label Location • External PHOTOS • Internal PHOTOS for FCC Application LEVELTRONIC NT and MINILEVEL NT with Radio transmission and LEVELMETER 2000 Radio Module USA with 902MHz FCC ID:O3T065-005-0351 Applicant:Wyler AG Switzerland Correspondence Reference Number:16011 731 Confirmation Number:EA98309 File: „photos fcc nt_funke.doc“September 2000 Seite 2 von 6 Seiten Channel switch 10 Channels are available: The same channel is required for the instruments connected together In case of transmission problems another channel may be chosen. The originally used channel may be occupied by another user. LED red Sender/Receiver ON Power for sensor ON Power for sensor only ON Not enough battery power ON / OFF Measuring instrument and data transmission ON/OFF LED green Data transmission (sending/receiving) Display USA 902 MHz Display USA 902MHz Connector Cable connection to LEVELMETER for conventional transmission of data Switch ON the instrument • press once only the button <ON/OFF> the instrument and the sender/receiver starts to work. The red LED is blinking rapidly • with another short push to the button the sender/receiver may be stopped. Local measurement with the instrument only. The red LED is blinking slowly. • with another short push to the button the sender/receiver is activated again Switch OFF the instrument • Press the button <ON>/<OFF> a few seconds until the red LED has stopped blinking. Seite 3 von 6 Seiten Instrument MINILEVEL NT with integrated Radio Transmission Module Handle of the MINILEVEL NT with attached “FCC ID”- Label Seite 4 von 6 Seiten Handle of the Instrument MINILEVEL NT with integrated Radio Transmission Module dismantled (Antenna with Module and Cover) Handle of the Instrument MINILEVEL NT with integrated Radio Transmission Module dismantled Seite 5 von 6 Seiten Antenna for the Instrument MINILEVEL NT with integrated Radio Transmission Module as well as for the Radio Box (VIEW “PCB Side”) Antenna for the Instrument MINILEVEL NT with integrated Radio Transmission Module as well as for the Radio Box (“Top View”) Radio Box with integrated Radio Transmission Module labeled with FCC ID Seite 6 von 6 Seiten Opened Radio Box with integrated Radio Transmission Module

WYLER AG Im Hölderli CH-8405 WINTERTHUR Switzerland Tel.0041 (0) 52 233 66 66 Fax.0041 (0) 52 233 20 53 Homepage: http://www.wylerag.com E-Mail:[email protected] • FCC ID / Label Location • External PHOTOS • Internal PHOTOS for FCC Application LEVELTRONIC NT and MINILEVEL NT with Radio transmission and LEVELMETER 2000 Radio Module USA with 902MHz FCC ID:O3T065-005-0351 Applicant:Wyler AG Switzerland Correspondence Reference Number:16011 731 Confirmation Number:EA98309 File: „photos fcc nt_funke.doc“September 2000 Seite 2 von 6 Seiten Channel switch 10 Channels are available: The same channel is required for the instruments connected together In case of transmission problems another channel may be chosen. The originally used channel may be occupied by another user. LED red Sender/Receiver ON Power for sensor ON Power for sensor only ON Not enough battery power ON / OFF Measuring instrument and data transmission ON/OFF LED green Data transmission (sending/receiving) Display USA 902 MHz Display USA 902MHz Connector Cable connection to LEVELMETER for conventional transmission of data Switch ON the instrument • press once only the button <ON/OFF> the instrument and the sender/receiver starts to work. The red LED is blinking rapidly • with another short push to the button the sender/receiver may be stopped. Local measurement with the instrument only. The red LED is blinking slowly. • with another short push to the button the sender/receiver is activated again Switch OFF the instrument • Press the button <ON>/<OFF> a few seconds until the red LED has stopped blinking. Seite 3 von 6 Seiten Instrument MINILEVEL NT with integrated Radio Transmission Module Handle of the MINILEVEL NT with attached “FCC ID”- Label Seite 4 von 6 Seiten Handle of the Instrument MINILEVEL NT with integrated Radio Transmission Module dismantled (Antenna with Module and Cover) Handle of the Instrument MINILEVEL NT with integrated Radio Transmission Module dismantled Seite 5 von 6 Seiten Antenna for the Instrument MINILEVEL NT with integrated Radio Transmission Module as well as for the Radio Box (VIEW “PCB Side”) Antenna for the Instrument MINILEVEL NT with integrated Radio Transmission Module as well as for the Radio Box (“Top View”) Radio Box with integrated Radio Transmission Module labeled with FCC ID Seite 6 von 6 Seiten Opened Radio Box with integrated Radio Transmission Module

WYLER AG Im Hölderli CH-8405 WINTERTHUR Switzerland Tel.0041 (0) 52 233 66 66 Fax.0041 (0) 52 233 20 53 Homepage: http://www.wylerag.com E-Mail:[email protected] OPERATIONAL DESCRIPTION RADIO MODULE RFM 900-LC for FCC Application LEVELTRONIC NT and MINILEVEL NT with Radio transmission and LEVELMETER 2000 Radio Module USA with 902MHz FCC ID:O3T065-005-0351 Applicant:Wyler AG Switzerland Correspondence Reference Number:16011 731 Confirmation Number:EA98309 File: „operational description fcc nt_funke.doc“September 2000 Seite 2 von 3 Seiten OPERATIONALDESCRIPTIONRADIOMODULERFM 900-LC Translated fromSTRAMPTRONIC S.A. / File: RFM900SPE1-2.doc Date 05/06/97 / Page: 16..18 / Autor: E. Lagorce 1. Local Oscillator (LO) Realized with a VCO, a frequency synthesizer, a loop filter and a 100 MHz quartz (frequency stability between 0...50 °C, +/- 20ppm) as reference. Aim is that the VCO is subject to the quartz oscillator. To do this, the 10 MHz reference frequency and the VCO frequency are divided down to 100 KHz. These two frequencies supply a phase comparator which delivers cyclic pulses proportional to the phase difference of the two input signals. These pulses passing through a low pass filter are integrted and produce a DC voltage to control VCO. The quotient from the frequency divider connected to the VCO is programmable by I2C bus. The output frequency may be adjusted by steps of 100 KHz. The VCO consists of an integrated oscillator (SA621) with the loead of an adapted circuit, a/4 line coupled with a varicap. The applied voltage over the varicap fixed the output frequency of the VCO. 2. Transmission The LO is hooked up on the transmission frequency (906.7...910.3 MHz). The micro-controller delivers two square wave signals (Output Txdata). 9600 Hz when a Low is to be transmitted or 15000 Hz when a High is to be transmitted. To reduce the spectrum of the harmonics, the square wave signal has first to pass through a low pass filter. This attenuated signal (rounded edges) is injected on the varicap from the VCO and modulates so the frequency from the LO. The HF signal is strongly amplified (+25dB) by an integrated amplifier with filter in SWA technique (high attenuation of the harmonics) 3. Receiver An integrated Low Noise Amplifier (LNA) SA621 permits to extract the signal from the noise. This HF signal is mixed up with a signal generated by the LO to receive a signal of 10.7 MHz (FO) which can easily be filtered and amplified. Seite 3 von 3 Seiten The intermediate Frequency (FI) is filtered by two ceramic filters. The selectivity of the receiver depends on these filters (BP: -20 dB / 400 KHz). This filtered signal is strongly amplified and demodulated by an integrated circuit (SA626). The disadvantage of this technology is a generated second signal (mirror frequency) with a frequency value within the band of the FI-filters. The filters cannot reject this signal. The second function of the SAW filter behind the antenna is, to suppress the mirror frequency (rejection -30 dB). 4. Annex The antenna switch permits to branch the antenna to the transmitter or to the receiver. The micro-controller permits the interface with the serial In- and Outputs, to program the LO and to manage the power modes.

WYLER AG Im Hölderli CH-8405 WINTERTHUR Switzerland Tel.0041 (0) 52 233 66 66 Fax.0041 (0) 52 233 20 53 Homepage: http://www.wylerag.com E-Mail:[email protected] SCHEMATIC DIAGRAM for FCC Application LEVELTRONIC NT and MINILEVEL NT with Radio transmission and LEVELMETER 2000 Radio Module USA with 902MHz FCC ID:O3T065-005-0351 Applicant:Wyler AG Switzerland Correspondence Reference Number:16011 731 Confirmation Number:EA98309 File: „schematic diagram fcc nt_funke.doc“September 2000 Seite 2 von 2 Seiten S CHEMATIC DIAGRAM RADIO MODULE RFM 900 - LC
