O5TGCP-2000Dual Mode Cellular Phone (AMPS/CDMA)

GTRAN Korea, Inc.

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Sep 13, 2000
Application Purpose: Original Equipment
Date of Application: Aug 02, 2000
Equipment Note: Dual Mode Cellular Phone (AMPS/CDMA)
Frequency Range: 824.70000000 - 848.31000000
Company: GTRAN Korea, Inc.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

© 2000 PCTEST Lab ATTACHMENT M – USER’S MANUAL FCC Part 22 Certification Check List G TRAN Korea, Inc. Page 41 of 79 13. Users Manual CONTENTS Edit history MENU table Basic description Main MENU functions Inbox (SMS) functions Phone book functions Call in progress functions Specific features ! Release History 1 Jul. 11. 2000 Brian Roh Initial Release (GTRAN Korea, Inc. SW Team) Preliminary GCP-2000 User’s Manual (V0.0) FCC Part 22 Certification Check List G TRAN Korea, Inc. Page 42 of 79 " MENU table 1. [MENU] MENU table Level 1 Level 2 Level 3 Level 4 & Remarks 1. Ringer Ring Only / Vibrate Only / Ring after Vibration. 2. Ring Type 1 ~ 10 ring type 3. Key Beep Short / Long 4. DTMF Length Short / Long 1. Sound 5. UP Alert Type 1 ~ 5 type 1. Key Volume 4 steps Silent, Low, Medium, High 2. Ringer Volume 4 steps Off, Low, Medium, High 2. Volume 3. Earpiece Volume 3 steps Low, Medium, High 1. Connect Alert Yes / No 2. Fade Alert Yes / No 3. Service Alert Yes / No 4. Minute Alert Yes / No 5. Roaming Beep Yes / No 6. UP Alert Yes / No 3. Alerts 7. SMS Alert Yes / No 1, Last Call 2. All Calls 3. Reserved Call Yes / No Input time and number 4. Set Alarm Off / Once / Everyday Edit time 5. Anniversary 1. View 2. Add [0 used] 3. Delete Input date and name 6. World Time 4. Time 7. Calendar 1. Backlight 10 / 20 / 30 seconds / Always on /Always off 2. Banner 3. Contrast 40 steps 4. Standby Display Time preferred / Date preferred / Display MIN / Normal 5. Language English / Spanish / Portuguese 6. Show Version 5. Display 7. MENU Display Icon / List FCC Part 22 Certification Check List G TRAN Korea, Inc. Page 43 of 79 6.Minibrowser 1. Auto lock Never / At power on / Now 2. Emergency 1. Emergency call 1 2. Emergency call 2 3. Emergency call 3 3. Lock Call History Yes / No 1. Clear Calls Yes / No 2. Clear Directory Yes / No 3. Clear Emergency # Yes / No 4. Erase Numbers 4. Clear All Yes / No 1. Outgoing Calls Yes / No 2. Store Numbers Yes / No 3. One-touch Dial Yes / No 5. Restrict 4. Incoming Calls Yes / No 6. New Lock Code Enter New Lock Code ? Re-enter New Lock Code 7. Initialization Yes / No 8. Send PIN Never / Prompt 1. Set NAM NAM 1 / NAM 2 7. Security 9. NAM Selection 2. Auto NAM Yes / No 1. Select System Standard / A Only / B Only / Home Only 8. System 2. Select Mode CDMA only / Analog only / Temp analog / Automatic 1. Auto Retry Yes / No 2. Auto Answer Yes / No 3. Distinctive Ring Input phone number and select ring sound 3 distinctive ring 4. DATA / FAX Off / Fax until OFF / Data until OFF 9. Features 5. Browser Prompt None / At start / At exit / Always FCC Part 22 Certification Check List G TRAN Korea, Inc. Page 44 of 79 2. [Inbox] Inbox MENU table Level 1 Level 2 Level 3 & Remark 1. Text Messages Confirm received message(s) 2. Voice Messages Confirm voice message(s) 1. Paging 3. Create Message 2. Text 4. UP Alert Confirm up alert message(s) 5. Saved Messages Confirm saved message(s) 1. Text messages Yes / No 2. Voice messages Yes / No 3.Saved messages Yes / No 4. UP alert messages Yes / No 6. Erase Messages 5. All messages Yes / No 3. [Book] Phone book MENU table Level 1 Remarks 1. Call History Confirm calling number and time 2. Search by Loc Search a phone number by memory location 3. Search by Char Search a phone number by the first character of name 4. Search by Name Search a phone number by name 5. Empty Location Search empty memory location 6. My Number Confirm own phone number 7. Service 10 of carrier specific service 4. [In-use] Call in progress MENU table Level 1 Remarks 1. Send my Number When paging, send own number automatically 2, Scratchpad Store the phone number without keypad tone 3. Mute Mute microphone during a call FCC Part 22 Certification Check List G TRAN Korea, Inc. Page 45 of 79 # Function description of Jennifer 1 The basics before use 1.1 Icons Received Signal Strength Indicator CDMA mode No service A call is in progress Roaming indicator Data service Text / Voice message(s) indicator Text mail indicator Voice mail indicator Silent (manner) mode Ring Only Ring after Vibrate Vibrate Only Alarm Battery charge indicator FCC Part 22 Certification Check List G TRAN , Korea Inc. Page 46 of 79 2 Basic functions 2.1 Power on With the phone off, press and hold the [END] key. 2.2 Power off With the phone on, press and hold the [END] key until the display shows the “Bye-Bye” animation. 2.3 Making a call $%&&'(%) *+,,-.+/ 01 234 5 06 27 8 9: ;<= SoftKey SoftKey SoftKey FCC Part 22 Certification Check List G TRAN Korea, Inc. Page 47 of 79 2.3.1 Enter phone numbers include area code. For your mistake in dialing, press [CLR] key to delete the last character or press and hold [CLR] key to clear the entire numbers. 2.3.2 Press [SEND] For stored number phone book, the ID of the phone number displayed and the message of “Calling...” blinks. 2.3.3 With dialing phone number, press and hold the last digit of phone number. 2.4 Ending a call Press [END] 2.5 Making the last call again The last 10 numbers you dialed are stored in call history list. Use this list to redial a numbers you desired. 1) From the standby mode, press [SEND] key to access the call history list. 2) Scroll to the desired number. 3) Press [SEND] key. > To make the last call again, press and hold [SEND] key. 2.6 Answering a call When someone calls, the phone alerts you, the call indicator flashes and the backlight blinks on the screen. To answer the call, press any key except [END] key and soft key 2. To mute the ring, press soft key 2 and [END] key. 2.7 To change the MENU screen You can change the MENU screen to display MENU items in either icon or list form. To change the MENU screen to display either icon or list, select as [MENU] + [5] + [7] ? Main MENU This MENU allows you to access several options that you may to change. Use the [MENU] key to scroll to MENU item. Press [O.K] or the number key matched. 1 Sound Control each sound generated in your phone. 1.1 Ringer This feature enables user to set a unique ringer type f…

Text truncated - open the document above for the full version.

Attestation Statements

Cover Letter(s)

© 2000 PCTEST Lab ATTACHMENT A – COVER LETTER July 27, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:GTRAN KOREA, INC. FCC ID: O5TGCP-2000 Part 22 Certification Gentlemen: Attached herewith, on behalf of GTRAN Korea, Inc. is an application for Part 22 Certification of the following Dual Mode Cellular Phone (AMPS/CDMA): FCC ID:O5TGCP-2000 TRADE / MODEL(s):GTRAN GCP-2000 EUT TYPE:Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range:824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) Rx Freq. Range:869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) Max. Output Power:0.559 W ERP AMPS (27.47 dBm) 0.353 W ERP CDMA (25.48 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Dragon Shin GTRAN Korea, Inc.

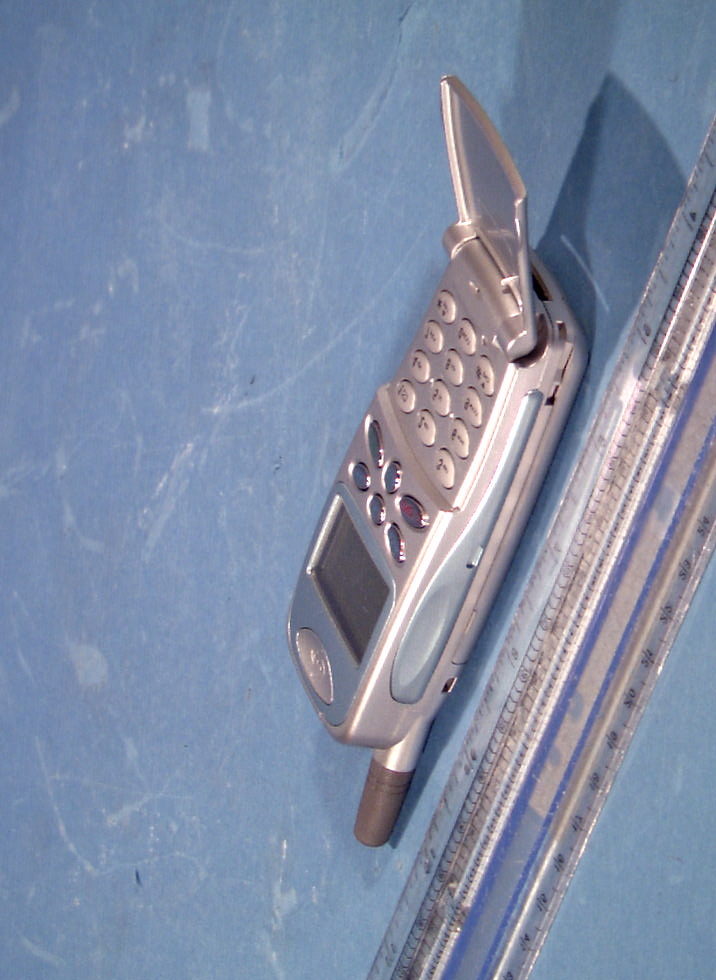

External Photos

© 2000 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000

ID Label/Location Info

© 2000 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER § 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) FCC Part 22 Certification Check List 15. Sample FCC ID Label Sample FCC ID label. GTRANKOREA,~NC. GCP-2000 FCC ID: O5TGCP-2000 ESN: SIN: 1 Bar code for Hex and Serial number. FCC Label that will attach onto Jennifer unit. GTRAN, Korea Inc. Page 70 of 79

Internal Photos

© 2000 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000

RF Exposure Info

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations to provide a separation distance of 0.7 inches (1.7 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.7 inches (1.7 cm) must be maintained between the user’s body and the phone, including the antenna. Third-party belt-clips, holsters and similar accessories used by this device must meet the separation distance requirement of 0.7 inches (1.7 cm) from the body, and should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure limits and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone

RF Exposure Info

© 2000 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) GTRAN KOREA, INC.Dates of Tests: July 24-27, 2000 1600-1 Kwanyang 2-Dong, Dongan-Ku Test Report S/N: SAR.200724342.O5T Anyang, Kyunggi-Ko, KOREA 431-060Test Site: PCTEST Lab, Columbia MD USA Attn: Mr. Howard Kim, Project Manager FCC ID O5TGCP-2000 APPLICANT GTRAN KOREA, Inc. EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) Rx Frequency:869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) Max. RF Output Power:0.559W ERP AMPS (27.47 dBm) / 0.353W ERP CDMA (25.48 dBm) Trade Name/Model(s):GTRAN GCP-2000 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification FCC Rule Part(s):2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 (See Test Report). Part 22 AMPS Mode - Head Max. SAR:1.1314 W/kgFCC Limit: 1.6 W/kg Body Max. SAR:1.0005 W/kg FCC Limit: 1.6 W/kg Part 22 CDMA Mode - Head Max. SAR:0.6423 W/kg FCC Limit: 1.6 W/kg Body Max. SAR:0.4656 W/kg FCC Limit: 1.6 W/kg I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 200724342.O5T SAR Measurement ReportFCC Part 22 Certification © 2000 PCTEST Labi Table of Contents 1.1: SCOPE ..............................................................1 2.1-2: INTRODUCTION / SAR DEFINITION ..........................2 3.1: SAR MEASUREMENT SET-UP .................................3 4.1-2: E-FIELD PROBE SYSTEM .......................................4 5.1-4: E-FIELD PROBE CALIBRATION .............................. 5-6 6.1-3: PHANTOM & EQUIVALENT TISSUE ...........................7 7.1-2: SYSTEM SPECIFICATIONS ..................................... 8 8.1-2: MEASUREMENT PROCESS ....................................9 9.1-2: TEST POSITION OF THE PHONE ............................. 10 10.1-2: BODY-WORN TEST SETUP .................................. 11 11.1: ANSI/IEEE C95.1 RF EXPOSURE LIMITS .................. 12 12.1: MEASUREMENT UNCERTAINTIES ....................... 13 13.1-3: TEST DATA SUMMARY ......................................... 14-17 14.1: SAR TEST EQUIPMENT LIST ............................... 18 15.1: CONCLUSION / REFERENCES .............................. 19 Test Report S/N: SAR.200724342.O5TSAR Measurement Report Test Dates: July 24-27, 2000FCC Part 22 Certification GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST LabFCC ID: O5TGCP-2000 (Tx 824-849 MHz)1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:GTRAN Korea, Inc. Address:1600-1 Kwanyang 2-Dong, Dongan-Ku Anyang, Kyunggi-Ko, KOREA 431-060 Attention:Mr. Howard Kim, Project Manager • EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) • Trade Name:GTRAN • FCC IDENTIFIER:O5TGCP-2000 • Model:GCP-2000 • Tx Frequency:824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) • Rx Frequency:869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§2.1093, Docket 96-326 • Max. RF Output Power:0.559W ERP AMPS (27.47 dBm) 0.353W ERP CDMA (25.48 dBm) • Modulation:AMPS / CDMA • Antenna Type:Fixed Helical • Dates of Test(s):July 24-27, 2000 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.200724342.O5T 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.200724342.O5TSAR Measurement Report Test Dates: July 24-27, 2000FCC Part 22 Certification GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST LabFCC ID: O5TGCP-2000 (Tx 824-849 MHz)2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2000 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000

RF Exposure Info

August 28, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: GTRAN Korea, Inc. FCC ID: O5TGCP-2000 731 Confirmation No.: EA98382 Correspondence Reference No: 15689 Request for Tech. Info.: 8/21/00 Dear Joe: Transmitted herewith, on behalf of GTRAN Korea, Inc. is an amendment provided in response to the request for technical information dated, August 21, 2000. 1. Please find attached, GTRAN’s cover letter identifying the location of the proposed body-worn SAR compliance statement in the users manual. Also attached is the RF exposure warning statement, which will be placed at a prominent location in the front section of the users manual. We trust this information is sufficient to issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: GTRAN Korea, Inc.

RF Exposure Info

Test Report

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 www.pctestlab.comwww.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification GTRAN KOREA, INC.Dates of Tests: July 24-27, 2000 1600-1 Kwanyang 2-Dong, Dongan-Ku Test Report S/N: 22.200724341.O5T Anyang, Kyunggi-Ko, KOREA 431-060Test Site: PCTEST Lab, Columbia MD USA Attn: Mr. Howard Kim, Project Manager FCC ID O5TGCP-2000 APPLICANT GTRAN KOREA, INC. Classification:Non-Broadcast Transmitter held to ear (TNE) FCC Rule Part(s):§22(H), §22.901(d), §2 EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) Trade Name/Model(s):GTRAN GCP-2000 Tx Frequency Range:824.04 ~ 848.97MHz (AMPS) / 824.70 ~ 848.31 MHz (CDMA) Rx Frequency Range:869.04 ~ 893.97MHz (AMPS) / 869.70 ~ 893.31 MHz (CDMA) Max. RF Output Power:0.559W ERP AMPS (27.47 dBm) / 0.353W ERP CDMA (25.48 dBm) Frequency Tolerance:0.00025% (2.5 ppm) Emission Designators:40K0F8W, 40K0F1D, 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 200724341.O5T FCC Part 22Certification © 2000 PCTEST Engineering Laboratory, Inc.FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS PER §2.1033(d) 3 4.1 DESCRIPTION OF TESTS 4-6 5.1 EFFECTIVE RADIATED POWER OUTPUT 7-8 6.1 RADIATED MEASUREMENTS 9-14 7.1 FREQUENCY STABILITY 15-16 8.1 PLOTS OF EMISSIONS 17 9.1 LIST OF TEST EQUIPMENT 18 10.1 SAMPLE CALCULATIONS 19 11.1 CONCLUSION 20 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L:OPERATIONAL DESCRIPTION ATTACHMENT M:USER’S MANUAL ATTACHMENT N:SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P:SAR TEST SETUP PHOTOGRAPHS © 2000 PCTEST Lab ATTACHMENT C – TEST REPORT Test Report S/N: 22.200724341.O5TFCC Part 22 Dates of Tests: July 24-27, 2000Certification © 2000 PCTEST LabFCC ID: O5TGCP-2000 (Tx 824-849MHz) GTRAN Dual-Mode Cellular Phone (AMPS/CDMA)1 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant:GTRAN Korea, Inc. Address:1600-1 Kwanyang 2-Dong, Dongan-Ku Anyang, Kyunggi-Ko, KOREA 431-060 Attention:Mr. Howard Kim, Project Manager • FCC ID:O5TGCP-2000 • Trade Name(s):GTRAN • Model(s):GCP-2000 • Quantity:Quantity production is planned • Emission Designator:40K0F8W, 40K0F1D, 1M25F9W • Tx Freq. Range:824.04 – 848.97 MHz (AMPS) / 824.70 ~ 848.31 (CDMA) Rx Freq. Range:869.04 – 893.97 MHz (AMPS) / 869.70 ~ 893.31 (CDMA) • Equipment Class:Non-Broadcast Transmitter Held to Ear (TNE) • Equipment Type:Dual-Mode Cellular Phone • Modulation(s):AMPS / CDMA • Frequency Tolerance:± 0.00025% (2.5 ppm) • Max. RF Output Power:0.559W ERP AMPS (27.47 dBm) / 0.353W ERP CDMA (25.48 dBm) • FCC Rule Part(s):§22(H), §22.901(d), §2 • AC/DC Power Adapter:3.6VDC 1600mA • Battery Pack:4.2 VDC 400mAh Li-Ion • Dates of Tests:July 24-27, 2000 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. Test Report S/N: 22.200724341.O5TFCC Part 22 Dates of Tests: July 24-27, 2000Certification © 2000 PCTEST LabFCC ID: O5TGCP-2000 (Tx 824-849MHz) GTRAN Dual-Mode Cellular Phone (AMPS/CDMA)2 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at 3-meter test range (see Figure2). The equipment under test is placed on the turntable connected to a RF wattmeter and a dummy RF load, and then its power is adjusted to its rated output. A receiving antenna located 2 meters from the turntable picks up any signal radiated from the transmitter. The turntable containing the system was rotated; the receiving antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. The testing procedure is repeated for both horizontal and vertical polarization of the receiving antenna. The actual radiated signal st…

Text truncated - open the document above for the full version.

Test Setup Photos

© 2000 PCTEST Lab ATTACHMENT F – TEST SETUP PHOTOGRAPHS © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000 © 2000 PCTEST Lab GTRAN Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 1004310 FCC ID: O5TGCP-2000
