O6796650FM Mic With Lighted Handle

Front View of Device Bottom View of Device with FCC ID Label FCC ID:O6796650 MADE IN CHINA This device complies with part 15 of FCC Rules. Operation is subject to the following two condition: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

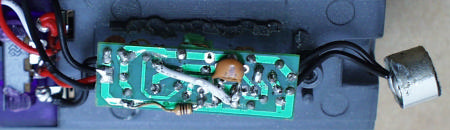

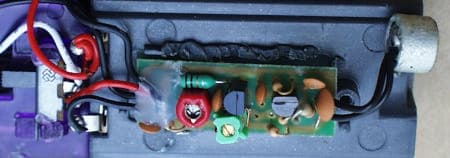

Front View of the Printed Wiring Board Bottom View of the Printed Wiring Board

Date: 2000-08-15 TEST REPORT Page 1 of 7 No.: HM102964 Law Man KitKitty ChoyPatrick Wong Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE: YAL006) YABOOM LIMITED. Unit 1107, 11/F., South Tower Concordia Plaza, 1 Science Museum Road, T.S.T., Kowloon, Hong Kong. DATE OF SAMPLE(S) RECEIVED: 2000-07-19 DATE OF TESTING: 2000-08-15 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:FM MIC WITH LIGHTED HANDLE Manufacturer:EVERGREE INDUSTRIES GROUP Model Number:ST-96650 Brand Name:FM MIC Rating:3Vd.c. (“AA” size battery x 2) Origin:N/A INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK:Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.239 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2000-08-15 TEST REPORT Page 2 of 7 No.: HM102964 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1) Measurement of Emission of RF energy on the carrier frequency...........Satisfactory Measurement of the out-of band emissions including harmonics............Satisfactory (2) Measurement of Emission Within Band Edges......................................Satisfactory (3) Measurement of Line-Conducted Voltage onto AC Power Line.............Not applicable T E S T D A T A Please refer to the attached result sheets. Date: 2000-08-15 TEST REPORT Page 3 of 7 No.: HM102964 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.239(88.00-108.00MHz) TEST CONDITION:Normal TEST DATE:2000-08-15 Emission of RF energy on the carrier frequency -- 105.725 MHz (PEAK VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m 105.727.8H+15.243.0141.32500.0 ================================================================== Emission of RF energy on the carrier frequency -- 105.725 MHz (AVERAGE VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB(μV)H-VdBdB(μV/m)μV/mμV/m 105.726.6H+15.241.8123.0250.0 ================================================================== ... to be continued Date: 2000-08-15 TEST REPORT Page 4 of 7 No.: HM102964 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Section 15.239 (88.00-108.00MHz) TEST CONDITION:Normal TEST DATE:2000-08-15 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μμV)H-VdBdB(μμV/m)μμV/mμμV/m ##211.515.2+15.230.433.1150.0 317.2<1.0+20.4<21.4<11.7200.0 422.915.4+21.436.869.2200.0 528.616.3+24.741.0112.2200.0 634.4<1.0+24.3<25.3<18.4200.0 740.1<1.0+26.9<27.9<24.8200.0 845.8<1.0+27.3<28.3<26.0200.0 951.5<1.0+27.5<28.5<26.6200.0 1057.3<1.0+27.8<28.8<27.5200.0 ================================================================== ====================SUMMARY=================== All data is within limits ============================================= Broad-band Antennas were used both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================= Date: 2000-08-15 TEST REPORT Page 5 of 7 No.: HM102964 *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges. TEST REFERENCE: FCC Rules Part 15 section 15.239(88.00-108.00 MHz) TEST CONDITION: Normal TEST DATE : 2000-08-15 RESULTS AND NOTES The bandwidth of the emission shall be no wider than 200kHz of the center frequency for devices operating within 88.00MHz to 108.00MHz. The bandwidth is determind at the points 26dB down from the modulated carrier. L: FCC Lower Band Edge ......................................................................-> 88.000MHz H: FCC Higher Band Edge .....................................................................-> 108.000MHz C: Unmodulated carrier at frequency .......................................................->105.705MHz D: No. of dB from unmodulated carrier ...................................................-> 28.30dB SPECTRUM ANALYZER SETTINGS Resolution bandwidth: 11.9KHz Frequency span: 10.0KHz/div No. of dB/div: 10.0dB/div FCC Limit Minimum No. of dB from unmodulated carrier required : 26.0dB ================SUMMARY================ All data is within limits ========================================= Date: 2000-08-15 TEST REPORT Page 6 of 7 No.: HM102964 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC Rules. (2) Distance between the EUT and measuring antenna: 3 meters. (3) Measuring instrumentations: CISPR Quasi-peak type field strength meter (25 MHz - 1000 MHz). 6 dB bandwidth set at 120KHz. Also, peak level of the fundamental emissions was measured in order to determine compliance with the 20dB peak to average limit specified in Section 15.35(b) of the FCC new Rules. (4) Measuring antenna: Broad band antenna for the frequency range 25-1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable. included in the Antenna Factor for measurement data. The antenna are capable of measuring both horizontal and vertical polarizations. (5) Frequency range scanned: The frequency range from 25 MHz to 1000 MHz had been searched. Readings of the highest emssions relating to the limit were reported as above. (6) Arrangement of EUT: During the test, the sample was operated at r…
