Page  U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 EXHIBIT 5 User’s Manual User’s Manual Page  U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 18 of the FCC rules, these limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, however, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Page  U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94                        Handling Never drop or strike the lamp. The lamp should not be disassembled or modified. Never hold the glass tube by hand when installing.
 Never use with a dimming circuit or an emergency-light fixture. Never use with a closed fixture such as the one shown below. Without Ventilation Holes Cover With Ventilation Holes Glass Globe      Use only at the rated voltage indicated on the lamp. If the source voltage rises by 6%, the lamp life may be shortened. If the source voltage drops by 10%, the lamp may not light up. The light output will be lower even after it can light up. Never use with a direct current. Otherwise the lamp will stop working.    Use indoors at a room temperature ranging from 5
to 35
. Never use where water may drop on the lamp. Never use in a humid atmosphere. This is extremely dangerous because it may cause an electric leak. Never use in front of or over a room heater. Do not switch on and off frequently. Switching on and off may shorten the lamp service life. Make sure that the lamp is firmly screwed into the socket. Otherwise, the lamp may drop or result in an electric disconnection.   It takes the lamp about 1 second before it begins to light up. Output rapidly increases and the light fully lights within 30 seconds. The color of the light stabilizes in about 20 minutes. In a cold room below 0
. It may not light up or take even more time to light up. The light output will also be low even after the lamp performance stabilizes. When the lamp is switched on, first darkening and specks of mercury may be observed around the tube-end (the base-side and to top ends). But, this is only a normal phenomenon of the lamp and does not indicate a malfunction. To prevent risk of a burn, never touch it with bare hands or face while operation. Important A short circuit fuse is built into this lamp. This prevents serious accidents from occurring if the lamp is used incorrectly. No internal parts are available from the lamp manufacturer for repair. If it damaged do not attempt to disassemble or repair the lamp. Serious accidents may occur if a repaired lamp is installed. Added weight may cause instability of free-standing portable lamps. Use only with portable lamps in which the distance from the bottom of the base to the top of the lamp holder does not exceed three (3) times minimum base width. Use only with portable table lamps which are. This device is not intended for use with emergency exit fixtures or emergency lights. For CNL product, ”NOT FOR USE WHERE EXPOSED TO THE WEATHER” and “NOT FOR USE IN TOTALLY ENCLOSED RECESSED LUMINAIRES”. Made in China NO! YES!

Page
 U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 EXHIBIT 3 EUT and Simulators Configuration Block Diagram Page
 U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 EUT CONFIGURATION Description of EUT Applicant:U Lighting Co., Ltd. Member of Wangfujing Group 22/F., Kerry Centre, Renming South Road, Shenzhen, China. Manufacturer:U Lighting Co., Ltd. Member of Wangfujing Group 22/F., Kerry Centre, Renming South Road, Shenzhen, China. Product Name:Energy Saving Lamp Model Number.:EUT-15W,EUT-20W,EUT-24W,EUT-26W, SRE- 15W,SRE-20W,SRE-23W,SRE-26W, EIM- 3W,EIM-5W,EIM-7W,EUB-5W, EUB-7W,EUB- 9W,EUB-13W,EUB-15W, EUG-15W,EUG-20W, ECL-15W, ECL-20W FCC ID:O6N9G94 EMC Report No.: ACS-20F159 Page
U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 The EUT-15W, EUT-20W, EUT-24W, EUT-26W, SRE-15W, SRE-20W, SRE-23W, SRE-26W, EIM-3W, EIM-5W, EIM-7W, EUB-5W, EUB-7W, EUB-9W, EUB-13W, EUB-15W, EUG-15W, EUG-20W, ECL-15W, ECL-20W are same, except the following component list different: Component/ratingModels TUBEC1C3C13L1,L2T1,T2PTCL3 EUT-15W 15W 3U-tube 0.22uf, 250v 10uf, 250v 2200pf, 1000v 3.5mH Sec1300 3 1k ohm 3.0mH EUT-20W 20W 3U-tube 0.22uf, 250v 22uf, 250v 2700pf, 1000v 3.7mH Sec1300 5 800 ohm 2.6mH EUT-24W 24W 3U-tube 0.33uf, 250v 22uf, 250v 3300pf, 1000v 4.0mH Sec1300 5 600 ohm 2.0mH EUT-26W 26W 3U-tube 0.33uf, 250v 22uf, 250v 3300pf, 1000v 4.5mH Sec1300 5 600 ohm 1.7mH SRE-15W 15W spiral- b 0.22uf, 250v 10uf, 250v 2200pf, 1000v 3.5mH Sec1300 3 1k ohm 3.0mH SRE-20W 20W spiral- b 0.22uf, 250v 22uf, 250v 2700pf, 1000v 3.7mH Sec1300 5 800 ohm 2.6mH SRE-23W 23W spiral- b 0.33uf, 250v 22uf, 250v 3300pf, 1000v 4.0mH Sec1300 5 600 ohm 2.0mH SRE-26W 26W spiral- b 0.33uf, 250v 22uf, 250v 3300pf, 1000v 4.5mH Sec1300 5 600 ohm 1.7mH EIM-3W 3W
9-2U 4700pf, 250v 3.3uf, 250v 1000pf, 1000v 5mHDK51 3K ohm 12mH EIM-5W 5W
9-2U 4700pf, 250v 3.3uf, 250v 1000pf, 1000v 6mHDK51 2K ohm 7.5mH EIM-7W 7W
9-2U 4700pf, 250v 3.3uf, 250v 1000pf, 1000v 7mHDK51 2K ohm 5.5mH EUB-5W 5W
9-2U 4700pf, 250v 3.3uf, 250v 1000pf, 1000v 6mHDK51 2K ohm 7.5mH EUB-7W 7W
9-2U 4700pf, 250v 3.3uf, 250v 1000pf, 1000v 7mHDK51 2K ohm 5.5mH EUB-9W 9W
9-3U 4700pf, 250v 10uf, 250v 2200pf, 1000v 8mHDK51 2K ohm 4.5mH EUB-13W 13W
9-3U 4700pf, 250v 10uf, 250v 2200pf, 1000v 9mHDK51 1K ohm 3.5 mH EUB-15W 15W
9-3U 4700pf, 250v 10uf, 250v 2200pf, 1000v 10mH Sec1300 2 1K ohm 3.0mH EUG-15W 15W 3U-tube 0.22uf, 250v 10uf, 250v 2200pf, 1000v 3.5mH Sec1300 3 1k ohm 3.0mH EUG-20W 20W 3U-tube 0.22uf, 250v 22uf, 250v 2700pf, 1000v 3.7mH Sec1300 5 800 ohm 2.6mH ECL-15W 15W 3U-tube 0.22uf, 250v 10uf, 250v 2200pf, 1000v 3.5mH Sec1300 3 1k ohm 3.0mH ECL-20W 20W 3U-tube 0.22uf, 250v 22uf, 250v 2700pf, 1000v 3.7mH Sec1300 5 800 ohm 2.6mH Page  U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 Block Diagram Page
U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94

Page
U Lighting Co., Ltd. Member of Wangfujing GroupEnergy Saving LampFCC ID : O6N9G94 U LIGHTING CO., LTD MEMBER OF WANGFUJING GROUP 22/F. Kerry Centre,Renming South Road,Shenzhen,China. Tel: (86) 755-2350478 (48line) Fax: (86) 755-5181669 E-mail: ulight66 @ public.szonline.net U LIGHTING CO., LTD 22/F. Kerry Centre,Renming South Road,Shenzhen,China. Tel: (86) 755-2350478 (48line) Fax: (86) 755-5181669 APPLICATION FOR CERTIFICATION on Behalf of U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving Lamp Model No. : EUT-15W,EUT-20W,EUT-24W,EUT-26W, SRE-15W, SRE-20W,SRE-23W,SRE-26W, EIM-3W,EIM-5W, EIM-7W,EUB-5W, EUB-7W,EUB-9W,EUB-13W, EUB-15W, EUG-15W,EUG-20W, ECL-15W, ECL-20W FCC ID. :O6N9G94 Application No. : ACS-20F11 Dec. 20, 2000 Page  U Lighting Co., Ltd. Member of Wangfujing GroupEnergy Saving LampFCC ID : O6N9G94 U LIGHTING CO., LTD MEMBER OF WANGFUJING GROUP 22/F. Kerry Centre,Renming South Road,Shenzhen,China. Tel: (86) 755-2350478 (48line) Fax: (86) 755-5181669 E-mail: ulight66 @ public.szonline.net U LIGHTING CO., LTD 22/F. Kerry Centre,Renming South Road,Shenzhen,China. Tel: (86) 755-2350478 (48line) Fax: (86) 755-5181669 APPLICATION FOR FCC CERTIFICATION Applicant:U Lighting Co., Ltd. Member of Wangfujing Group Equipment:Energy Saving Lamp Model No.:EUT-15W,EUT-20W,EUT-24W,EUT-26W, SRE- 15W,SRE-20W,SRE-23W,SRE-26W, EIM-3W,EIM- 5W,EIM-7W,EUB-5W, EUB-7W,EUB-9W,EUB- 13W,EUB-15W, EUG-15W,EUG-20W, ECL-15W, ECL-20W FCC ID.:O6N9G94 EMC Report No.: ACS-20F159 Document List :
      EXHIBIT 1


  EXHIBIT 2 P HOTOGRAPHS  EXHIBIT 3 D ESCRIPTION OF EUT  B LOCK D IAGRAM  EXHIBIT 4 T EST R EPORT  EXHIBIT 5 U SER ’ S M ANUAL  Page  U Lighting Co., Ltd. Member of Wangfujing GroupEnergy Saving LampFCC ID : O6N9G94 U LIGHTING CO., LTD MEMBER OF WANGFUJING GROUP 22/F. Kerry Centre,Renming South Road,Shenzhen,China. Tel: (86) 755-2350478 (48line) Fax: (86) 755-5181669 E-mail: ulight66 @ public.szonline.net U LIGHTING CO., LTD 22/F. Kerry Centre,Renming South Road,Shenzhen,China. Tel: (86) 755-2350478 (48line) Fax: (86) 755-5181669
     Federal Communications Commission Date: Dec. 20, 2000 Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Dear Sir, This is your letter of authorization to accept our appointment of Richard Mullen, Manager / Safety & Compliance Consulting as agent for the following company : Company Name :U Lighting Co., Ltd. Member of Wangfujing Group Address :22/F., Kerry Centre, Renming South Road, Shenzhen, China. From now on, Richard Mullen will sign applications before the commission on our behalf, and receive exchange data between our company and the commission in connection with certification of the following: U Lighting Co., Ltd. Member of Wangfujing Group Equipment :Energy Saving Lamp Model No. :EUT-15W,EUT-20W,EUT-24W,EUT-26W,SRE-15W, SRE-20W,SRE-23W,SRE-26W, EIM-3W,EIM-5W, EIM-7W,EUB-5W, EUB-7W,EUB-9W,EUB-13W, EUB-15W,EUG-15W,EUG-20W, ECL-15W, ECL- 20W FCC ID :O6N9G94 Under FCC Docket Number 20780 and General Docket Number 89-103 pursuant to Part 15 Subpart C, of the Rules and Regulations of the FCC. This authorization will expire one year from the date of this letter. Sincerely Yours, Robin Hu/Manager U Lighting Co., Ltd. Member of Wangfujing Group

Page U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 EXHIBIT 2 Photographs Photographs From Page 10 to Page 16 Page
U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 Photographs Figure 1 M/N: EUT General Appearance Figure 2 M/N: EIM General Appearance Label Location Label Location Page

U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 Figure 3 M/N: EUB General Appearance Figure 4 M/N: EUM General Appearance Label Location Label Location Page
 U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 Figure 5 M/N: EUB-13W General Appearance Figure 6 M/N: EUB-15W General Appearance Label Location Label Location Page
 U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 Figure 7 M/N: EUG-15W General Appearance Figure 8 M/N: EUG-20W General Appearance Label Location Label Location Page
 U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 Figure 9 M/N: ECL-15W General Appearance Figure 10 M/N: ECL-15W General Appearance Label Location Label Location Page
 U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 Figure 11 M/N: EUT/ECL/SRE/EUG Main Board, Component Side Figure 12 M/N: EUT/ECL/SRE/EUG Main Board, Component Side Page

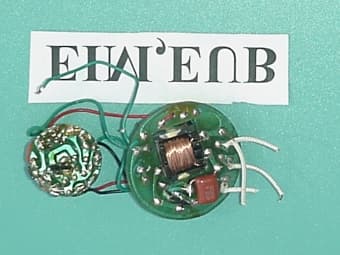

 U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 Figure 13 M/N: EIM/EUB Main Board, Component Side Figure 14 M/N: EIM/EUB Main Board, Component Side

Page  U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 EXHIBIT 1 Label Drawing Page  U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94
 For M/N: EUT-24W Label EUT-24WFCC ID:O6N9G94 120Vac/60Hz/192mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EUT-15W Label EUT-15WFCC ID:O6N9G94 120Vac/60Hz/122mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EUT-20W Label EUT-20WFCC ID:O6N9G94 120Vac/60Hz/165mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EUT-26W Label EUT-26WFCC ID:O6N9G94 120Vac/60Hz/228mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: SRE-15W Label SRE-15WFCC ID:O6N9G94 120Vac/60Hz/122mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 Page  U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 For M/N: SRE-26W Label SRE-26WFCC ID:O6N9G94 120Vac/60Hz/228mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: SRE-20W Label SRE-20WFCC ID:O6N9G94 120Vac/60Hz/165mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: SRE-23W Label SRE-23WFCC ID:O6N9G94 120Vac/60Hz/192mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EIM-3W Label EIM-3WFCC ID:O6N9G94 120Vac/60Hz/41mANot for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EIM-5W Label EIM-5WFCC ID:O6N9G94 120Vac/60Hz/69mANot for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 Page  U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 For M/N: EUB-7W Label EUB-7WFCC ID:O6N9G94 120Vac/60Hz/97mANot for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EIM-7W Label EIM-7WFCC ID:O6N9G94 120Vac/60Hz/97mANot for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EUB-5W Label EUB-5WFCC ID:O6N9G94 120Vac/60Hz/69mANot for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EUB-13W Label EUB-13WFCC ID:O6N9G94 120Vac/60Hz/180mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EUB-9W Label EUB-9WFCC ID:O6N9G94 120Vac/60Hz/125mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 Page  U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving LampFCC ID : O6N9G94 Please refer Exhibit 2 Figure 1-10 for Label Placement Location For M/N: EUB-15W Label EUB-15WFCC ID:O6N9G94 120Vac/60Hz/208mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: ECL-15W Label ECL-15WFCC ID:O6N9G94 120Vac/60Hz/122mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EUG-15W Label EUG-15WFCC ID:O6N9G94 120Vac/60Hz/122mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: EUG-20W Label EUG-20WFCC ID:O6N9G94 120Vac/60Hz/165mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94 For M/N: ECL-20W Label ECL-20WFCC ID:O6N9G94 120Vac/60Hz/165mA Not for use with dimmers E191071Made by U Lighting Co., Ltd US C LI STED 9G94

FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 APPENDIX I FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159

FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 APPENDIX II FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159

FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 APPLICATION FOR CERTIFICATION On Behalf of U Lighting Co., Ltd. Member of Wangfujing Group Energy Saving Lamp Model Number: EUT-15W,EUT-20W,EUT-24W,EUT-26W, SRE-15W,SRE-20W,SRE-23W,SRE-26W, EIM-3W,EIM-5W,EIM-7W,EUB-5W, EUB-7W,EUB-9W,EUB-13W,EUB-15W, EUG-15W,EUG-20W, ECL-15W, ECL-20W Prepared for : U Lighting Co., Ltd. Member of Wangfujing Group 22/F, Kerry Centre, Renming South Road, Shenzhen, China. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 6639496 Report Number
ACS-20F159 Date of Test
Sep. 28~ Dec. 06, 2000 Date of Report
Dec. 20, 2000 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 TABLE OF CONTENTS Description Page FCC Test Report for Declaration of Conformity 1.GENERAL INFORMATION ..........................................................................................................1-1 1.1. Description of Device (EUT)................................................................................................................. 1-1 1.2. Test Facility ........................................................................................................................................... 1-2 1.3. Test Uncertainty..................................................................................................................................... 1-2 2.POWER LINE CONDUCTED EMISSION TEST ........................................................................2-1 2.1. Test Equipment ...................................................................................................................................... 2-1 2.2. Block Diagram of Test Setup................................................................................................................. 2-1 2.3. Power Line Conducted Emission Test Limits ....................................................................................... 2-1 2.4. Configuration of EUT on Test ............................................................................................................... 2-2 2.5. Operating Condition of EUT ................................................................................................................. 2-2 2.6. Test Procedure ....................................................................................................................................... 2-2 2.7. Power Line Conducted Emission Test Results ...................................................................................... 2-3 3.RADIATED EMISSION TEST .......................................................................................................3-1 3.1. Test Equipment ...................................................................................................................................... 3-1 3.2. Block Diagram of Test Setup................................................................................................................. 3-1 3.3. Radiated Emission Limit........................................................................................................................ 3-2 3.4. EUT Configuration on Test ................................................................................................................... 3-2 3.5. Operating Condition of EUT ................................................................................................................. 3-2 3.6. Test Procedure ....................................................................................................................................... 3-2 3.7. Radiated Emission Test Results............................................................................................................. 3-3 4.MODIFICATION TO TEST SPECIFICATIONS.........................................................................4-1 5.PHOTOGRAPH ................................................................................................................................5-1 5.1. Photos of Power Line Conducted Emission Test................................................................................... 5-1 5.2. Photos of Radiated Emission Test (In Anechoic Chamber) .................................................................. 5-1 APPENDIX I (23 pages) APPENDIX II (41 pages) FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 TEST REPORT DECLARATION Applicant
U Lighting Co., Ltd. Member of Wangfujing Group Manufacturer
Boy Lighting Co., Ltd. EUT Description
Energy Saving Lamp (A) MODEL NO. :EUT-15W,EUT-20W,EUT-24W, EUT-26W,SRE-15W,SRE-20W, SRE-23W,SRE-26W, EIM-3W, EIM-5W,EIM-7W,EUB-5W, EUB-7W,EUB-9W,EUB-13W, EUB-15W, EUG-15W,EUG-20W, ECL-15W, ECL-20W (B) SERIAL NO. :N/A (C) POWER SUPPLY : 120V / 60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 SUBPART C RF LIGHTING DEVICES CONSUMER (1998) AND MP-5/1986 The device described above is tested by Audix Technology (Shenzhen) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 Subpart C limits for radiation and conduction emissions. The test results are contained in this test report and Audix Technology (Shenzhen) Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT is technically compliant with FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shenzhen) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test :Sep. 28~ Dec. 06, 2000 FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 Page 1-1 1. GENERAL INFORMATION 1.1. Description …

Text truncated - open the document above for the full version.

FCC ID: O6N9G94 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-20F159 5. PHOTOGRAPH 5.1. Photos of Power Line Conducted Emission Test 5.2. Photos of Radiated Emission Test (In Anechoic Chamber)
