O6PST639IR Sensor / Wireless Receiver

EVER BEST SOLUTIONS LIMITED
IR Sensor / Wireless Receiver - FCC ID O6PST639 - EVER BEST SOLUTIONS LIMITED
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Jul 30, 2013
Application Purpose
Original Equipment
Date of Application
Jul 29, 2013
Equipment Note
IR Sensor / Wireless Receiver
Frequency Range
433.92000000 - 433.92000000
Company
EVER BEST SOLUTIONS LIMITED
Country
China

Documents & Files

Select a file to view

Users Manual

β†—

Block Diagram

β†—

Cover Letter(s)

β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—
β†—

Internal Photos

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Cable Box DVD Player IR emitter IR emitter HIPRE01-RX Receiver IR extender jack Installation and operating instructions for HIPRE01-TX Transmitter and HIPRE01-RX Receiver, both included in the HIP-RE01 Set.1. Insert two AAA alkaline batteries in the HIPRE01-TX transmitter, and place it in the room where you want to use your remote control (up to 20 feet away from where you sit). Place the front of the unit facing you. 2. Plug the HIPRE01-RX receiver’s power supply jack into the back of the HIPRE01-RX and plug the power supply into an AC wall outlet in the room where your TV, VCR, stereo, etc, that you want to control is located. 3. Point the front of the HIPRE01-RX at the A/V device to be controlled, or plug the (optional) IR extender cable into the back of the HIPRE01-RX and attach the IR emitters on the cable to the front of up to two A/V devices that you want to control. LIMITED ONE YEAR WARRANTYC&A Marketing, Inc. warrants the Hipe Remote Control Extender to be free of defects in parts, materials and workmanship for a period of one year from date of purchase. Should any repairs or servicing under this warranty be required, Contact C&A Marketing Inc., and ship the Hipe Remote Control Extender to the C&A Marketing Inc., service center at the address below: C&A Marketing Returns Department2 Bergen Turnpike.Ridge fi eld Park, NJ 07660 Tel: 201-881-1900Email [email protected] HIP-RE01-6/13 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.This equipment generates and uses radio frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturers instructions, it may cause interference to radio and television reception. It has been type tested and found to comply with the limits for remote control devices in accordance with the speci fi cations in Sub-Parts B and C of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. How-ever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by unplugging the equipment, try to correct the interference by one or more of the following measures.β€’ Reorient the antenna of the radio/TV experiencing the interference.β€’ Relocate the equipment with respect to the radio/TV.β€’ Move the equipment away from the radio/TV.β€’ Plug the equipment into an outlet on a different electrical circuit from the radio/TV experiencing the interference. β€’ If necessary, consult your local Dealer for additional suggestions.NOTE: Modi fi cations to this product will void the user's authority to operate this equipment. 5. Point your remote control at the HIPRE01-TX Powermid Transmitter and press any button. The Powermid Transmitter receives the Infrared (IR) signals from your remote and converts them to Radio Frequency (RF) codes. It sends these codes (even through walls and ceilings) to the HIPRE01-RX Powermid Receiver which converts the codes back to IR codes to control your TV, VCR, etc. Note: The Transmitter and Receiver can be in different rooms, up to 100 feet away from each other. You can add more Transmitters to use your remotes in more than one room. Add more Receivers to control A/V equipment in more than one room.

Block Diagram

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA 433.92MHz IR receiver Infrared Remote RF RF Transmitter (30K - 60KHz) Block diagram of HIPRE01-TX (IR SENSOR / WIRELESS TRANSMITTER)

Cover Letter(s)

EVER BEST SOLUTIONS LIMITED FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name EVER BEST SOLUTIONS LIMITED Address Room 2002, 20/F, HING YIP COMMERCIAL CENTRE, 272-284 DES VOEUX ROAD, City CENTRAL, HONGKONG Country China request for this certification filing under: Grantee Code Product Number FCC ID: O6P ST639 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description √ Operational Description Operational Description explaining the functioning of the block diagram √ Block Diagrams Block Diagrams showing the systematic building blocks of the EUT √ Schematics Diagrams Schematics showing components, their values and interconnection Bill of Materials List of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation:

External Photos

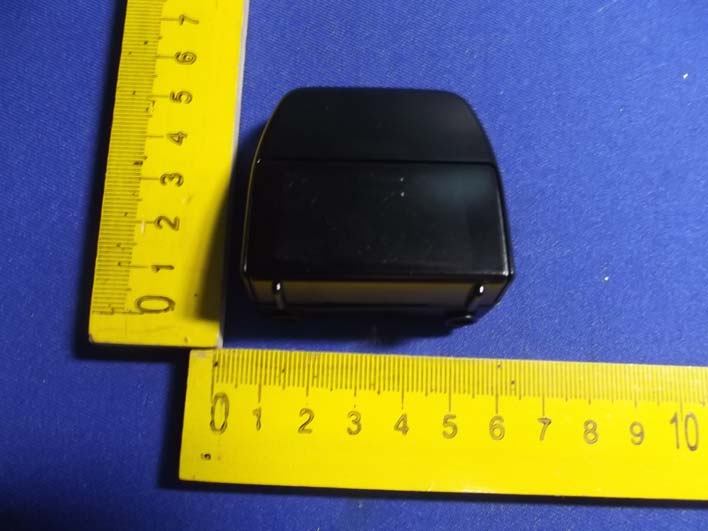

Figure 1 The EUT-Front View Figure 2 The EUT-Back View

ID Label/Location Info

Label Location On EUT

Internal Photos

Figure 3 The EUT-Battery Location View Figure4 The EUT-Inside View Figure 5 PCB of the EUT-Front View Figure 6 PCB of the EUT-Back View

Test Report

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: O6PST639 Page 1 of 19 Report No. 201306891F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for EVER BEST SOLUTIONS LIMITED IR Sensor / Wireless Transmitter Model No.: HIPRE01-TX, ST639 Report Number : 201306891F Date of Test : Jul. 01~ 12, 2013 Date of Report : Jul.19, 2013 Prepared for : EVER BEST SOLUTIONS LIMITED Address : Room 2002, 20/F, HING YIP COMMERCIAL CENTRE, 272-284 DES VOEUX ROAD, CENTRAL, HONGKONG Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: O6PST639 Page 2 of 19 Report No. 201306891F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENT Description Test Report Page 1. GENERAL INFORMATION ......................................................................................................... 4 1.1. Description of Device (EUT) ................................................................................................................... 4 1.2. Description of Test Facility ...................................................................................................................... 5 1.3. Measurement Uncertainty ........................................................................................................................ 5 1.4. Test Summary .......................................................................................................................................... 6 2. MEASURING DEVICE AND TEST EQUIPMENT ................................................................... 7 3. TEST PROCEDURE ....................................................................................................................... 8 4. RADIATION INTERFERENCE .................................................................................................... 9 4.1. Requirements (15.231): ............................................................................................................................ 9 4.2 Test Procedure ........................................................................................................................................... 9 4.3 Test Results ................................................................................................................................................ 9 5. 20DB BANDWIDTH ..................................................................................................................... 11 5.1. Requirements (15.231): .......................................................................................................................... 11 5.2. EUT Setup .............................................................................................................................................. 11 5.3. Test Results ............................................................................................................................................. 11 6. DUTY CYCLE ............................................................................................................................... 13 6.1. EUT Setup .............................................................................................................................................. 13 6.2. Test Procedure ........................................................................................................................................ 13 6.3. Requirements & Result ........................................................................................................................... 13 7. TEST PHOTO ................................................................................................................................ 16 7.1. Photo of Radiation Emission Test .......................................................................................................... 16 APPENDIX I (External Photos) (1 pages) APPENDIX II (Internal Photos) (2 pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: O6PST639 Page 3 of 19 Report No. 201306891F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant : EVER BEST SOLUTIONS LIMITED Manufacturer : EVER BEST SOLUTIONS LIMITED EUT : IR Sensor / Wireless Transmitter Model No. : HIPRE01-TX, ST639 Serial No. : N/A Trade Mark : N/A Rating : DC 3V Battery Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.231 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Shenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Shenzhen Anbotek Compliance Laboratory Limited Date of Test : Jul. 01~ 12, 2013 Prepared by : (Tested Engineer / Rock Zeng ) Reviewer : (Project Manager / Sally Zhang ) Approved & Authorized Signer : (Manager / Tom Chen) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: O6PST639 Page 4 of 19 Report No. 201306891F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax:(86)755-26014772 www.anbotek.com 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : IR Sensor / Wireless Transmitter Model Number : HIPRE01-TX, ST639 (Note: All samples are the same except the m…

Text truncated - open the document above for the full version.

Test Setup Photos

1.Photo of Radiated Emission Test

Contact Information

Applicant

Cathy Du
[email protected]008675588325250Fax: 008675588325251

Technical Contact

TeleconformityMark Koop
[email protected](31)848395876

Rietven 31 Β· Enschede, Overyssel Β· Netherlands

Test Firm

Shenzhen Anbotek Compliance Laboratory LimitedDaniel zhu
[email protected]86-755-26014771

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433.92 MHz - 433.92 MHz-
Confidentiality
Long Term

Other Applications from EVER BEST SOLUTIONS LIMITED

PowerMID RF Transmitter - FCC ID O6PST539 - EVER BEST SOLUTIONS LIMITED
O6PST539

PowerMID RF Transmitter

Jun 05, 2012

Equipment Class

DSC - Part 15 Security/Remote Control Transmitter
