O6V-850 Watt Electronic Ballast for Fluorescent Lamp

ACI2000-F003 / EA98656 / FCC ID: O6V-8

ACI2000-F003 / EA98656 / FCC ID: O6V-8 Electronic Ballast for Fluorescent Lamp With Switching Power Supply @ 24 kHz Block Diagram 50W

Safety & Compliance Consulting 29 Sweetman Lane West Milford, NJ 07480-2932 Tel/Fax (973) 728-5141 September 6, 2000 ACI2000-F003 731 Confirmation Number: 13EA98656 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject:Original Application for Certification of Consumer RF Lighting Device FCC ID: O6VO6V-8 50 Watt Electronic Ballast for Fluorescent Lamp, Model O6V-8 Gentlemen: Enclosed, please find Suzhou Rongwen Kubai Lighting Systems Co., Ltd.’s application for equipment authorization dated August 23, 2000. This consumer ISM device is in compliance with Part 18, Subpart C of the FCC Rules. The subject device is electronic ballast that operates at 24 kHz switching frequency for use with compact fluorescent lighting. This RF ballast technical specifications include rated for 120V/60 Hz input and 12VAC/50W/24 kHz output. This EUT was tested with host CFL and in accordance with MP-5 to show compliance with FCC Part 18 limits. Should you have any questions or comments, please contact the undersigned. Thank you for your attention and cooperation in this matter. Sincerely yours, Richard Mullen Group Manager Safety & Compliance Consulting

ACI2000-F003 / 13EA98656 Federal Communications CommissionDate: Aug 23, 2000 Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Dear Sir, This is your letter of authorization to accept our appointment of Richard Mullen, Group Manager / Safety & Compliance Consulting as agent for the following company: Company Name :Suzhou Rongwen Kubai Lighting Systems Co., Ltd. Address:Huang Jing Town Taicang City Jiangsu Province China From now on, Richard Mullen will sign applications before the commission on our behalf, and receive exchange data between our company and the commission in connection with certification of the following Suzhou Rongwen Kubai Lighting Systems Co., Ltd. product: Equipment:Electronic Ballast for Fl Lamp Model No.:50W FCC ID:O6V-8 Under FCC Docket Number 20780 and General Docket Number 89-103 pursuant to Part 18, Subparagraph C, of the Rules and Regulations of the FCC. This authorization will expire one year from the date of this letter. Sincerely Yours, _______________________________________ Zhang Jian Feng / Engineer Suzhou Rongwen Kubai Lighting Systems Co., Ltd.

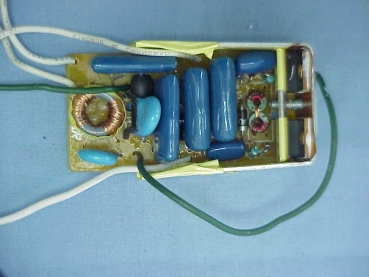

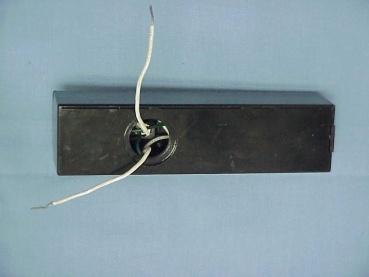

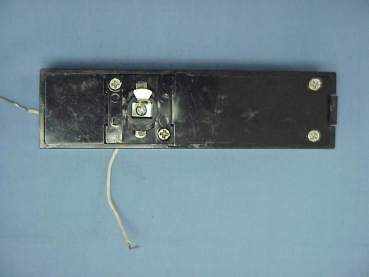

F IGURE 1. P OWER S UPPLIES (M/N: 50W) G ENERAL A PPEARANCE F IGURE 2. P OWER S UPPLIES (M/N: 50W) R EAR V IEW F IGURE 3. P OWER S UPPLIES (M/N: 50W) I NSIDE V IEW F IGURE 4. P OWER S UPPLIES (M/N: 50W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 5. P OWER S UPPLIES (M/N: 50W) M AIN B OARD (S OLDERED S IDE )

ACI2000-F003 / EA98656 / FCC ID: O6V-8 Electronic Ballast for Fluorescent Lamp With Switching Power Supply @ 24 kHz Label Drawing FCC ID: O6V-8

Suzhou Rongwen Kubai Lighting System Co., Ltd.FCC ID: O6V-8Page 19 of 30 AUDIX Technology (Shanghai) Co., Ltd. Report No. ACI-00043 Application for FCC Certification On Behalf of Suzhou Rongwen Kubai Lighting System Co., Ltd. Electronic Ballast for Fluorescent Lamp (50 Watt Power Supply) Model No.: 50W FCC ID: O6V-8 Prepared For : Suzhou Rongwen Kubai Lighting System Co., Ltd. Huang Jing Town Taicang City Jiangsu Province China Prepared By : AUDIX Technology (Shanghai) Co., Ltd. 3 F., 34 Bldg., 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai, China Tel : (+8621) 64955500 Report No. :ACI-F00043 Date of Test :Apr 13 ~ 14, 2000 Date of Report :Aug 23, 2000 Suzhou Rongwen Kubai Lighting System Co., Ltd.FCC ID: O6V-8Page 20 of 30 AUDIX Technology (Shanghai) Co., Ltd. Report No. ACI-00043 TABLE OF CONTENTS Page 1 GENERAL INFORMATION ........................................................................................................ 22 1.1 Description of Equipment Under Test ...................................................................................... 22 1.2 Description of Test Facility ...................................................................................................... 22 1.3 Measurement Uncertainty......................................................................................................... 22 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................ 23 2.1 Test Equipment ......................................................................................................................... 23 2.2 Block Diagram of Test Setup.................................................................................................... 23 2.3 Conducted Emission Limits...................................................................................................... 23 2.4 Test Configuration .................................................................................................................... 24 2.5 Operating Condition of EUT .................................................................................................... 24 2.6 Test Procedures......................................................................................................................... 24 2.7 Test Results............................................................................................................................... 25 3 RADIATED EMISSION TEST..................................................................................................... 26 3.1 Test Equipment ......................................................................................................................... 26 3.2 Block Diagram of Test Setup.................................................................................................... 26 3.3 Radiated Emission Limits ......................................................................................................... 27 3.4 Test Configuration .................................................................................................................... 27 3.5 Operating Condition of EUT .................................................................................................... 27 3.6 Test Procedures......................................................................................................................... 27 3.7 Test Results............................................................................................................................... 28 4 PHOTOGRAPHS............................................................................................................................ 29 4.1 AC Powerline Conducted Emission Test.................................................................................. 29 4.2 Radiated Emission Test............................................................................................................. 30 Suzhou Rongwen Kubai Lighting System Co., Ltd.FCC ID: O6V-8Page 21 of 30 AUDIX Technology (Shanghai) Co., Ltd. Report No. ACI-00043 T T E E S S T T R R E E P P O O R R T T Applicant:Suzhou Rongwen Kubai Lighting System Co., Ltd. Manufacturer :Suzhou Rongwen Kubai Lighting System Co., Ltd. EUT Description :Electronic Ballast for Fluorescent Lamp / 50 Watt Power Supply (A) Model No.: 50W (B) Serial No.: ACI-20000412003 (C) Power Supply: AC 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (1998) AND MP-5/1986 The device described above is tested by AUDIX Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both radiated and conducted emissions. The test results are contained in this test report and AUDIX Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of AUDIX Technology (Shanghai) Co., Ltd. Suzhou Rongwen Kubai Lighting System Co., Ltd.FCC ID: O6V-8Page 22 of 30 AUDIX Technology (Shanghai) Co., Ltd. Report No. ACI-00043 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description:Electronic Ballast for Fluorescent Lamp/50W Power Supply Type of EUT: ! Production " Pre-product " Pro-type Model Number : 50W Applicant:Suzhou Rongwen Kubai Lighting System Co., Ltd. Huang Jing Town Taicang City Jiangsu Province China Manufacturer:Suzhou Rongwen Kubai Lighting System Co., Ltd. Huang Jing Town Taicang City Jiangsu Province China 1.2 Description of Test Facility Site Description:Sept. 17, 1998 file on (Se mi-Anechoic Chamber)Federal Communications Commission FCC Engineering Laboratory 7435 Oakland Mills Road Columbia, MD 21046, USA Name of Firm:AUDIX Techn…
