O79BT001Bluetooth USB Dongle

Installation Steps: 1. Uninstall previous version of BlueSoleil. If a previous version has been installed. Then reboot the PC. 2. Insert the Installation software CD-ROM into the CD-ROM drive of your computer. 3. Install the program for the adaptor you are now using, If the Installation program does not start automatically; please double click the “Setup.exe” file on the CD manually. 4. Then follow the instructions to finish the software installation. 5. Restart the computer. After the BlueSoleil software package is installed. This is to ensure the installed Bluetooth Device takes effect. 6. Plug the bluetooth adaptor into a computer USB port. 7. When the computer had been restarted, start the BlueSoleil application by clicking. (Start-Programs-IVT BlueSoleil- BlueSoleil) Specification Compliant with Bluetooth V2.1 Supported: Networking/Dial-up Fax/LAN access/Headset Operating systems: Win2000/XP/VISTA Interface: USB 1.1, 2.0 Data transmission rate: 3Mbps Working Distance: Up to 20m FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. Tested to comply with FCC standard. FOR HOME OR OFFICE USE. Warning : This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. & This device and its antenna(s) must not be co-located or conjunction with any other antenna or transmitter.

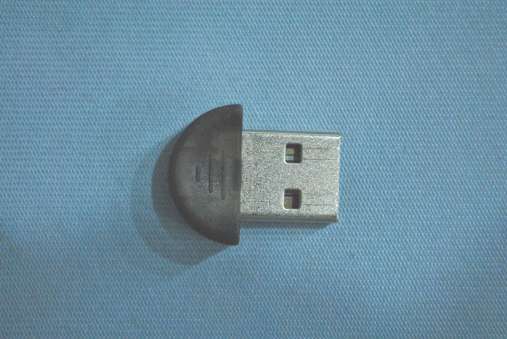

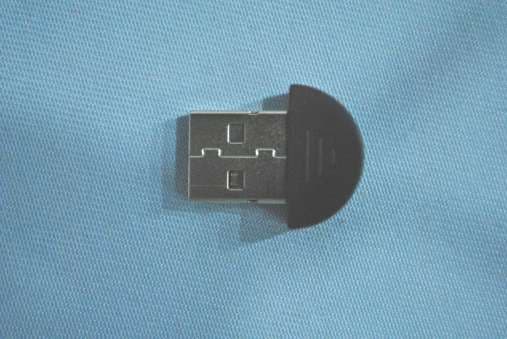

EUT top view EUT bottom view

The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: O79BT001

EUT inside whole view Main&RF board component side Main&RF board solder side

The test report consists 18 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under: FCC Part 15, Class B Prepared For: ATATECH Industry Limited 3F, 59th Yuexin Road,Fuming Village, Guanlan Town, Bao'an, Shenzhen, Guangdong, China Zip Code: 518110 FCC ID: O79BT001 EUT: Bluetooth USB Dongle Model: BT001 June 29, 2012 Issue Date: Original Report Report Type: Test Engineer: Eric Guo Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com ATATECH Industry Limited FCC ID: O79BT001 KMO FCC 15 Test Report Report #: KSZ2012062001J01 Page 2 of 18 TABLE OF CONTENTS 1. General Information............................................................................................................................................................ 3 1. 1 Notes ............................................................................................................................................................................... 3 1. 2 Testing Laboratory .......................................................................................................................................................... 3 1. 3 Details of Applicant ........................................................................................................................................................ 3 1. 4 Application Details ......................................................................................................................................................... 3 1. 5 Test Item ......................................................................................................................................................................... 3 1. 6 Test Standards ................................................................................................................................................................. 3 2. Technical Test ...................................................................................................................................................................... 4 2. 1 Summary of Test Results ................................................................................................................................................ 4 3. EUT Modifications .............................................................................................................................................................. 4 4. Conducted Power Line Test ................................................................................................................................................ 5 4. 1 Test Equipment ............................................................................................................................................................... 5 4. 2 Test Procedure ................................................................................................................................................................ 5 4. 3 Test Setup ....................................................................................................................................................................... 5 4. 4 Configuration of The EUT .............................................................................................................................................. 6 4. 5 EUT Operating Condition ............................................................................................................................................... 7 4. 6 Conducted Power Line Emission Limits ........................................................................................................................ 7 4. 7 Conducted Power Line Test Result ................................................................................................................................. 8 5. Radiated Emission Test ..................................................................................................................................................... 10 5. 1 Test Equipment ............................................................................................................................................................. 10 5. 2 Test Procedure .............................................................................................................................................................. 10 5. 3 Radiated Test Setup ...................................................................................................................................................... 10 5. 4 Configuration of The EUT ............................................................................................................................................ 11 5. 5 EUT Operating Condition ............................................................................................................................................. 11 5. 6 Radiated Emission Limit .............................................................................................................................................. 11 5. 7 Radiated Emission Test Result ...................................................................................................................................... 12 6. Photo of Testing ................................................................................................................................................................. 13 6.1 Emission test view ......................................................................................................................................................... …

Text truncated - open the document above for the full version.

Conducted emission test view Radiated emission test view
