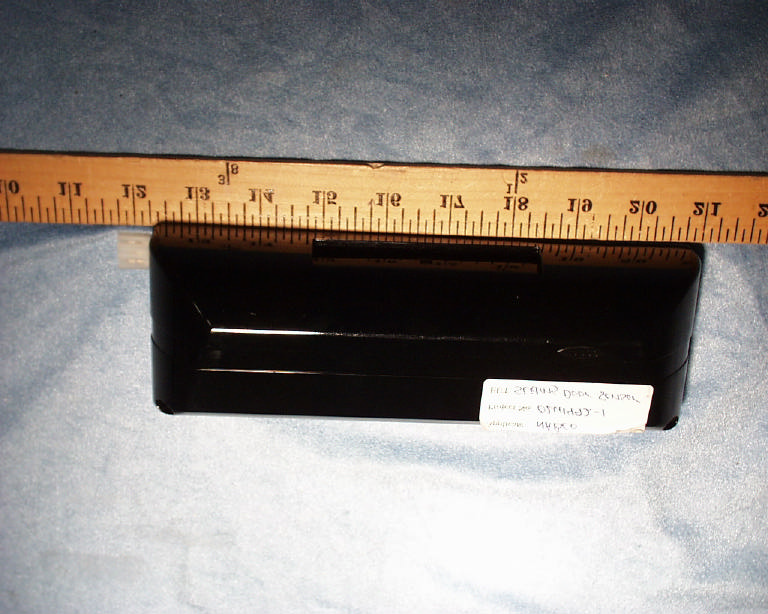

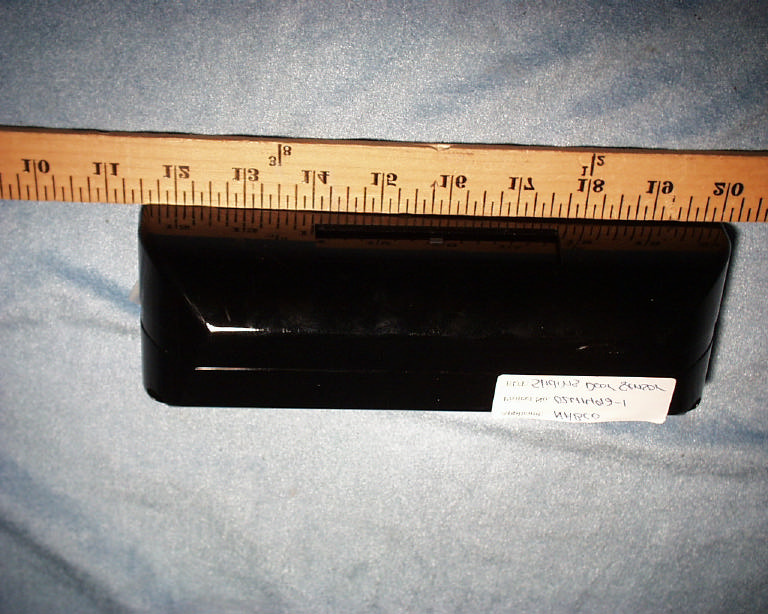

O82-ACUMOTIONND-600 Sensor

SR-02602 Adjustment Manual for Acumotion Prototype 1. Parts list 1)Acumotion: pc 2)3 conductor Cable: pc (5ft) 3)Antenna:pc There are two type of the Antenna, such as Wide field which has 3 chips and Narrow Field which has 6 chips. 2. Function of LED Sensor Status Power ON & No Detection Microwave detects Infrared detects Microwave & Infrared detect LED Status Green Orange Red Off 3. Adjustment 1) Lever for mounting angle of entire sensorLever for mounting angle of entire sensor This white lever is to adjust the angle of the entire sensor and will be used to adjust the field of the around threshold for Infrared. When you move this white lever to upside, sensing field will be move to close side of the door. 9 positions adjustment is available. (-4 ~ 4 deg.) 2) Angle adjustmeAngle adjustment for Microwave sensornt for Microwave sensor This part is to adjust the angle of microwave head. 11 positions adjustment is available. (15 ~ 45 deg.) 1 2 3 4 5 6 SR-02602 3) Depth adjustment lever of Infrared sensor Depth adjustment lever of Infrared sensor This slidable lever is to adjust the depth of infrared field. Lever position [1] : Depth of infrared field 1 ft Lever position [2] : Depth of infrared field 2 ft Lever position [3] : Depth of infrared field 3 ft When you need the enough depth of microwave field, please adjust this lever ,there is no detection zone between Infrared beams and microwave beams. 4) Dip Switch 1Dip Switch 1 (8 positons) This switches are for Infrared sensor. Switch Number Function Adustment 1 2 ON ON Mode A ON OFF Mode B OFF ON Mode C 1, 2 Mutual Interference Prevention Mode OFF OFF Mode D 3 4 ON ON High Sensitivity 15 sec ON OFF High Sensitivity  sec OFF ON Low Sensitivity 30 sec 3, 4 Sensitivity& Presence time adjustment OFF OFF Snow Mode 15 sec ON ON No Cancellation OFF ON One spot of left outside is cancelled. OFF OFF Two spots of left outside are cancelled. ON OFF Three spots of left outside are cancelled. ON ON No Cancellation ON OFF One spot of Right outside is cancelled. OFF OFF Two spots of Right outside are cancelled. 5, 6, 7, 8 Adjustment of width OFF ON Three spots of Right outside are cancelled. SR-02602 5) Dip Switch 2 (4 positions) This switches for the microwave sensor. Switch Number Function Adjustment ON Uni-directional 1 Bi/Unidirectional OFF Bi-directional ON ON Standard ON OFF High OFF ON Noise prevention Mode 1 2, 3 Sensitivity of Frequency Noise OFF OFF Noise prevention Mode 2 ON Effective 4 Infrared ON/OFF OFF Invalid 6) Sensitivity of power for Microwave sensor (Potentiometer) 10 positions adjustment of sensitivity is available by a potentiometer. CW: High Sensitivity, CCW: Low Sensitivity High 4. Wiring Red: 12VDC Input Black: 12VDC Ground & Output Common White: Out put (DC30V/0.1A max) Compliance Statement (Part 15.19)Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions; 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21)Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure (OET Bulletin 65)RF Exposure (OET Bulletin 65) To comply with FCC RF exposure requirements for mobile transmitting device, this transmitter should only be used or installed at locations where there is at least 20 cm(7.78 inches) separation distance between the antenna and all person.

From: Christine Vu Sent: Tuesday, October 01, 2002 12:38 PM To: Mike Kuo Cc: Steve Cheng; Thu Tran; Barbara Judge; Michael Heckrotte Subject: RE: NABCO ENTRANCES, INC, FCC ID:O82-ACUMOTION, AN02T2252 Hello Mike, Reply to the following: 1. Attached below is the Revised Test Report to addressed the issues as you mentioned. 2. Attached below is the 12.5dBi and 11.8dBi Photos. 3. Attached below is the Revise User Manual that I received from client. Note: The following attachments are Acumotion Manual pages with revisions including the Parts 15.19 and 15.21. Please advise if this information is sufficient for the TCB examiner. I am not sure the RF Exposure (OET Bulletin 65) revision is appropriate. My engineer took this reference from a document we had from a local test laboratory. Please advise if this is satisfactory or contact me if you need additional information or revisions. Thanks, Christine -----Original Message----- From: CERTADM Sent: Monday, September 23, 2002 3:57 PM To: '[email protected]' Subject: NABCO ENTRANCES, INC, FCC ID:O82-ACUMOTION, AN02T2252 Notice_content ------------- Question #1: Request for confidentiality letter listed the operational description as one of confidential document. By examining the contents of operational description, it has contained general information of the device. Such information also mentioned in the section 2 of test report under EUT description. If the information contains in the operational description is confidential information, please delete such information in the test report. Also , test report indicates there are two types of antenna of this device, please describe antenna selection criteria for antenna and specification of antennas in the operational description. Question #2: Please provide photographs for 12.5dBi and 11.8dBi antenna. If such antennas are internal of the device, please indicate the antenna location on the internal photos. Question #3: User Manual does not contain information required under section 15.21 of FCC rules. Please provide revised user manual. Question #4: User Manual does not contain information required under section 15.19(a)(3) of FCC rules. Please provide revised user manual. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

PROPOSED FCC ID LABEL AND LOCATION FCC ID LABEL NABCO ENTRANCES, INC. This device complies with Part 15 of FCC rules. FCC ID: O82-ACUMOTION

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR NABCO ENTRANCES, INC. 24.15 GHz SLIDING DOOR OPENER MODEL NUMBER: ND-600 FCC ID: O82-ACUMOTION REPORT NUMBER: 02U1492-1 ISSUE DATE: SEPTEMBER 12, 2002 Prepared for NABCO S82 W18717 GEMINI DRIVE (P.O. BOX 906) MUSKEGO, WI 53150 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1492-1 DATE: SEPTEMBER 12, 2002 EUT: SLIDING DOOR OPENER FCC ID: O82-ACUMOTION Page 2 of 25 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. TEST METHODOLOGY..................................................................................................................5 4. FACILITIES AND ACCREDITATION..........................................................................................5 4.1. FACILITIES AND EQUIPMENT.................................................................................................5 4.2. LABORATORY ACCREDITATIONS AND LISTINGS.................................................................5 4.3. TABLE OF ACCREDITATIONS AND LISTINGS........................................................................6 5. CALIBRATION AND UNCERTAINTY.........................................................................................7 5.1. MEASURING INSTRUMENT CALIBRATION............................................................................7 5.2. MEASUREMENT UNCERTAINTY..............................................................................................7 5.3. TEST AND MEASUREMENT EQUIPMENT...............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST.......................................................................................9 6.1. APPLICABLE RULES................................................................................................................10 7. TEST SETUP, PROCEDURE AND RESULT..............................................................................14 7.1. FIELD STRENGTH OF EMISSIONS.........................................................................................14 7.1.1. SETUP AND PROCEDURE..............................................................................................14 7.1.2. TEST RESULTS................................................................................................................17 7.2. POWER LINE CONDUCTED EMISSIONS...............................................................................20 7.3. SETUP PHOTOS........................................................................................................................23 REPORT NO: 02U1492-1 DATE: SEPTEMBER 12, 2002 EUT: SLIDING DOOR OPENER FCC ID: O82-ACUMOTION Page 3 of 25 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: NABCO ENTRANCES, INC. S82 W18717 GEMINI DRIVE (P.O. BOX 906) MUSKEGO, WI 53150 USA EUT DESCRIPTION: SLIDING DOOR OPENER MODEL NUMBER: ND-600 DATE TESTED: SEPTEMBER 3 – SEPTEMBER 11, 2002 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 24075 - 24175 MHz FIELD DISTURBANCE SENSOR MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 15.C Compliance Certification Services, Inc. tested the above equipment for compliance with the requirements set forth in CFR 47, PART 15, Subpart C. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE THANH NGUYEN CHIEF ENGINEER EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1492-1 DATE: SEPTEMBER 12, 2002 EUT: SLIDING DOOR OPENER FCC ID: O82-ACUMOTION Page 4 of 25 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is a Field Disturbance Sensor that functions as a Sliding Door Opener. The operating frequency is 24.125 GHz. The EUT requires 12 VDC for power and utilizes one of two available antennas. The Narrow Antenna is a 3 element antenna and has a gain of 12.5 dBi. The Wide Antenna is a 6 element antenna and has a gain of 11.8 dBi. The Narrow Antenna covers a field 8.2 feet wide. The…
