O8DRF-829RF REMOTE CONTROL

User Manual The wireless remote control is a small and portable 2-Key transmitter. It is very convenient for a user to put it in a pocket. The transmitter used to control equipment LOCK or UNLOCK. The wireless remote control encode IC is LX2240B1, data format is composed of 20 bits address code and 4 bits data. One bit data width of 1.3MS. The data of the LOCK key is 0001 The data of the UNLOCK key is 0010 1. Basic Specification: 1). Power supply: DC6V (2*CR2016) 2). Modulation mode: AM 3). Frequency: 433.92MHz 4). Outline dimensions:61mm(length), 29 mm(width), 13 mm(height) 5). Product weight:253g LOCK Key UNLOCK Key 6). Operating temperature range: 0~50 7). Storage temperature range:-10~60 2. Applications: Car Security System Garage Door Controller Home/Office Security System Personal Alarm System FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Block Diagram Antenna (TX: 433.92MHz) Modulating amplifier XTAL OSC 433.92MHz MCU (U1) DC 6V Press Button

深圳市冠测技术服务有限公司 Shenzhen Certification Technology Service Co., Ltd TEL: 86-755-86375552 FAX: 86-755-26736857 Test Lab Attestation Letter This attestation is to confirm that the below listed device was tested at our Test Facilities located at: Test Lab Name: Shenzhen Certification Technology Service Co., Ltd Test Lab Address: 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, shenzhen 518126, China Test Lab Registration Number: 197647 Date of Test: 2012-5-30 Test Report Number: BST12050465Y-1E-3 Applicant Name: SecuraSeal Technologies LLC FCC ID: O8DRF-829 Name of Engineer(s) Performing Test: Eric Li Company Name of Engineer(s) Performing Test: Shenzhen Certification Technology Service Co., Ltd TEST LABORATORY: Signature of Authorized Representative of the Test Laboratory: Full Contact Name: Mark Zhu Position/Title: General Manager

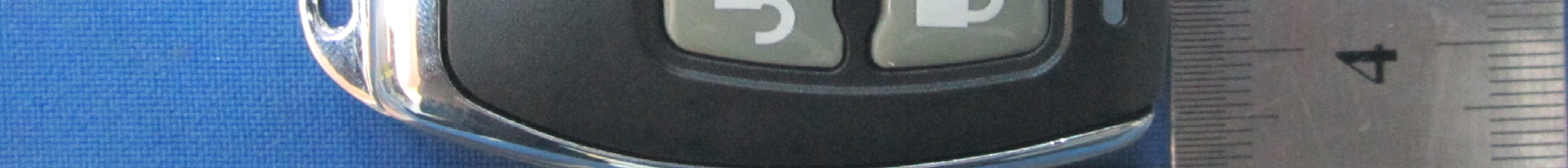

External Photo

FCC Certification Label FCC ID: O8DRF-829 Label Location on EUT EUT View/ FCC ID Label Location

Internal Photo Antenna

Operational Description RF signals by switching to MCU (U1), The Encoded data sent to the modulating amplifier circuit, then transmit the signal by antenna. The antenna used for this product is a PCB antenna. The transmission frequency is 433.92MHz. Common grounding on PCB is not connected to real external ground. Power supply is DC 6V by two “CR2016” batteries.




  !!!!"! #  $%
 &  %  &  %  ' (!) *+ ,
