Note: This report may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC ID PER PART 15.231 EUT USER MANUAL For Global Assistive Devices, Inc. 4950 North Dixie Highway Suite 121 Fort Lauderdale, FL 33334-3947 FCC ID: O9QDBT300 January 2, 2001 This Report Concerns: Original Report Equipment Type: Door Beacon Test Engineer: Victor Liu Test Date: January 2, 2001 Reviewed By: John Y. Chan – Engineering Manager Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street, Suite 2 Sunnyvale, CA 94086 Tel: (408) 732-9162 Fax: (408) 732 9164 Global Assistive Devices, Inc. FCC ID: O9QDBT300 Report # User Manual Page 2 of 10 FCC Part 15 Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).....................................................................................................................................3 1.4 TEST METHODOLOGY..............................................................................................................................................................3 1.5 TEST FACILITY.........................................................................................................................................................................3 1.6 TEST EQUIPMENT LIST............................................................................................................................................................4 1.7 EQUIPMENT UNDER TEST (EUT)...........................................................................................................................................4 1.8 POWER SUPPLY AND LINE FILTERS.......................................................................................................................................4 APPENDIX A – USER MANUAL..............................................................................................................................................5 APPENDIX B –AUTHORIZATION LETTER......................................................................................................................9 Global Assistive Devices, Inc. FCC ID: O9QDBT300 Report # User Manual Page 3 of 10 FCC Part 15 Test Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Global Assistive Devices, Inc., model O9QDBT300 or the "EUT" as referred to in this report is a door beacon which measures 3 1/8” L x 2 ¼ ” W x 3 ¼ ” H. 1.2 Objective This certification report is prepared on behalf of Global Assistive Devices, Inc. in accordance with Part 2, Subpart J, and Part 15, Subparts A, B, and C of the Federal Communication Commissions rules. The objective of the manufacturer is to demonstrate compliance with FCC rules, Part 15, Sec 205, 209, and 231 for conducted and radiated margin. 1.3 Related Submittal(s)/Grant(s) No Related Submittals 1.4 Test Methodology All measurements contained in this report were conducted with ANSI C63.4 –1992, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory, Corp. The radiated testing was performed at an antenna-to-EUT distance of 3 meters. 1.5 Test Facility The Open Area Test site used by Bay Area Compliance Laboratory Corporation to collect radiated and conducted emission measurement data is located in the back parking lot of the building at 230 Commercial Street, Suite 2, Sunnyvale, California, USA. Test sites at Bay Area Compliance Laboratory Corporation has been fully described in reports submitted to the Federal Communication Commission (FCC) and Voluntary Control Council for Interference (VCCI). The details of these reports has been found to be in compliance with the requirements of Section 2.948 of the FCC Rules on February 11 and December 10, 1997 and Article 8 of the VCCI regulations on December 25, 1997. The facility also complies with the radiated and AC line conducted test site criteria set forth in ANSI C63.4-1992. The Federal Communications Commission and Voluntary Control Council for Interference has the reports on file and is listed under FCC file 31040/SIT 1300F2 and VCCI Registration No.: C-674 and R-657. The test sites has been approved by the FCC and VCCI for public use and is listed in the FCC Public Access Link (PAL) database. Global Assistive Devices, Inc. FCC ID: O9QDBT300 Report # User Manual Page 4 of 10 FCC Part 15 Test Report Additionally, Bay Area Compliance Laboratory Corporation is a National Institute of Standards and Technology (NIST) accredited laboratory, under the National Voluntary Laboratory Accredited Program (NVLAP). The scope of the accreditation covers the FCC Method - 47 CFR Part 15 - Digital Devices, IEC/CISPR 22: 1993, and AS/NZS 3548: Electromagnetic Interference - Limits and Methods of Measurement of Information Technology Equipment test methods under NVLAP Lab Code 200167-0. 1.6 Test Equipment List Manufacturer Description Model Serial Number Cal. Due Data HP Spectrum Analyzer 8568B 2610A02165 12/6/01 HP Spectrum Analyzer 8593B 2919A00242 12/20/01 HP Amplifier 8349B 2644A02662 12/20/01 HP Quasi-Peak Adapter 85650A 917059 12/6/01 HP Amplifier 8447E 1937A01046 12/6/01 A.H. System Horn Antenna SAS0200/571 261 12/27/…

Text truncated - open the document above for the full version.

Note: This report may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC ID PER PART 15.231 EUT EXTERNAL PHOTO FOR Global Assistive Devices, Inc. 4950 North Dixie Highway Suite 121 Fort Lauderdale, FL 33334-3947 FCC ID: O9QDBT300 January 2, 2001 This Report Concerns: Original Report Equipment Type: Door Beacon Test Engineer: Victor Liu Test Date: January 2, 2001 Reviewed By: John Y. Chan – Engineering Manager Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street, Suite 2 Sunnyvale, CA 94086 Tel: (408) 732-9162 Fax: (408) 732 9164 Global Assistive Devices, Inc. FCC ID: O9QDBT300 Report # EUT External Photo Page 2 of 9 FCC Part 15 Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).....................................................................................................................................3 1.4 TEST METHODOLOGY..............................................................................................................................................................3 1.5 TEST FACILITY.........................................................................................................................................................................3 1.6 TEST EQUIPMENT LIST............................................................................................................................................................4 1.7 EQUIPMENT UNDER TEST (EUT)...........................................................................................................................................4 1.8 POWER SUPPLY AND LINE FILTERS.......................................................................................................................................4 2 – EUT PHOTOGRAPHS...........................................................................................................................................................5 2.1 EUT: CHASSIS FRONT VIEW..................................................................................................................................................5 2.2 EUT: CHASSIS REAR VIEW....................................................................................................................................................6 2.3 EUT: CHASSIS WITHOUT COVER..........................................................................................................................................7 APPENDIX A –AUTHORIZATION LETTER......................................................................................................................8 Global Assistive Devices, Inc. FCC ID: O9QDBT300 Report # EUT External Photo Page 3 of 9 FCC Part 15 Test Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Global Assistive Devices, Inc., model O9QDBT300 or the "EUT" as referred to in this report is a door beacon which measures 3 1/8” L x 2 ¼ ” W x 3 ¼ ” H. 1.2 Objective This certification report is prepared on behalf of Global Assistive Devices, Inc. in accordance with Part 2, Subpart J, and Part 15, Subparts A, B, and C of the Federal Communication Commissions rules. The objective of the manufacturer is to demonstrate compliance with FCC rules, Part 15, Sec 205, 209, and 231 for conducted and radiated margin. 1.3 Related Submittal(s)/Grant(s) No Related Submittals 1.4 Test Methodology All measurements contained in this report were conducted with ANSI C63.4 –1992, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory, Corp. The radiated testing was performed at an antenna-to-EUT distance of 3 meters. 1.5 Test Facility The Open Area Test site used by Bay Area Compliance Laboratory Corporation to collect radiated and conducted emission measurement data is located in the back parking lot of the building at 230 Commercial Street, Suite 2, Sunnyvale, California, USA. Test sites at Bay Area Compliance Laboratory Corporation has been fully described in reports submitted to the Federal Communication Commission (FCC) and Voluntary Control Council for Interference (VCCI). The details of these reports has been found to be in compliance with the requirements of Section 2.948 of the FCC Rules on February 11 and December 10, 1997 and Article 8 of the VCCI regulations on December 25, 1997. The facility also complies with the radiated and AC line conducted test site criteria set forth in ANSI C63.4-1992. The Federal Communications Commission and Voluntary Control Council for Interference has the reports on file and is listed under FCC file 31040/SIT 1300F2 and VCCI Registration No.: C-674 and R-657. The test sites has been approved by the FCC and VCCI for public use and is listed in the FCC Public Access Link (PAL) database. Global Assistive Devices, Inc. FCC ID: O9QDBT300 Report # EUT External Photo Page 4 of 9 FCC Part 15 Test Report Additionally, Bay Area Compliance Laboratory Corporation is a National Institute of Standards and Technology (NIST) accredited laboratory, under the National Voluntary Laboratory Accredited Program (NVLAP). The scope of the accreditation covers the FCC Method - 47 CFR Par…

Text truncated - open the document above for the full version.

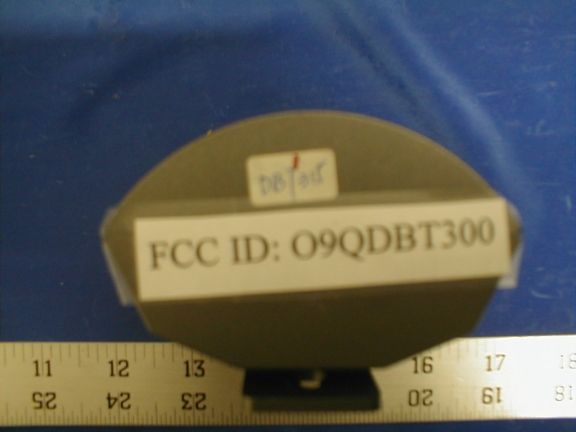

Note: This report may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC ID PER PART 15.231 EUT FCC ID LABEL LOCATION FOR Global Assistive Devices, Inc. 4950 North Dixie Highway Suite 121 Fort Lauderdale, FL 33334-3947 FCC ID: O9QDBT300 January 2, 2001 This Report Concerns: Original Report Equipment Type: Door Beacon Test Engineer: Victor Liu Test Date: January 2, 2001 Reviewed By: John Y. Chan – Engineering Manager Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street, Suite 2 Sunnyvale, CA 94086 Tel: (408) 732-9162 Fax: (408) 732 9164 Global Assistive Devices, Inc. FCC ID: O9QDBT300 Report # FCC ID Label Page 2 of 7 FCC Part 15 Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).....................................................................................................................................3 1.4 TEST METHODOLOGY..............................................................................................................................................................3 1.5 TEST FACILITY.........................................................................................................................................................................3 1.6 TEST EQUIPMENT LIST............................................................................................................................................................4 1.7 EQUIPMENT UNDER TEST (EUT)...........................................................................................................................................4 1.8 POWER SUPPLY AND LINE FILTERS.......................................................................................................................................4 2– FCC PRODUCT LABELING AND WARNING STATEMENT.................................................................................5 2.1 FCC ID LABEL.........................................................................................................................................................................5 2.2 PROPOSED LABEL LOCATION ON EUT.................................................................................................................................5 2.3 FCC WARNING STATEMENT..................................................................................................................................................5 APPENDIX A –AUTHORIZATION LETTER......................................................................................................................6 Global Assistive Devices, Inc. FCC ID: O9QDBT300 Report # FCC ID Label Page 3 of 7 FCC Part 15 Test Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Global Assistive Devices, Inc., model O9QDBT300 or the "EUT" as referred to in this report is a door beacon which measures 3 1/8” L x 2 ¼ ” W x 3 ¼ ” H. 1.2 Objective This certification report is prepared on behalf of Global Assistive Devices, Inc. in accordance with Part 2, Subpart J, and Part 15, Subparts A, B, and C of the Federal Communication Commissions rules. The objective of the manufacturer is to demonstrate compliance with FCC rules, Part 15, Sec 205, 209, and 231 for conducted and radiated margin. 1.3 Related Submittal(s)/Grant(s) No Related Submittals 1.4 Test Methodology All measurements contained in this report were conducted with ANSI C63.4 –1992, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory, Corp. The radiated testing was performed at an antenna-to-EUT distance of 3 meters. 1.5 Test Facility The Open Area Test site used by Bay Area Compliance Laboratory Corporation to collect radiated and conducted emission measurement data is located in the back parking lot of the building at 230 Commercial Street, Suite 2, Sunnyvale, California, USA. Test sites at Bay Area Compliance Laboratory Corporation has been fully described in reports submitted to the Federal Communication Commission (FCC) and Voluntary Control Council for Interference (VCCI). The details of these reports has been found to be in compliance with the requirements of Section 2.948 of the FCC Rules on February 11 and December 10, 1997 and Article 8 of the VCCI regulations on December 25, 1997. The facility also complies with the radiated and AC line conducted test site criteria set forth in ANSI C63.4-1992. The Federal Communications Commission and Voluntary Control Council for Interference has the reports on file and is listed under FCC file 31040/SIT 1300F2 and VCCI Registration No.: C-674 and R-657. The test sites has been approved by the FCC and VCCI for public use and is listed in the FCC Public Access Link (PAL) database. Global Assistive Devices, Inc. FCC ID: O9QDBT300 Report # FCC ID Label Page 4 of 7 FCC Part 15 Test Report Additionally, Bay Area Compliance Laboratory Corporation is a National Institute of Standards and Technology (NIST) accredited laboratory, under the National Voluntary Laboratory Accredited Program (NVLAP). The scope of the accreditation covers the FCC Method - 47 CFR Part 15 - Digital Devices, IEC/CISPR 22: 1993, and AS/NZS …
