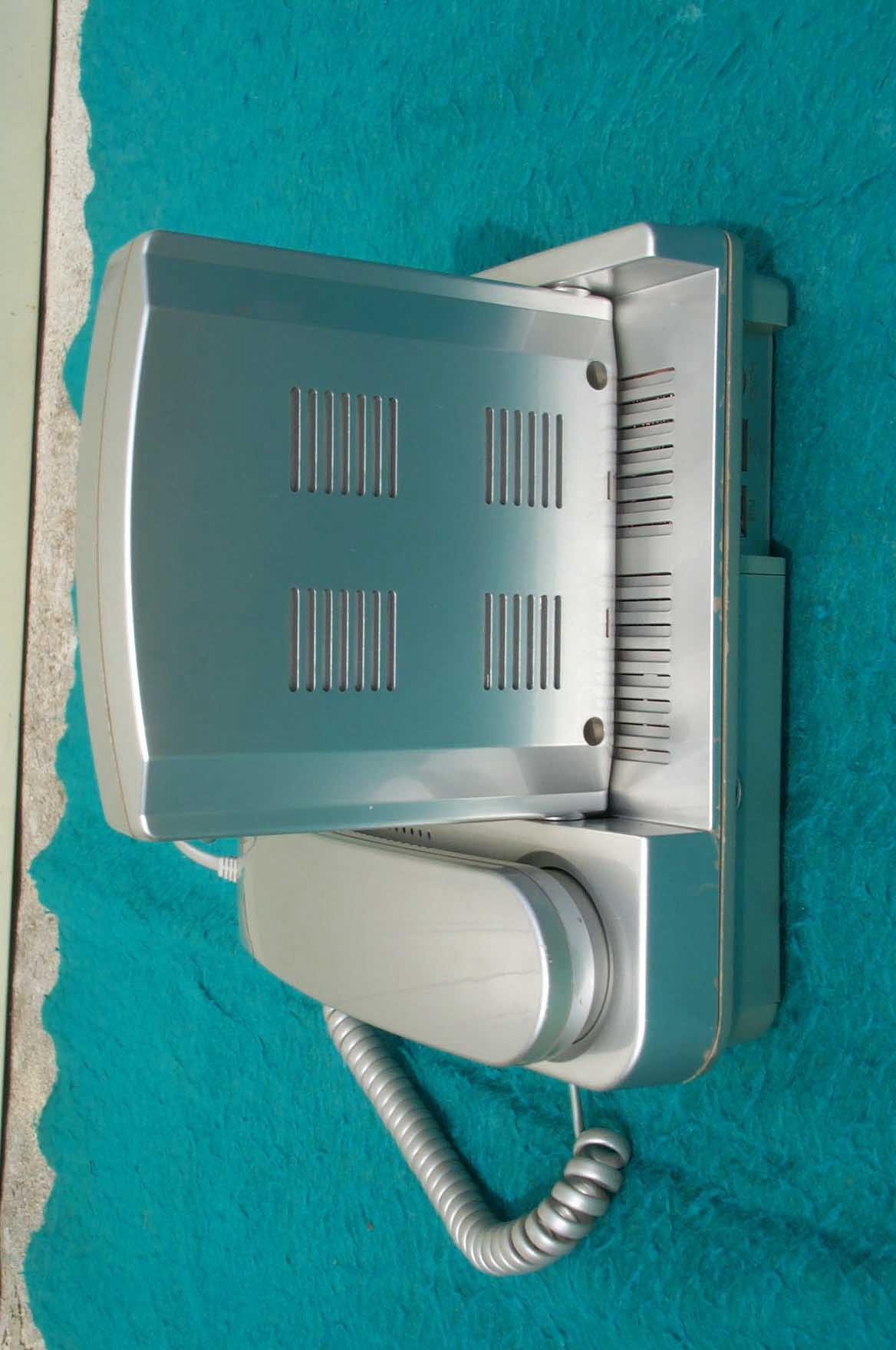

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00116 FCC ID : XXXGVP-2000 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00116 FCC ID : XXXGVP-2000

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-00116 FCC ID : XXXGVP-2000 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : XXXGVP-2000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 10 SKT SKTOS-00116 FCC ID : XXXGVP-2000 Internal Photographs of EUT

SK TECH CO., LTD. Page 2 of 10 SKT SKTOS-00116 FCC ID : XXXGVP-2000

SK TECH CO., LTD. Page 3 of 10 SKT SKTOS-00116 FCC ID : XXXGVP-2000

SK TECH CO., LTD. Page 4 of 10 SKT SKTOS-00116 FCC ID : XXXGVP-2000

SK TECH CO., LTD. Page 5 of 10 SKT SKTOS-00116 FCC ID : XXXGVP-2000

SK TECH CO., LTD. Page 6 of 10 SKT SKTOS-00116 FCC ID : XXXGVP-2000

SK TECH CO., LTD. Page 7 of 10 SKT SKTOS-00116 FCC ID : XXXGVP-2000

SK TECH CO., LTD. Page 8 of 10 SKT SKTOS-00116 FCC ID : XXXGVP-2000

SK TECH CO., LTD. Page 9 of 10 SKT SKTOS-00116 FCC ID : XXXGVP-2000

SK TECH CO., LTD. Page 10 of 10 SKT SKTOS-00116 FCC ID : XXXGVP-2000

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-00116 FCC ID : XXXGVP-2000 Certificate of Compliance Test Report No.: SKTOS-00116 NVLAP CODE : 200220-0 Applicant: GAGA TELECOMMUNICATIONS Inc. Applicant Address: Dongho Bldg., 221-2, Nonhyun-Dong, Kangnam-Ku, Seoul, 135-010, Korea Product: VIDEO PHONE FCC ID: XXXGVP-2000 Model No.: GVP-2000 Receipt No.: SKE20000904-658 Date of receipt: Sep. 04, 2000 Date of Issue: Sep. 21, 2000 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H. Kang Tested by:S.W.Han/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-00116 FCC ID : XXXGVP-2000 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Data 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted documents 5 4. Measurement conditions 6 4.1 Modes of operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. Emission Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 》 》》 》List of Tables Table 1 List of test and measurement equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-00116 FCC ID : XXXGVP-2000 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-00116 FCC ID : XXXGVP-2000 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESHS 10 862970/019 04.2001 LISN KNW-407 M63284 07.2001 LISN ESH2-Z5 862060/029 06.2001 Conducted Cable N/A N/A 07.2001 z Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESVS 10 825120/013 04.2001 Spectrum Analyzer R3361A 11730187 07.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 04.2001 Biconical Antenna BBA9106 N/A 04.2001 Open Site Cable N/A N/A 07.2001 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A 07.2001 Amp & Spectrum connection cable N/A N/A 07.2001 50Ω Switcher MP59B M93083 07.2001 2.3 Test Date Date of Application : Sep. 04, 2000 Date of Test : Sep. 14, 2000 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-00116 FCC ID : XXXGVP-2000 3. Description of the tested samples The EUT is VIDEO PHONE. 3.1 Rating and Physical Characteristics • System Supporting ITU-T standard H.324 Signaling : H.245 Channel multiplexing : H.223 • Video Supporting ITU-T standard H.263 CIF resolution : 352 x 288 pixels QCIF resolution : 176 x 144 pixels Max. frame rate (QCIF) : 15fps • Audio Supporting ITU-T standard G.723.1 Frequency response : 300Hz ~ 3.4kHz Full duplex Acoustic echo canceller • Camera 1/3inch, interline transfer CCD Illumination (Min.) : 1.0 lux (20IRE), F2.0 Fixed lens : 4.3mm, F1.8 Horizontal field of view (Max.) : 50° Vertical field of view (Max.) : 39° Automatic exposure and white balance • Display : Active matrix TFT LCD, 4” diagonal Dot pitch (mm) : 0.171(W) x 0.264(H) Resolution : 480 x 234 pixels 336960 colors • Power source : 100VAC ~ 240VAC, 50Hz/60Hz, 19 watts 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-00116 FCC ID : XXXGVP-2000 4. Measurement Conditions Testing Input Voltage : AC 120V, 60Hz 4.1 Modes of Operation The EUT was in the following operation mode during all testing; EUT is connected all functional port. Capture the image and display the image. Check to pick up handset or press ON-HOOK key in normal operating condition. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Power supply Ault Korea Co. PW302 None N/A SK TECH CO., LTD. Page 7 of 13 SKT SKTOS-00116 FCC ID : XXXGVP-2000 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark Video phone DC power cable 1.8m Shield None Video phone line cable 2.0m Non-Shield None Power supply ac power cable 1.8m Non-Shield None 4.4 Test Setup The test setup photographs showed the external supply connections and interfaces. 4.5 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = ±1.9dB Expanded uncertaint…
