OA9UF-601Wireless electronic key finder

Wireless Key Finder Instruction Product Introduction: This key finder includes two parts. One is the Transmitter, the other is the Receiver. The Transmitter has button on the face and upon pressing the button on it, the lost item which attached by the Receiver will beep and light flash. Then you can find the lost items easily. Operation Direction: 1. Remove batteries and plastic sheet from Transmitter and Receiver. 2. Insert battery back into Transmitter 3. Now insert battery into the Receiver ; Please check whether this Receiver will beep and its light flash with beep's rhythm.If it beep and light flash,it stands electricity has been led into the Receiver well. 4. Press Button on Transmitter during 20 seconds upon finishing Step 3. Please check whether Receiver beeps twice and light falshes twice,too.If yes, it stands Receiver has been programmed with Button on Transmitter. And this Button will control and help find the Receiver. 5. Since the Receiver is programmed with the Button well. Please hold and press the Button for several seconds until the Receiver beeps and flash.( This procession, please press the button without release until Receiver beeps. As in order to save power consumption, all Receivers work intermittently. That Receiver is supplied with power per 4 seconds. So sometimes when you press the button, but the Receiver doesn't work due to its stand‐by time) 6. Test configuration by pressing and holding button. It should beep continuously. This means all are correct. 7. If it doesn’t work please make sure that you had followed the 6 steps above. Trouble Shooting 1. Receiver doesn’t beep. Try replacing battery then press the button on Transmitter for around 5 seconds until Receiver beeps. 2. Receiver constantly beeps. This is a low battery warning‐ battery needs replacement. 3. The sticking rubber sheet doesn’t work. Lightly dampen rubber sheet and it will work better. Specifications Voltage: 12V (transmitter) 3V (receiver) Batteries: 27A ,12V for Transmitter, CR2032 ,3V for Receiver Remote Distance: 25-30 meters Sound Volume :85-90 dB Frequency: 433.92 MHz This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Prime Enterprises, LLC PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 08.06.2012 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Wen Position General Manager Company Name Most Technology Service Co., Ltd. Address No.5, 2 nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel / Fax 86-755-86170306/86-755-86170310 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Wireless Electronic Key Finder Model Name UF-601 Brand Name N/A We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name Paul E. Johnson Position Manager Company Name Prime Enterprises, LLC Address 99 E.State Street, Suite 200 Eagle, ID 83616 USA Tel / Fax 800-580-1979 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Prime Enterprises, LLC Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Prime Enterprises, LLC FCC ID: OA9UF-601 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description
Schematics All circuitry of devices and component values
Block Diagrams Details of device showing the frequency of all oscillators
Bill Of Materials Parts list of the product for the radio device
Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any e hibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Paul E. Johnson Position Manager Company Name Prime Enterprises, LLC Address 99 E.State Street, Suite 200 Eagle, ID 83616 USA Tel / Fax 800-580-1979 E-Mail [email protected] x x x x x

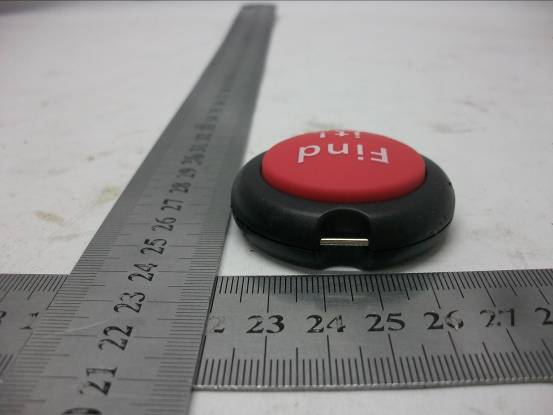

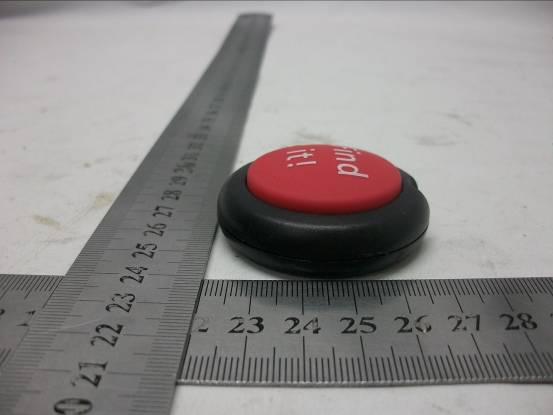

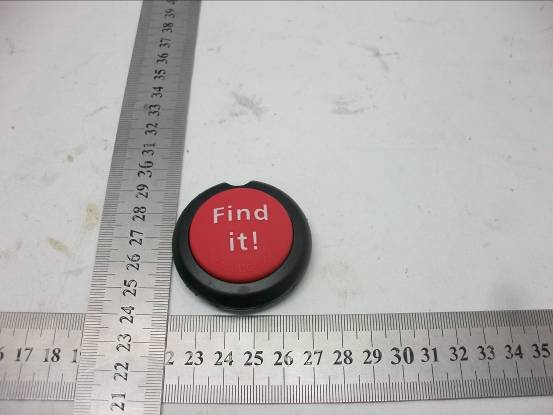

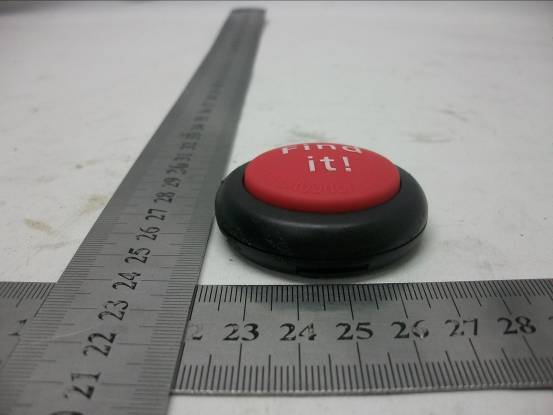

3 Page 3 of 3 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE 3 Page 3 of 3 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE 3 Page 3 of 3 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE

FCC ID: OA9UF-601 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation.

Page 1 of 3 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 Page 2 of 3 INTERNAL PHOTO OF SAMPLE –3 INTERNAL PHOTO OF SAMPLE – 4 Page 3 of 3 INTERNAL PHOTO OF SAMPLE –5
