OB3-ORISTARAQ10MBOristar AQ10

1 User Manual 2 Table of contents 1. Introduciton of ORISTAR-AQ10-MB .......................................................................................3 2.ORISTAR-AQ10-MB interface instruction .......................................................................................4 3.Installation Instruction .......................................................................................6 4.About FCC Declaration .......................................................................................8 3 1. Introduciton of ORISTAR-AQ10-MB ： ORISTAR-AQ10-MB（Fig.1 ORISTAR-AQ10-MB Outline）is a media block board combined with audio and video ,which is based on PCI-X interface to achieve the simultaneous output for image and voice. And being a key component for 2K digital cinema server, it can show the original state of 2K digital cinema package which includes video and audio by means of video and audio decoding card. Fig.1 ORISTAR-AQ10-MB Outline 4 2. ORISTAR-AQ10-MB interface instruction: ①PCI-X interface belongs to ORISTAR-AQ10-MB，see Fig.2 ORISTAR-AQ10-MB PCI-X Interface。 Fig.2 ORISTAR-AQ10-MB PCI-X Interface ②ORISTAR-AQ10-MB HD-SDI interface，see Fig.3 ORISTAR-AQ10-MB HD-SDI Video Output Interface. Fig.3 ORISTAR-AQ10-MB HD-SDI Interface； PCI-X Interface HD-SDI Interface 5 ③ORISTAR-AQ10-MB AES interface，see Fig.4 ORISTAR-AQ10-MB AES Audio output Interface. Fig.4 ORISTAR-AQ10-MB AES Interface AES Interface 6 3. Installation Instruction： ①Insert ORISTAR-AQ10-MB into PCI-X interface belonging to 2K digital cinema server； ②Connect 2 HD-SDI video output interfaces belonging to ORISTAR-AQ10-MB with 2 HD-SDI video input interfaces of digital cinema server using 2 HD-SDI video connection wires, then it can transmit decoded image to digital cinema server to achieve the original state of the cinema image finally. 7 ③Connect 1 AES digital audio output interface belonging to ORISTAR-AQ10-MB with AES digital audio input interface belonging to digital audio processor using audio wire, then it can transmit the decoded voice to audio processor to achieve the original state of cinema voice. 8 4. About FCC Declaration This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. 9 --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help.

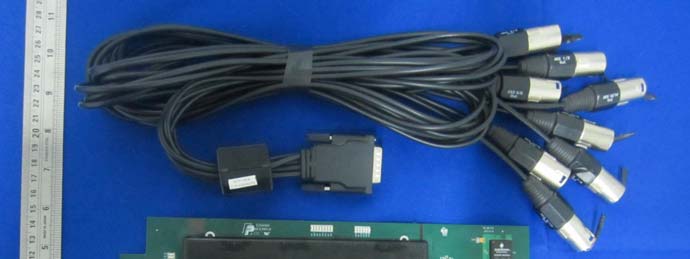

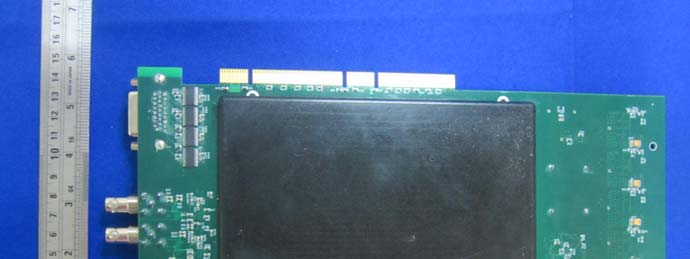

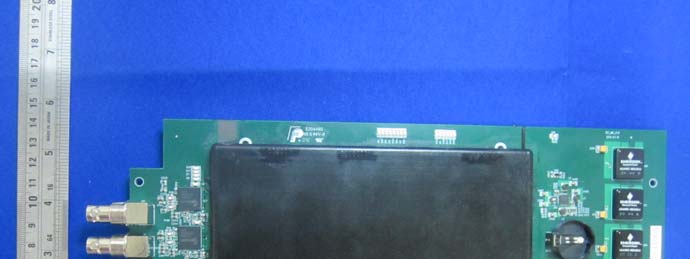

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT – Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncover View EUT – Uncover View 1

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15B TEST REPORT For DADI ORISTAR TECHNOLOGY DEVELOPMENT(BEIJING)CO.,LTD. Building B3, Shumazhuangyuan,No.1,Disheng West Street, BDA,Beijing,100176 Report Type: Original Report Product Type: Oristar AQ10 Test Engineer: Jone Lv Report Number: R1BJ120601050-00 Report Date: 2012-06-07 Reviewed By: Harry Wu EMC Engineer Prepared by: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: OB3-ORISTARAQ10MB Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1BJ120601050-00 FCC Part 15B Page 2 of 17 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION (FCC §15.27) ..................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................4 EXTERNAL I/O CABLE..................................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 PrinterModem LISN1 PC Host LISN2 1.5 Meter 1.0 Meter Non-Conductive Table 80 cm above Ground Plane 10cm10cm10cm Monitor KeyboardMouse 10cm EUT Dummy load .........................................................................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 FCC §15.107 – AC LINE CONDUCTED EMISSIONS .............................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST PROCEDURE........................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST RESULTS SUMMARY............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 FCC §15.109 - RADIATED EMISSIONS .................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP.......................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST RESULTS SU…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conduction Emissions - Front View Conduction Emissions - Side View Below 1GHz: Radiated Emissions - Front View Below 1GHz: Radiated Emissions - Rear View Above 1GHz: Radiated Emissions - Front View Above 1GHz: Radiated Emissions - Rear View
