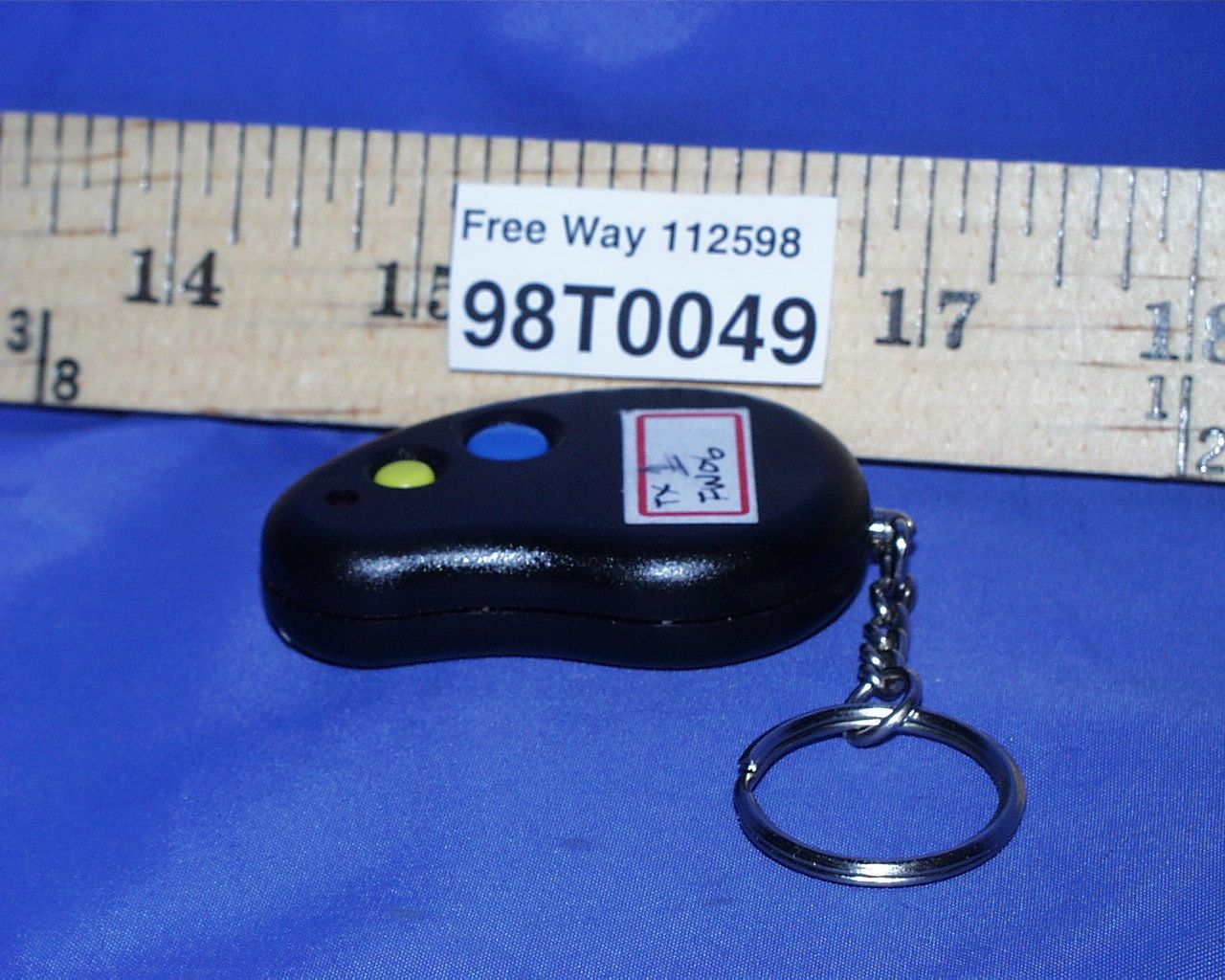

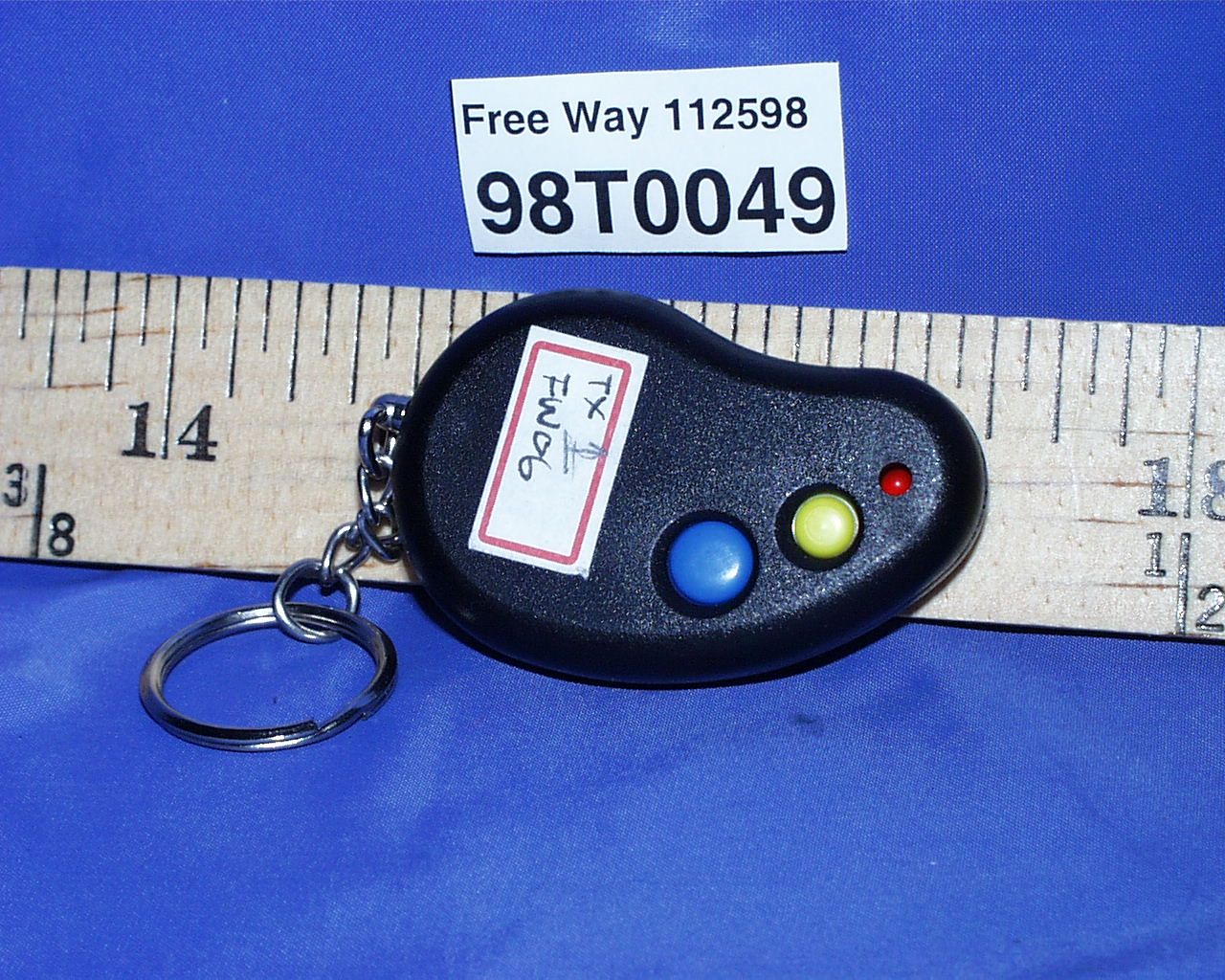

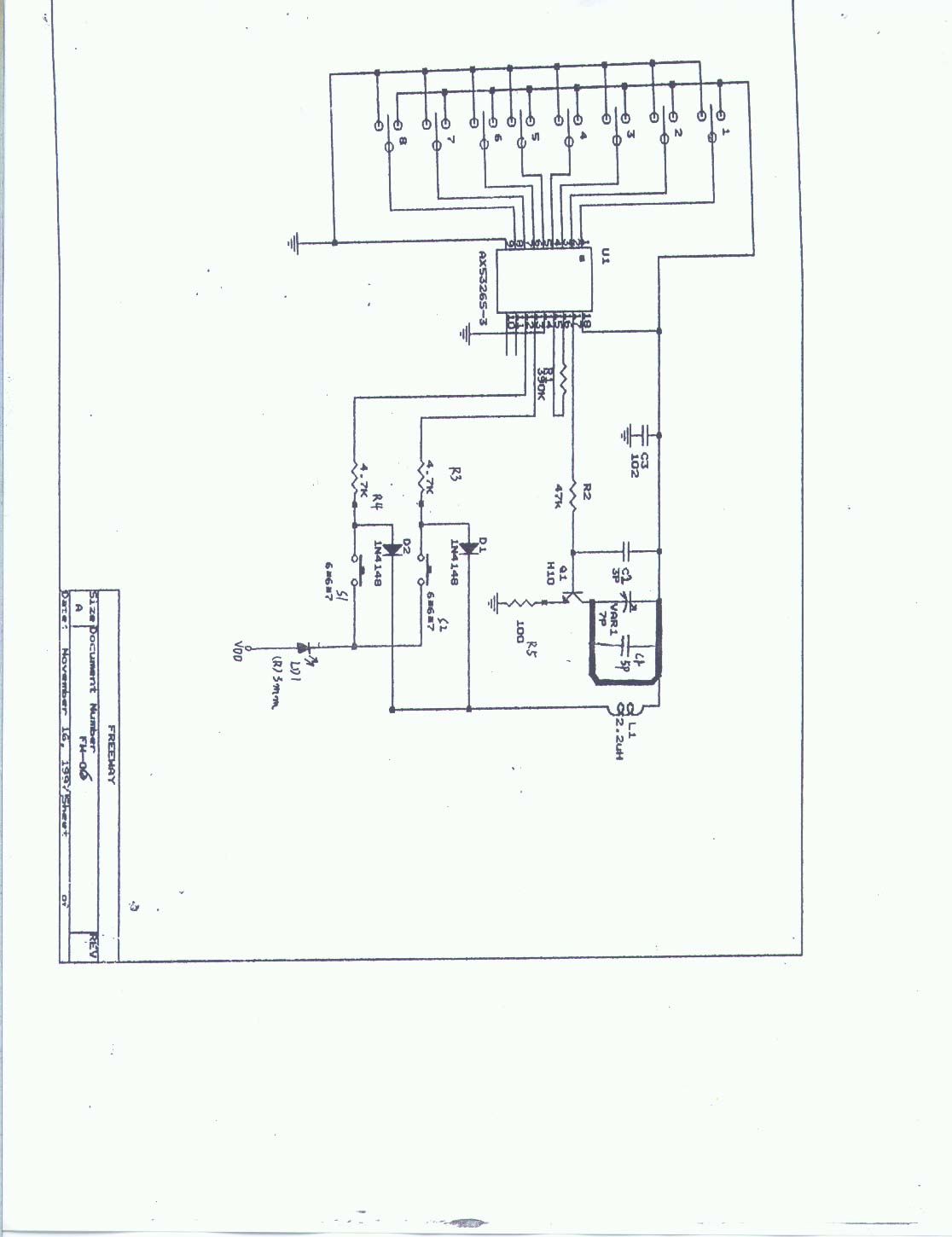

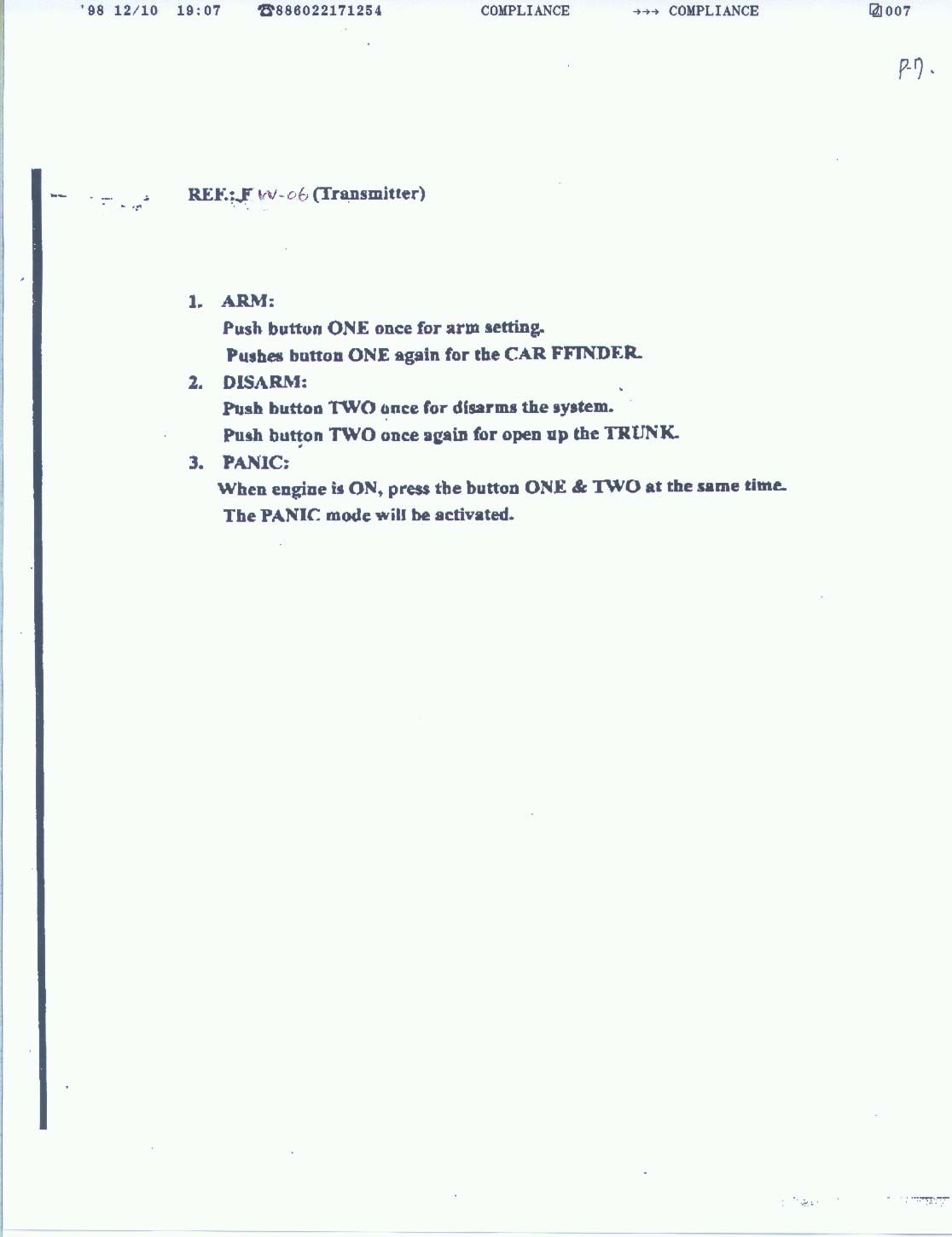

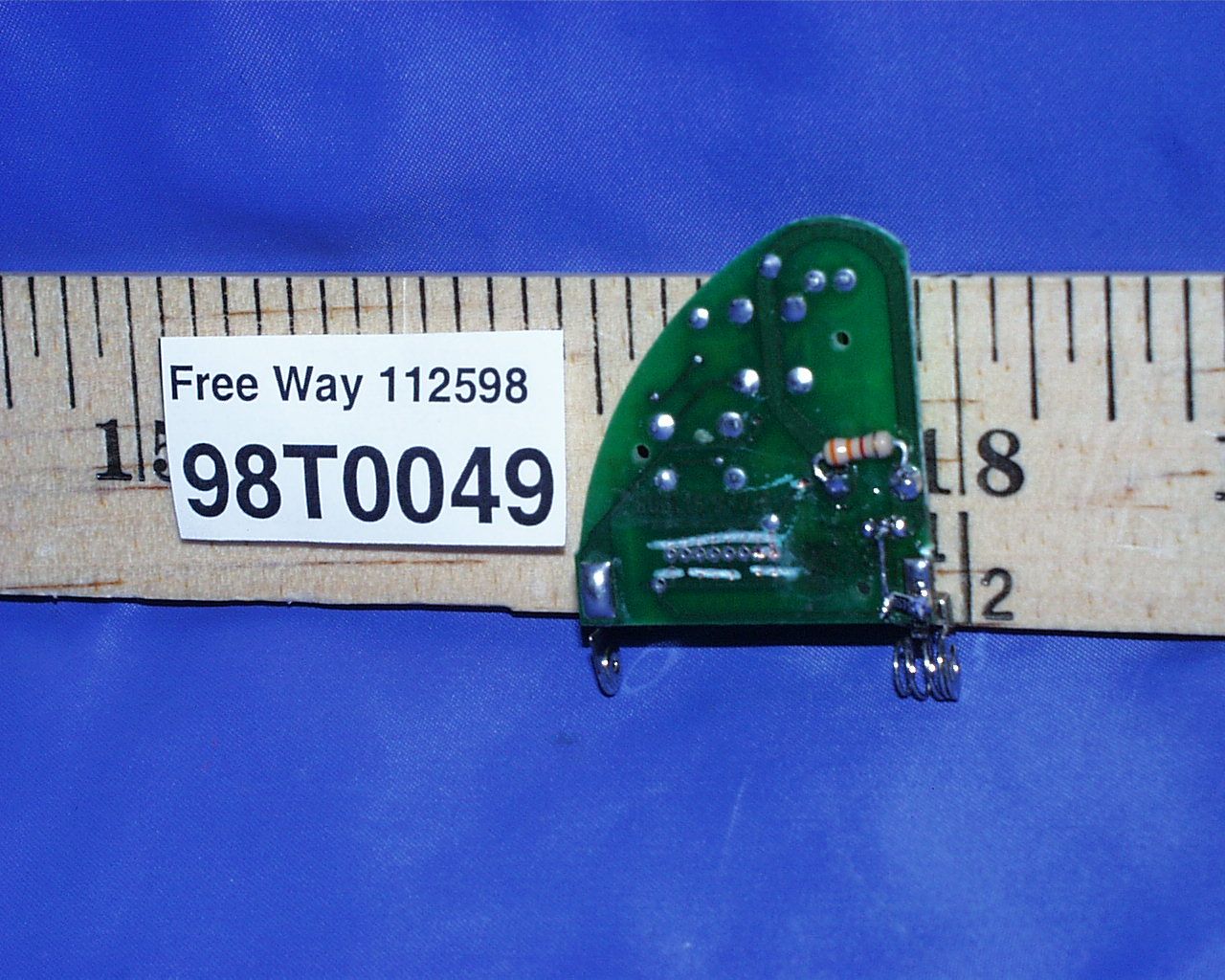

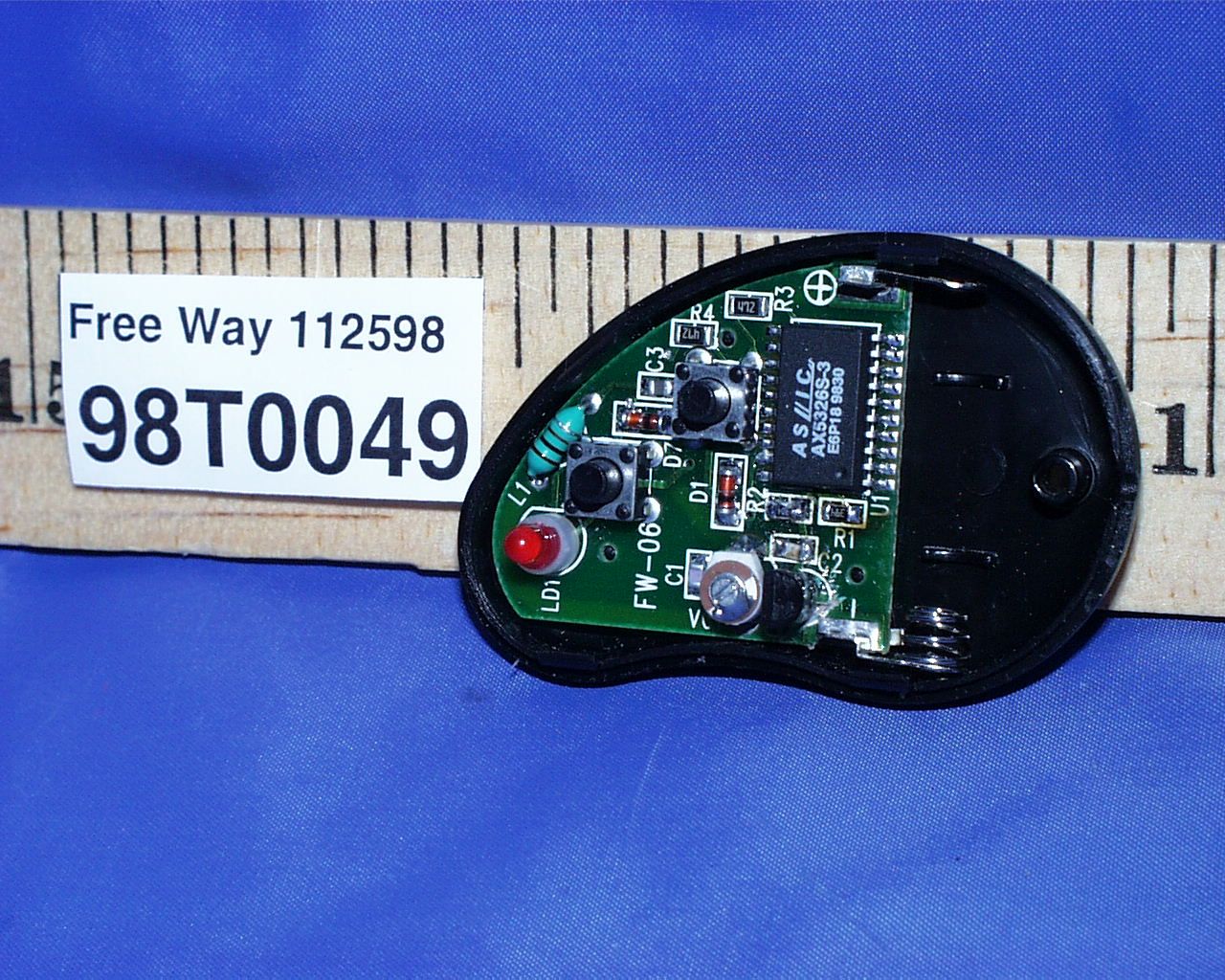

OB8FW-06CAR ALARM TRANSMITTER

FCC ID LABEL FORMAT AND LOCATION Applicant:FREE-WAY AUTOMOBILE INDUSTRIAL INC. FCC ID:OB8FW-06 FCC ID:OB8FW-06 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

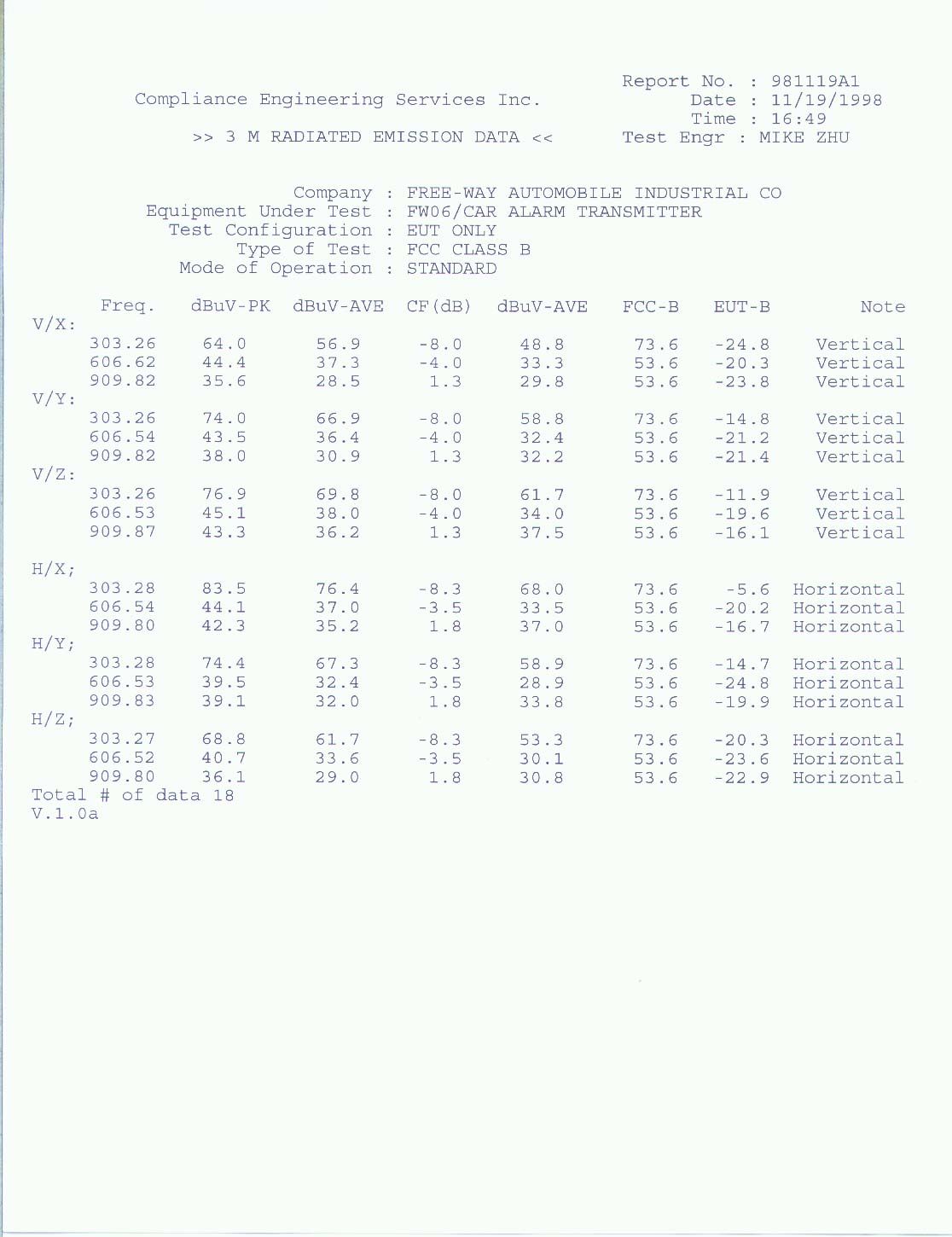

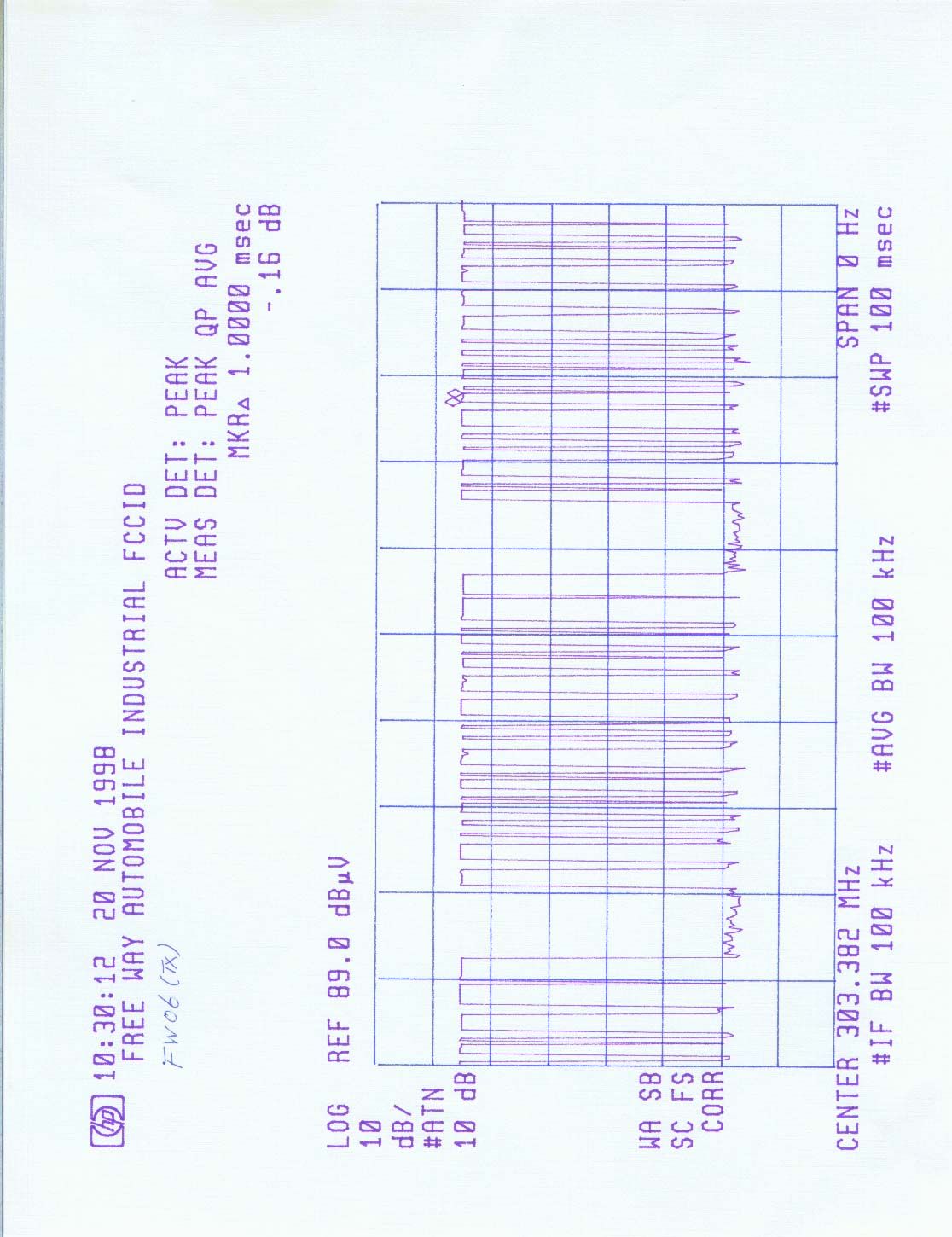

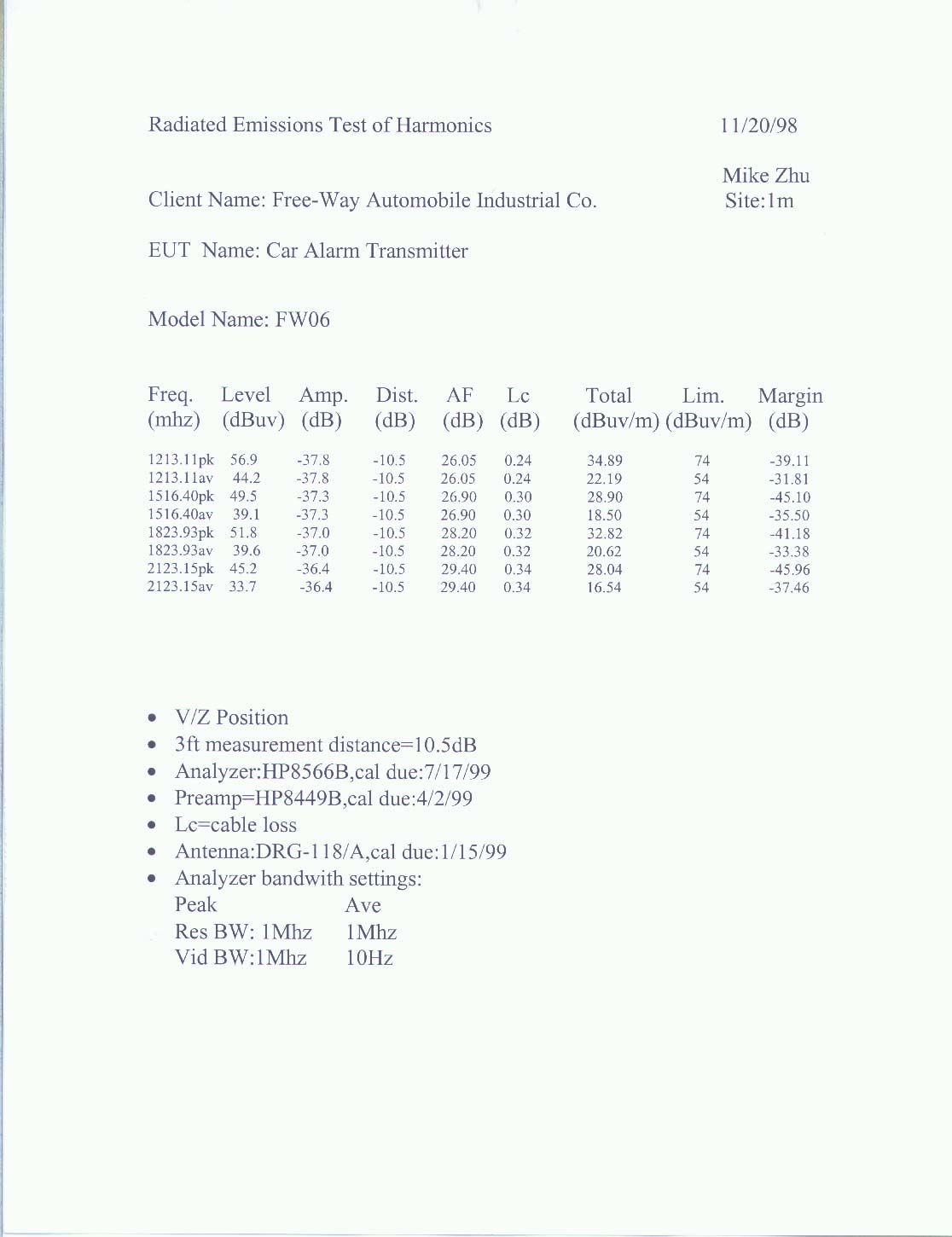

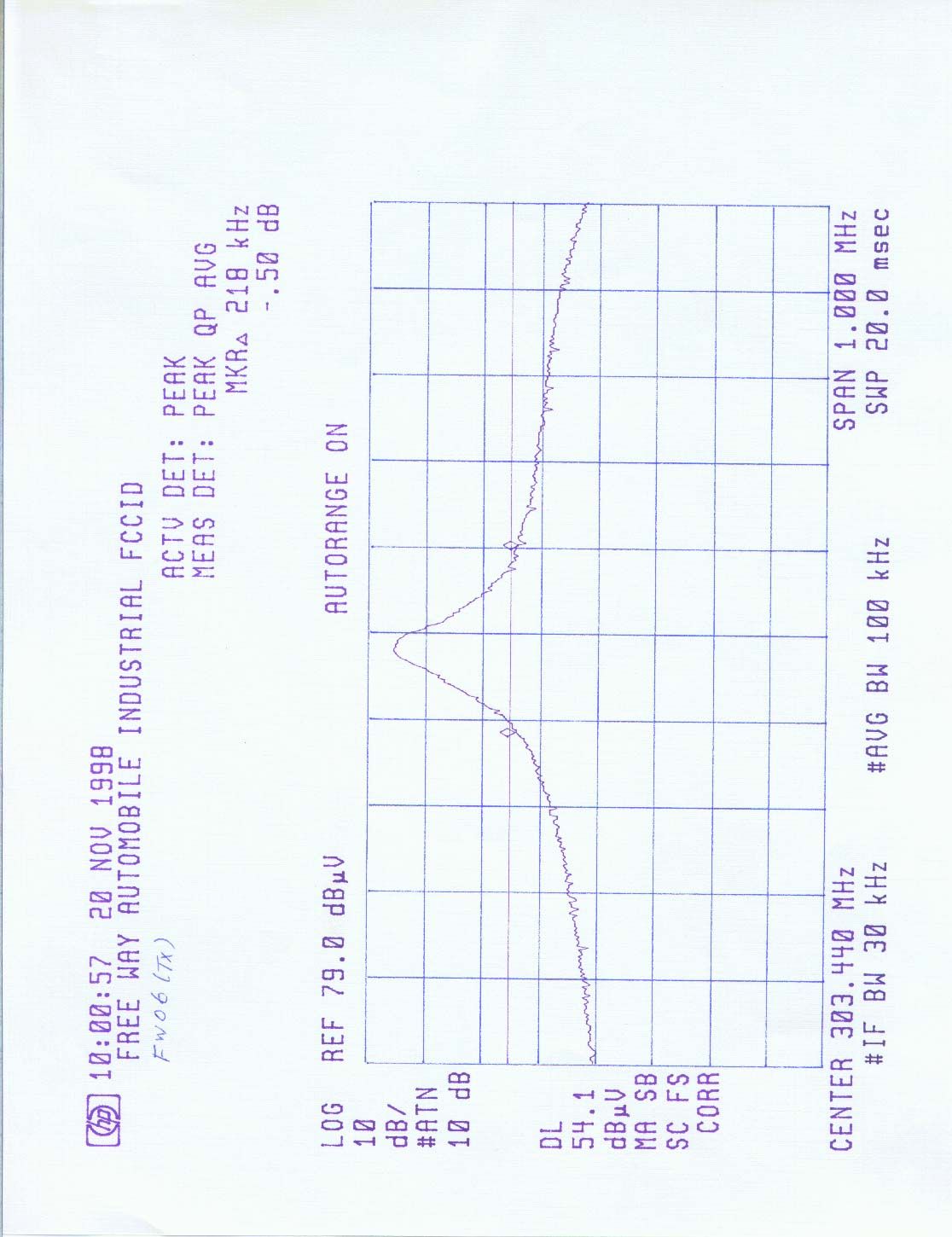

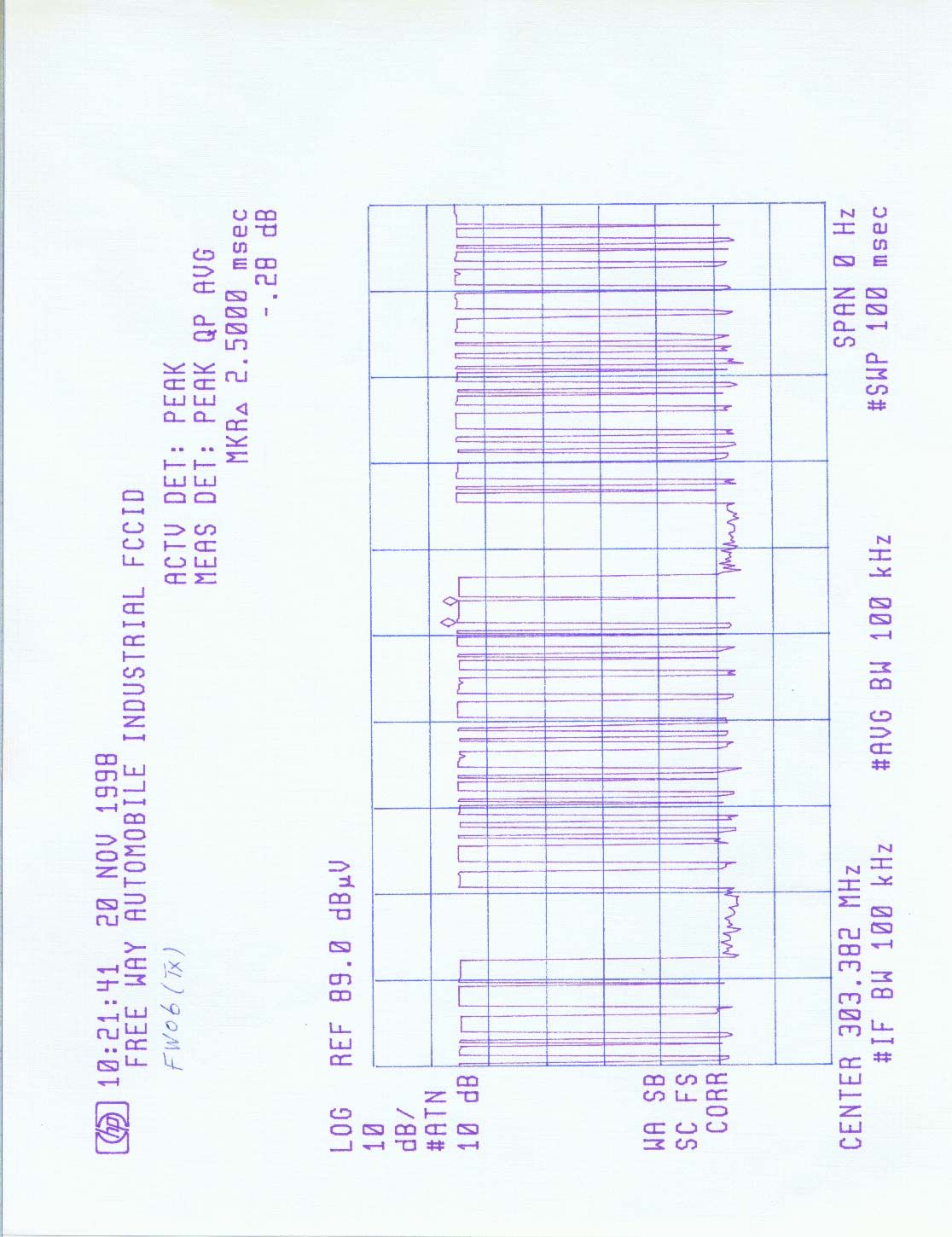

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 303 MHz CAR ALARM TRANSMITTER MODEL NO: FW-06 FCC ID NO: OB8FW-06 REPORT NO: 98T0049-1 ISSUE DATE: NOVEMBER 20, 1998 Prepared for FREE-WAY AUTOMOBILE INDUSTRIAL INC. 1FL, 169, SEC. 6, CHUNG HSIAO EAST ROAD TAIPEI, TAIWAN R.O.C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:98T0049-1 FCC ID:OB8FW-06 DATE:11/20/1998 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE............................ 1 2. PRODUCT DESCRIPTION..................................... 2 3. TEST FACILITIES ...................................... 2 4. MEASUREMENT STANDARDS ................................ 2 5. TEST METHODOLOGY ..................................... 2 6. MEASUREMENT EQUIPMENT USED ........................... 2 7. PPOWERLINE RFI LIMITS ................................ 3 8. RADIATED EMISSION LIMITS ............................... 3 9. TEST SETUP AND CONFIGURATION ........................... 4 10. TEST PROCEDURE ....................................... 5 11. EQUIPMENT MODIFICATIONS .............................. 5 12. TEST RESULT ................................................ 6 12.1 Maximum Modulation Percentage (M%)....................... 6 12.2 Emission Bandwidth .............................. 6 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement REPORT NO:98T0049-1 FCC ID:0B8FW-06 DATE:11/20/1998 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : FREE-WAY AUTOMOIBLE INDUSTRIAL INC. 1FL, 169, SEC. 6, CHUNG HSIAO E. ROAD TAIPEI, TAIWAN, R.O.C. CONTACT PERSON : CHAO CHIN-LI / PRESIDENT TELEPHONE NO. : (886) 2-2786-5645 EUT DESCRIPTION : 303 MHz CAR ALARM TRANSMITTER MODEL NAME/NUMBER : FW-06 FCC ID : OB8FW-06 DATE TESTED : NOVEMBER 20, 1998 REPORT NUMBER : 98T0049-1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 303 MHz CAR ALARM TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. 2 Product Description REPORT NO:98T0049-1 FCC ID:0B8FW-06 DATE:11/20/1998 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Fundamental Frequency303 MHz Power SourceBattery Transmitting TimePeriodic < 5 seconds Modulation Type AM Associated ReceiverFREE-WAY / Model FAI-920 H Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. H Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. H Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) H Measurement Equipment Used Manufacturer Model Number Description Cal Due Date H.P. 8568A Spectrum Analyzer (100Hz – 1.5GHz) 02/99 H.P. 8566B Spectrum Analyzer (100Hz – 22GHz) 09/99 EMCO 3146 Antenna (200-1000 MHz) 10/99 REPORT NO:98T0049-1 FCC ID:0B8FW-06 DATE:11/20/1998 PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. H.P. 8447D Preamplifier (0.1 - 1300 MHz) 09/99 ARA DRG-18/A Antenna(1 - 18GHZ) 12/99 H.P. 8449B Preamplifier (1-26.5GHZ) 03/99 7 POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 kHZ TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. 8 RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209. RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 REPORT NO:98T0049-1 FCC ID:0B8FW-06 DATE:11/20/1998 PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 9. SYSTEM TEST CONFIGURATION The system was configured for testing in a typical fashion (as a customer would normally use it). Remote control unit was placed on a wooden table. Buttons were pressed by using a tape to activate the operation. Please refer to the following photograph for actual setup. Radiated Open Site Test Set-up REPORT NO:98T0049-1 FCC ID:0B…
