OBYJR-D008TREMOTE DOG TRAINER TRANSMITTER

Jetrich Electronic Co.,Ltd
REMOTE DOG TRAINER TRANSMITTER - FCC ID OBYJR-D008T - Jetrich Electronic Co.,Ltd
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Jun 12, 2012
Application Purpose
Original Equipment
Date of Application
Jun 12, 2012
Equipment Note
REMOTE DOG TRAINER TRANSMITTER
Frequency Range
433.92000000 - 433.92000000
Company
Jetrich Electronic Co.,Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗
↗

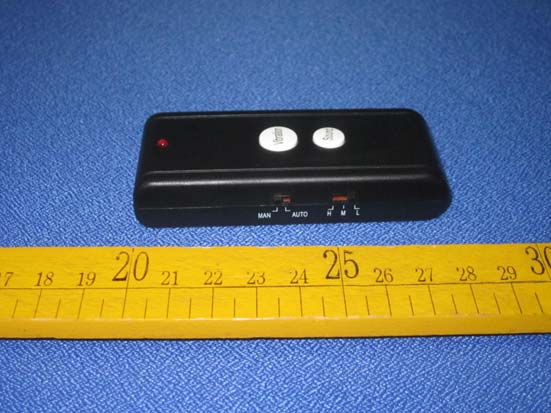

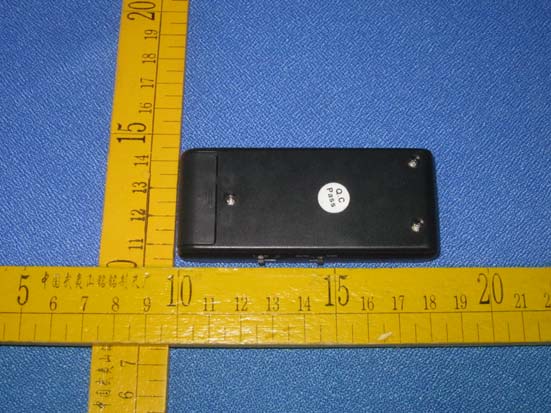

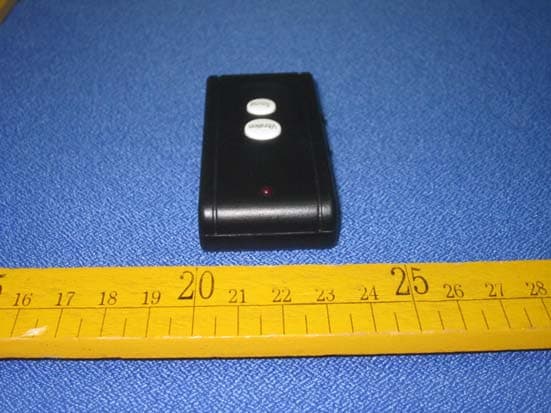

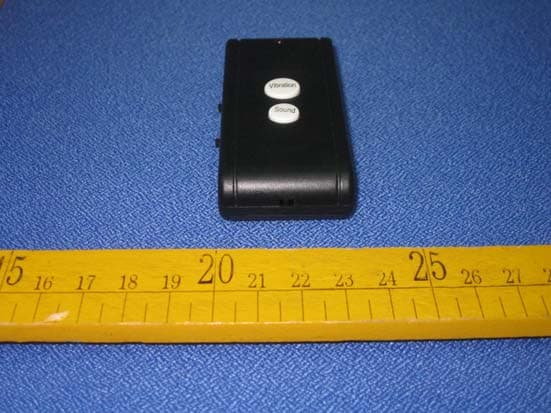

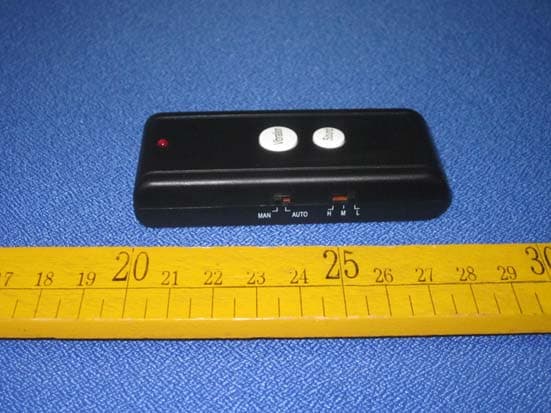

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

USER MANUAL Remote Dog Trainer 2 training modes. Sound and vibration Press the sound button. The sound will be activated Press the vibration. The vibration will be activated. When the sound or vibration be activated. If the button is L. it means is it will be activated. When the button is on Automatic modes When you press the sound button or vibration button. it will be activated. Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Jetrich Electronic Co.,Ltd may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

External Photos

6. External and Internal Photos of the EUT External Photos

ID Label/Location Info

FCC ID Label Information 1. Label location: 2. FCC ID Label: Jetrich Electronic Co.,Ltd Model: JR-D008 FCC ID: OBYJR-D008T

Internal Photos

Internal Photos of EUT

Operational Description

Technical Description Description Function Component Antenna Transmit modulation RF signal ANT1 Low Pass Filter Suppression of spurious emissions C1.C2.L1.L2 RF Power Amplifier and Modulation Modulate the carrier and amplify the modulated RF signal Q1 voltage power supply Constant voltage to 3V U2.C1.C2 Oscillator Generate 433.92MHz carrier Y1 Encode IC Generate code signal to modulator U1 Mode select switch Manual mode/ Automatic mode K2 Coding switch Control the receiver load time K1 Press M+ or Buzz once, MCU (8010) 10 pins emit 1 Sec signals, loading on the 433.92 MHz high frequency oscillation circuit (composed by transistor Q2 and Resonator Y1) generate carrier and transmit through ANT. The IC request input power is 3V, the modulation is ASK. The antenna type is integral without external RF port
