OCXFN-811

SHENZHEN OXUNDA ELECTRONIC LIMITED

WIFI MODULE

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 02, 2012
Application Purpose: Original Equipment
Date of Application: Jul 02, 2012
Equipment Note: WIFI MODULE
Frequency Range: 2422.00000000 - 2452.00000000
Company: SHENZHEN OXUNDA ELECTRONIC LIMITED
Country: China

Documents & Files

Select a file to view

Users Manual

Block Diagram

Cover Letter(s)

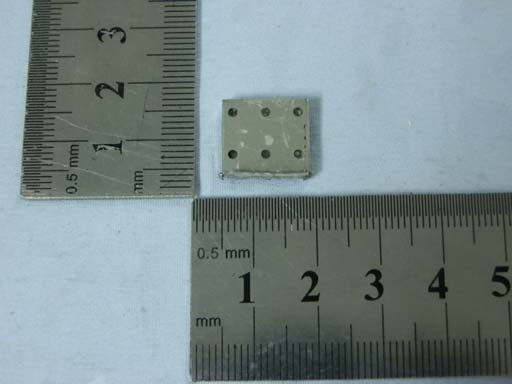

External Photos

ID Label/Location Info

Internal Photos

Operational Description

RF Exposure Info

Schematics

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.42 GHz - 2.45 GHz	3.50 mW

Modular Type

Single Modular Approval

Grant Notes

Single Modular Approval. Power output is conducted. Approval is limited to OEM integrator installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) provided for this transmitter must not exceed the gain of 2dBi, must be installed to provide a separation distance of at least 20cm from all persons, and must not transmit simultaneously with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. This device supports 20MHz and 40MHz bandwidth mode.
