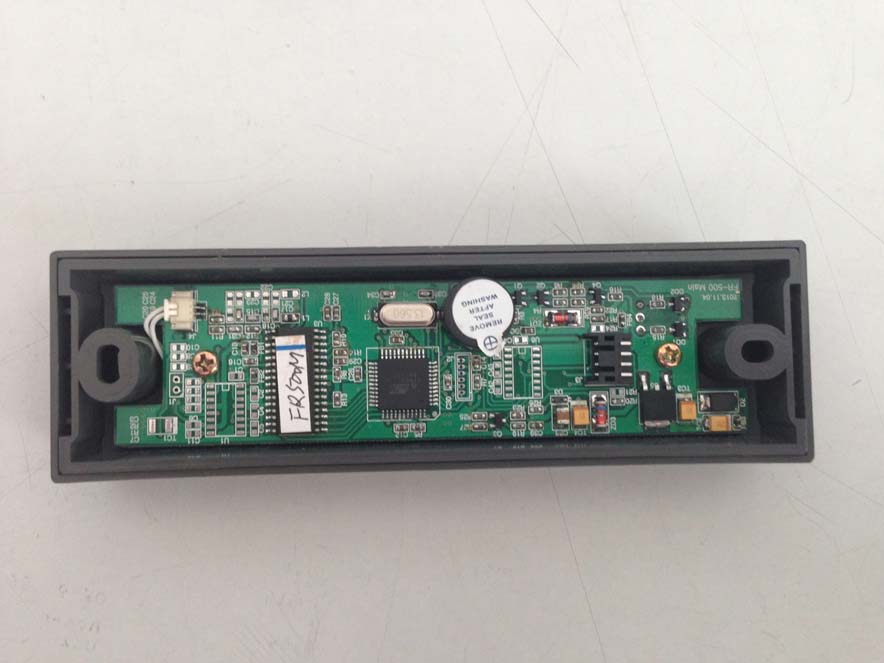

OD2-FR200NMThe product is RF Card Reader and Controller

1/5 FR200 is equipment to be installed on a door frame or wall to control the access of the door by pre- registered RF cards and passwords. RF Card Reader & Controller(Model: FR200series) In a compact design with numbers and symbols displayed on the LCD screen by a touch sensor, it can be use in various environments. It can be installed outside the room and house as the internal PCB is coated with epoxy and used alone without connecting to additional devices as it has a built-in control circuit or in the network environment after installing proprietary PC program. Simple to register/delete/manage RF cards and passwords and easy to use by simply following the step-by- step instructions on the LCD screen and in voice guiding you to set up modes. (Product Specification and Appearance) ` Effective Distance(Mifare/EM Card) Storing capacity Unlock time Door lock type Exit button LCD/Audio guidance Power(Excluding door lock) Operating environments Color / Size (WxHxD)/Weight : 4cm / 5cm (Based on ISO cards) : Up to 100,000 cards/passwords / 1,000,000 events : 5 Seconds (Adjustable) : Power Fail Safe or Power Fail Secure : Input of 1 exit button(Activating when low) : LCD / Built-in Speaker : DC 12V, Power consumption: 150mA~350mA : -20°C ~ +65°C, 0~90% Absolute Humidity : Black / 73 x 126 x 18mm / 180g (Wiring Diagram) 8 6 4 2 7 5 3 1 1 : BLACK 2 : RED 3 : WHITE 4 : GREEN 5 : YELLOW 6 : ORANGE 7 : BROWN 8 : BLUE *. Power: Connect power GND to Pin 1 and +12V to Pin 2. *. Relay Output: Connect Normal Open (Pin 7), Common (Pin 8) and Normal Close (Pin 5) *. Sensors: Connect Sensor0 (Pin 4, Exit) and sensor1 (Pin 3, Door Status) *. Signal Grounds: Connect to Pin 6 and Pin 1 Above picture shows how to correctly press keys (number and function buttons) on the keypad. Dead Bolt VCC GND EXIT Button Power 12V DC NO (Brown) COM (Blue) NC (Yellow) EXIT (Orange) EXIT (Green) GND (Black) +12V (Red) EM Lock GND VCC 2/5 (How to use) ** Upon turning the product on, date screen (model name/date) will be displayed on LCD and, upon touching the front side of the product, keypad with “number and function keys” are appeared. You can also set the keypad with “number and function keys” to be always ON by following the function key operation sequence explained at 6.7 How to set the backlight of LED/Keypad of this manual. ** All function settings including user registration, entrance/exit method, etc. can be started on “Management Menu” screen. Each time you press F1 key in the “Management Menu”, screen will keep turning in order of “User Registration”, “User Deletion”, “Change of User Information”, “User List” and “System Setting” and F2 key, in reverse order of the list.. ** The description of each number/Function key is as follows: -. # (hash): A key to confirm your selection (ENTER) in the course of the setting process. -. F1: A key to turn the order of function screens upward. -. F2: A key to turn the order of function screen downward, i.e reverse order of F1. -. F3: A key to delete the last digit of the numbers entered in case you entered wrong numbers. -. F4: A key to use to start, stop, cancel, exit function, etc. Press this key twice to go back to the initial date screen when you want to set another function or finish a setting process. ** The recommended sequences for function setting and user registration. 1) Set functions and register user without registering an administrator. 2) After finishing both function setting and user registration, register administrators (up to 5) or change to administrators in the “change of user information” screen. 3) Be sure to register administrators to prevent the set functions from being changed by an unauthorized person. ** Pay special attention to administrator’s cards or passwords not to be leaked 1. How to access administrator’s menu 1.1. In case an administrator is not registered FR -200 01.01 12:34:56 -≫ MANAGEMENT MENU F1:UP F2:DOWN -≫ REGIST USER #:ENTER F4:EXIT -≫ REGIST USER F1 :SMGL F4: MULTI -≫ Press F4 Press F1 Press # Press F1 USER LEVEL 1.USER 2.ADMIN -≫ ENTER USER ID -≫ PRESENT CARD F1: SKIP -≫ ENTER PASSWORD F1 : SKIP -≫ 1) Choose No. 2 2) Enter Administrator’s ID 3) Register CARD and Press # 4) Enter P/W and press # and press # REGIST COMPLETE #:CONT. F4:STOP Press F4 to finish registration of an administrator. If you want to register more administrators (Up to 5), press # and repeat step 1) through 4) above 1.2. In case an administrator has already been registered FR -200 01.01 12:34:56 -≫ ENTER ADMIN ID -≫ PRESENT CARD or PASSWORD -≫ MANAGEMENT MENU F1:UP F2:DOWN Press F4 2) Enter Administrator’s ID Enter P/W and press # or contact Administrator’s card and press # 2. User Registration 2.1 Individual User MANAGEMENT MENU F1:UP F2:DOWN -≫ REGIST USER #:ENTER F4:EXIT -≫ REGIST USER F1 :SMGL F4: MULTI -≫ USER LEVEL 1.USER 2.ADMIN -≫ Press F1 Press # Press F1 1) Choose No. 1 ENTER USER ID -≫ PRESENT CARD F1 : SKIP -≫ ENTER PASSWORD F1 : SKIP -≫ REGIST COMPLETE #:CONT. F4:STOP 2) Enter user ID and press # 3) Register a card and press # 4) Enter PW and press # Press F4 to finish registration of a user. If you want to register more users, press # and repeat step 1) through 4) above 3/5 ** You can register a user without entering a card or a password in User ID depending on the situation. 2.2. Multiple Users MANAGEMENT MENU F1:UP F2:DOWN -≫ REGIST USER #:ENTER F4:EXIT -≫ REGIST USER F1 :SMGL F4: MULTI -≫ START USER ID -≫ Press F1 Press # Press F2 1) Enter start user ID and press # NUMBER OF CARD -≫ PRESENT CARD -≫ ENTER PASSWORD F1 : SKIP -≫ REGIST COMPLETE #:CONT. F4:STOP 2) Enter No. of cards to register 3) Register cards and press # 4) Enter passwords and press # , and press # ** When a large number of users are registered, it will be easy to use if you register them with user ID in order. ** If you press # in Step 4) above, Step 3) will be displayed again for registering another card and then Step 4) for entering password and it will repeat until you complete …

Text truncated - open the document above for the full version.

Operation Description for FR-200NM 1. Hardware Block diagram 2. General It supports various functions as follows - User enrollment with user ID, RFID card and/or password - User deletion with user ID - User authentication using user ID and card - User identification using card - Configurable security modes - Custom user display name or ID - Standalone/Network communication via TCP/IP - Onboard menu configurable 3 inputs and 1 Relay output - Various functions configurable with Key Pad and LCD 3. Operation A. Card - CPU reads card ID via RF Card Reader - In Enroll process CPU write user ID and card ID to Flash Memory - In authentication/identification process, CPU reads new card ID and compares enrolled card ID - If authentication/identification is successful, CPU drive the Relay, display User ID on the LCD and play audio file for announcement B. Delete User - User can use the Key Pad, select Delete User function from the Management Mode - User can delete single user data by entering the User ID - User can delete all user data by select Delete All User function - Completion of user deletion by erasing the user data that on a Flash Memory C. Communication - CPU communicate using TCP/IP, UDP protocol with the PC via Ethernet Controller - CPU makes exchange with the PC about information for the operation of FR-200 and User D. Sensor - Periodically, CPU checks the state of Sensor Input, notify to the PC or write to Flash Memory - Sensor Input connected to Exit Button, CPU drives the relay

KTI15EF09002 FCC ID: OD2-FR200NM Korea Technology Institute Co., Ltd. Page 1 of 1 Antenna Requirement Integral PCB Loop Antenna

KTI15EF09002 FCC ID: OD2-FR200NM Korea Technology Institute Co., Ltd. Page 1 of 22 Test Report Test Report No.: KTI15EF09002 Registration No.: KR0023 Applicant: MONDAY Applicant Address: 404-3, Deokpo-dong, Sasang-gu, Busan-si, 617-040, Korea Product: RF Card Reader and Controller FCC ID: OD2-FR200NM Model No. FR200NM Receipt No.: 15-0812 Date of receipt:August 20, 2015 Date of Issue: September 10, 2015 Testing location Korea Technology Institute Co., Ltd. 58-10, Sagiso-gil, Docheok-myeon, Gwangju-si, Gyeonggi-do, Korea Test Standards: FCC/ANSI. C63.4:2006 Rule Parts: FCC Part 15. 225 NFC TX Equipment Class: DXX Test Result: The above-mentioned product has been tested with compliance. Tested by: Y.D.Kim / Engineer Approved by: S. H. Song / Technical Manager Signature, Date September 10, 2015 Signature, Date September 10, 2015 Other Aspects: Abbreviations: * OK, Pass=passed * Fail=failed * N/A=not applicable ☞ - This test report is not permitted to copy partly without our permission. - This test result is dependent on only equipment to be used. - This test result is based on a single evaluation of one sample of the above mentioned. - This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. - We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI15EF09002 FCC ID: OD2-FR200NM Korea Technology Institute Co., Ltd. Page 2 of 22 >> Contents << Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 4 2. Test Site 4 2.1 Location 4 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 5 2.4 Test Environment 5 3. Description of the tested samples 6 3.1 Rating and Physical characteristics 6 3.2 Submitted documents 6 4. Measurement conditions 7 4.1 Modes of operation 7 4.2 Additional Equipment 7 4.3 Uncertainty 7 4.4 Test Setup 8 5. TEST AND MEASUREMENTS 9 5.1 Antenna Requirement 9 5.1.1 Regulation 9 5.1.2 Results 9 5.2 Emission Test 10 5.2.1 Conducted Emissions 10 5.2.2 Radiated Emissions 14 5.2.2.1 Regulation 14 5.2.2.2 Measurement Procedure 14 5.2.2.3 Calculation of the field strength limits below 30 MHz 15 5.2.2.4 Test Results 16 5.2.2.5 Calculation of the field strength limits above 30 MHz 17 5.2.2.6 Test Results 17 KTI15EF09002 FCC ID: OD2-FR200NM Korea Technology Institute Co., Ltd. Page 3 of 22 ≫≫ Contents ≪≪ 5. 5.3 Spectrum mask and Occupied bandwidth 18 5.3.1 Regulation 18 5.3.2 Measurement Procedure 18 5.3.3 Test Results 19 5.4 Frequency Tolerance of Carrier Signal 21 5.4.1 Regulation 21 5.4.2 Measurement Procedure 21 5.4.3 Test Results 22 6. Photograph of the Test Set-Up - >> List of Tables Table 1 List of test and measurement equipment 5 Table 2 Test Data. Conducted Emissions 13 Table 3 Test Data, Fundamental Frequency (Ver / Hor) 16 Table 4 Test Data, Radiated Emission below 30 MHz 16 Table 5 Test Data, Radiated Emission above 30 MHz 17 Table 6 Test Data, Frequency Tolerance of carrier signal 22 >> List of Figures Figure 1 Test Setup_Adaptor Mode 8 Figure 2 Spectral Diagram, LINE-PE 11 Figure 3 Spectral Diagram, NEUTRAL-PE 12 Figure 4 Spectrum Mask 19 Figure 5 Occupied Bandwidth 20 >> List of Photographs Photograph 1 Setup for radiated Emissions (below 30 MHz) - Photograph 2 Setup for radiated Emissions (above 30MHz) - Photograph 3 Setup for conducted Emissions - KTI15EF09002 FCC ID: OD2-FR200NM Korea Technology Institute Co., Ltd. Page 4 of 22 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. Korea Technology Institute Co., Ltd. performed all measurements reported herein. And were made under Chief Engineer’s supervisor. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., Ltd. 2.1 Location 58-10, Sagiso-gil, Docheok-myeon, Gwangju-si, Gyeonggi-do, Korea The Test Site is in compliance with ANSI C63.4:2006 for measurement of radio Interference. KTI15EF09002 FCC ID: OD2-FR200NM Korea Technology Institute Co., Ltd. Page 5 of 22 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment • Conducted Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESCI 100025 10.2015 LISN AFJ LS16C 16011328326 11.2015 Spectrum Analyzer E4440A US40420682 04.2016 Conducted Cable N/A N/A N/A EMC32 Software N/A N/A • Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESIB40 100093 07.2016 Biconic Logarithmic Periodic Antenna VULB9163 9163-281 11.2016 Horn Antenna KTI-HD-1080 130003 10.2016 PREAMPLIFIER 8449B 3008A02104 08.2016 Open Site Cable N/A N/A N/A TURNTABLE K401 K100 N/A Antenna Mast K402 K200 N/A Antenna & Turntable controller K401OS K300 N/A EMC32 Software N/A N/A 2.3 Test Date Date of Application: August 20, 2015 Date of Test: September 04, 2015 2.4 Test Environment Indoor: 24°C/44%/1012mbar Outdoor: 21°C/75%/1012mbar KTI15EF09002 FCC ID: OD2-FR200NM Korea Technology Institute Co., Ltd. Page 6 of 22 3. Description of the tested samples The EUT is Card Reader and controller. 3.1 Rating and Physical Characteristics SIZE 73mm x 126mm x 19mm WEIGHT 100g Inputs & Outputs Customizable 2 inputs and 1 outputs Communications Wiegand Standard 26-bit and Ethernet NOTCH FREQUENCY 60Hz COMMUNICATION PROTICOLS TCP/IP, UDP operating environment (temperature) -20C ~ 65C operating environment (humidity) 0 ~ 90 % INPUT POWER DC 12V SUPPLY CURRENT 150mA Lightning protection degree BF Type equipment Reader Type Mifare Card reader Antenna Type Pcb pattern Frequency 13.56MHz Radio Frequency Type F1D Communication Type Single Type Modulation Type FSK Antenna Dimension 50x60 mm 3.2 Submitted Documents • User’s Guide • Block Diagram • Circuit Total KTI15E…
