ODB-LANCER450030RFID Enabled Soda Fountain Machine

ValidFill, LLC

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Sep 11, 2013
Application Purpose: Original Equipment
Date of Application: Sep 10, 2013
Equipment Note: RFID Enabled Soda Fountain Machine
Frequency Range: 902.75000000 - 927.25000000
Company: ValidFill, LLC
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

��

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 June 20, 2013 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: ODB-LANCER450030 To Whom It May Concern: The following application is submitted on behalf of our client, ValidFill, LLC, for evaluation of their model HD011SA002 for certification under FCC Part 15.247. The FCC ID: ODB-LANCER450030 is a RFID enabled soda dispenser which operates in the 902 MHz - 928 MHz ISM band using frequency hopping spread spectrum techniques. The FCC ID: ODB-LANCER450030 was tested in full and was found in compliance to the aforementioned test requirements. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

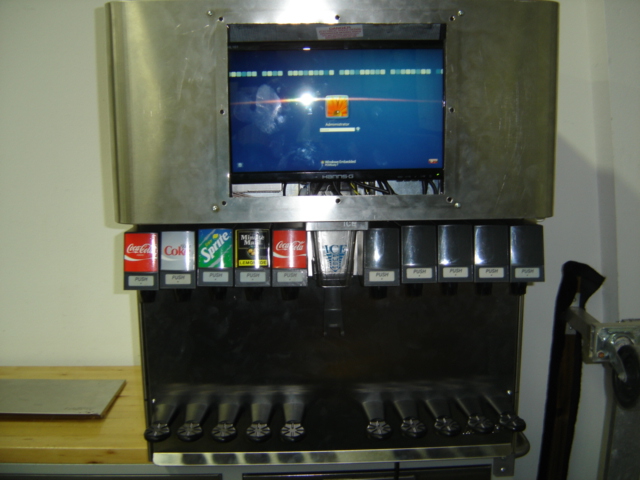

External Photos

ID Label/Location Info

Internal Photos

3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Certification Exhibit FCC ID: ODB-LANCER450030 FCC Rule Part: 15.247 ACS Project: 12-2148 Manufacturer: ValidFill, LLC Model: HD011SA002 Internal Photos Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 1: RFID Reader – Top View with Shielding ACS Project: 12-2148 Advanced Compliance Solutions Page 2 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 2: RFID Reader – Top View without Shielding ACS Project: 12-2148 Advanced Compliance Solutions Page 3 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 3: RFID Reader - Bottom View ACS Project: 12-2148 Advanced Compliance Solutions Page 4 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 4: Watchdog – Top View ACS Project: 12-2148 Advanced Compliance Solutions Page 5 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 5: Watchdog – Bottom View ACS Project: 12-2148 Advanced Compliance Solutions Page 6 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 6: Black Box – I/O Ports ACS Project: 12-2148 Advanced Compliance Solutions Page 7 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 7: Black Box – Top Assembled View 1 ACS Project: 12-2148 Advanced Compliance Solutions Page 8 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 8: Black Box – Top Assembled View 2 ACS Project: 12-2148 Advanced Compliance Solutions Page 9 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 9: Black Box – Bottom Assembled View 1 (Reader with Shielding) ACS Project: 12-2148 Advanced Compliance Solutions Page 10 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 10: Bottom Assembled View 2 (Reader without Shielding) ACS Project: 12-2148 Advanced Compliance Solutions Page 11 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 11: 12-Port Mux - Top View ACS Project: 12-2148 Advanced Compliance Solutions Page 12 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 12: 12 -Port Mux - Bottom View ACS Project: 12-2148 Advanced Compliance Solutions Page 13 Model: HD011SA002 FCC ID: ODB-LANCER450030 Figure 13: HD011SA002 – Internal View ACS Project: 12-2148 Advanced Compliance Solutions Page 14

RF Exposure Info

3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Certification Exhibit FCC ID: ODB-LANCER450030 FCC Rule Part: 15.247 ACS Project Number: 12-2148 Manufacturer: ValidFill, LLC Model: HD011SA002 RF Exposure Model: HD011SA002 FCC ID: ODB-LANCER450030 ACS Project: 12-2148 Advanced Compliance Solutions Page 2 General Information: Applicant: ValidFill, LLC ACS Project: 12-2148 Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: PCB Loop Antenna Antenna Gain: 0.55 dBi Maximum Transmitter Conducted Power: 20.47 dBm, 111.43 mW Maximum System EIRP: 21.02 dBm, 126.474 mW Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 90020.470.60111.430.551.135 200.025 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

Test Report

3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Certification Test Report FCC ID: ODB-LANCER450030 FCC Rule Part: 15.247 ACS Report Number: 12-2148.W03.1B Manufacturer: ValidFill, LLC Model: HD011SA002 Test Begin Date: November 21, 2012 Test End Date: December 8, 2012 Report Issue Date: April 15, 2013 FOR THE SCOPE OF ACCREDITATION UNDER CERTIFICATE NUMBER AT-1533 This report must not be used by the client to claim product certification, approval, or endorsement by ACLASS, ANSI, or any agency of the Federal Government. Project Manager: Reviewed by: Thierry Jean-Charles Kirby Munroe EMC Engineer Director, Wireless Certifications Advanced Compliance Solutions, Inc. Advanced Compliance Solutions, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 31 pages TABLE OF CONTENTS 1 GENERAL ......................................................................................................3 1.1 Purpose .............................................................................................................................................. 3 1.2 Manufacturer Information .............................................................................................................. 3 1.3 Product description .......................................................................................................................... 3 1.4 Test Methodology and Considerations ........................................................................................... 3 2 TEST FACILITIES ..........................................................................................4 2.1 Location ............................................................................................................................................. 4 2.2 Laboratory Accreditations/Recognitions/Certifications ............................................................... 4 2.3 Radiated & Conducted Emissions Test Site Description .............................................................. 5 3 APPLICABLE STANDARD REFERENCES...................................................6 4 LIST OF TEST EQUIPMENT..........................................................................7 5 EQUIPMENT UNDER TEST AND SUPPORT EQUIPMENT..........................8 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ..............................8 7 SUMMARY OF TESTS ...................................................................................9 7.1 Antenna Requirement – FCC: Section 15.203 ............................................................................... 9 7.2 Power Line Conducted Emissions – FCC: Section 15.207 ............................................................ 9 7.3 Peak Output Power - FCC Section 15.247(b)(2) .......................................................................... 12 7.4 Channel Usage Requirements........................................................................................................ 14 7.5 Band-Edge Compliance and Spurious Emissions-FCC 15.247(d) .............................................. 22 8 CONCLUSION..............................................................................................30 Model: HD011SA002 FCC ID: ODB-LANCER450030 ACS Report: 12-2148.W03.1B Advanced Compliance Solutions Page 3 of 31 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations. 1.2 Manufacturer Information ValidFill, LLC 6222 Tower Lane, Suite B-7 Sarasota, FL 34240 1.3 Product description The ValidFill Lancer 4500 30, Model HD011SA002, is soda dispensing machine which includes a 900 MHz RFID transceiver. Technical Parameters: Band of Operation: 902.75 - 927.25 MHz Number of Channels: 50 Mode of Operation: FHSS Antenna Type/Gain: PCB Loop Antenna, 0.55 dBi Operating Voltage: 120V / 60 Hz Model Number: HD011SA002 Test Sample Serial Number(s): 854541H0736M251X Test Sample Condition: The samples were in good conditions with no observable physical damages. 1.4 Test Methodology and Considerations The HD011SA002 includes one 900 MHz radio with one RF output. The RF output is then connected to a 12 channel multiplexer, were 10 of the 12 are connected to the loop antennas while the remaining two are not used. Preliminary evaluations were performed on the 10 multiplexer ports and the data is reported for the configuration leading to the highest emissions. For the RF conducted emissions evaluation, the measurements were collected at the output of the multiplexer. The power line conducted emissions evaluations were performed with the 900 MHz radio constantly hopping. The unit was also evaluated for compliance to the unintentional emissions requirements in accordance with the Class A Limits. The results are documented separately in a Verification test report. Model: HD011SA002 FCC ID: ODB-LANCER450030 ACS Report: 12-2148.W03.1B Advanced Compliance Solutions Page 4 of 31 2 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions, Inc. 3998 FAU Blvd, Suite 310 Boca Raton, Florida 33431 Phone: (561) 961-5585 Fax: (561) 961-5587 www.acstestlab.com FCC Test Firm Registration #: 475089 Industry Canada Lab Code: 4175C 2.2 Laboratory Accreditations/Recognitions/Certifications ACS is accredited to ISO/IEC 17025 by ANSI-ASQ National Accreditation Board under their ACLASS program and has been issued certificate number AT-1533 in recognition of this accreditation. Unless otherwise specified, all test methods described within this report are covered under the ISO/IEC 17025 scope of accreditation. Model: HD011SA002 FCC ID: ODB-LANCER450030 ACS Report: 12-2148.W03.1B Advanced Compliance Solutions Page 5 of 31 2.3 …

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Jeremy Wade(COO)

[email protected]941-379-9858Fax: 509-355-5346

Test Firm

Advanced Compliance Solutions, Inc.Sam Wismer

[email protected]561-961-5585

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	902.75 MHz - 927.25 MHz	111.40 mW

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. The antenna(s) used with this transmitter must be installed to provide a minimum separation distance of 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) or similar tested in this filing may be used with the transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
