Bluetooth headset user manual Model no. : BDS-662B 1 ) Product f eature : Using bone conduction technology , back hang design releasing ears with build in microphone and ultrasonic welding technique with good sealing for water resistant . With use of low energy consumption version bluetooth module , suitable for smart phone , tablet . Capable of receiving wireless stereo signal , you can listen & control volume , music selection of your music play . Echo cancellation design assure clear conversation , conversation & music play can be auto converted. Audio transmission through bone conduction help protecting your audition , your eardrum & keep contact with surrounding , most suitable for outdoor use . 2 ) Port function : Right hand side of headset 1 , Volume - / previous music button 2 , Play / pause mutli-function button 3 , Volume + / next music button 4 , working indicating light 5 , Micro USB charging port 6 , Microphone port 3 ) Operation : 1 , Long press mutli-function button for 3 seconds to power on headset while it’s power off , automatically run pairing mode with red / blue light flashing and power of f headset while it’s on . 2 , Searching for bluetooth device in your smart phone or device manual 3 , Pair with BDS-662 , blue light will fast flash twice if paired . 4 , During incoming call , blue light flashing & headset will generate a incoming call tone , short press mutli-function button once for answering call , another short press to end call and long press to refuse call . 5 , During music play , blue light slow flashing , press mutli-function button to play / pause music , short press Volume - / previous music button for volume - and long press for previous music . Short press volume + / next music button for volume + & long press for next music . 6 , Music automatically mute during incoming call and convert to incoming call tone , short press mutli-function button to answer call , short press volume- to lower down the volume and short press volume + to increase volume . Short press mutli-function button again for end call , music will automatically restored . 7 , To answer another incoming call , you can short press function button once to end previous call , long press for 2or more seconds to refuse this call . Press the function button twice to maintain previous call and answ er this new call and another button twice press allowing you to revert to previous call . 4 ) Notice : 1 , Using the charging cable to charge headset for 3 hours before first use or long time not using to fully charge the headset . During charging , the red indicating light is up and light change to blue when headset is fully charged . Please be reminded that not to use the headset during charging . 2 , Hang the headset at back side of your neck and place the ear cups in front of ears at jawbone position . 3 , Press function button twice to repeat last call , long press 2 seconds to cancel dialing call . 4 , If another call is on hold with the headset during new call , you can short press function button to end the new call to revert to the on hold call . 5 , If your bluetooth device cannot search and paired with BDS-662 in 1 minute , please power off the headset , locate the headset close to your device , power on the headset and search again . 6 , The bluetooth model only work with your device support , for detail , please refer to the attached manual . 7 , please enter password 0000 if request during pairing . 8 , Suggest to charge the headset once a month if it’s long time not in use . 9 , Headset will disconnect if headset is in position 10 meters or more apart from your device and will reconnect when it’s back in transmission range , if headset is more than 5 minutes disconnect with device , it will automatically power off . 5 ) Accessories : 1 , Bluetooth he adset ----1PCS 2 , USB-USB micr o cable----1PCS 3 , Manual --- -------1PCS 6 ) Specification : Li battery ： 3.7V/200mAh Play time ： around 5 hours Charging time : around 3 hours Transmission range ： 10 M Speaker ： Bone conduction speaker Sound level ： 88dB Microphone : -42dB Frequency range : 100Hz-18KHz Product weight ： 49 grams USB-USB micro cable length ： 80cm N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shenzhen Bada Sheng Electronic Co., Ltd. Blk 12 Foodstuff Ind Park , Songyuan Village, Guanlan Town,Shenzhen,China TEL: 0755-86174580 FAX: 0755-86174027 Aug.25, 2015 Federal Communication Commission Authorization and Evaluation Division FCC ID: ODCBDS-662B Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Shenzhen Bada Sheng Electronic Co., Ltd. Contact person: Wonderful Wang Title: Manager

Shenzhen Bada Sheng Electronic Co., Ltd. Blk 12 Foodstuff Ind Park , Songyuan Village, Guanlan Town,Shenzhen,China TEL: 0755-86174580 FAX: 0755-86174027 Aug.25, 2015 Federal Communication Commission Authorization and Evaluation Division Subject: Explanation of differences between product types FCC ID : ODCBDS-662B Model Number: BDS-662B, YKL-701 To Whom It May Concern: We, Shenzhen Bada Sheng Electronic Co., Ltd., hereby declare that the model : YKL-701 is identical with the model : BDS-662B, except the model name. Except for the different above, no other modification is performed. Sincerely, Shenzhen Bada Sheng Electronic Co., Ltd. Signature: Shenzhen Bada Sheng Electronic Co., Ltd. Contact person: Wonderful Wang Title: Manager

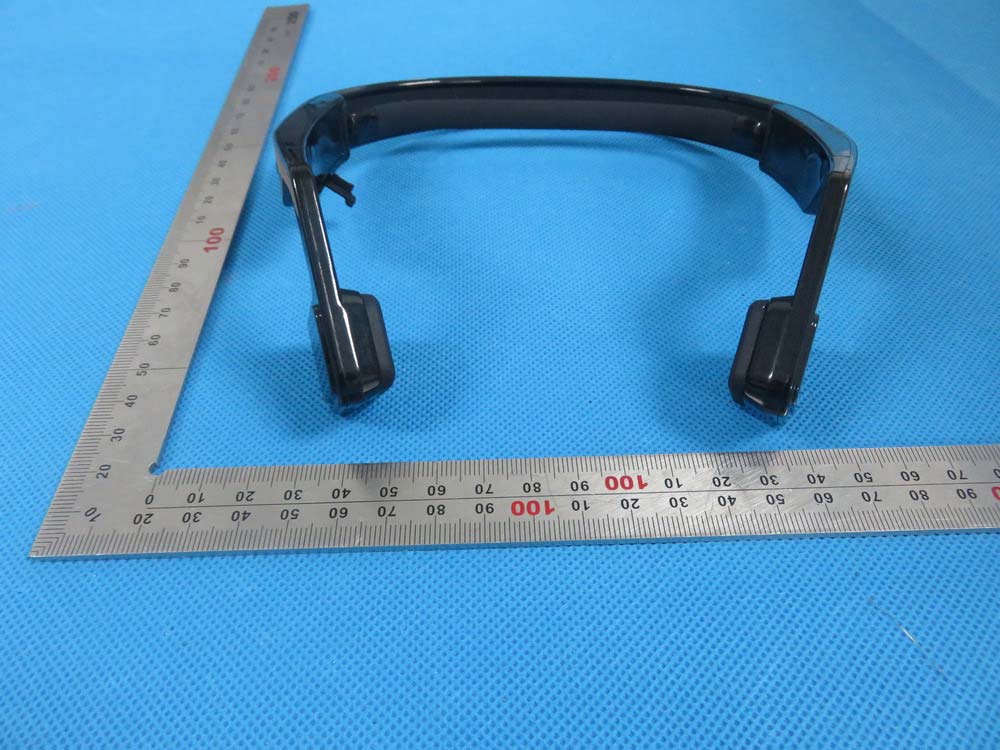

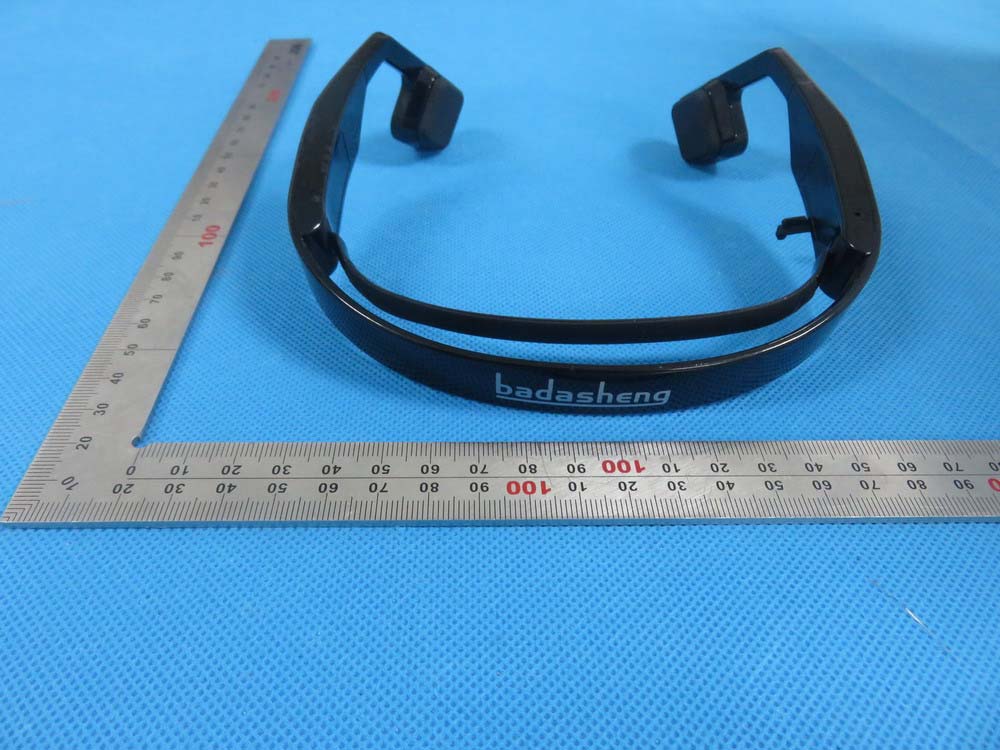

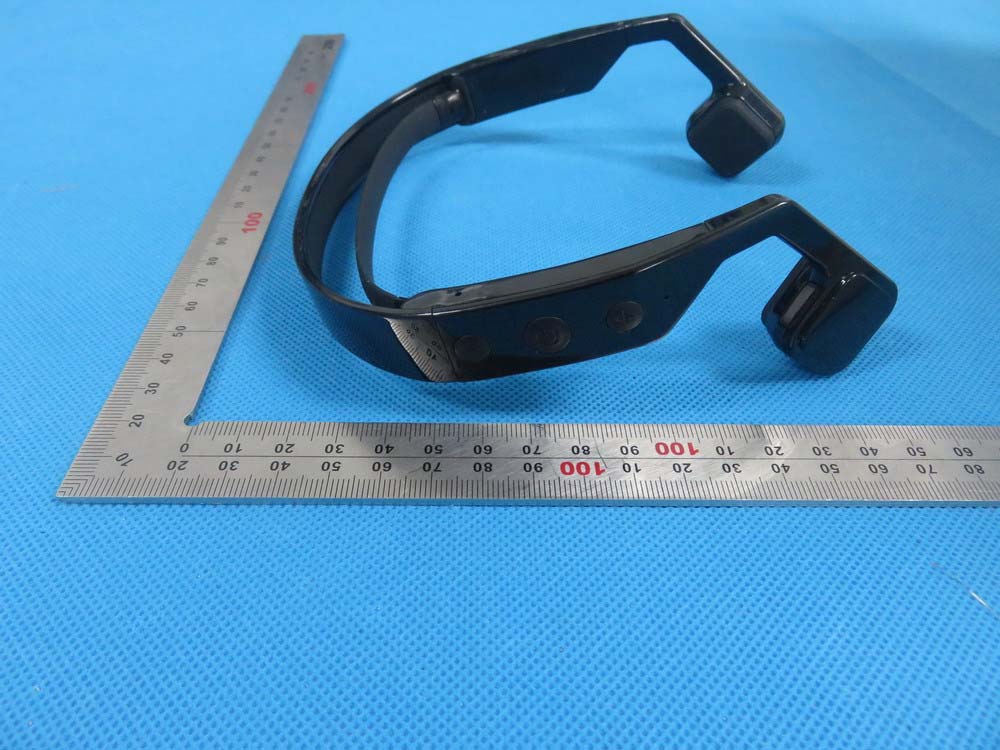

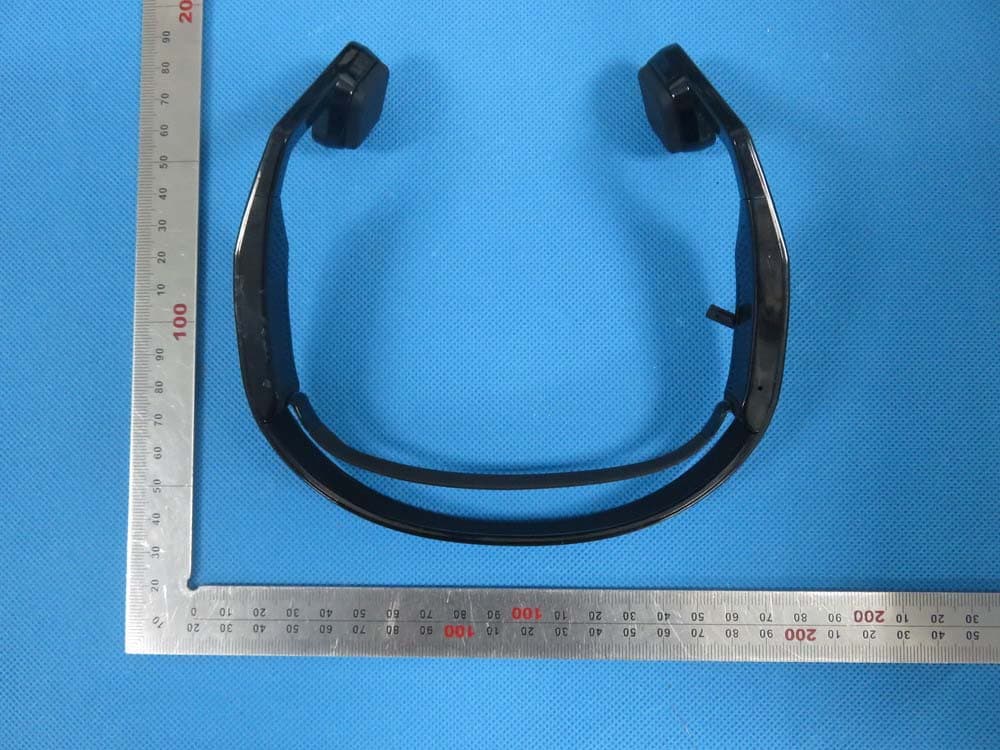

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location Label Size: 30mmx15mm Bluetooth headset Brand: HUHD Model: BDS‐662B FCC ID: ODCBDS‐662B

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Antenna INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7

RF Exposure evaluation Product Description:Bluetooth headset Model Number: BDS-662B FCC ID: ODCBDS-662B According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=91.66dBuv/m=0.038V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.038x3) 2 /(30x1)=0.000433W=0.43mW The result is rounded to one decimal place for comparison Worse case is as below: [2441MHz -0.43mW output power] (0.43mW /5mm) .[√2.441(GHz)]= 0.134<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 52 FCC Test Report Report No.: AGC00190150702FE03 FCC ID : ODCBDS‐662B APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth headset BRAND NAME : HUHD MODEL NAME : BDS‐662B, YKL‐701 CLIENT : Shenzhen Bada Sheng Electronics Co., Ltd. DATE OF ISSUE : Aug.13,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00190150702FE03 Page 2 of 52 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Aug.13,2015 Valid Original Report Report No.: AGC00190150702FE03 Page 3 of 52 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT ............................................................................................................................ 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT .......................................................................................................... 28 10. 20DB BANDWIDTH .......................................................................................................... 32 10.1. MEASUREMENT PROCEDURE .............................................................................................. 32 10.2. TEST SET-UP ........................................................................................................................... 32 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 32 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 39 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 39 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 39 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 40 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 40 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 41 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 43 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 45 Report No.: AGC00190150702FE03 Page 4 of 52 1. VERIFICATION OF CONFORMITY Applicant Shenzhen Bada Sheng Electronics Co., Ltd. Address Blk 12 Foodstuff Ind Park , Songyuan Village, Guanlan Town 518110 Shenzhen China Manufacturer Shenzhen Bada Sheng Electronics Co., Ltd. Address Blk 12 Foodstuff Ind Park , Songyuan Village, Guanlan Town 518110 Shenzhen China Product Designation Bluetooth headset Brand Name HUHD Test Model BDS-662B Series Model YKL-701 Different Description All the same except for the model name Date of test Aug.10,2015 to Aug.12,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Tested By Time Huang(Huang Nanhui) Aug.…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
